Description

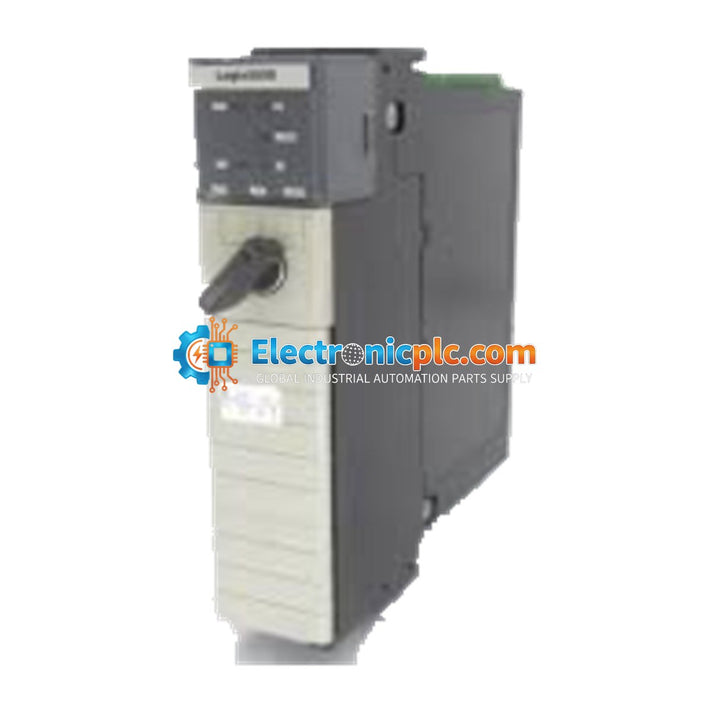

The Allen-Bradley 1756-L62 is a high-performance Logix5562 processor module designed for the ControlLogix platform. This controller provides robust automation control, supporting up to 32 tasks and 100 programs per task to manage complex industrial processes efficiently. With 4 MB of user memory and 478 KB of I/O memory, it is engineered for demanding applications requiring reliable logic execution and high-speed data processing.

Features

• 4 MB user memory capacity for extensive control logic and data storage.
• Supports up to 32 tasks and 100 programs per task for flexible process management.
• Integrated RS-232 serial port for communication and programming.
• Maximum of 250 controller connections to support distributed I/O architectures.
• Optimized for the ControlLogix backplane with a power consumption of 1.2 Amps at 5V DC.

Applications

The 1756-L62 is widely used in industrial automation environments, including manufacturing, material handling, and process control systems. It is ideal for applications requiring high-speed logic, motion control, and complex I/O management within the ControlLogix ecosystem.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-L62 module to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
• Align the module carefully with the chassis guide rails and seat it firmly into the backplane connector.
• Secure the module using the top and bottom retaining screws to ensure a stable connection and proper grounding.
• Maintain adequate ventilation around the chassis to ensure the processor operates within its specified temperature range.

FAQ

What is the primary function of the 1756-L62?

The 1756-L62 acts as the central processor for a ControlLogix system, executing control programs and managing communication between I/O modules and other network devices.

Is this module compatible with other ControlLogix components?

Yes, the 1756-L62 is designed for use in standard 1756 ControlLogix chassis and is compatible with the standard range of 1756 I/O and communication modules.
