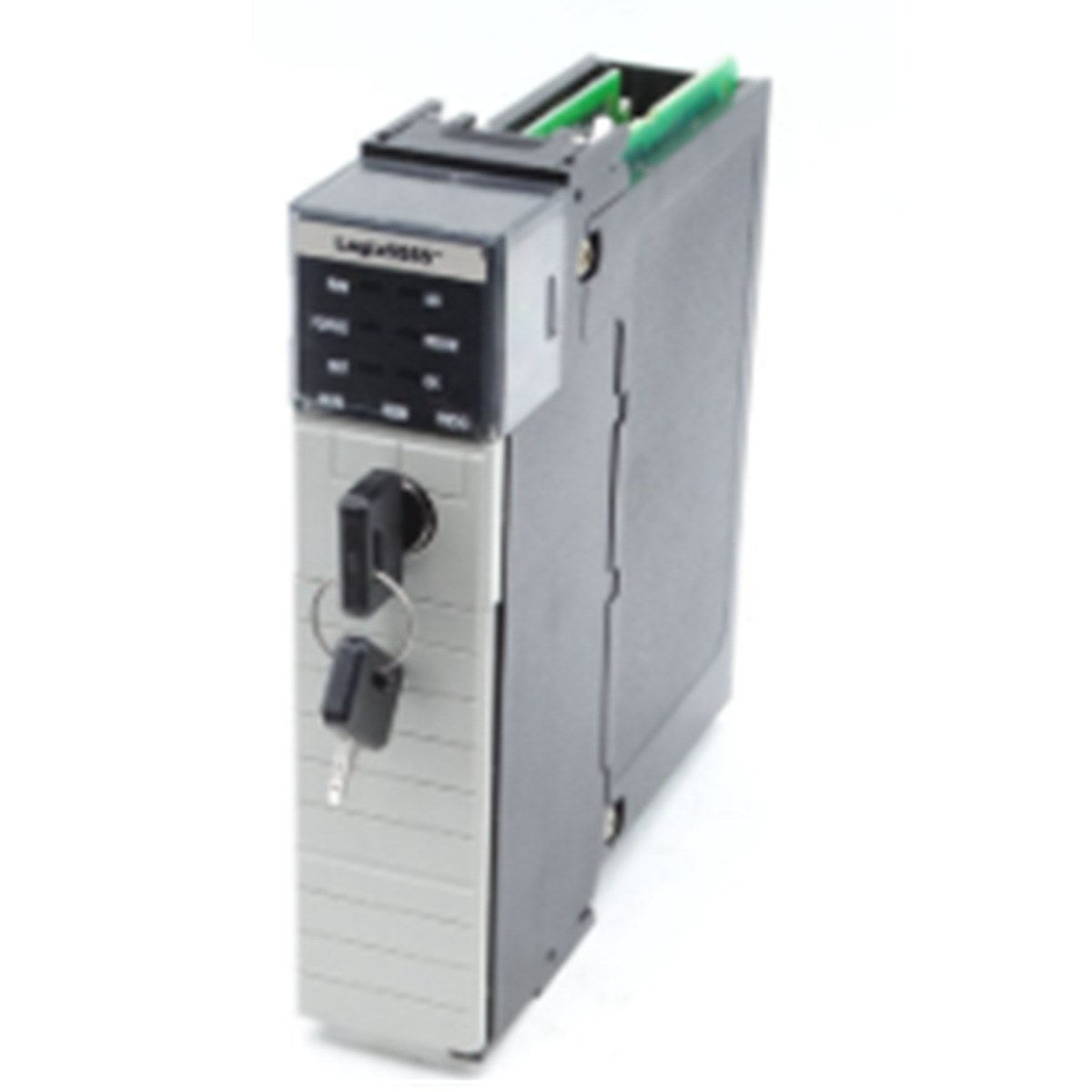

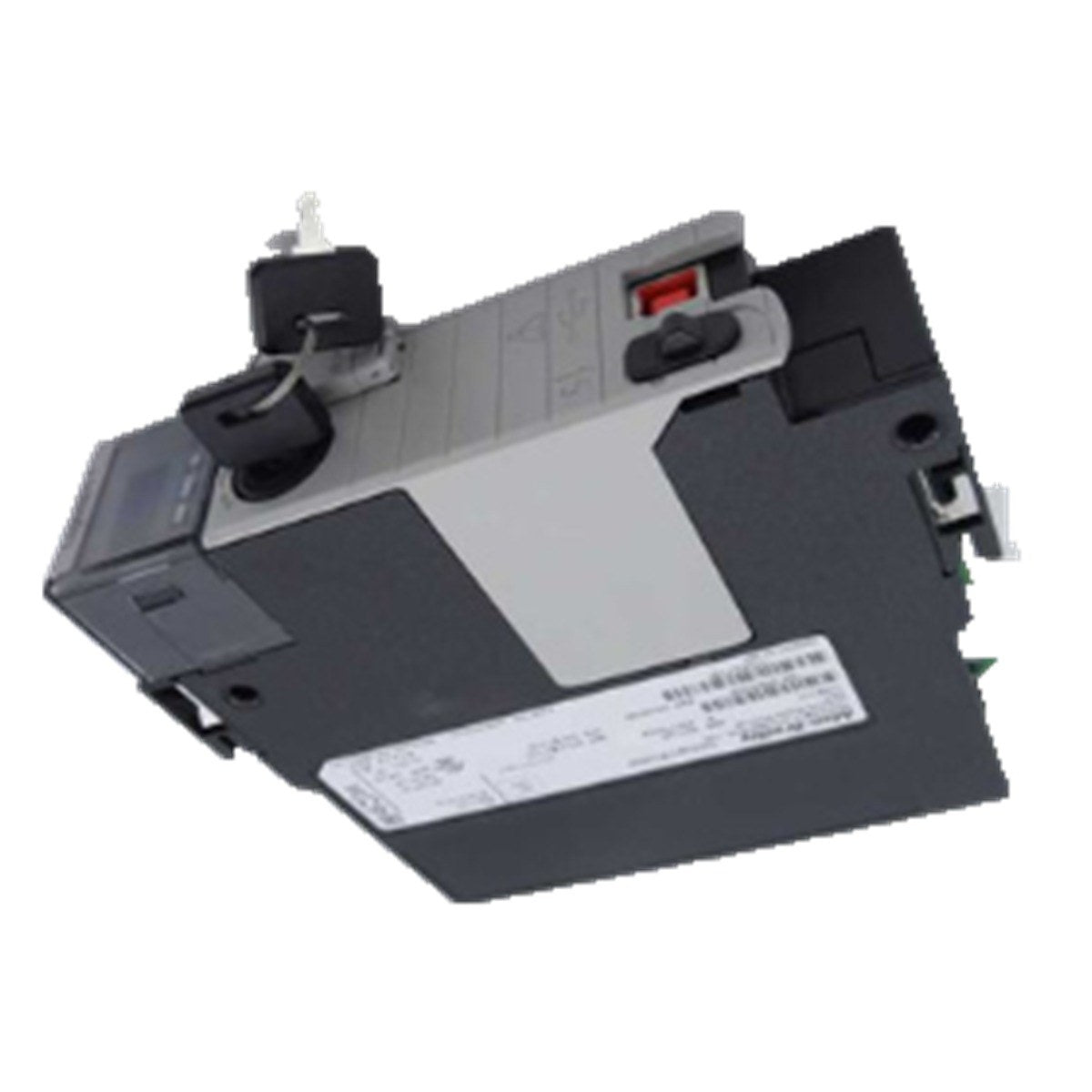

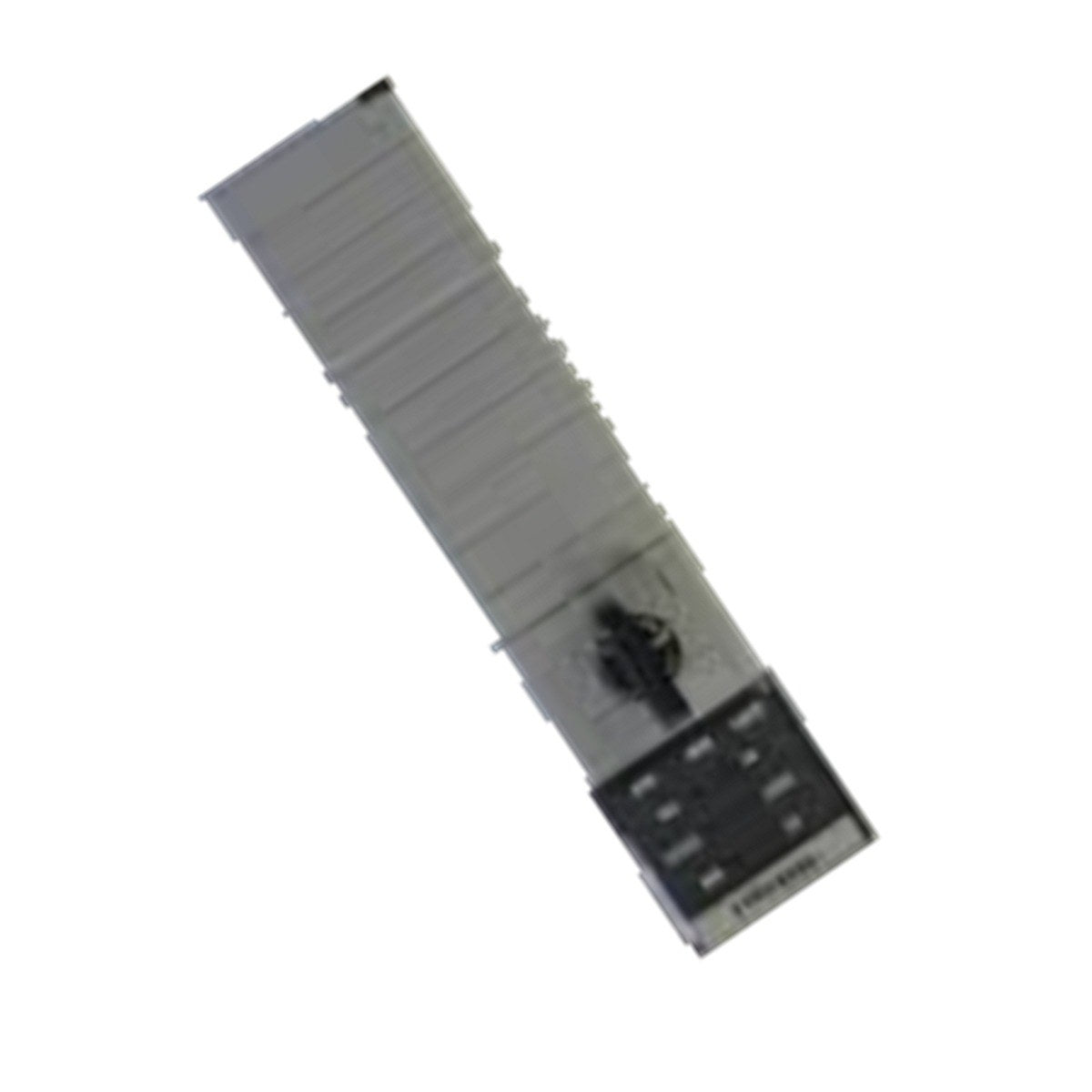

The Allen-Bradley 1756-L65 is a high-performance ControlLogix Logix5565 processor module designed for demanding industrial automation applications. As part of the ControlLogix platform, this controller provides robust processing power and memory capacity to manage complex control tasks, motion control, and data-intensive operations within a distributed I/O architecture.

Features

• 32 MB of user memory for complex application programs and data storage.
• Supports up to 128,000 digital I/O points and 4,000 analog I/O points.
• High-speed processing capabilities for real-time control and rapid response times.
• Integrated I/O memory of 478 KB for efficient data handling.
• Compatible with the standard ControlLogix chassis and backplane communication.

Applications

The 1756-L65 processor is suitable for large-scale manufacturing processes, including automotive assembly, material handling, chemical processing, and power generation systems where high reliability and scalable I/O are required.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the processor module to prevent electrical damage.
• Slide the module into the designated slot in the chassis and secure it using the top and bottom latching mechanisms.
• Maintain proper ventilation in the control cabinet; ensure that the module is not obstructed by wiring or other components to allow for adequate heat dissipation.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
• Verify that the backplane power supply is sized correctly to accommodate the 1200 mA current draw at 5.1V DC.

FAQ

What is the primary function of the 1756-L65?

The 1756-L65 is a central processor unit (CPU) for the Allen-Bradley ControlLogix system, responsible for executing user control programs, managing I/O communication, and coordinating system-wide automation tasks.

Is this module compatible with other ControlLogix components?

Yes, the 1756-L65 is designed for use in standard 1756 ControlLogix chassis and is compatible with the full range of ControlLogix I/O modules and communication bridges.
