Description

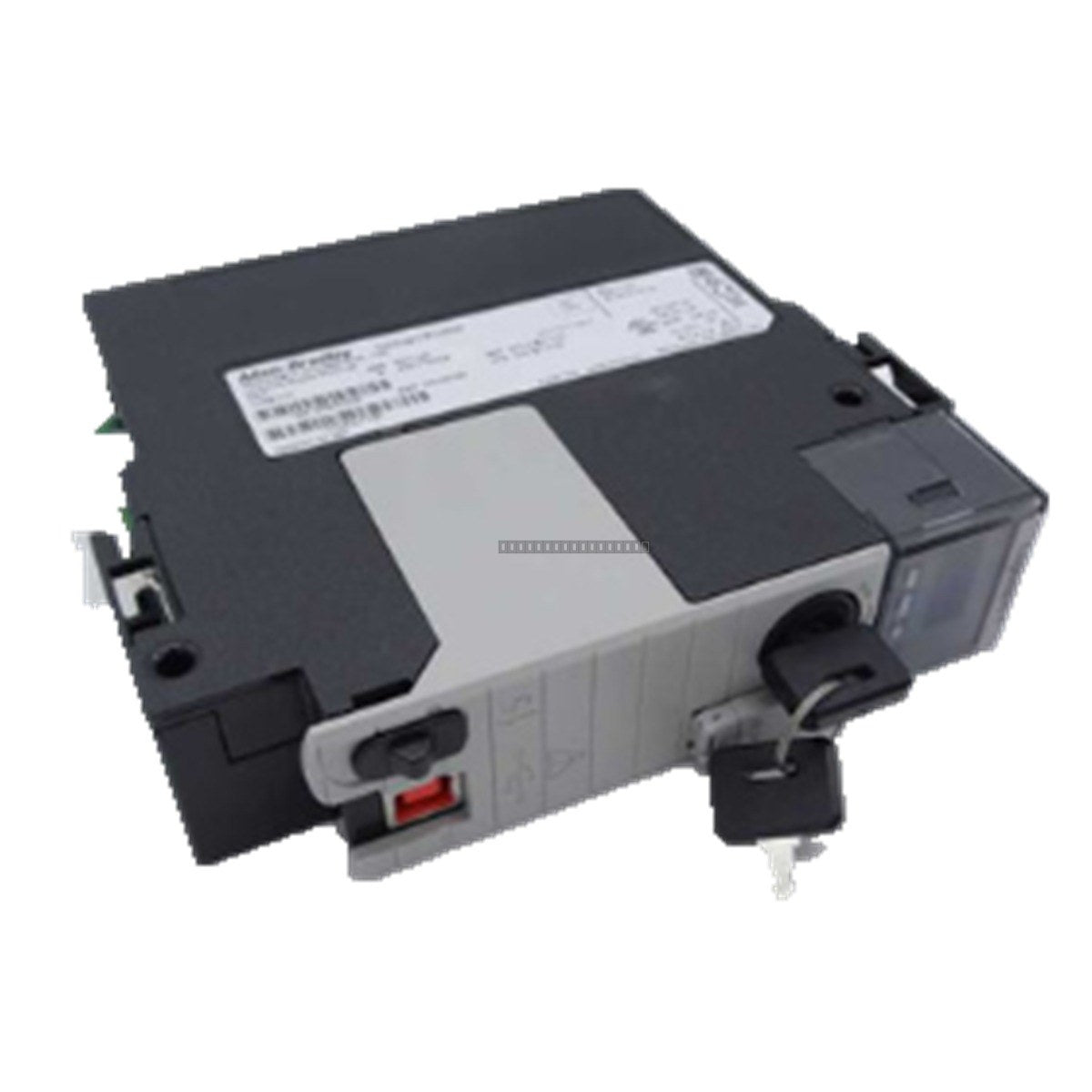

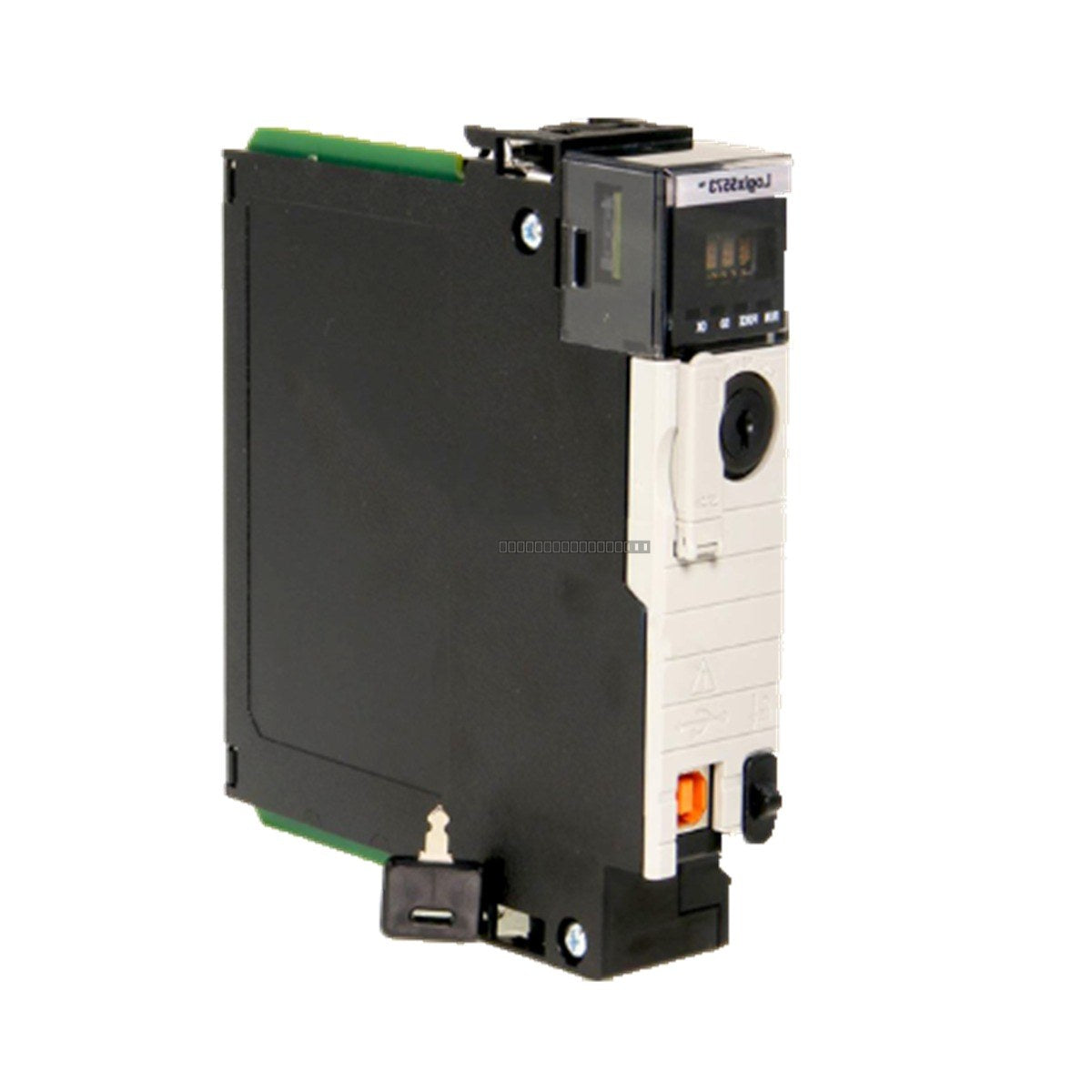

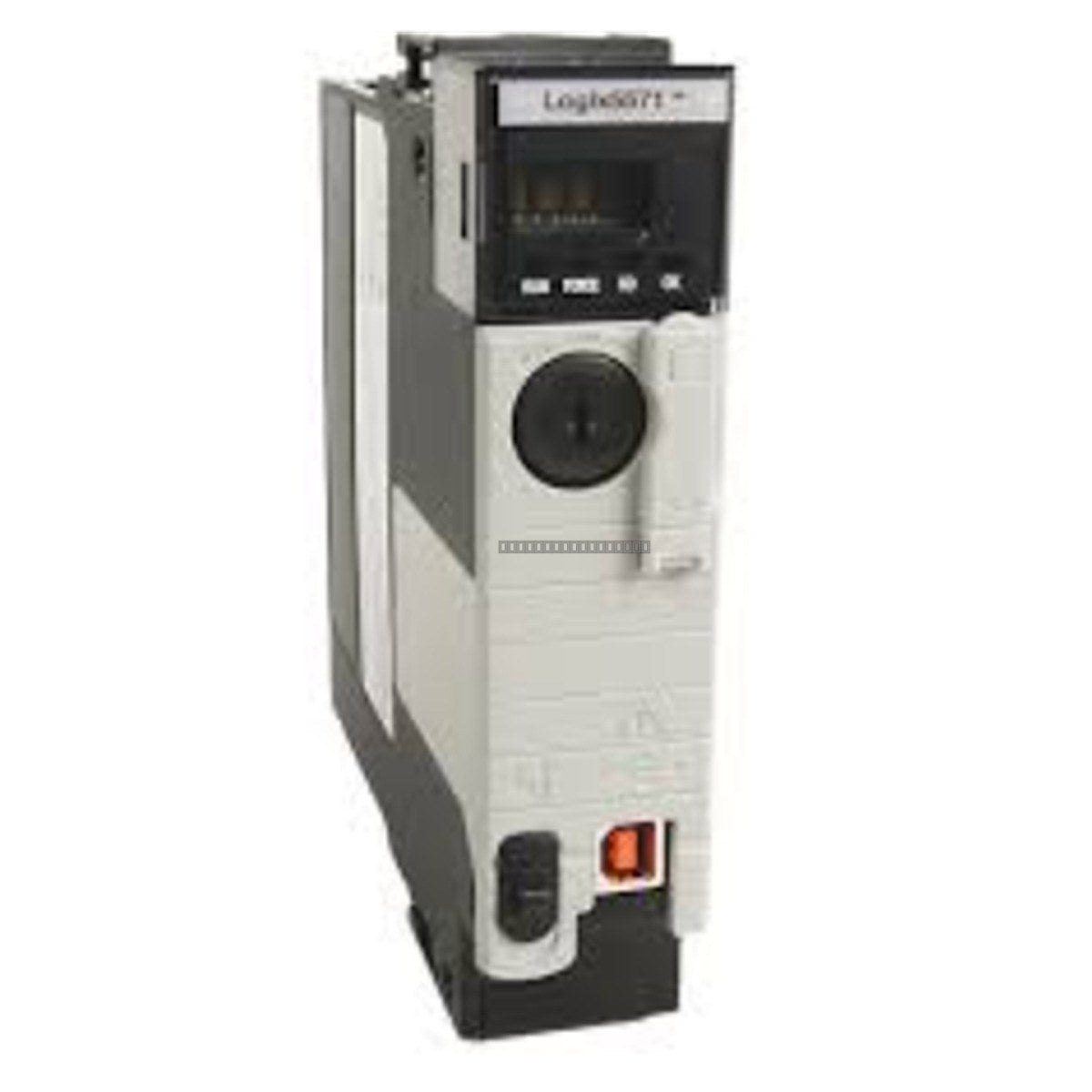

The Allen-Bradley 1756-L71S is a GuardLogix 5571S safety controller designed for high-performance automation and safety-critical applications within the ControlLogix platform. This controller provides integrated safety functionality, allowing users to manage both standard and safety-related control tasks within a single, unified environment. It features 2 MB of user memory and 1 MB of dedicated safety memory to support complex logic execution.

Features

• Integrated safety and standard control in a single controller.
• Supports high-density I/O configurations for large-scale automation systems.
• Designed for use with the ControlLogix chassis-based architecture.
• High-speed processing for demanding industrial control loops.
• Supports standard communication protocols for seamless integration with plant-wide networks.

Technical Specifications

Installation Guidelines

• Ensure the controller is installed in a compatible ControlLogix chassis.
• Power down the chassis before inserting or removing the controller module to prevent electrical damage.
• Maintain proper ventilation around the chassis to ensure thermal dissipation remains within specified limits.
• Use shielded cables for communication and I/O connections to minimize EMI interference.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
• Verify that the module is fully seated and the locking latch is engaged before applying power.

FAQ

What is the primary function of the 1756-L71S?

The 1756-L71S is a GuardLogix safety controller used to execute safety-rated logic in industrial automation systems, ensuring machine and process safety alongside standard control operations.

Is this controller compatible with standard ControlLogix I/O?

Yes, the 1756-L71S is designed to operate within the ControlLogix environment and is compatible with standard ControlLogix I/O modules, provided the system is configured correctly for safety applications.
