Description

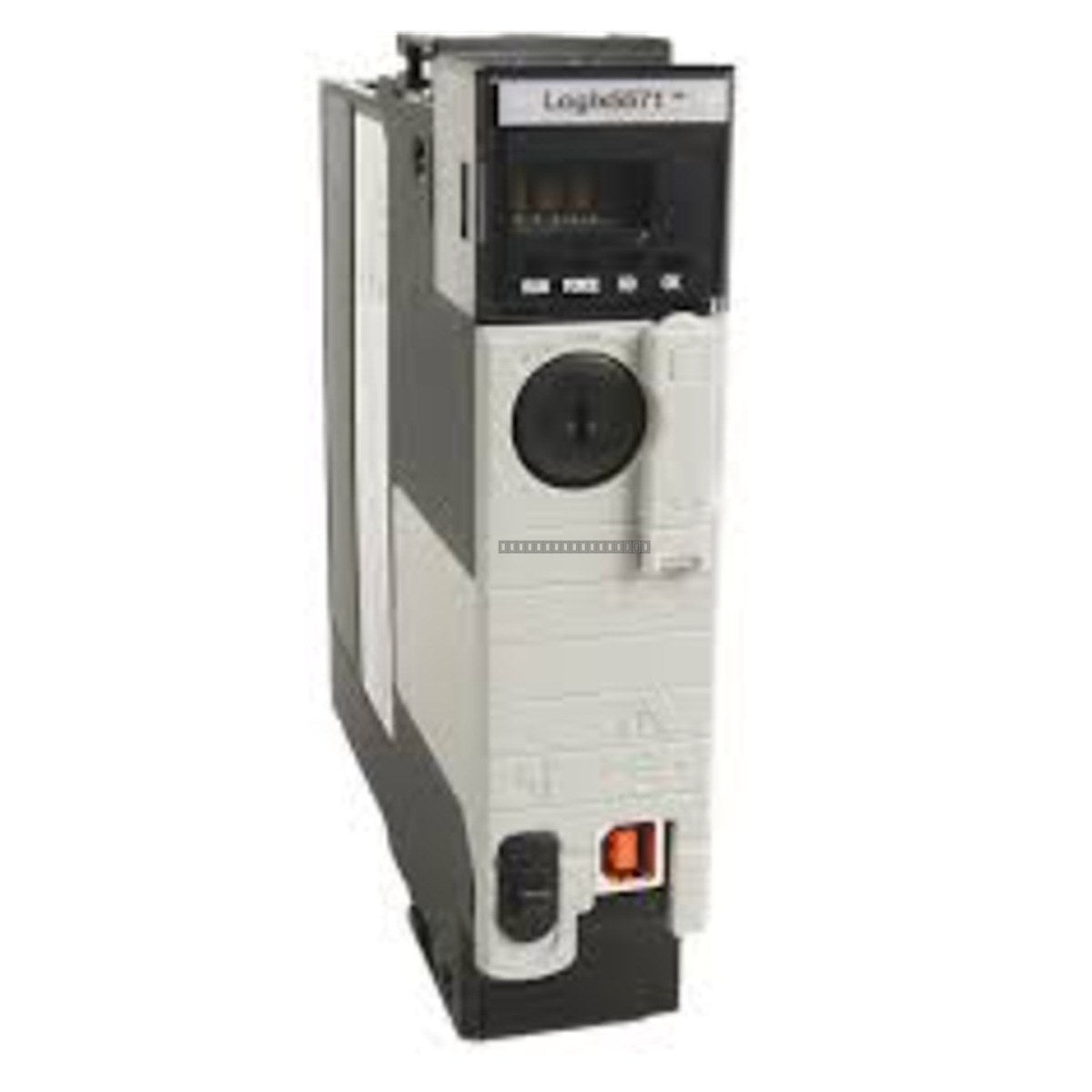

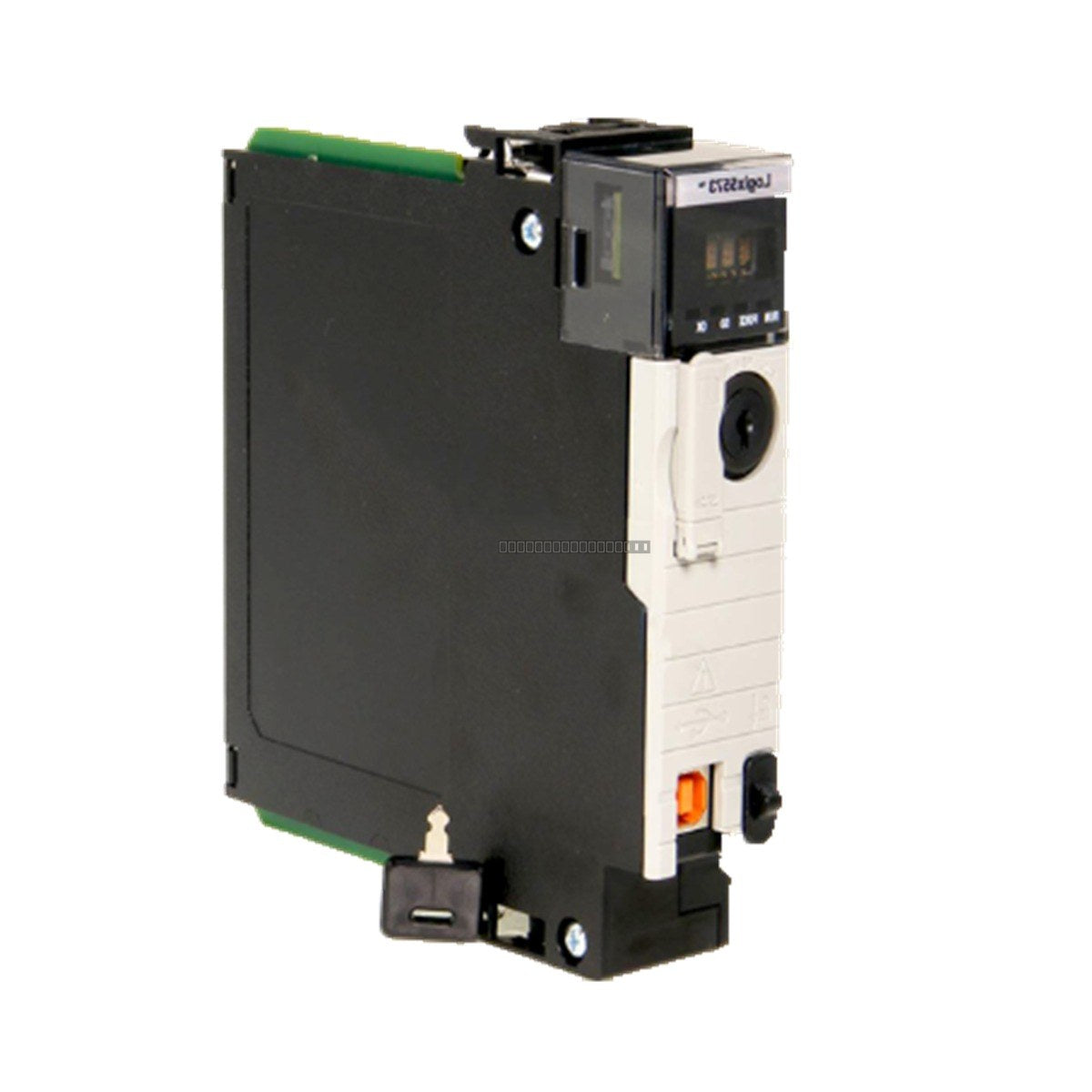

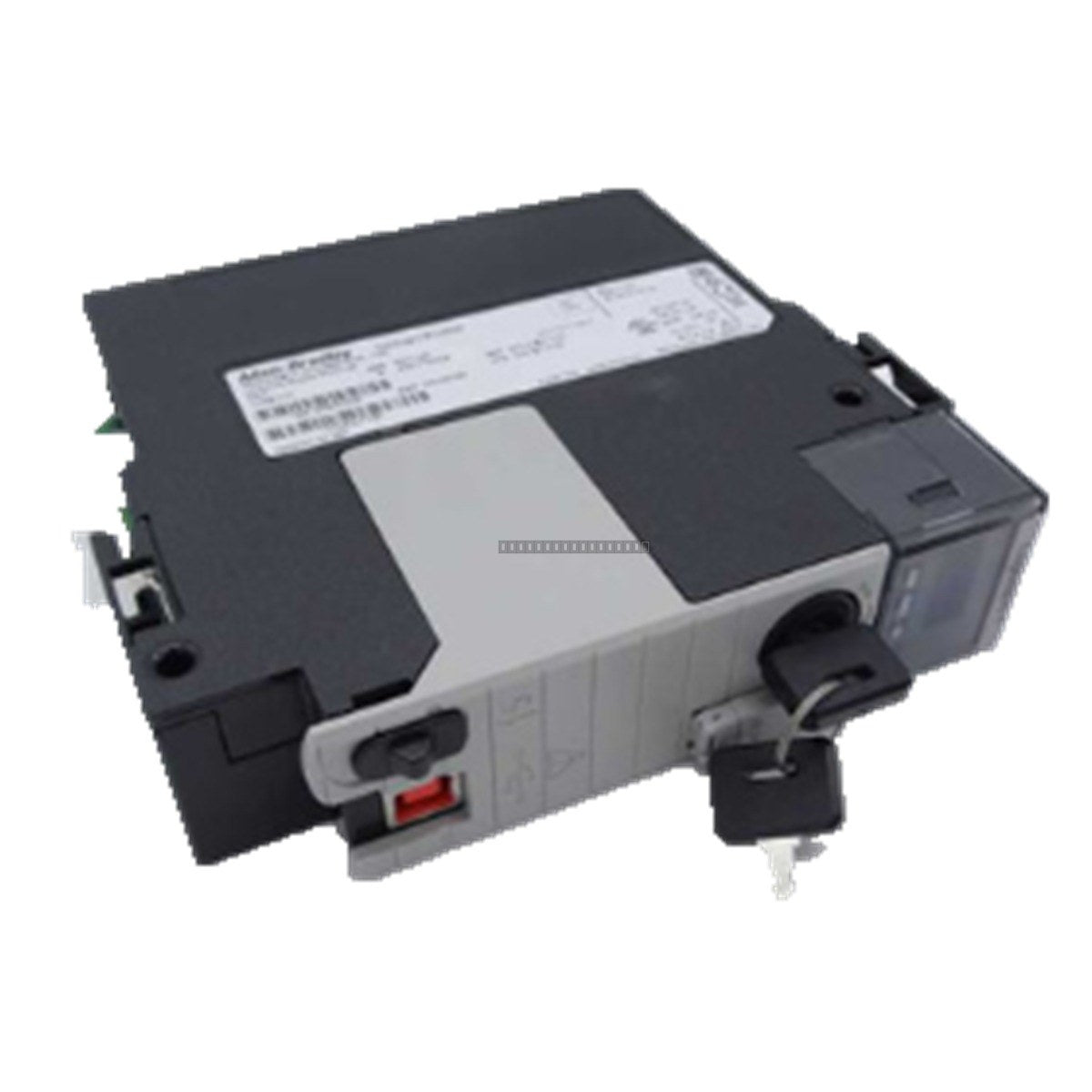

The Allen-Bradley 1756-L73 is a high-performance ControlLogix 5573 controller designed for demanding industrial automation applications. This controller provides 8 MB of user memory and 0.98 MB of I/O memory, supporting complex control logic and large-scale I/O configurations. It features a built-in USB port for convenient programming and diagnostics, as well as a 4-character alphanumeric display for real-time status and fault reporting.

Features

• 8 MB user memory capacity for complex control algorithms.
• 0.98 MB dedicated I/O memory.
• Integrated USB port for local communication and configuration.
• 4-character alphanumeric display for status monitoring and diagnostic feedback.
• Supports up to 500 controller connections.
• High-density I/O support with a maximum of 128,000 I/O points.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is properly grounded before installing the controller module.
• The 1756-L73 is designed for installation into a standard ControlLogix chassis; ensure the module is fully seated and the locking tab is engaged.
• Always remove power from the chassis before inserting or removing the controller to prevent electrical damage or unexpected system behavior.
• Maintain adequate clearance around the chassis to ensure proper airflow and cooling, as the module dissipates 2.5 Watts of power.
• Observe ESD precautions when handling the module to prevent damage to internal electronic components.

FAQ

What is the primary function of the 1756-L73 controller?
The 1756-L73 is a central processing unit for the ControlLogix platform, responsible for executing user-defined control programs, managing I/O data, and coordinating communication across industrial networks.

Does this controller support remote communication?
Yes, the 1756-L73 supports various communication modules within the ControlLogix chassis to facilitate Ethernet/IP, ControlNet, and DeviceNet connectivity.
