Description

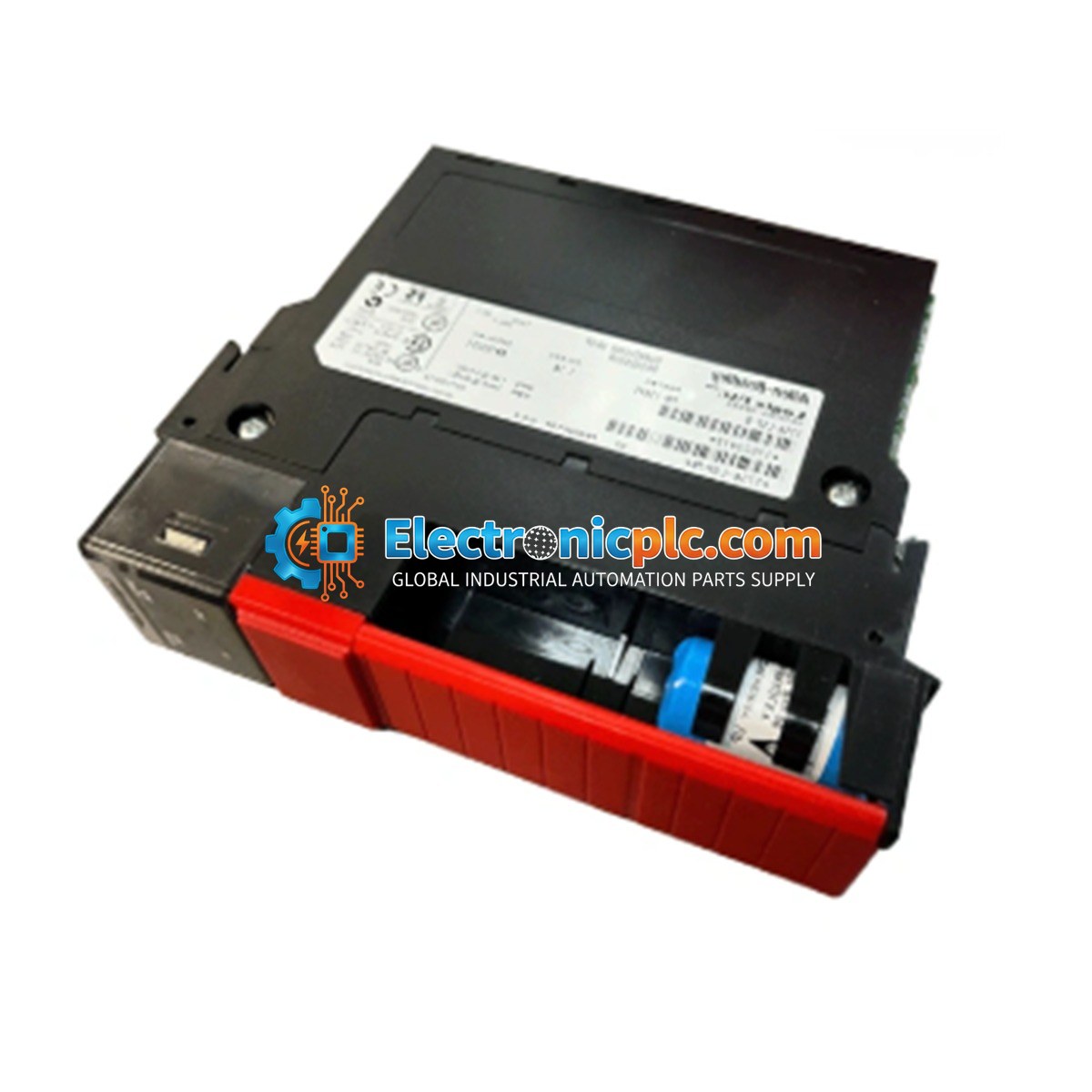

The Allen-Bradley 1756-L73S is a high-performance GuardLogix 5570 series controller designed for integrated safety and standard control applications. As part of the ControlLogix platform, this processor provides the computational power and safety integrity required for complex machine automation and process safety tasks. It features dedicated safety memory and supports the high-speed communication capabilities inherent to the Logix5570 architecture.

Features

• Integrated safety and standard control in a single controller.
• 4 MB of dedicated safety memory for safety-rated applications.
• Includes 1GB non-volatile memory for program storage and data logging.
• High-capacity I/O support, capable of managing up to 128,000 I/O points.
• Optimized for demanding industrial environments requiring SIL 3 safety ratings.
• Standard ControlLogix chassis-based mounting for modular flexibility.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is properly grounded before installing the module.
• The 1756-L73S must be installed in a standard ControlLogix chassis; ensure the module is fully seated and the locking latch is engaged.
• Always power down the chassis backplane before inserting or removing the processor module to prevent electrical damage.
• Maintain adequate clearance around the chassis for proper airflow and cooling, as the module dissipates 2.5 Watts of power.
• Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
• Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the 1756-L73S?

The 1756-L73S is a GuardLogix safety controller used to execute both standard control logic and safety-related control logic within a single, integrated ControlLogix system.

Does this controller require a specific chassis?

Yes, this module is designed for use in a standard Allen-Bradley ControlLogix chassis. It occupies a single slot in the chassis.

Is the non-volatile memory included?

Yes, the 1756-L73S ships with a 1GB non-volatile memory card for storage of the controller project and data.
