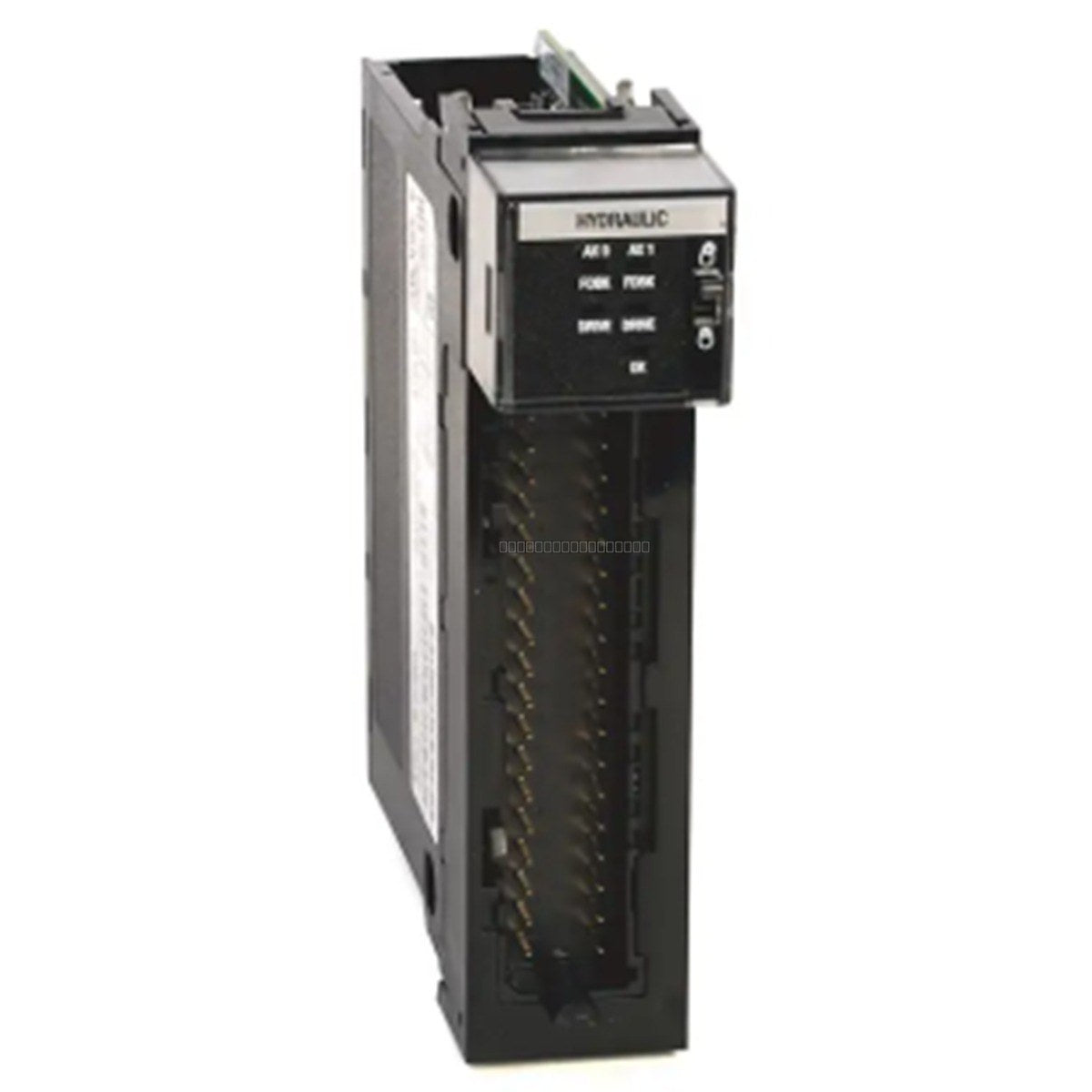

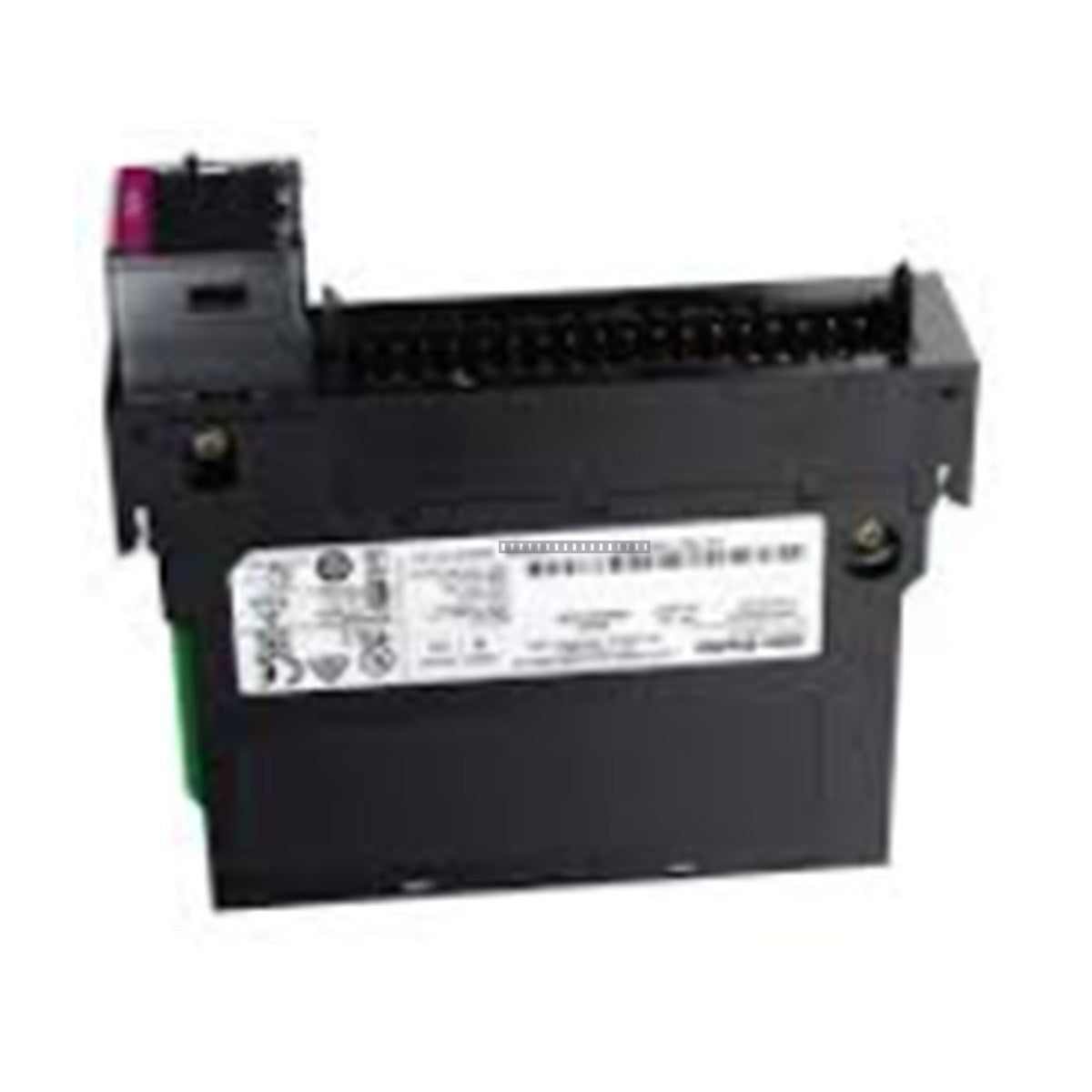

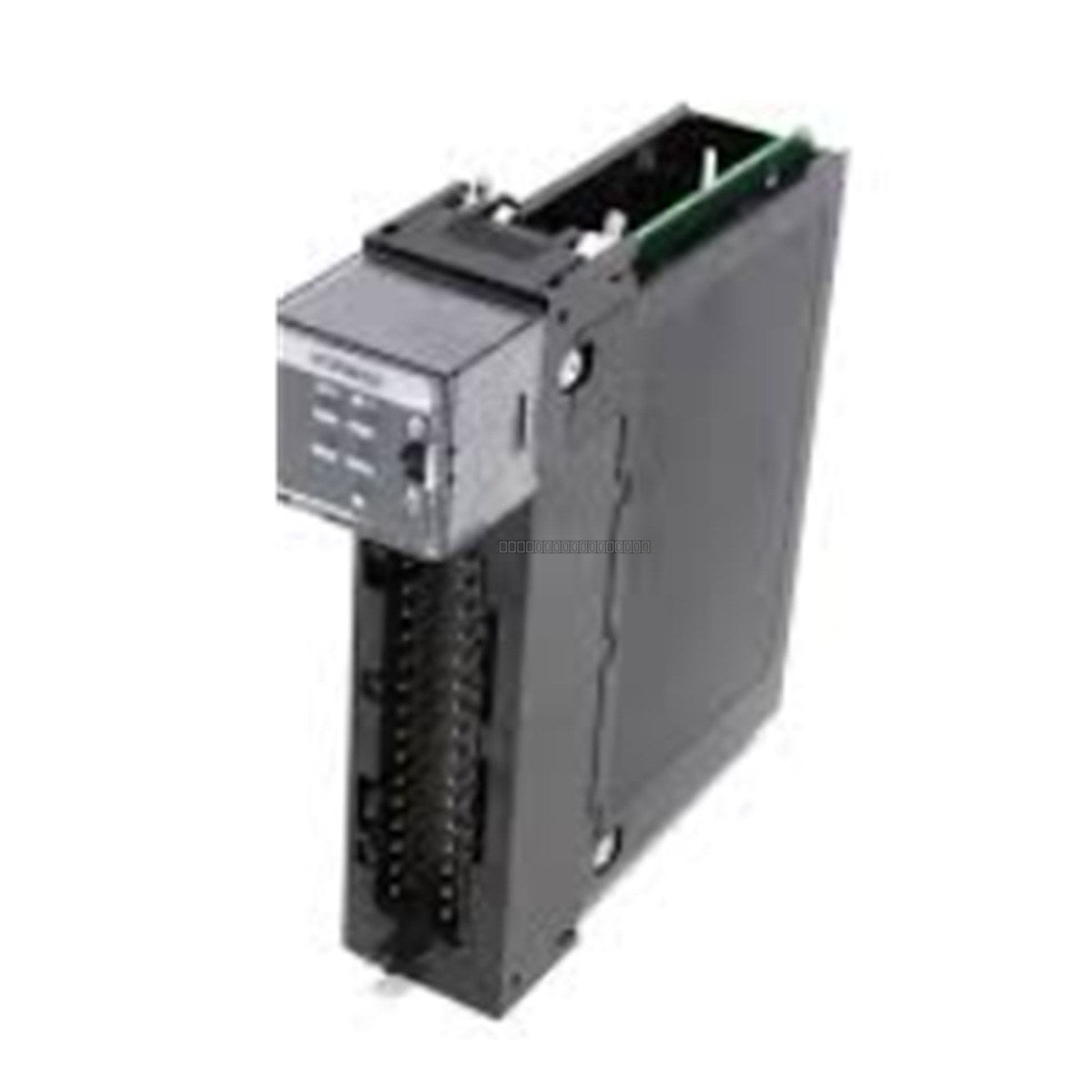

The Allen-Bradley 1756-M02AS is a ControlLogix Integrated Motion module designed to provide high-performance motion control for industrial automation applications. This module supports two axes per module and is compatible with the ControlLogix platform, allowing for up to 32 axes per controller.

Features

• Supports 2 axes per module.
• Integrated motion control with 32-bit floating-point gain resolution.
• Analog voltage servo output with a range of +/- 10V DC.
• 16-bit analog output resolution for precise control.
• Includes solid-state isolated relay contacts for discrete outputs.
• Discrete output operating voltage: 24V DC nominal.

Applications

This module is typically used in complex motion control systems requiring high-speed, synchronized axis management, such as packaging machinery, material handling, and precision assembly lines within the ControlLogix architecture.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module.
• The module is designed for standard ControlLogix backplane mounting.
• Use shielded cables for analog signal connections to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the chassis to a common earth ground to maintain signal integrity.
• Maintain adequate clearance around the module to ensure proper airflow and cooling within the cabinet.

FAQ

What is the primary function of the 1756-M02AS?
It is a motion control module that interfaces with servo drives using analog voltage signals to control axis movement within a ControlLogix system.

How many axes can this module control?
The 1756-M02AS supports 2 axes per module.
