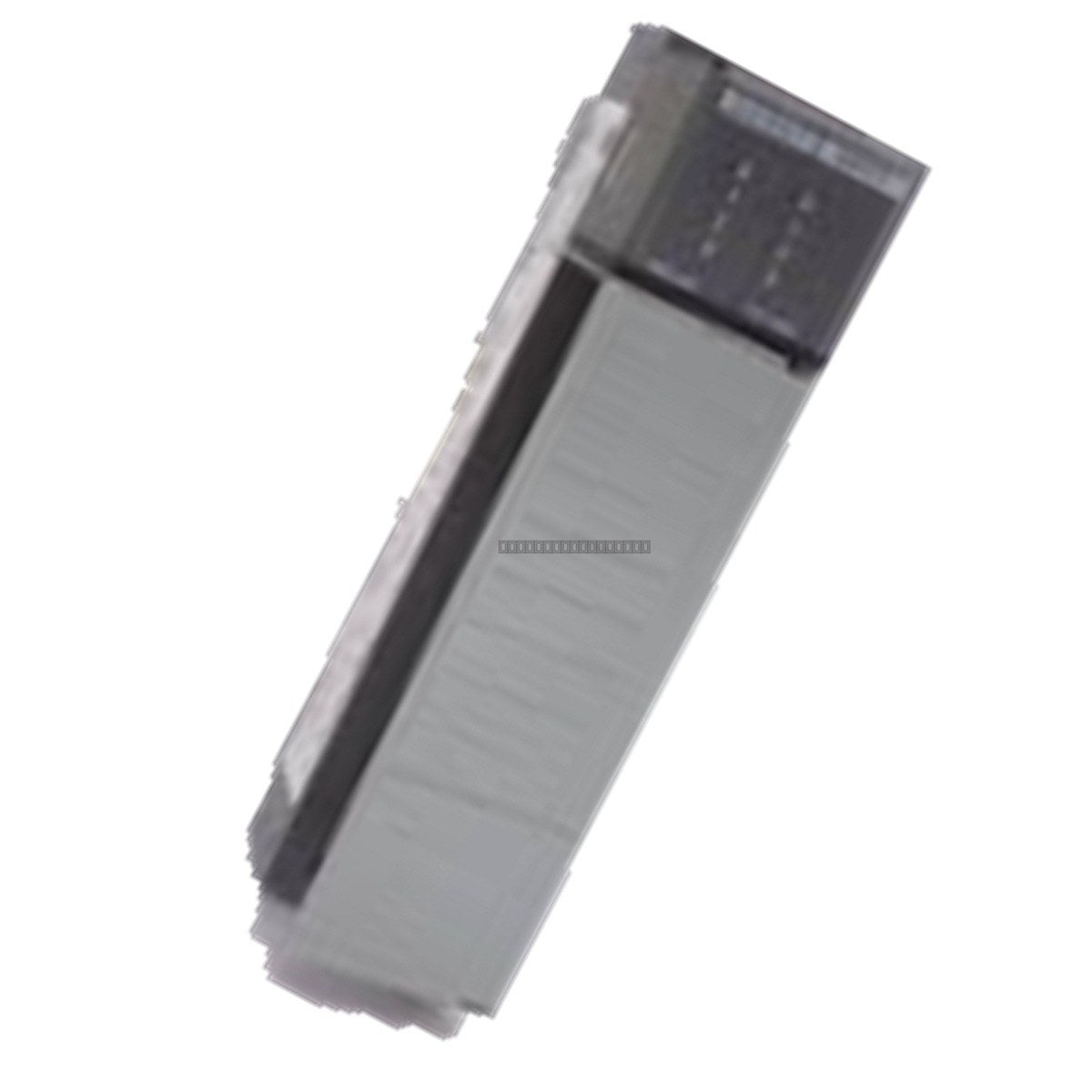

The Allen-Bradley 1756-M03SE is a ControlLogix SERCOS interface module designed to provide high-speed, digital communication between a ControlLogix controller and up to three servo drives. This module facilitates precise motion control by enabling real-time data exchange over the SERCOS (Serial Real-time Communication System) interface, supporting data rates of 4 Mbps or 8 Mbps.

Features

• Supports up to 3 axes of motion control.
• Compatible with the ControlLogix platform for seamless system integration.
• Selectable SERCOS data rates of 4 Mbps or 8 Mbps.
• Occupies a single slot in the ControlLogix chassis.
• Low power dissipation of 5.0 W.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
• The module is designed for installation in any slot of a standard ControlLogix chassis.
• Use appropriate ESD precautions when handling the module to prevent damage to sensitive internal components.
• Ensure proper grounding of the chassis and shielded cabling for the SERCOS interface to minimize EMI interference.
• Maintain adequate clearance around the module to ensure proper airflow and cooling, adhering to the specified operating temperature range.

FAQ

What is the primary function of the 1756-M03SE?
The 1756-M03SE acts as a communication bridge between the ControlLogix controller and servo drives, allowing for synchronized multi-axis motion control via the SERCOS protocol.

Is this module compatible with all ControlLogix chassis?
Yes, the 1756-M03SE is designed for use in standard ControlLogix I/O chassis and occupies a single slot.
