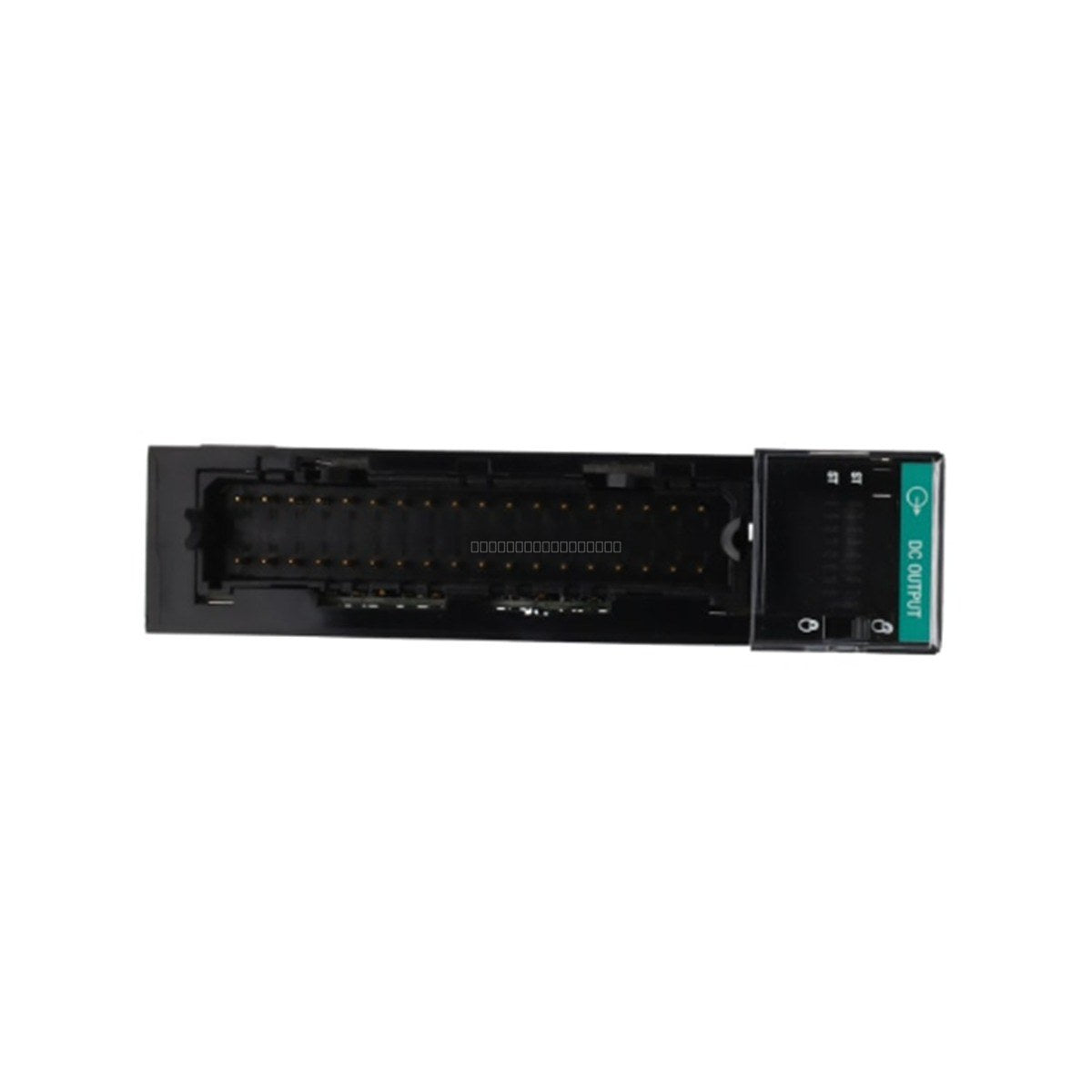

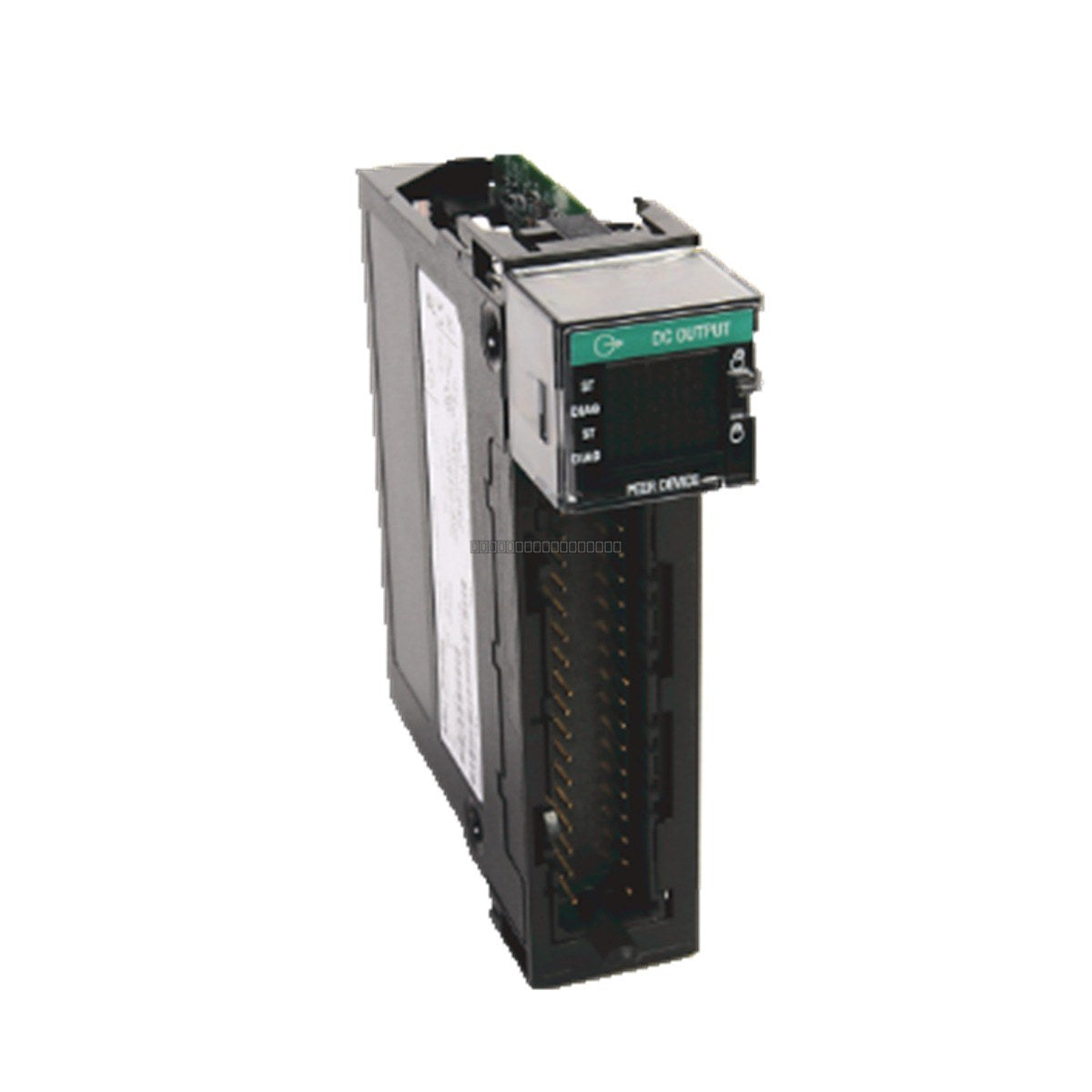

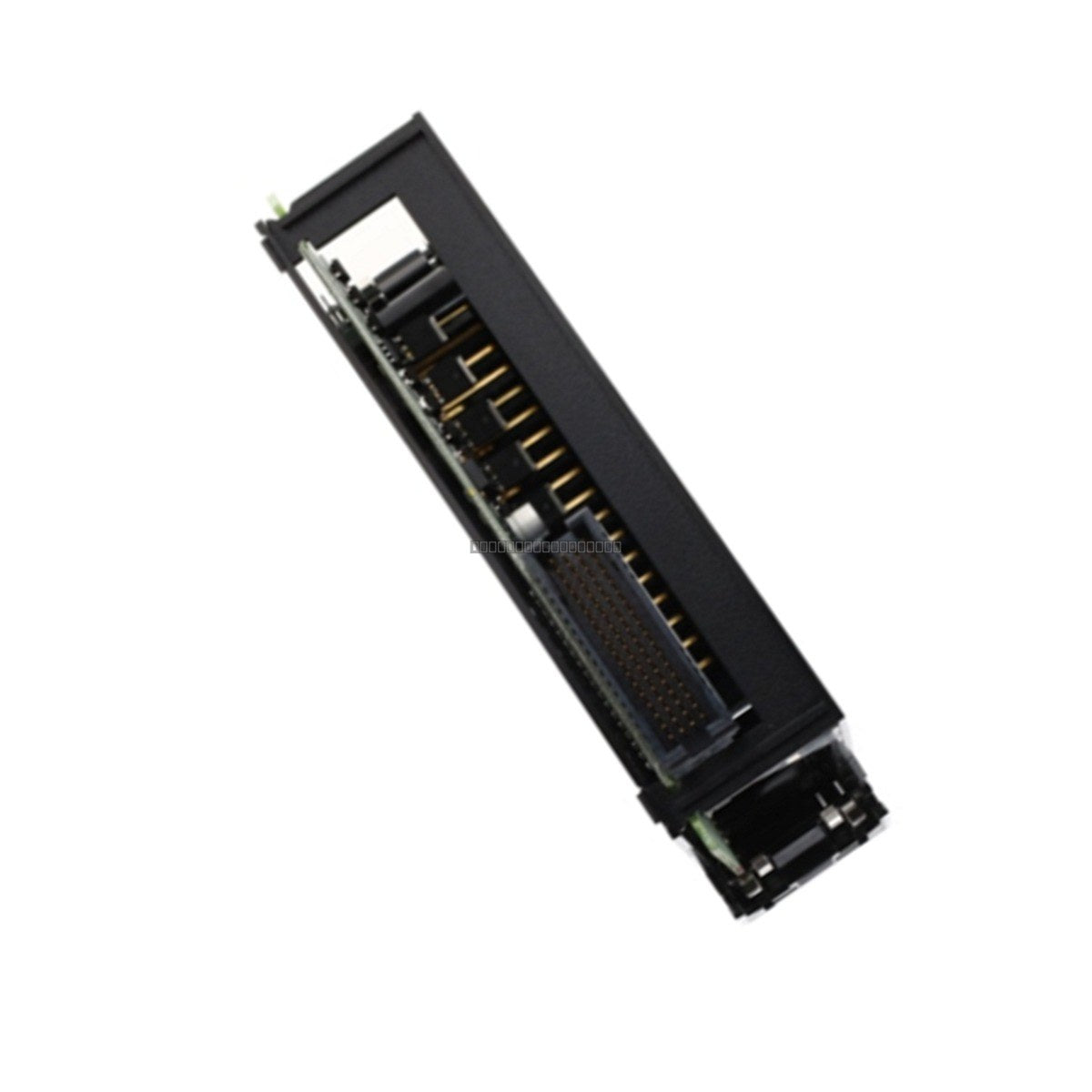

The Allen-Bradley 1756-OB16IS is a high-performance ControlLogix digital DC output module designed for industrial automation applications requiring individual channel isolation and scheduled output capabilities. This module provides 16 isolated output points, supporting both current sinking and current sourcing configurations to offer flexibility in complex control architectures.

Features

• 16 individually isolated output channels.
• Supports scheduled output functionality for precise timing and control.
• Configurable for current sinking or current sourcing operation.
• Wide operating voltage range of 10 to 30V DC, compatible with 12/24V DC systems.
• Designed for seamless integration into the ControlLogix chassis backplane.

Applications

This module is typically utilized in industrial control systems where electrical isolation between output channels is required to prevent ground loops or to manage mixed-voltage control circuits. It is commonly deployed in manufacturing, process control, and material handling systems integrated with the Rockwell Automation ControlLogix platform.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before installing or removing the module.
• Verify that the module is fully seated in the chassis slot and secured with the top and bottom latches.
• Use appropriate shielded cabling for output connections to minimize EMI interference.
• Ensure proper grounding of the chassis to a common earth ground point.
• Maintain adequate clearance around the module to allow for proper thermal dissipation, especially in high-temperature environments.
• Handle the module using ESD-safe practices to prevent damage to internal circuitry.

FAQ

Q: Is the 1756-OB16IS compatible with all ControlLogix chassis?
A: Yes, this module is designed for standard ControlLogix I/O chassis. Ensure your firmware version supports this specific module type.

Q: Can this module be used for both sinking and sourcing?
A: Yes, the 1756-OB16IS is designed to support both current sinking and current sourcing configurations depending on the wiring and application requirements.
