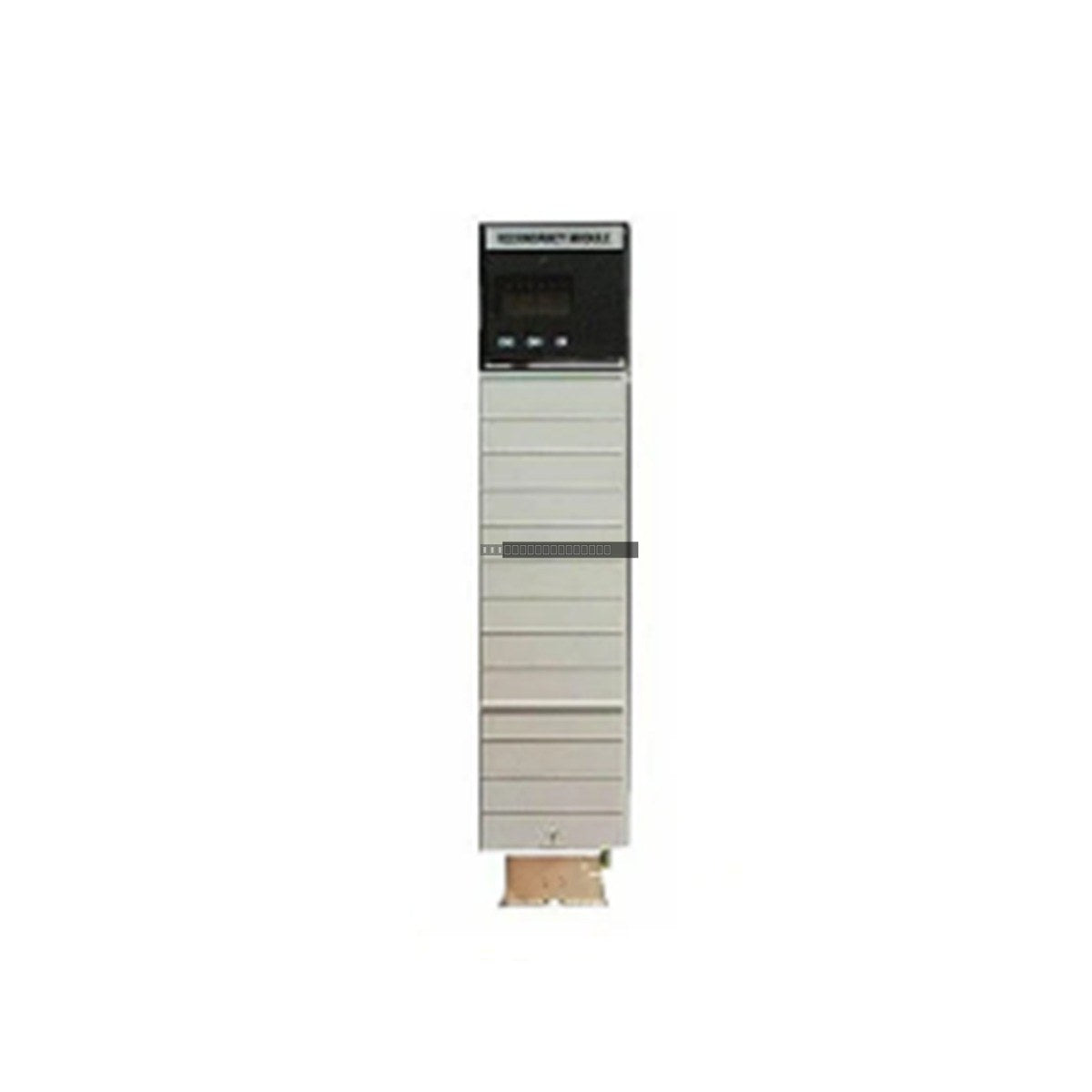

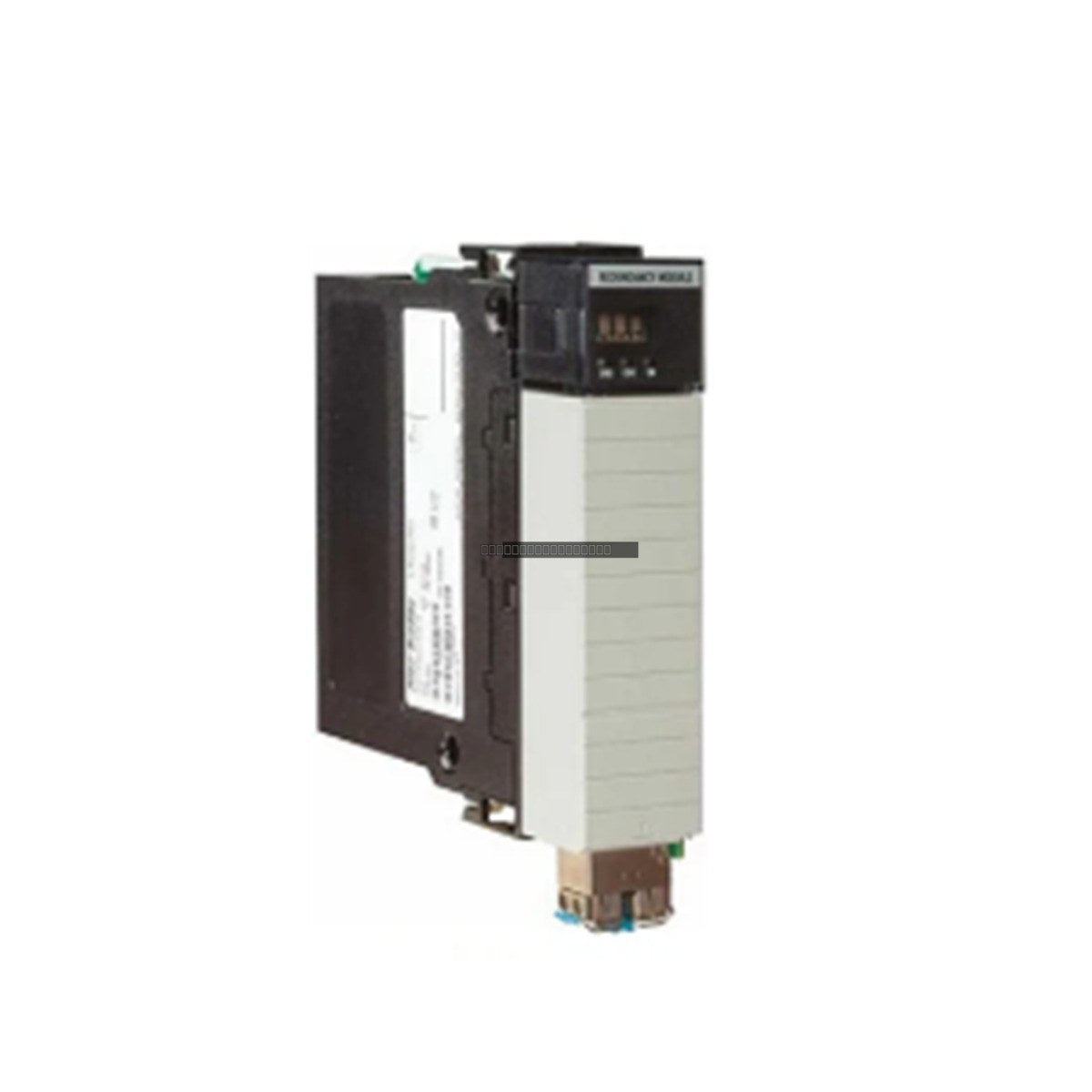

The Allen-Bradley 1756-RM2 is an Enhanced Redundancy Module designed for the ControlLogix platform. This module facilitates seamless controller redundancy, ensuring high availability and system reliability in critical industrial automation environments. It utilizes fiber-optic communication to maintain synchronization between redundant controller pairs.

Features

• Supports high-speed redundancy synchronization at up to 1000 Mbps.
• Single-channel configuration featuring dedicated transmit and receive fiber ports.
• Extended distance capability, supporting communication links up to 10 km.
• Compatible with ControlLogix SIL2 safety application requirements.
• Utilizes 8.5/125 micron single-mode fiber-optic cabling for robust data transmission.

Applications

This module is engineered for mission-critical processes where controller downtime must be minimized. It is commonly deployed in large-scale manufacturing, power generation, and petrochemical processing systems where ControlLogix redundancy is required to maintain continuous operation.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-RM2 module to prevent electrical damage.
• Handle the fiber-optic connectors with care; ensure they are clean and free of dust or debris before insertion.
• Route fiber-optic cables away from high-voltage power lines and sources of significant electromagnetic interference (EMI).
• Maintain proper bend radii for fiber-optic cables to prevent signal attenuation or fiber breakage.
• Verify that the module is fully seated in the chassis slot and the locking tabs are engaged.

FAQ

What type of fiber cable is required for the 1756-RM2?
The module requires 8.5/125 micron single-mode fiber-optic cable with a 1310 nm wavelength.

Can this module be used in SIL2 applications?
Yes, the 1756-RM2 is designed to be used within ControlLogix SIL2 safety-rated systems.

What is the maximum transmission distance?
The module supports communication distances of up to 10 km depending on the fiber installation quality.
