Description

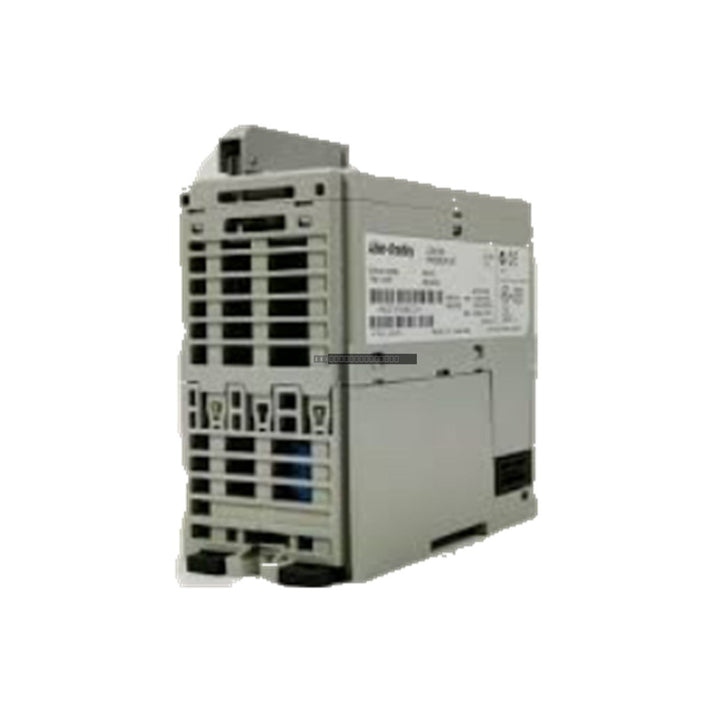

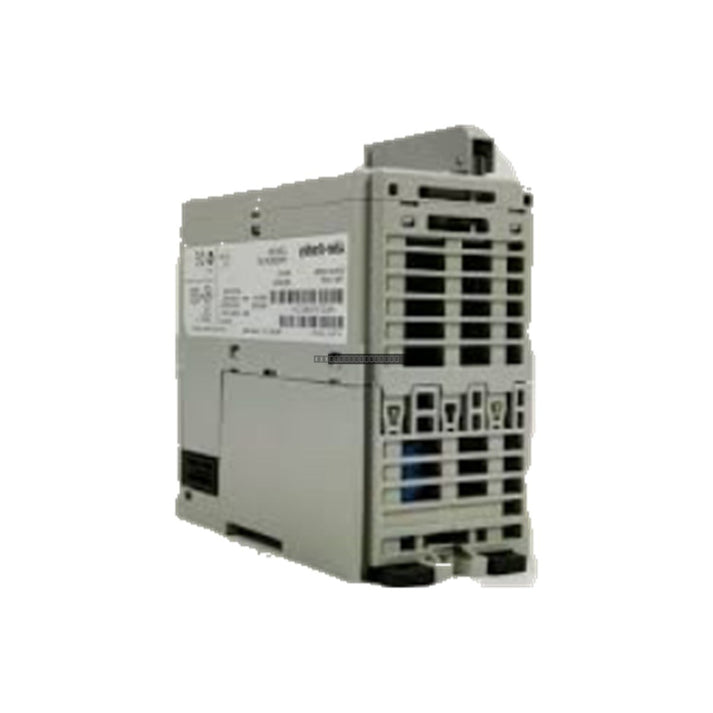

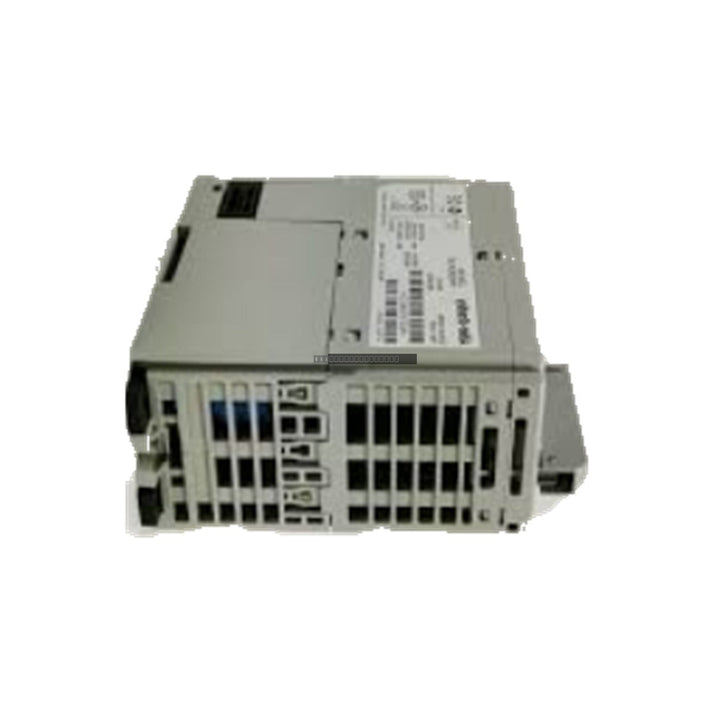

The Allen-Bradley 1768-ENBT is a high-performance communication module designed for the CompactLogix platform. It facilitates seamless Ethernet connectivity, allowing for efficient data exchange and integration within industrial control systems. This module is specifically engineered to interface with 1768-L43 and 1768-L45 controllers, providing robust network communication capabilities for demanding automation environments.

Features

• Integrated RJ45 Ethernet port supporting 10/100 Mbps data transfer rates.
• Supports linear network topologies for flexible system architecture.
• Compatible with Category 5 or Category 6 cabling for reliable signal integrity.
• Optimized for integration with CompactLogix 1768-L43 and 1768-L45 controller series.
• Supports up to 64 CIP connections and 32 Ethernet TCP/IP connections.
• Compact design suitable for both DIN-rail and panel mounting configurations.

Technical Specifications

Installation Guidelines

• Ensure the controller and power supply are powered down before installing or removing the module from the 1768 backplane.
• The module is designed for mounting within the 1768 CompactLogix system chassis.
• Use shielded Category 5 or 6 Ethernet cabling to minimize electromagnetic interference (EMI) in industrial environments.
• Maintain proper ventilation clearance around the module to ensure operation within the specified temperature range.
• Verify that the module is securely seated on the DIN rail or panel mount to prevent vibration-related connection issues.

FAQ

What controllers are compatible with the 1768-ENBT?

This module is specifically designed for use with the Allen-Bradley 1768-L43 and 1768-L45 CompactLogix controllers.

How many connections does this module support?

The module supports a maximum of 64 CIP connections and 32 Ethernet TCP/IP connections.

What type of cable is required for the Ethernet port?

The module features an RJ45 connector and requires standard Category 5 or Category 6 Ethernet cabling for operation.
