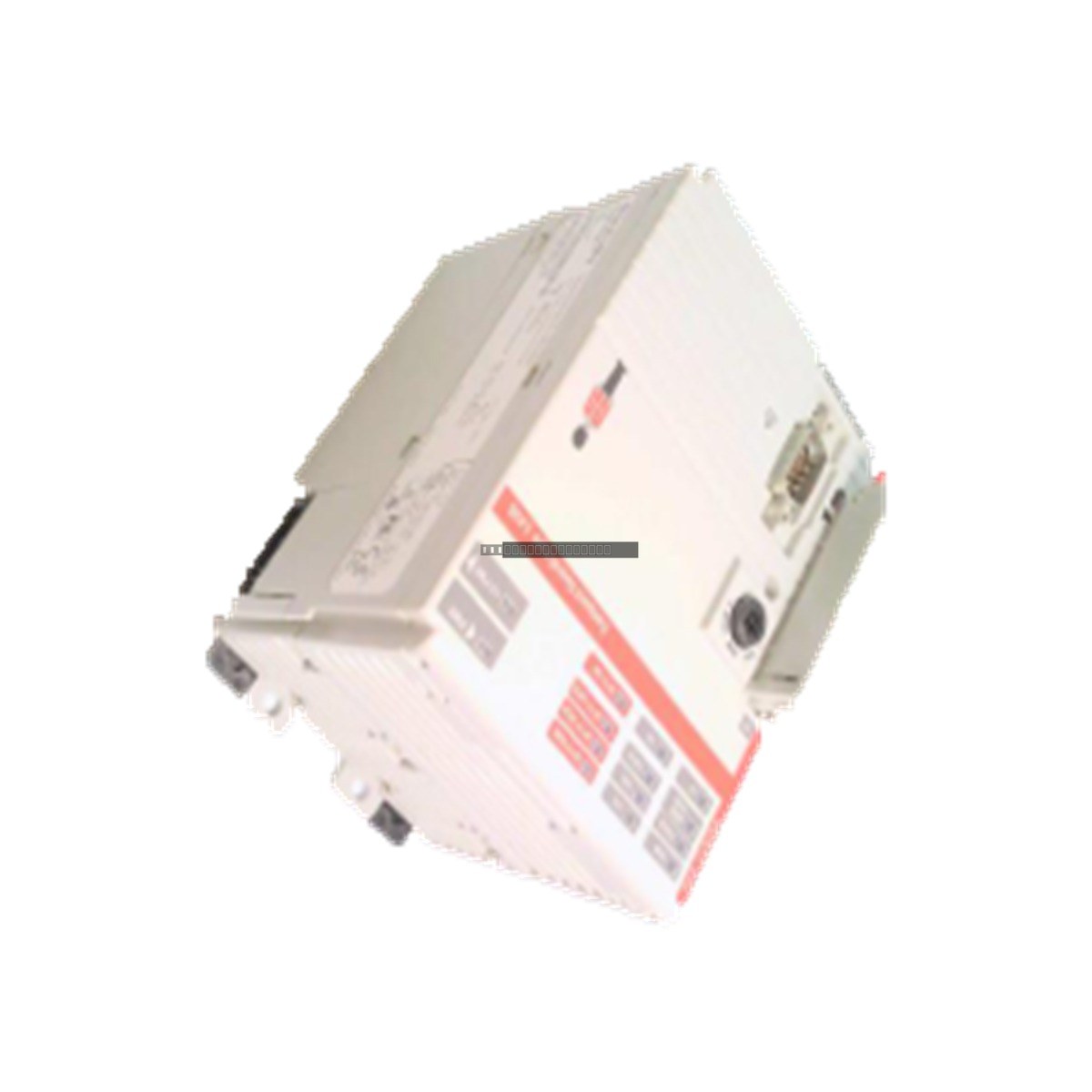

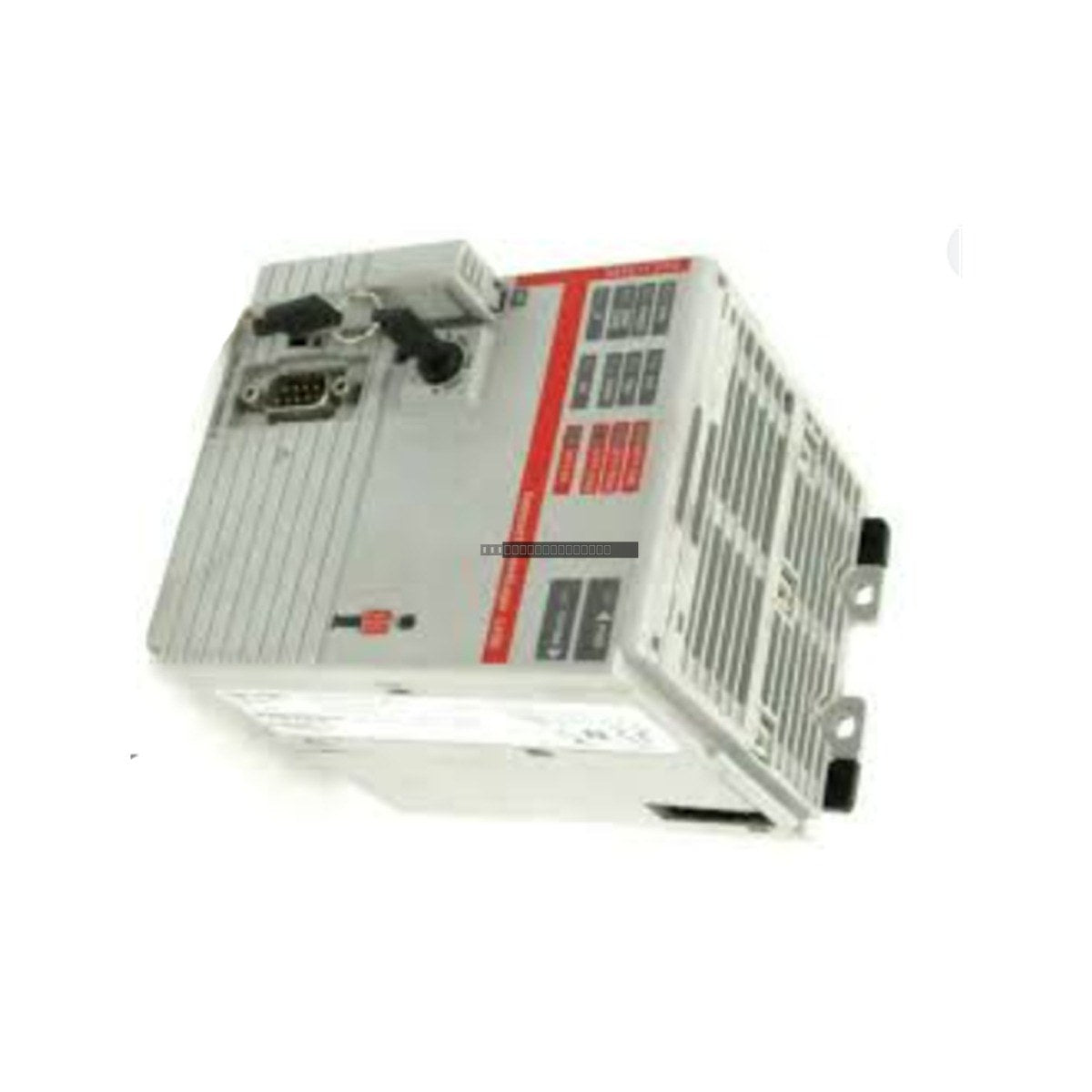

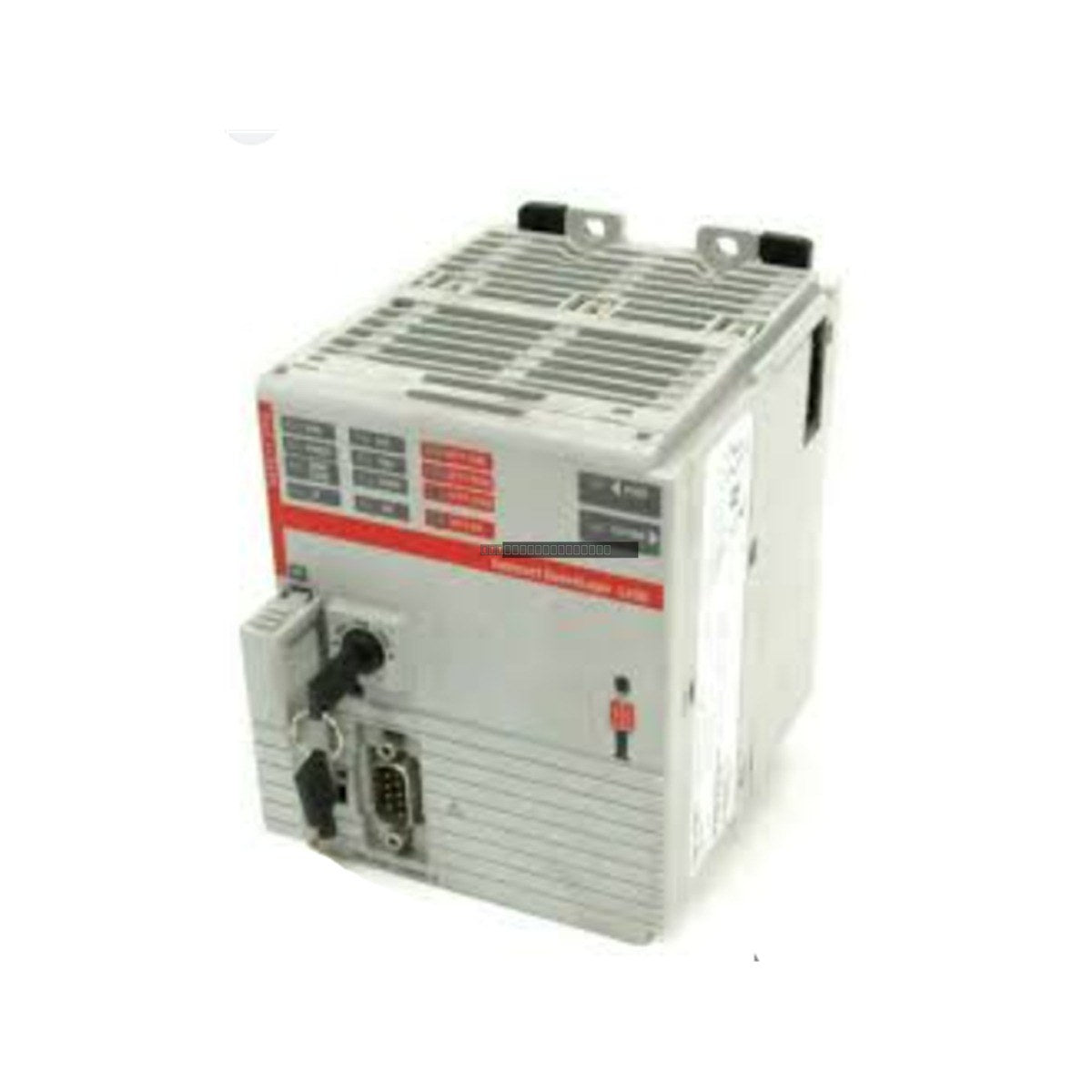

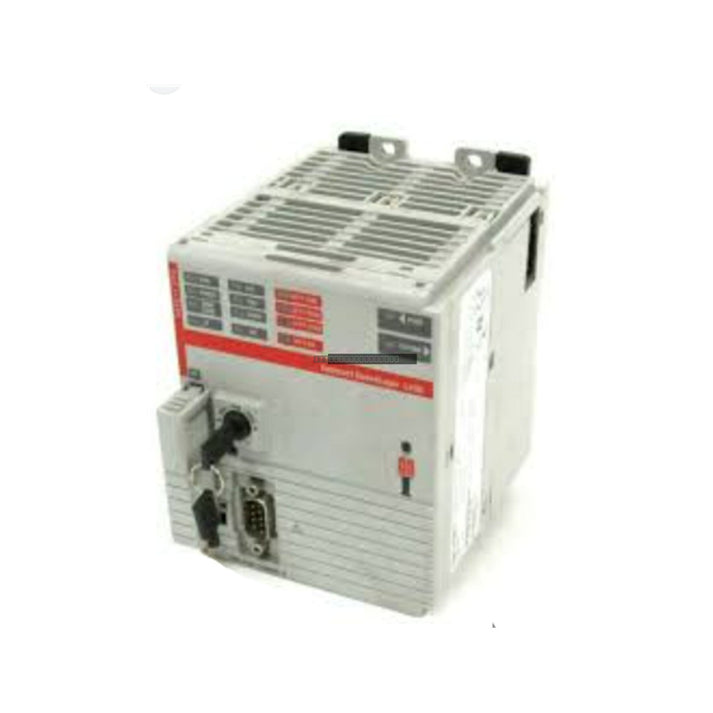

The 1768-L43/B is a high-performance CompactLogix processor module from Rockwell Automation, engineered for demanding industrial automation tasks. As a Series B revision, this controller provides a robust platform for managing complex machine logic, motion control, and data-intensive communication tasks. It serves as the central processing engine for CompactLogix systems, offering high-speed backplane communication and extensive I/O expansion capabilities.

Features

• Supports up to 16 local and remote 1769 Compact I/O modules across two independent subrack banks.
• Features two dedicated left-side slots for 1768 communication or motion modules, such as SERCOS interfaces or EtherNet/IP bridges.
• Handles up to 250 concurrent logical network connections for high-density distributed control.
• Optimized for standard high-speed automation and motion control applications.
• Series B hardware revision provides improved thermal management and enhanced firmware stability for complex network environments.

Applications

This processor is widely utilized in industrial environments requiring precise control and high-speed data processing, including multi-axis packaging systems, continuous material handling lines, and municipal infrastructure control. It is designed for standard automation tasks where high-speed logic execution and scalable I/O are required.

Technical Specifications

Installation Guidelines

• Ensure power is disconnected from the backplane before inserting or removing the module to prevent electrical arcing or damage to the pins.
• Mount the module on a standard Top-Hat DIN rail or secure it to a panel using the specified 1.16 Nm torque for mounting screws.
• Maintain proper clearance around the module to facilitate airflow and heat dissipation.
• Use shielded Category 2 cabling for communication ports to ensure electromagnetic compatibility and signal integrity.
• This module is an open-style device; it must be installed within a suitable enclosure rated for the specific industrial environment.

FAQ

Is this module compatible with GuardLogix safety instructions? No, the 1768-L43/B is a standard controller and does not contain the safety coprocessor or 1oo2 voting logic required for executing guarded safety signatures.

Can I use this with 1769 I/O modules? Yes, this processor supports up to 16 local and remote 1769 Compact I/O modules.

What is the primary difference between the 1768-L43/B and the 1768-L43S? The 1768-L43/B is designed for standard automation, whereas the 1768-L43S is a safety-rated controller equipped with a secondary safety coprocessor for functional safety applications.
