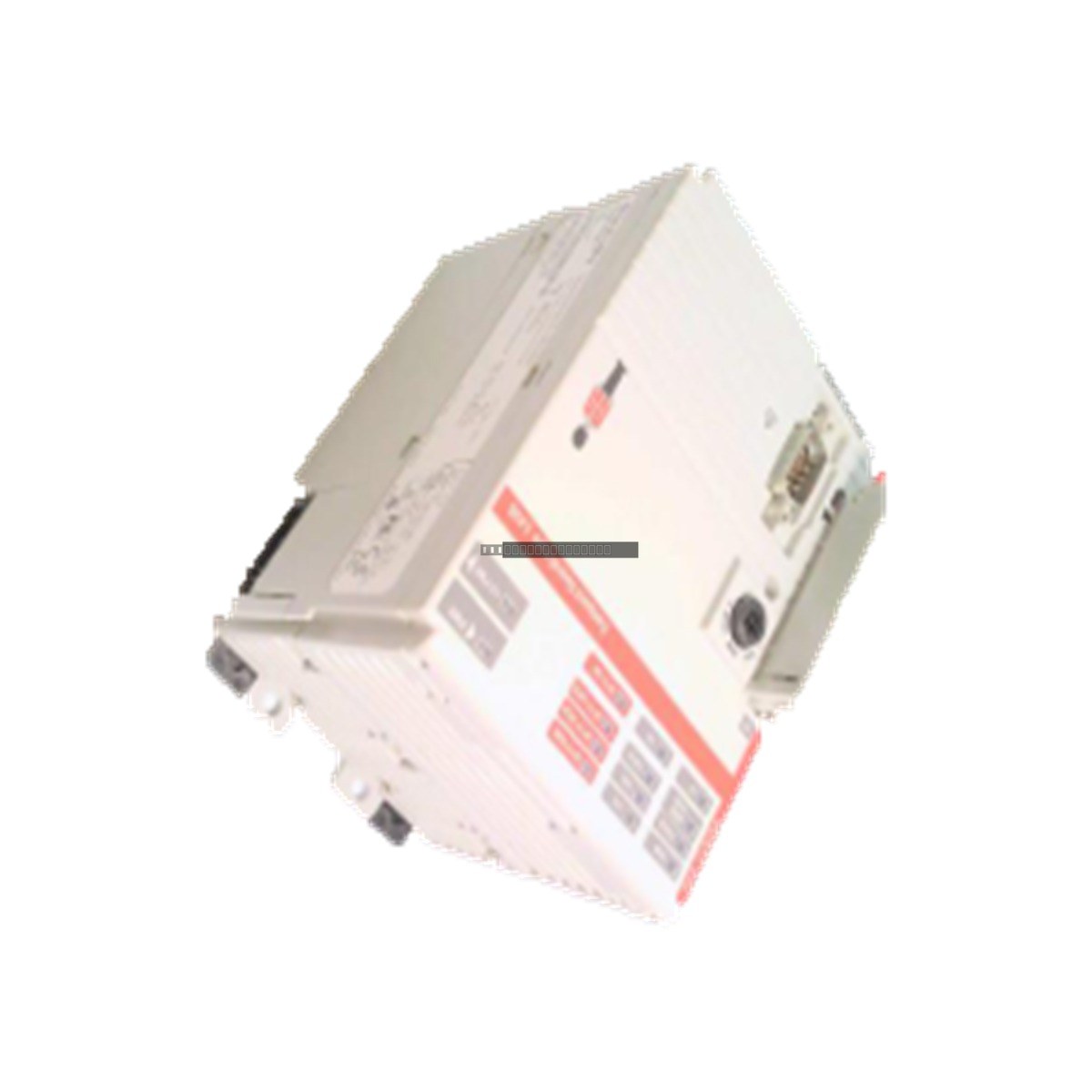

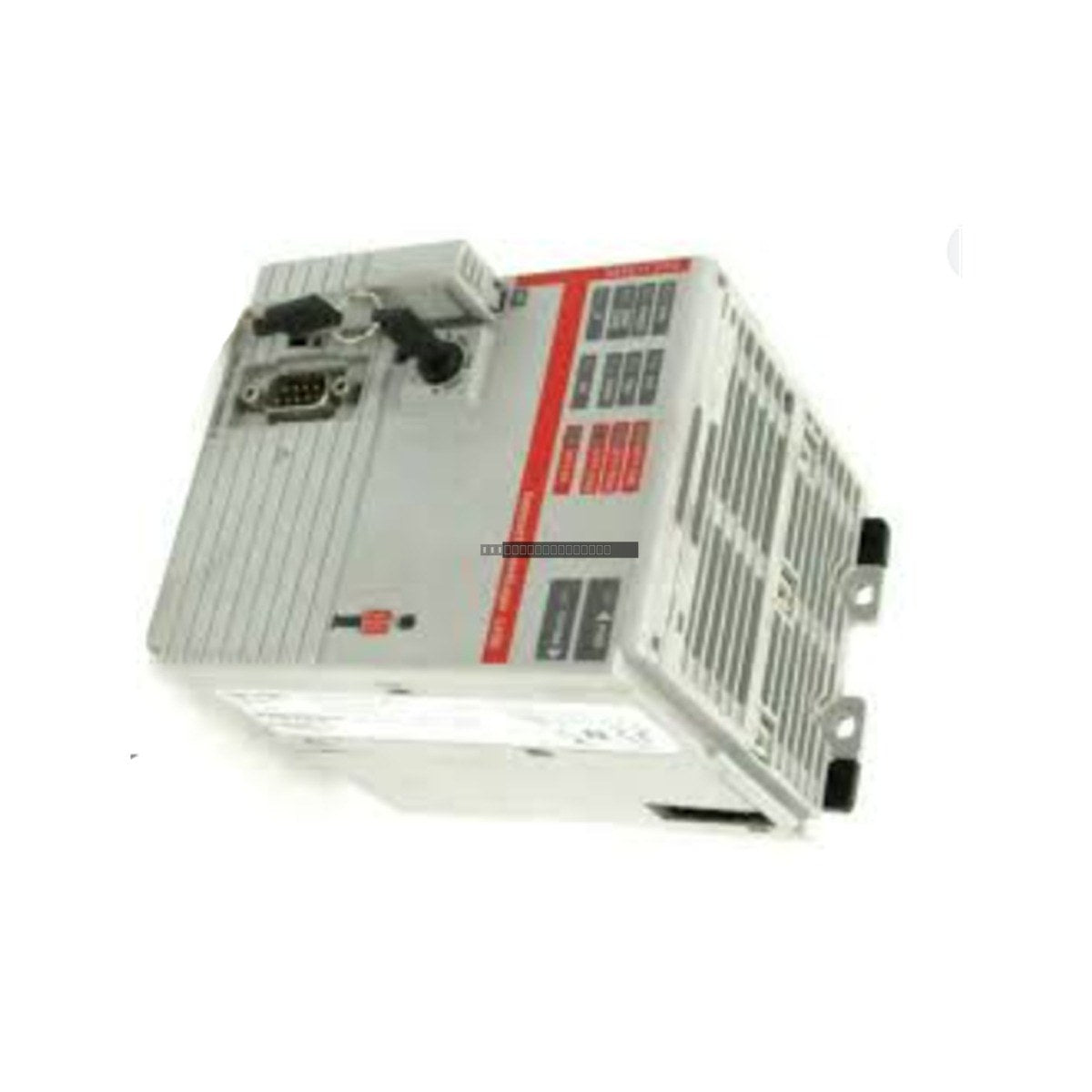

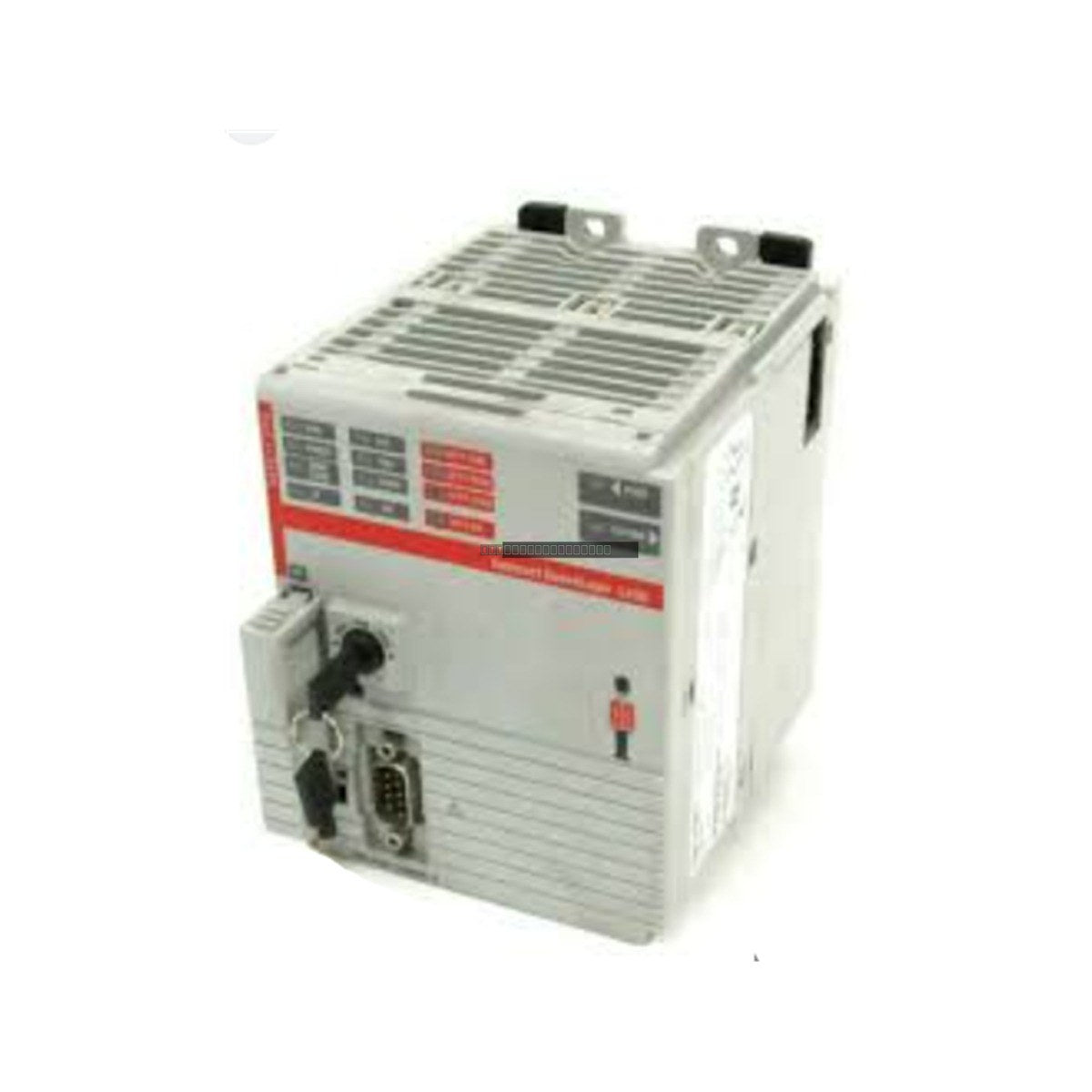

The Allen-Bradley 1768-L43S is a Compact GuardLogix controller designed to provide integrated safety and standard control in a single, compact platform. This processor is engineered for applications requiring both standard logic execution and safety-rated functions, utilizing a dual-processor architecture to ensure reliable performance in demanding industrial environments.

Features

• Integrated safety and standard control capabilities within the CompactLogix architecture.
• Equipped with 2MB of standard memory for general application logic.
• Dedicated 0.5MB of safety memory for safety-related tasks.
• Supports high-speed communication and I/O expansion via the 1768 CompactLogix backplane.
• Designed for use with Guard I/O modules to meet stringent safety requirements.

Applications

This controller is widely utilized in industrial automation systems where safety interlocking and standard machine control are required simultaneously. Common applications include robotic cells, material handling systems, packaging machinery, and assembly lines where safety integrity levels (SIL) must be maintained.

Technical Specifications

Installation Guidelines

• Ensure the controller is mounted in a clean, dry environment with adequate ventilation to prevent overheating.
• Always power down the system before installing or removing the module from the 1768 backplane to prevent electrical damage.
• Maintain proper grounding practices to minimize the impact of electromagnetic interference (EMI).
• Ensure that all safety-related wiring is routed separately from standard control and power cabling to prevent signal cross-talk.
• Handle the module using ESD-safe procedures to protect sensitive internal components.

FAQ

What is the primary difference between the 1768-L43 and the 1768-L43S?
The 1768-L43S is the GuardLogix version, which includes dedicated safety memory and specialized firmware to support safety-rated I/O and logic, whereas the standard 1768-L43 is intended for general-purpose control only.

Does this controller require specific software for configuration?
Yes, the 1768-L43S requires RSLogix 5000 or Studio 5000 Logix Designer software with the appropriate safety add-on profiles to configure and program the safety functions.
