Description

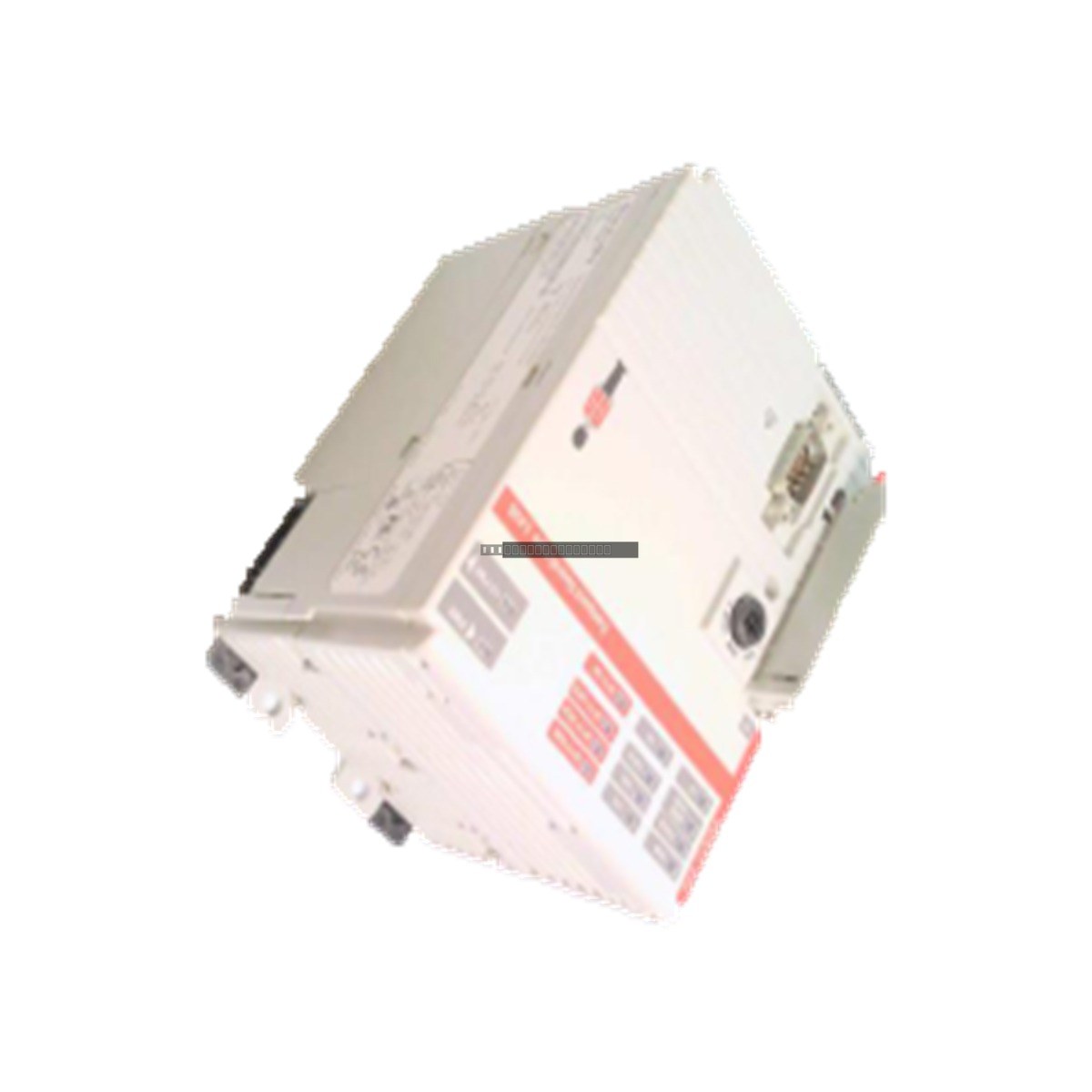

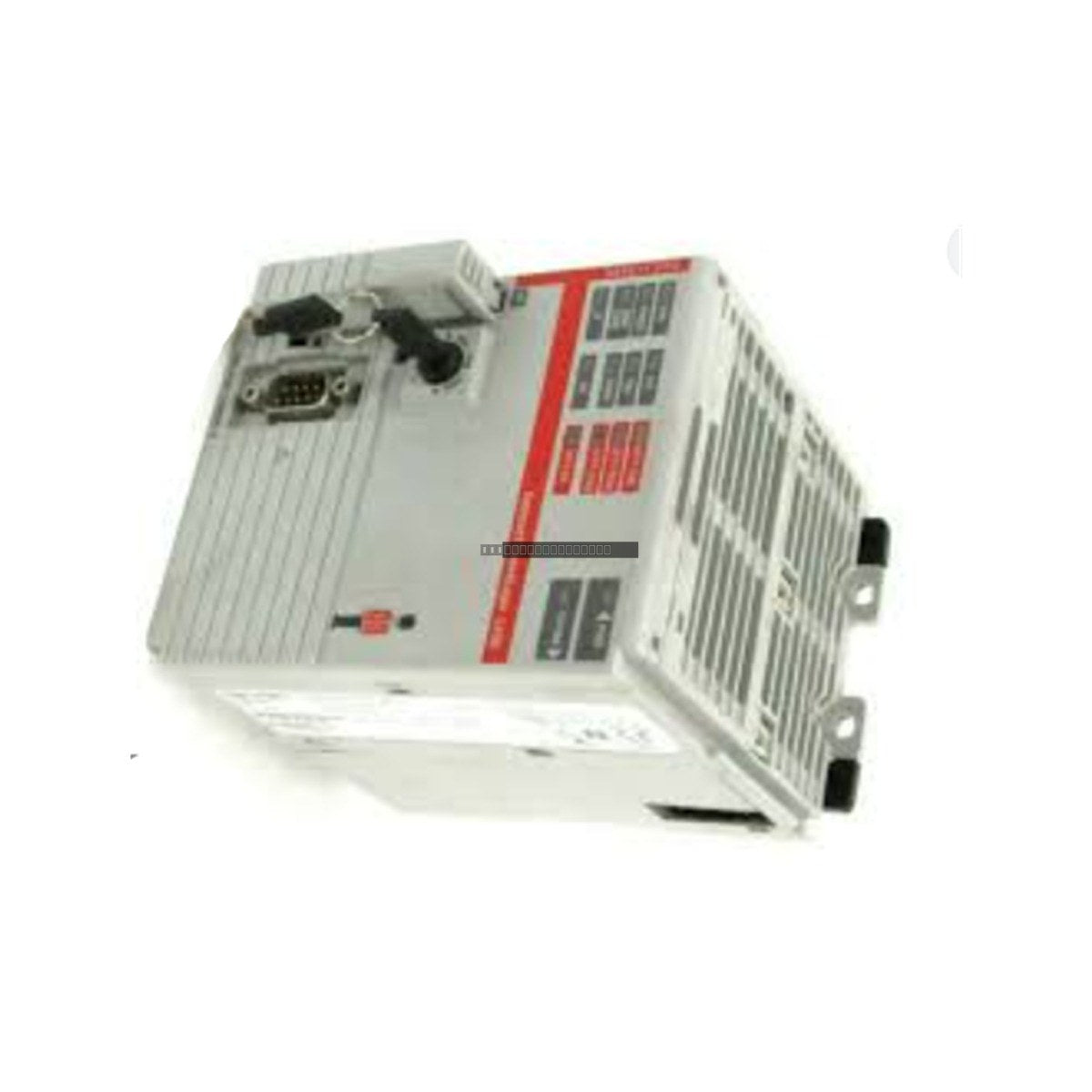

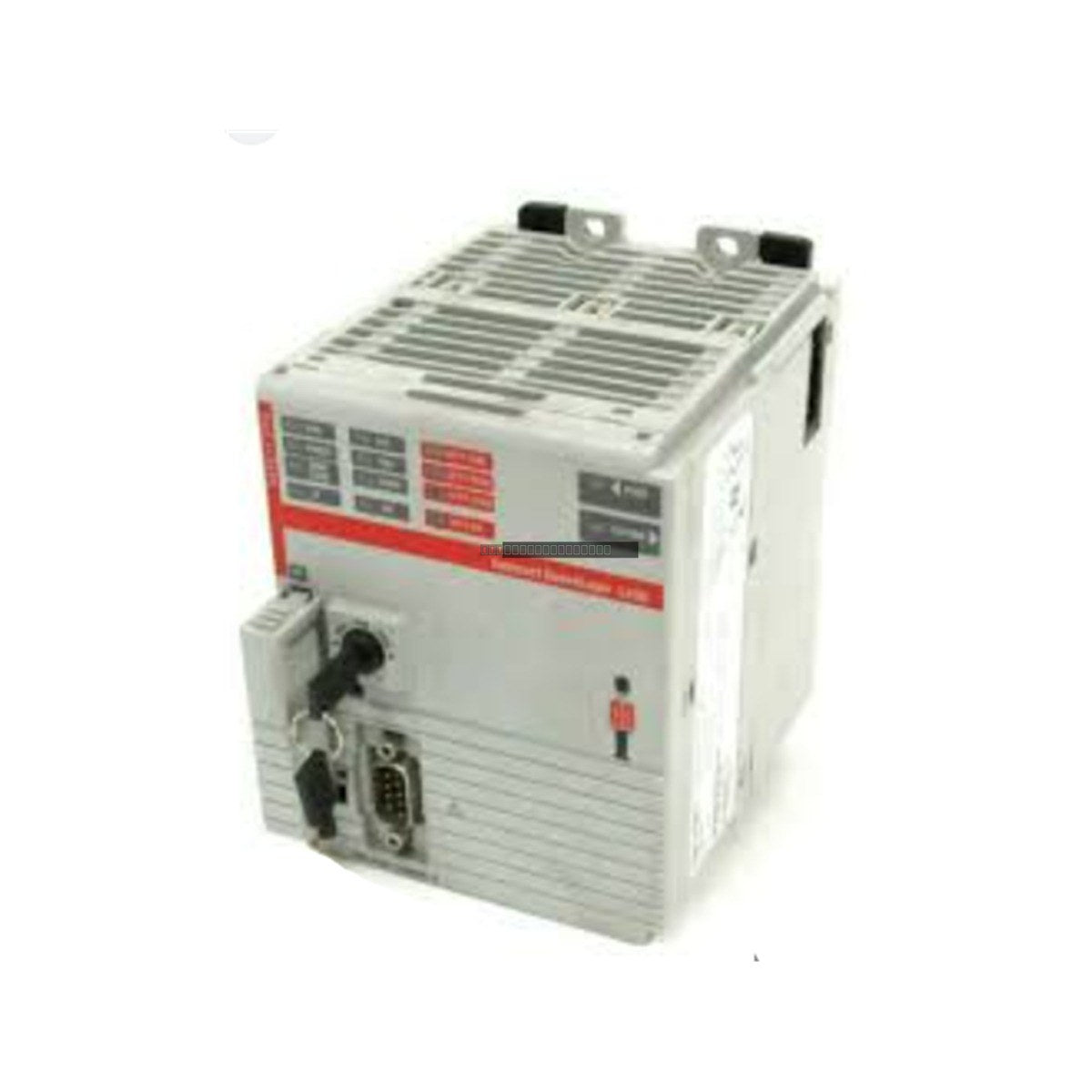

The Allen-Bradley 1768-L45S is a high-performance Compact GuardLogix processor module designed for safety-rated control applications. This controller integrates standard and safety control functions into a single platform, providing 3 MB of standard memory and 1 MB of safety memory. It is engineered to support demanding automation tasks while maintaining rigorous safety standards in industrial environments.

Features

• Integrated safety and standard control capabilities.
• Supports up to 4 local 1768 I/O modules.
• Expandable up to 30 1769 Compact I/O modules across 3 expansion banks.
• Designed for high-reliability industrial automation and safety-critical logic.
• Compact form factor suitable for space-constrained control cabinets.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the processor module.
• Mount the module in an appropriate 1768-series chassis, ensuring the backplane connector is fully seated.
• Maintain adequate clearance around the module for proper ventilation and heat dissipation.
• Use shielded communication cables and follow proper grounding practices to minimize EMI interference.
• Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the primary function of the 1768-L45S?

The 1768-L45S is a Compact GuardLogix processor used to execute both standard and safety-related control logic in industrial automation systems.

How many I/O modules can this processor support?

It supports up to 4 local 1768 I/O modules and can be expanded with up to 30 1769 Compact I/O modules across 3 expansion banks.

Is this module suitable for safety-rated applications?

Yes, the GuardLogix series is specifically designed for safety applications, providing dedicated safety memory and logic execution capabilities.
