The 1769-L23E-QBFC1B is an all-in-one CompactLogix controller designed for small to mid-sized standalone automation systems. It integrates CPU, digital I/O, analog I/O, and high-speed counters in a compact...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

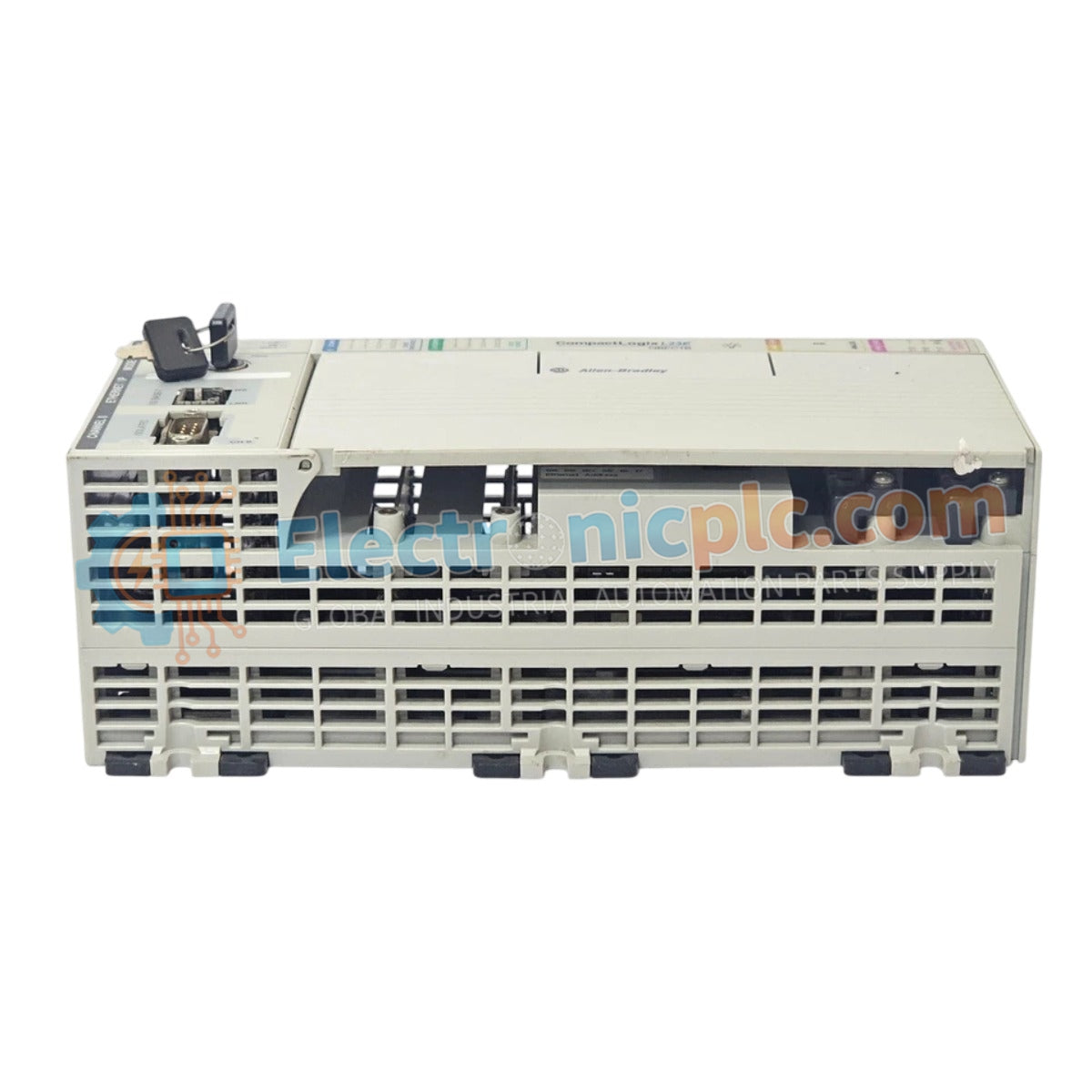

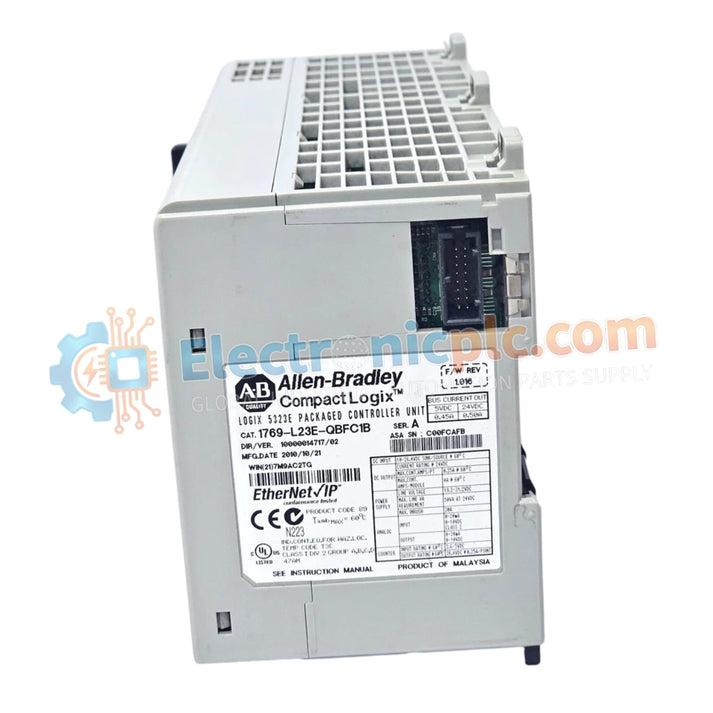

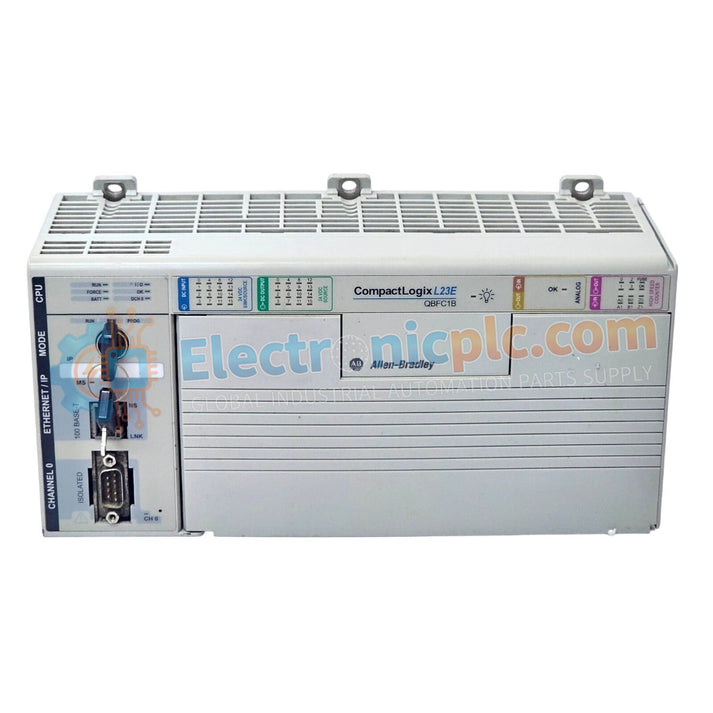

The 1769-L23E-QBFC1B is an all-in-one CompactLogix controller designed for small to mid-sized standalone automation systems. It integrates CPU, digital I/O, analog I/O, and high-speed counters in a compact form factor with built-in EtherNet/IP and RS-232 communication. We supply this unit as 100% Brand New and original.
| Parameter | Specification |
|---|---|
| User Memory | 512 KB |
| Communication Ports | 1 EtherNet/IP, 1 RS-232 |
| Digital Inputs | 16 points (24V DC sink/source) |
| Digital Outputs | 16 points (24V DC sourcing) |
| Analog Inputs | 4 channels (voltage/current) |
| Analog Outputs | 2 channels (voltage/current) |
| High-Speed I/O | 6 HSC inputs, 4 high-speed outputs |
| Expansion Capacity | Up to 2 local 1769 modules |
| Weight | 1.16 kg |
Combines controller, I/O, and power architecture in a single compact unit.
Supports both analog and digital I/O for versatile machine control.
Integrated high-speed counters enable accurate pulse and encoder signal processing.
Up to 2 additional 1769 I/O modules.
Yes. It includes a built-in EtherNet/IP port.
Yes. The RS-232 port supports DF1 and ASCII protocols.
Yes. We provide 100% Brand New and genuine Allen-Bradley controllers in factory-sealed packaging.
