The 1769-OF4CI is a 4-channel isolated analog current output module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It provides precise 4–20 mA control signals for devices such as...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

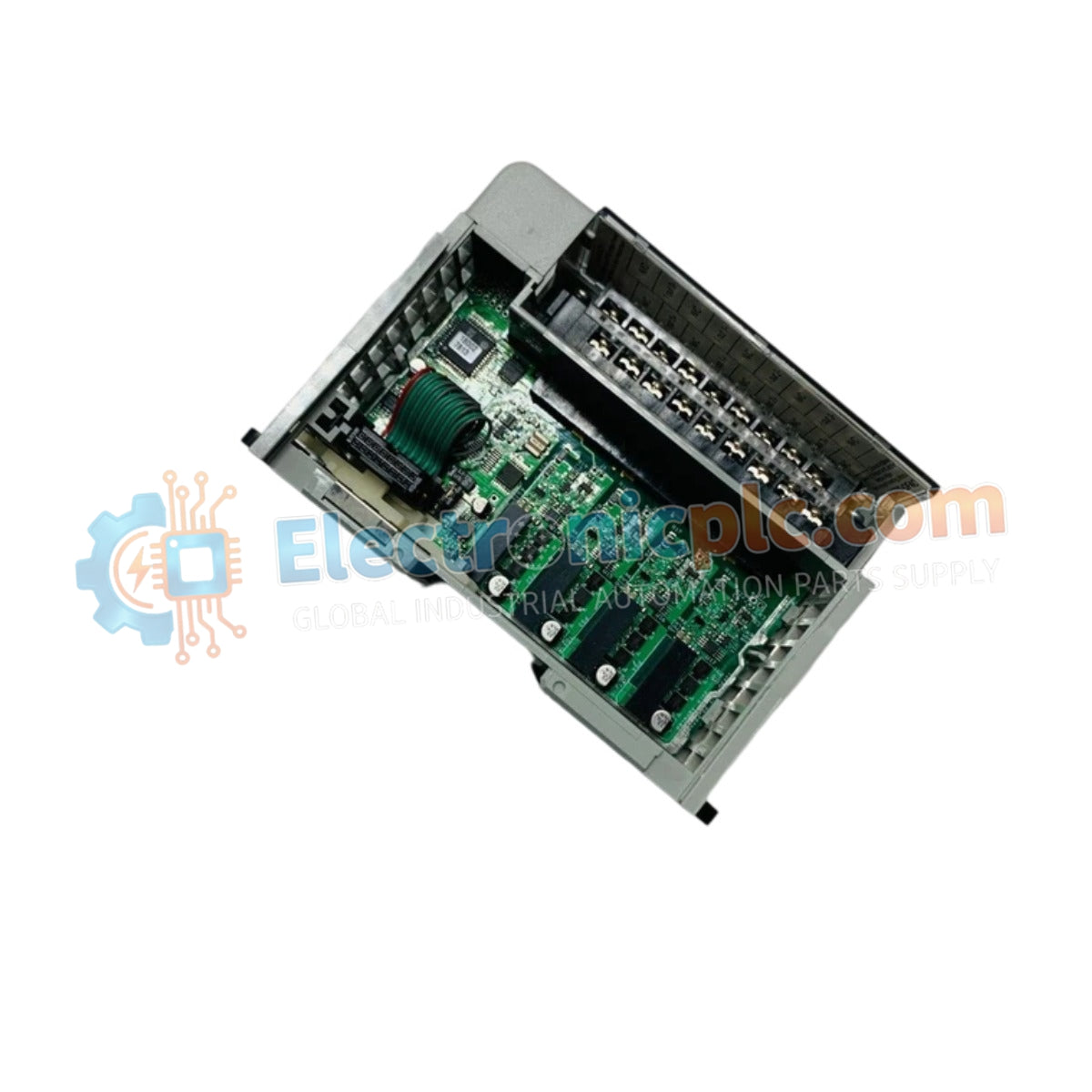

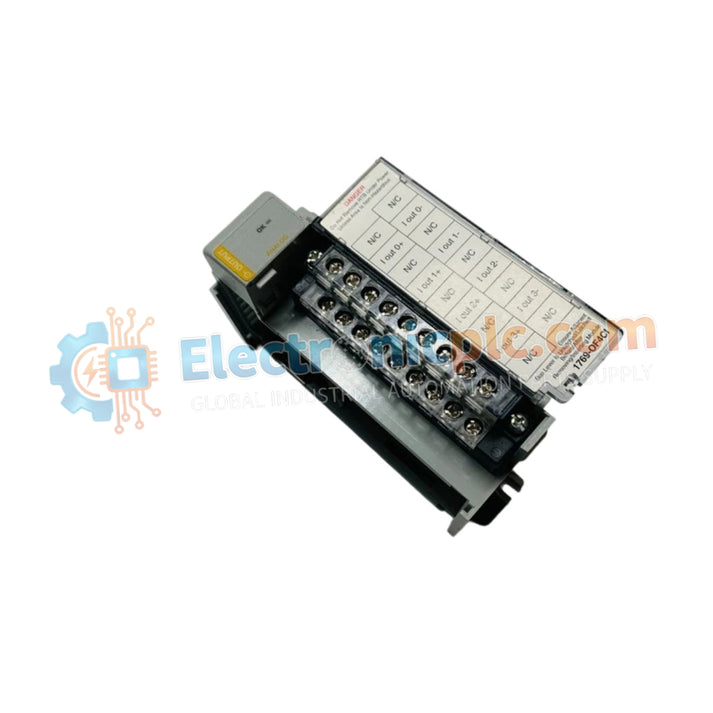

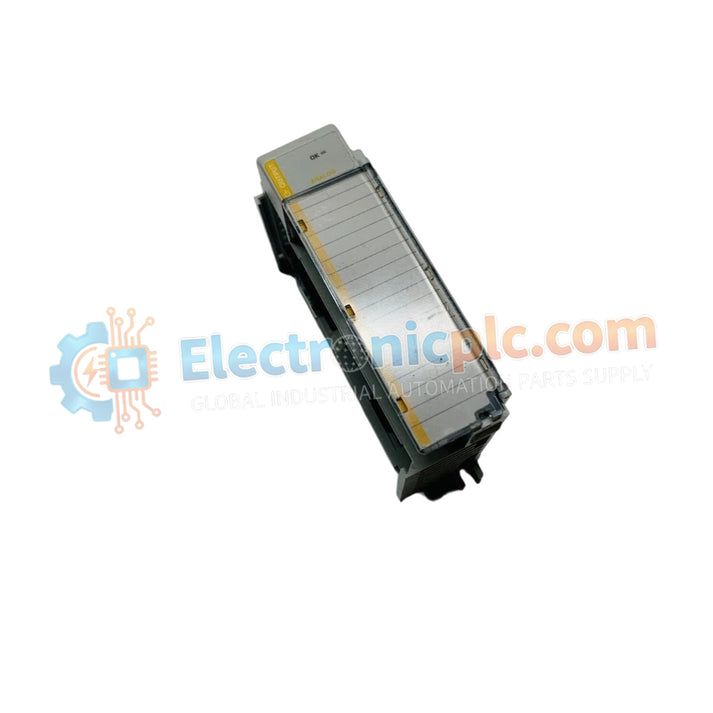

The 1769-OF4CI is a 4-channel isolated analog current output module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It provides precise 4–20 mA control signals for devices such as VFDs, valves, and actuators. We supply this unit as 100% Brand New and factory-sealed.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Part Number | 1769-OF4CI |
| Output Channels | 4 isolated current outputs |
| Output Range | 0–20 mA, 4–20 mA |
| Resolution | 15-bit + sign |
| Step Response | 2.9 ms (to 95%) |
| Load Range | 0–500 Ω |
| Backplane Current | 150 mA @ 5.1V DC; 140 mA @ 24V DC |
| Isolation | Reinforced insulation (channel-to-channel) |
| Weight | 0.28 kg |
Each channel is independently isolated to eliminate ground loop interference and improve signal stability.
15-bit resolution enables fine control of industrial processes such as flow, pressure, and speed regulation.
Supports fault detection such as open-loop conditions for improved system reliability.
No. It is a current-only module (4–20 mA / 0–20 mA).
Up to 500 Ω per channel.
It is powered via the backplane, but requires adequate 24V supply capacity from the system power module.
Yes. We supply 100% Brand New and genuine Allen-Bradley modules in factory-sealed packaging.
