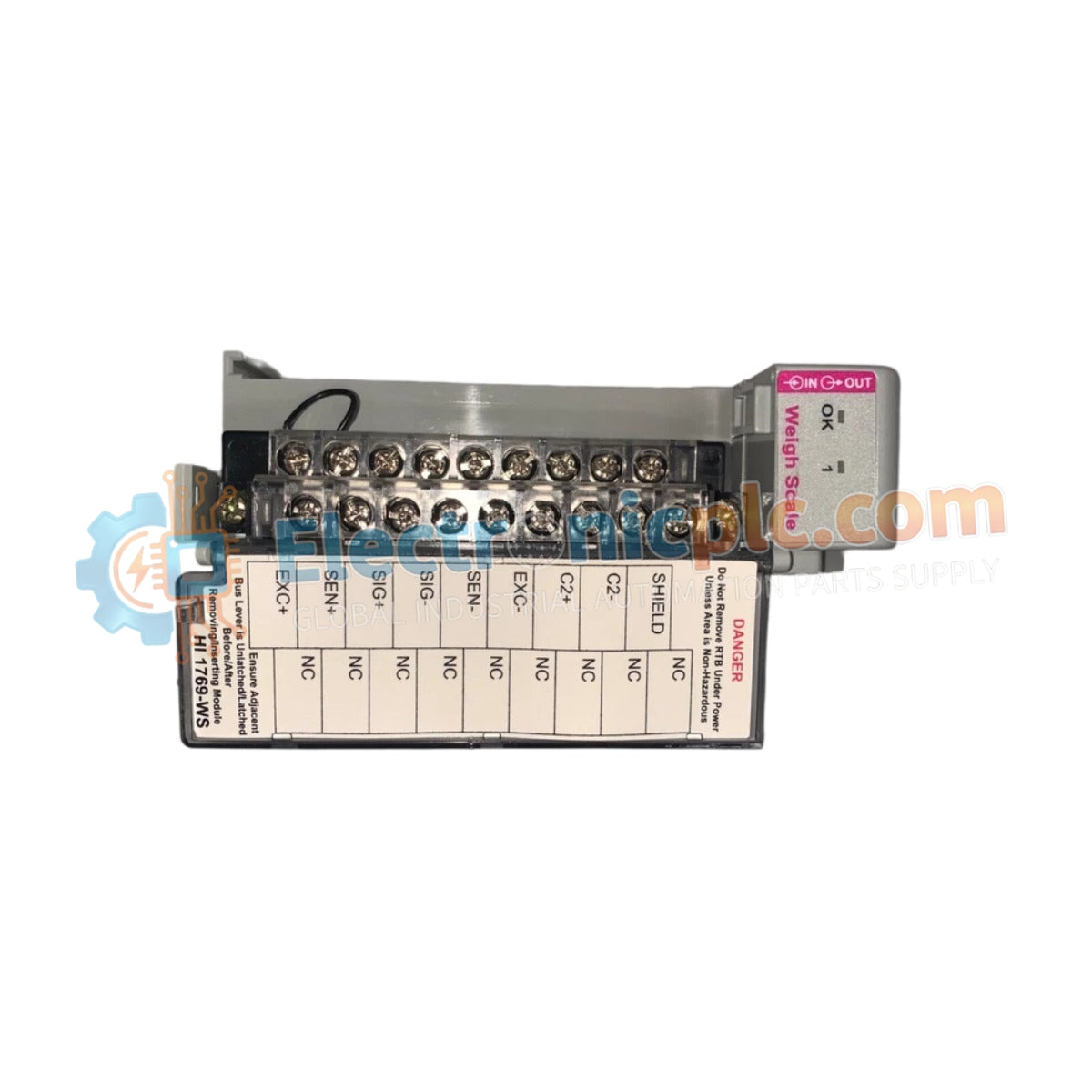

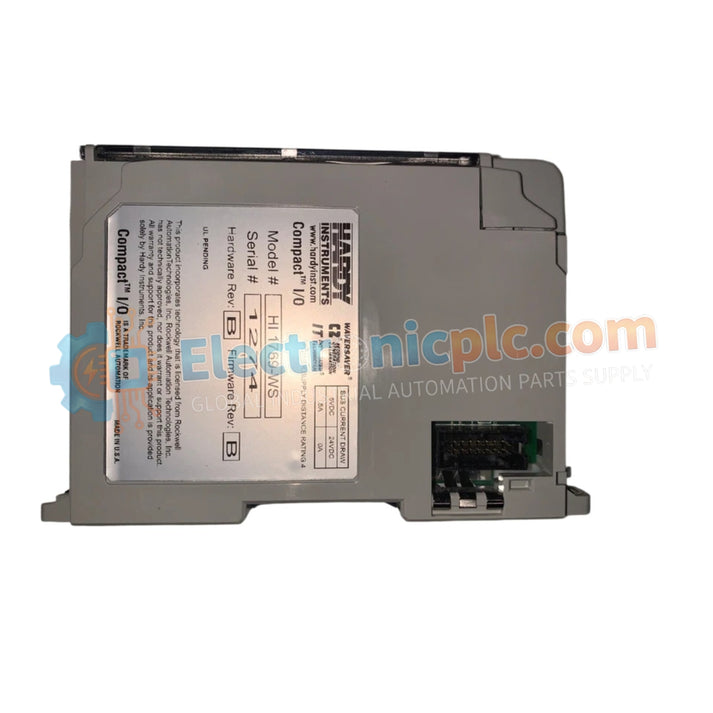

The 1769-WS is a dedicated weigh scale module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It directly converts load cell millivolt signals into high-precision weight data, eliminating the...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.
The 1769-WS is a dedicated weigh scale module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It directly converts load cell millivolt signals into high-precision weight data, eliminating the need for external transmitters. We supply this module as 100% Brand New and original.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Hardy Process Solutions |
| Part Number | 1769-WS |
| Channels | 1 Scale Input |
| Resolution | 1:1,000,000 (Internal), 1:100,000 (Display) |
| Excitation Voltage | 5V DC |
| Update Rate | 100 updates/second |
| Load Cell Support | Up to 4 × 350Ω load cells |
| Backplane Current | 600 mA @ 5.1V DC |
| Weight | 0.91 kg |
| Mounting | DIN Rail / Panel Mount |
100 Hz update rate enables precise control in fast batching and filling applications.
C2® electronic calibration reduces setup time without requiring physical test weights.
WAVERSAVER® technology stabilizes readings in high-vibration industrial environments.
Up to four 350-ohm load cells in parallel.
Yes. It supports both 4-wire and 6-wire configurations.
Yes, but ensure the power supply can support its 600 mA draw.
Yes. We supply 100% Brand New and genuine Allen-Bradley modules in original packaging.
