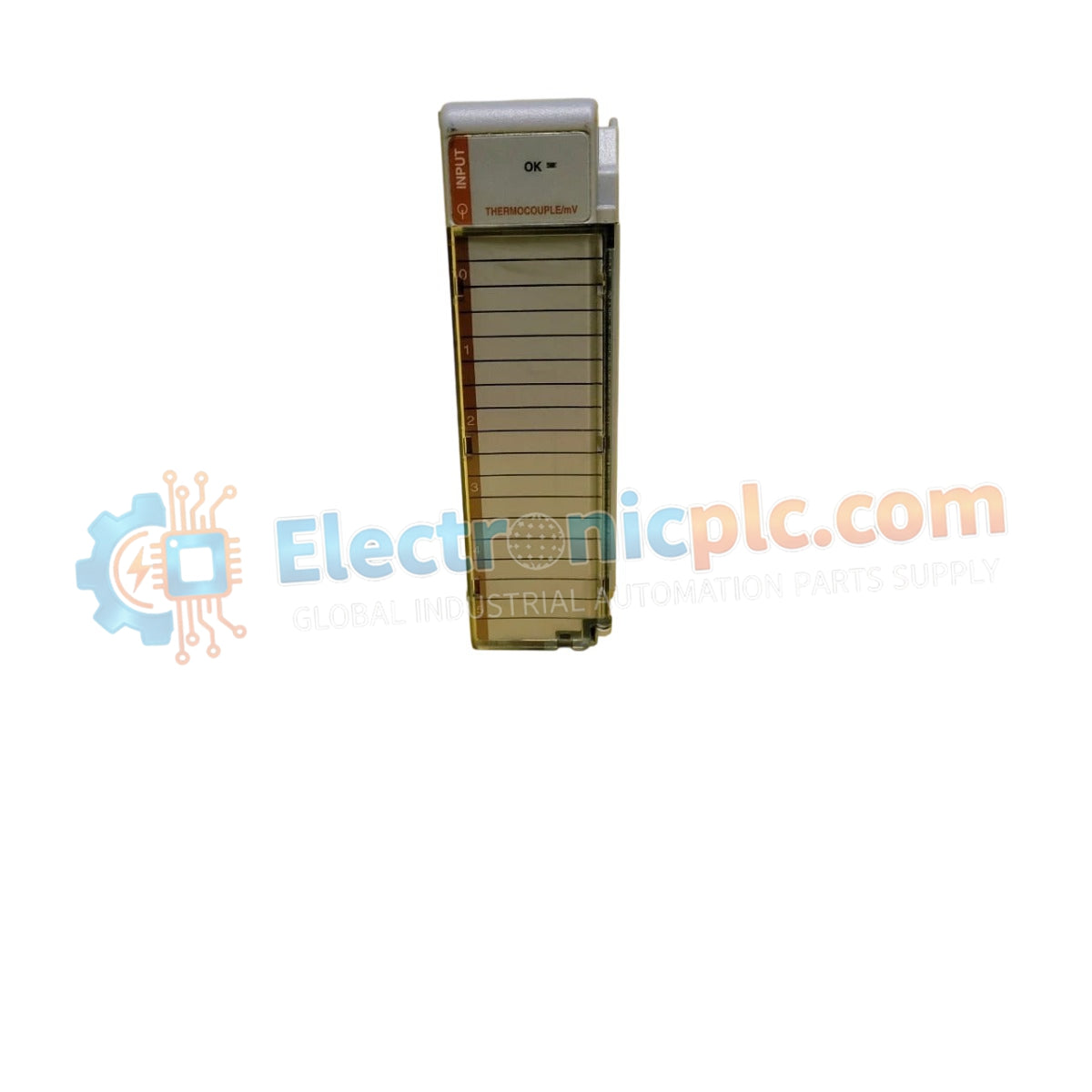

The Allen-Bradley 1769sc-IT6I serves as a high-density temperature measurement solution for CompactLogix™ and MicroLogix™ 1500 controllers. This module provides six fully isolated channels, allowing the system to capture...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.
The Allen-Bradley 1769sc-IT6I serves as a high-density temperature measurement solution for CompactLogix™ and MicroLogix™ 1500 controllers. This module provides six fully isolated channels, allowing the system to capture precise thermal data without interference from ground loops or electrical noise. We supply this unit as 100% brand new and original, ensuring the highest level of system integrity for your critical process loops.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation (Spectrum Controls) |
| Module Type | Isolated Thermocouple / Millivolt Input |
| Number of Channels | 6 Isolated Channels |
| Isolation Voltage | 710V DC for 1 minute (Channel-to-Channel / Channel-to-Bus) |
| Resolution | 16-bit |
| Dimensions | 118 mm × 87 mm × 35 mm |
| Weight | 0.35kg |
Suppress Electrical Noise
Channel-to-channel isolation eliminates common-mode noise and prevents ground potential differences from distorting sensitive temperature readings.
Maximize Rack Space
The compact 35 mm width allows users to integrate six high-performance isolated inputs into narrow DIN-rail configurations without increasing the hardware footprint.
Simplify Sensor Maintenance
Built-in open-circuit detection immediately identifies broken thermocouples, triggering system alarms to prevent process deviations or equipment damage.
Flexible Scaling
This module supports twelve programmable input types, enabling the hardware to adapt to diverse industrial sensors without requiring different specialized modules.
Does this module arrive in original factory packaging?
Yes. We ship every 1769sc-IT6I as 100% brand new, original equipment in the manufacturer's sealed box.
Can the 1769sc-IT6I replace standard non-isolated modules?
Yes. This module provides superior protection against ground loops compared to standard 1769-IT6 units, making it a drop-in upgrade for environments with significant electrical interference.
What software do I need for configuration?
The module integrates directly into Studio 5000® or RSLogix 500®. Users simply select the module from the I/O configuration tree or utilize the available Add-On Profile (AOP) for rapid setup.
How does the module handle cold junction compensation (CJC)?
The module includes an onboard CJC thermistor that automatically calculates the reference temperature, ensuring accurate thermocouple linearization across its entire operating range.
