Description

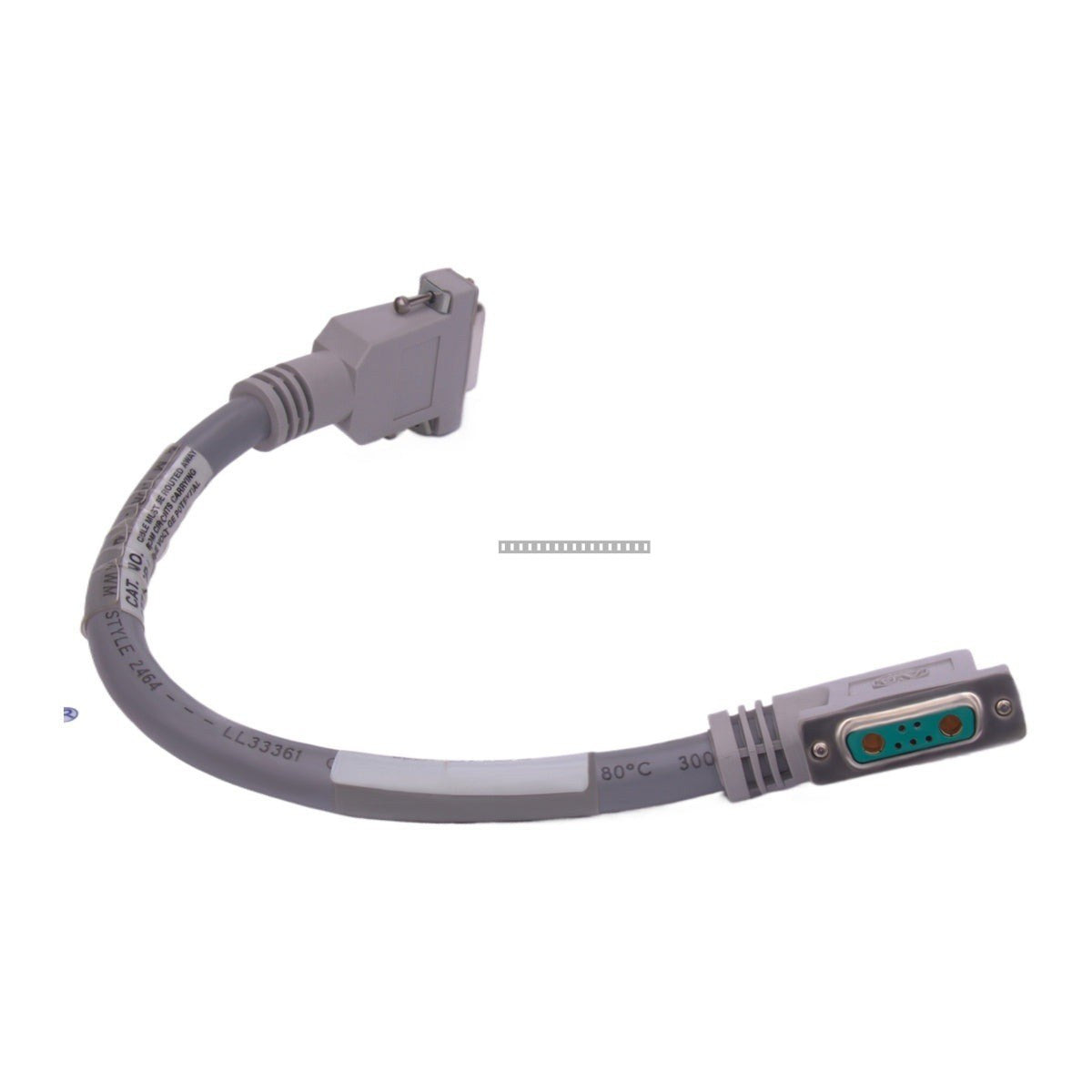

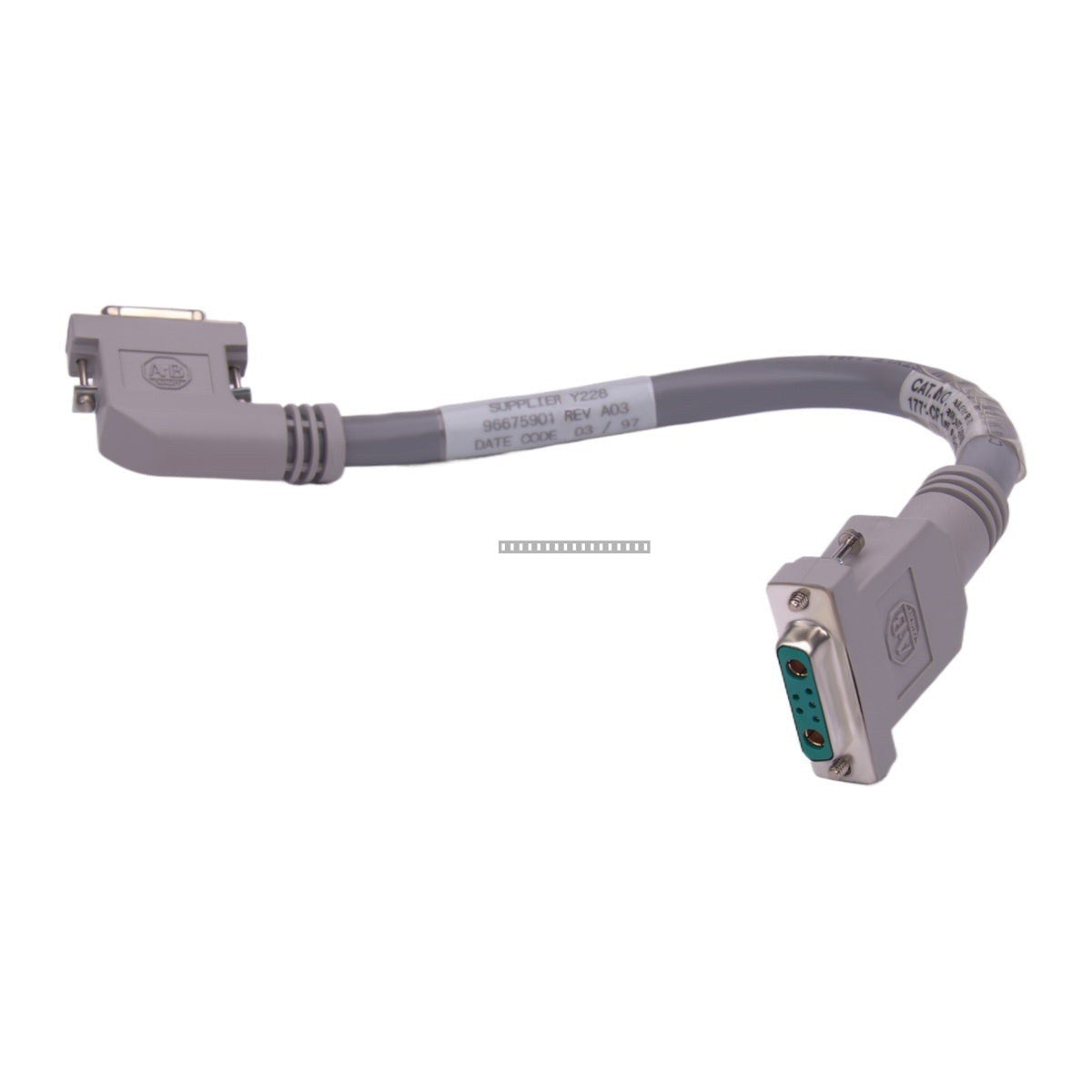

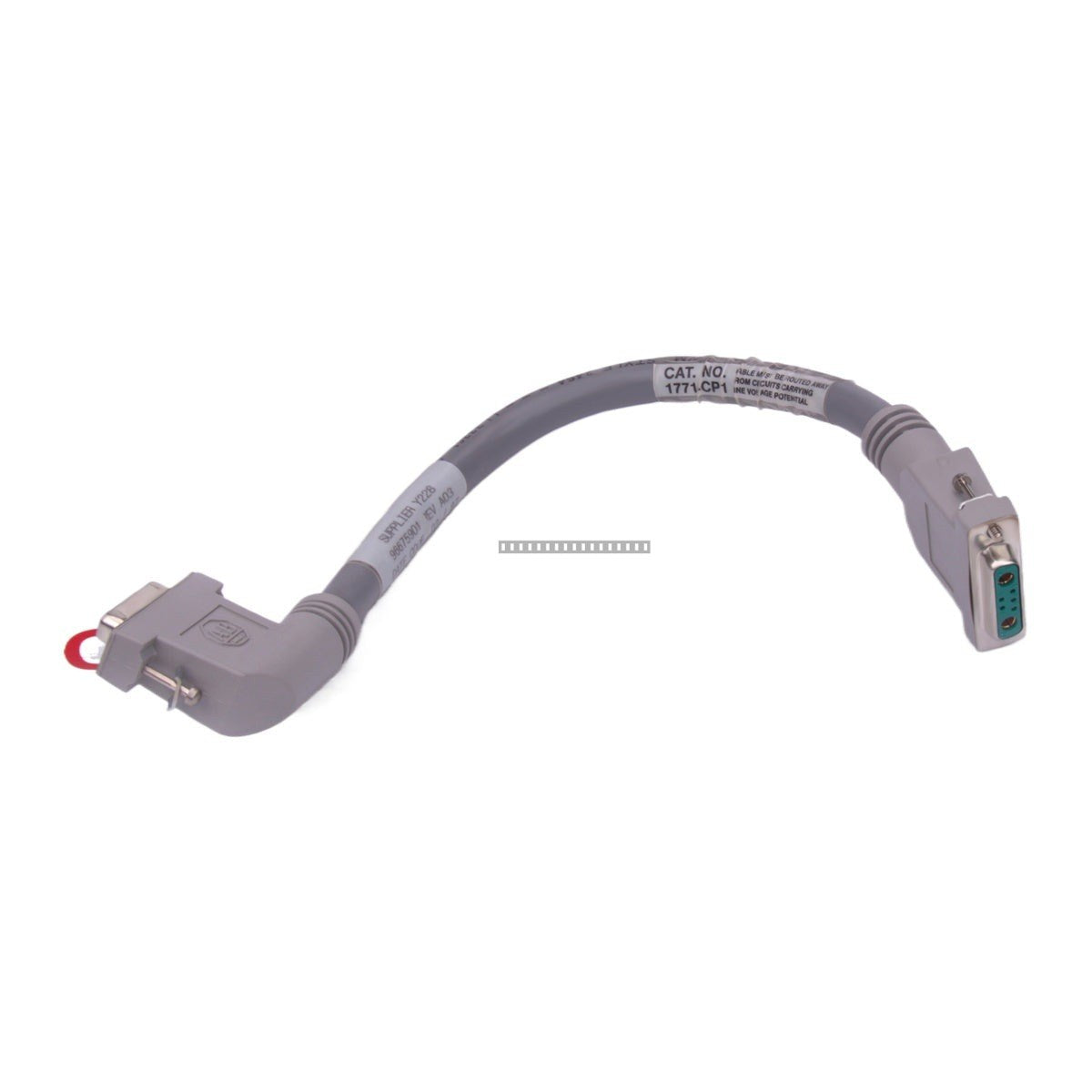

The Allen-Bradley 1771-CP1 is a specialized I/O chassis cable designed for use within the 1771 PLC system architecture. This cable is essential for establishing the necessary electrical connections between the 1771-P7 power supply and the I/O chassis. It is specifically configured for left-side mounting to the I/O chassis, ensuring reliable power distribution across the backplane.

Features

• Designed for integration with the 1771-P7 power supply unit.
• Facilitates secure power connection to the I/O chassis backplane.
• Engineered for left-side mounting configuration.
• Durable construction suitable for industrial control environments.

Technical Specifications

Installation Guidelines

• Ensure all power is disconnected from the chassis and power supply before attempting to install or remove the 1771-CP1 cable.
• Verify that the cable connectors are free of debris or damage prior to insertion.
• Route the cable carefully to avoid sharp edges or pinch points within the enclosure.
• Ensure the cable is firmly seated in the designated left-side mounting port on the I/O chassis to prevent intermittent power loss.
• Maintain proper cable management practices to prevent strain on the connectors.

FAQ

What is the primary function of the 1771-CP1 cable?
The 1771-CP1 is used to connect the 1771-P7 power supply to the 1771 I/O chassis, providing the necessary power to the modules installed in the rack.

Is this cable compatible with other power supplies?
The 1771-CP1 is specifically designed for the 1771-P7 power supply. Please refer to your specific system documentation before attempting to use it with other power supply models.
