Description

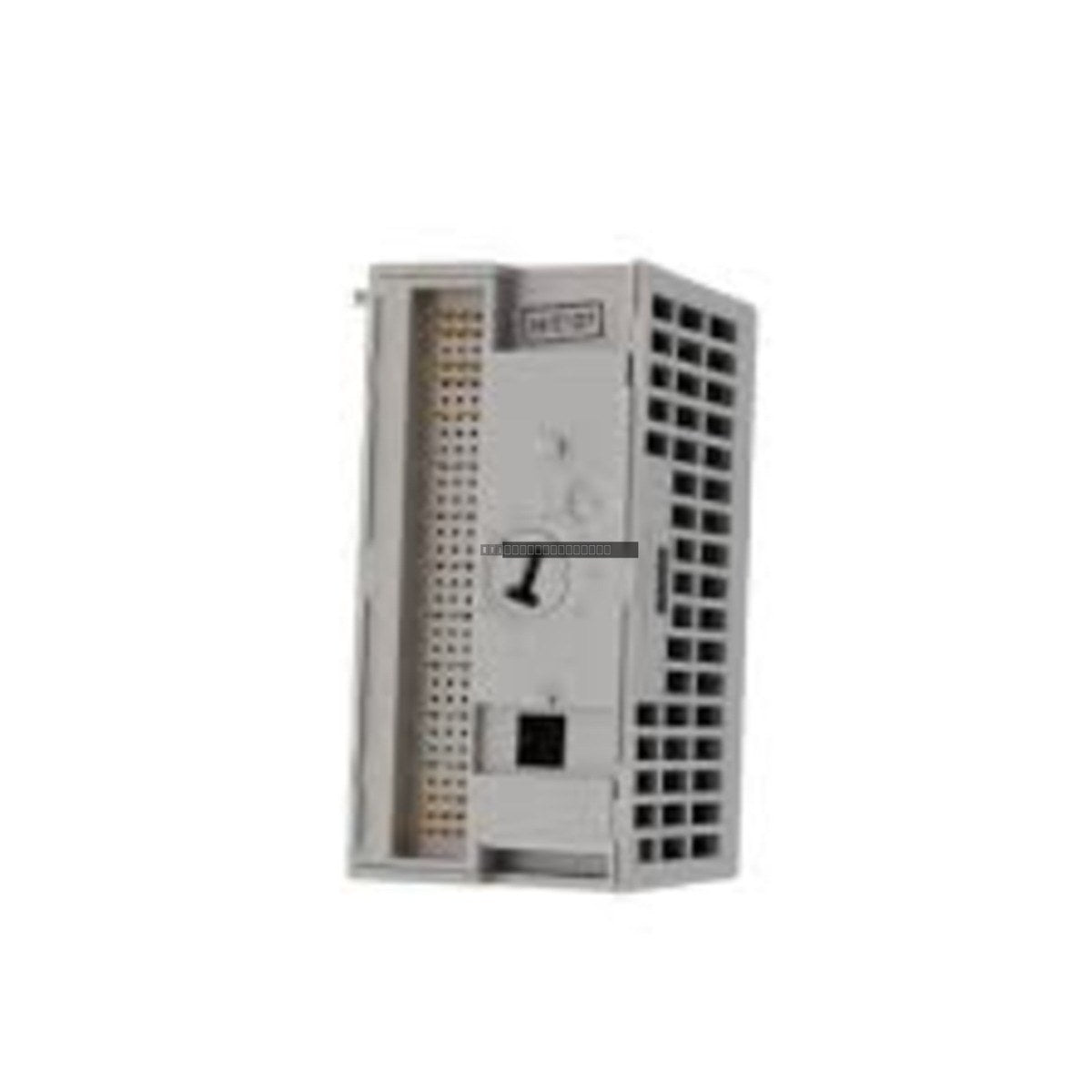

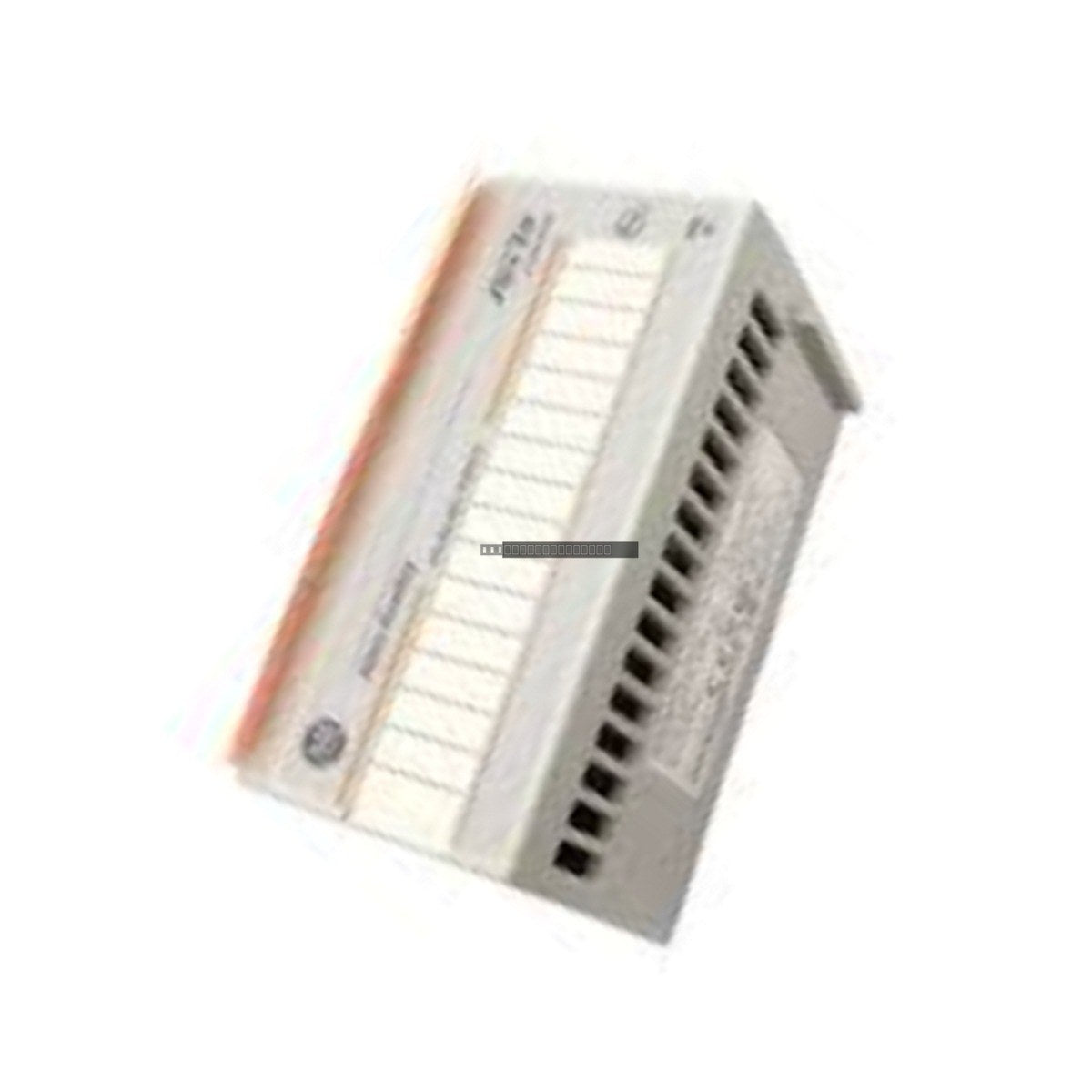

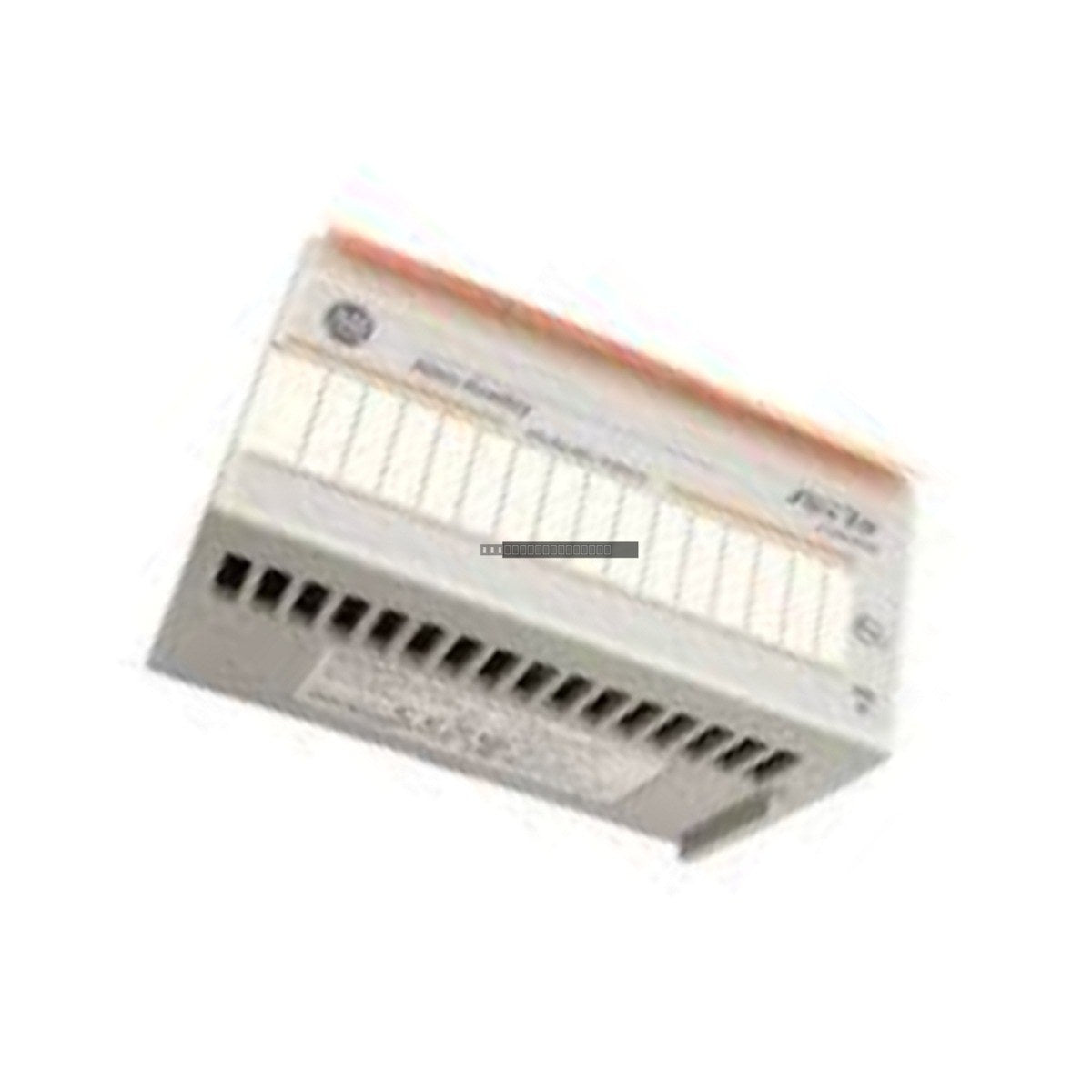

The Allen-Bradley 1794-IA16 is a high-density, 16-channel discrete AC digital input module designed for the FLEX I/O 1794 platform. This module serves as a critical interface between field-side 120 VAC signals and the system backplane, converting raw input states into deterministic logic for industrial control systems. It is widely utilized in distributed I/O architectures to reduce field wiring complexity and cabling costs in applications such as material handling, water treatment, and chemical processing.

Features

• 16 non-isolated input channels sharing a single common return path.
• Designed for 120 VAC nominal input voltage (74 to 132 VAC range).
• Integrated status diagnostics via 16 front-panel yellow LED indicators.
• Low power consumption with a 20 mA backplane current draw at 5 VDC.
• Mechanical keying (Position 8) to ensure compatibility and prevent incorrect module insertion.
• Compatible with a variety of FLEX I/O terminal bases including 1794-TB3, 1794-TB3S, and 1794-TBN.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the terminal base.
• Mount the module onto a compatible 1794 terminal base; ensure the mechanical keyswitch is set to position 8.
• Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Maintain adequate clearance for ventilation to ensure the module operates within the specified 0 to 55 degC temperature range.
• Verify that the terminal base is properly grounded according to local electrical codes to ensure signal integrity.

FAQ

Q: Does the 1794-IA16 module include a terminal base?
A: No, the 1794-IA16 is a plug-in module. It requires a separate 1794 terminal base (such as the 1794-TB3 or 1794-TB3S) for field wiring connections.

Q: Can I use this module for DC input signals?
A: No, the 1794-IA16 is strictly designed for 120 VAC discrete input signals. Using it with DC voltage may damage the module or result in improper operation.

Q: What is the purpose of the mechanical keying?
A: The keyswitch prevents the insertion of incompatible modules into the terminal base, protecting the system from electrical faults caused by voltage mismatches.
