Description

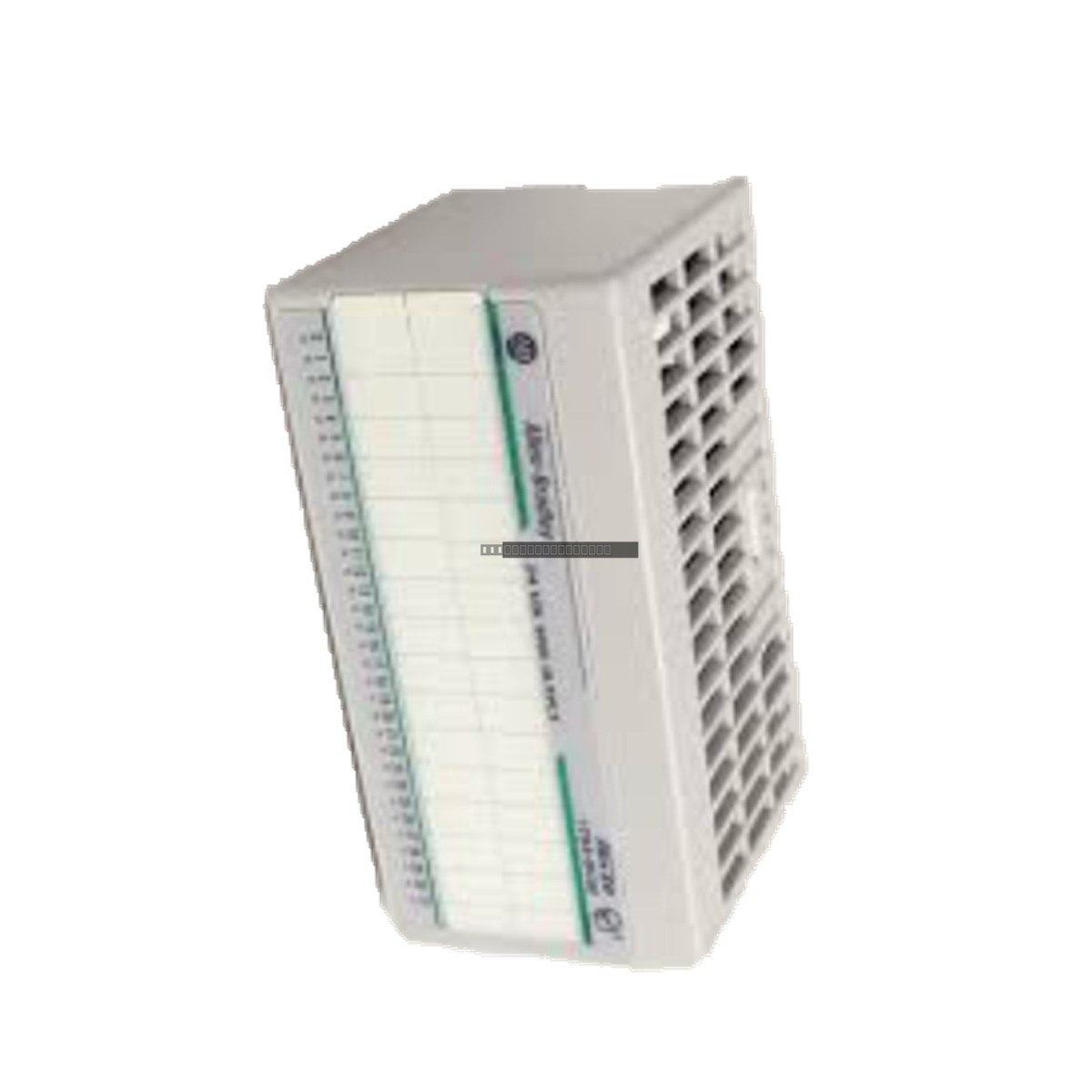

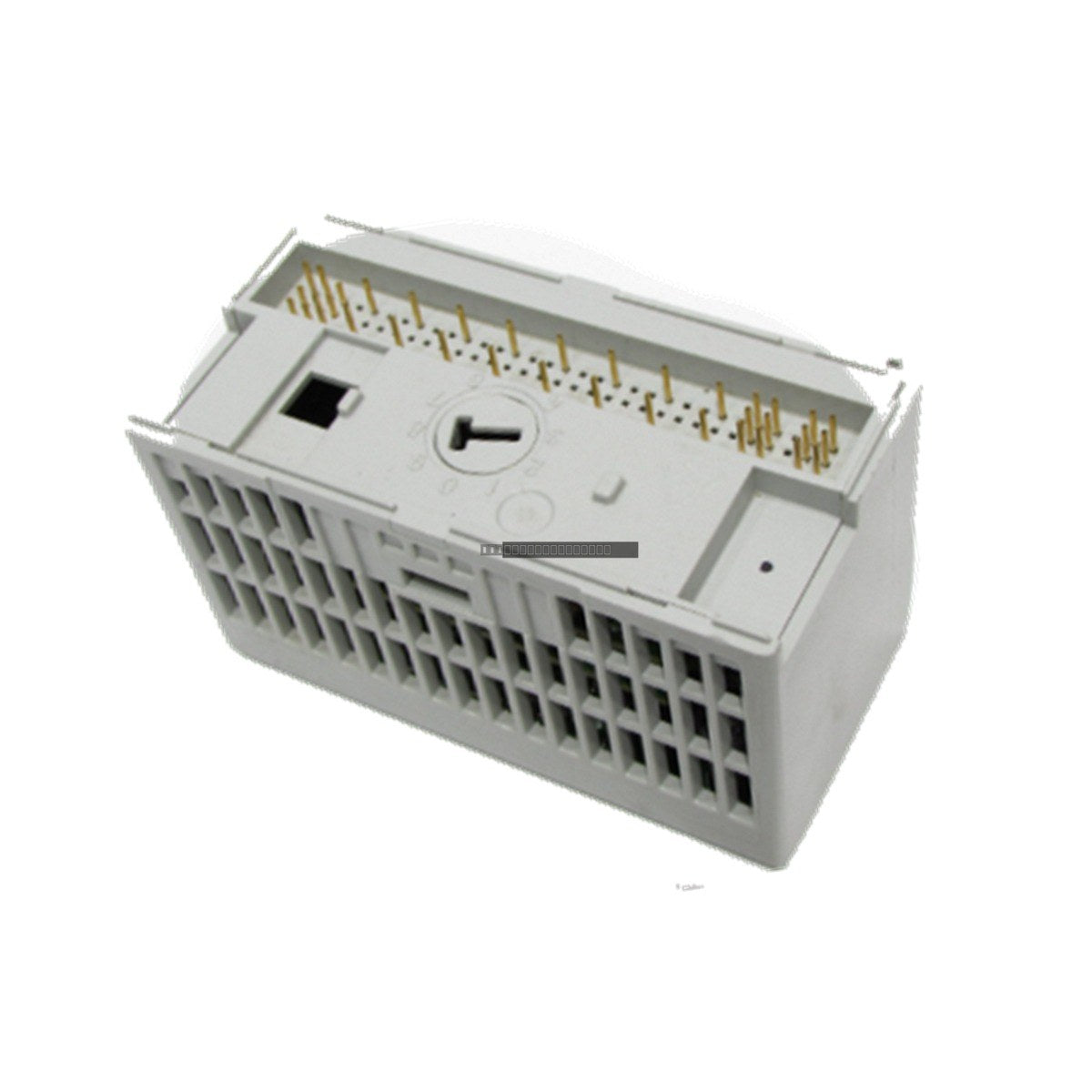

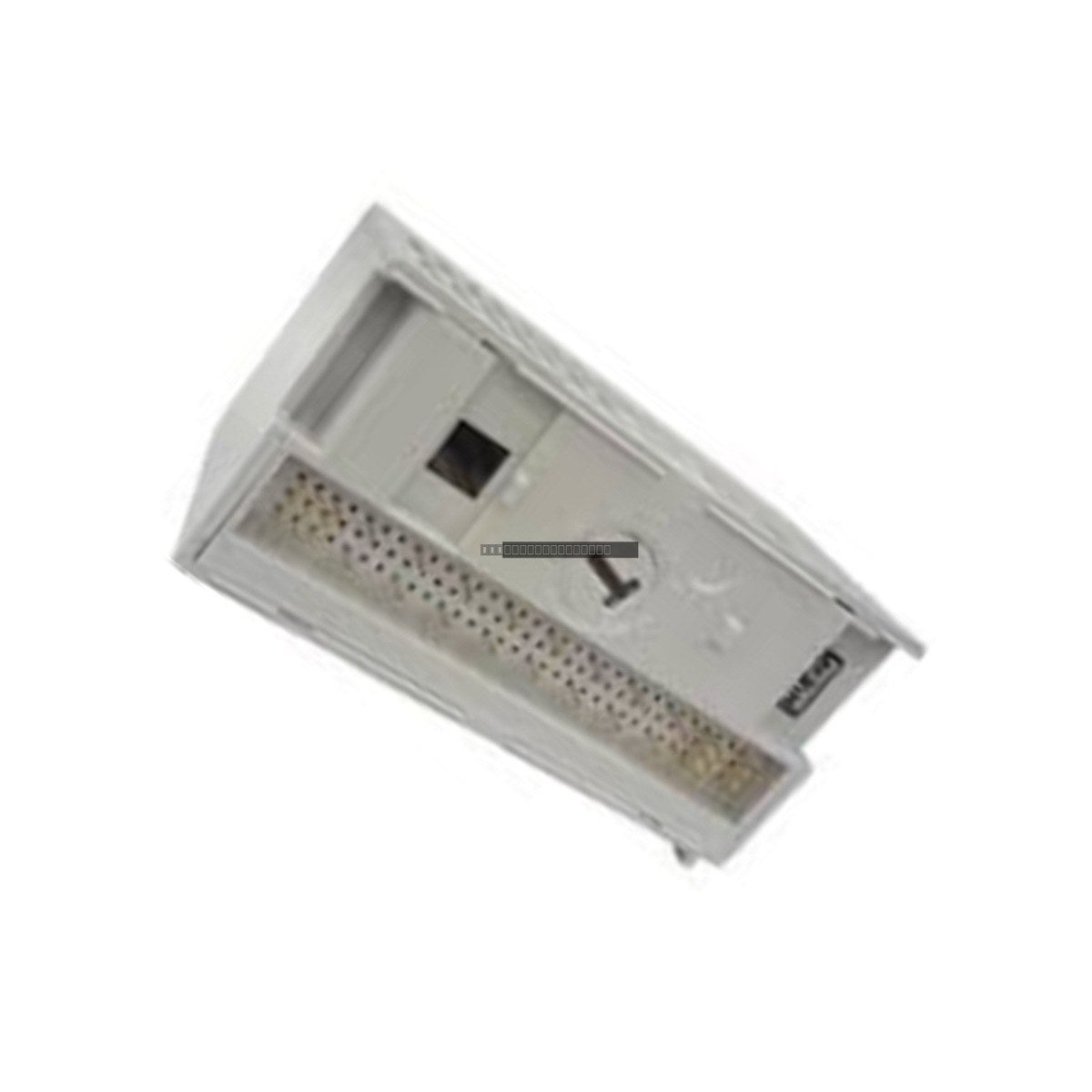

The Allen-Bradley 1794-ID2 is a high-speed, 2-channel incremental encoder counter module engineered for the FLEX I/O 1794 platform. This module functions as a high-speed pulse interface, converting raw mechanical rotational feedback into digital data for the programmable automation controller. It is designed for precision applications requiring high-speed counting, such as robotic positioning, conveyor synchronization, web-tension control, and continuous process monitoring. By processing pulses independently of the main controller scan cycle, the 1794-ID2 minimizes latency and improves tracking accuracy in high-speed industrial environments.

Features

• Dual-Channel Processing: Features two independent high-speed counter channels, each supporting four optocoupled inputs for versatile signal evaluation.
• Flexible Signal Configuration: Supports multiple operating modes including standard Quadrature (Phase A/B) and Up/Down count tracking.
• Robust Isolation: Integrated 500 VAC continuous optical isolation protects internal circuitry from field-side electrical noise and ground potential differences.
• Diagnostic Indicators: Equipped with 13 front-panel LEDs, including a bi-color system health indicator and 12 channel-specific status indicators for real-time troubleshooting.

Applications

The 1794-ID2 is widely utilized in automation systems where precise motion and position feedback are critical. Typical applications include:

• High-speed conveyor line tracking and synchronization.
• Robotic sorting and material handling cells.
• Metal rolling mill speed and position control.
• Packaging machinery and web-tension monitoring.

Technical Specifications

Installation Guidelines

• Power Down: Always disconnect power from the FLEX I/O backplane before installing or removing the module.
• Grounding: Ensure the DIN rail or mounting panel is properly grounded to provide a low-impedance path for EMI/RFI noise.
• Shielding: Use shielded twisted-pair cabling for encoder signals to minimize interference in high-EMI environments.
• Environment: This is an open-style device; it must be installed within a suitable industrial enclosure rated for the operating environment.
• Ventilation: Maintain adequate clearance around the module to ensure proper thermal dissipation during operation.

FAQ

What is the maximum pulse frequency supported by the 1794-ID2?

The module supports a maximum counting frequency of 100 kHz.

Does this module support differential encoder signals?

Yes, the 1794-ID2 is designed to evaluate both complementary and non-complementary differential encoder signals using its optocoupled inputs.

What type of mounting does this module require?

The 1794-ID2 is designed for standard 35 mm DIN rail mounting or direct surface mounting on a sub-panel within an industrial enclosure.
