Description

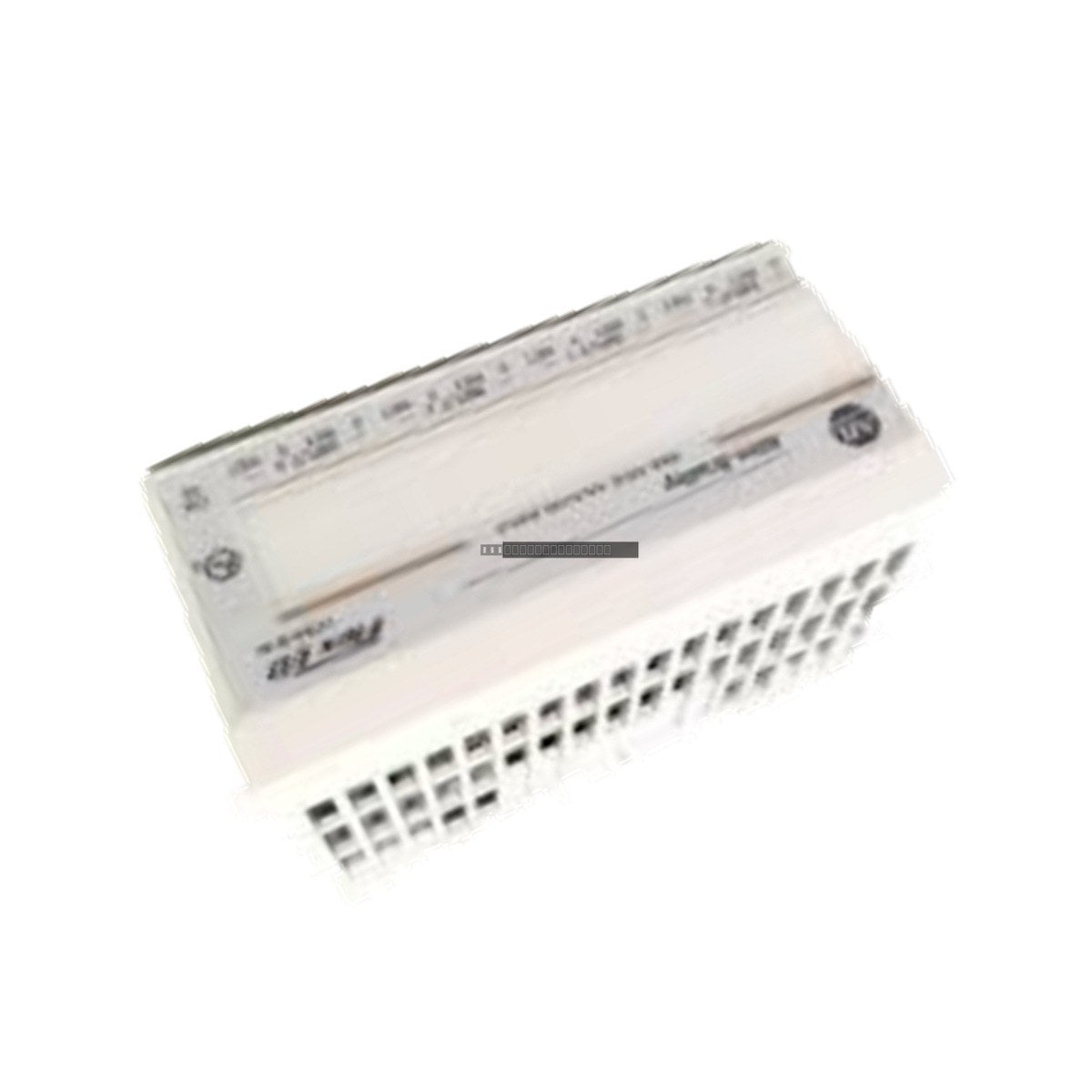

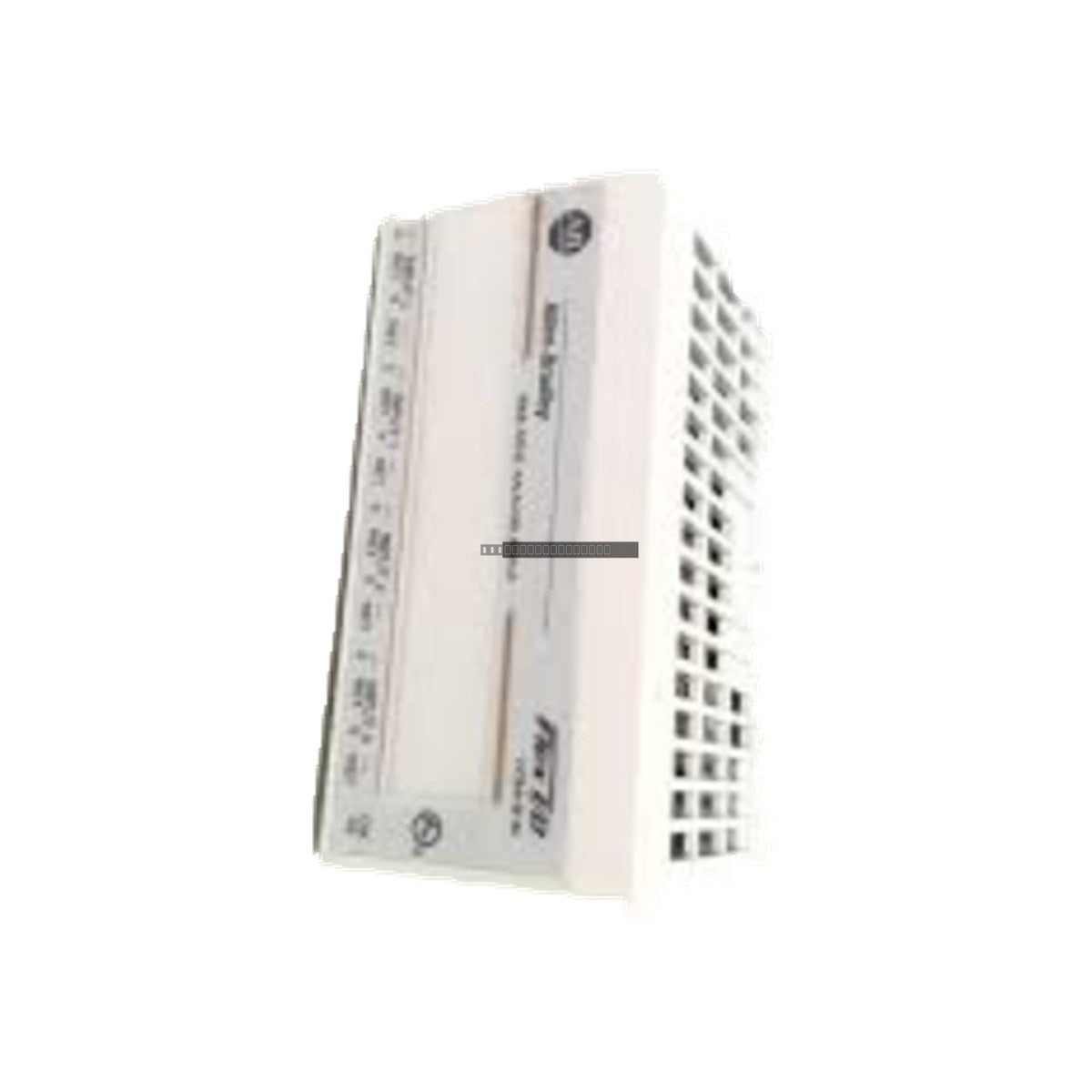

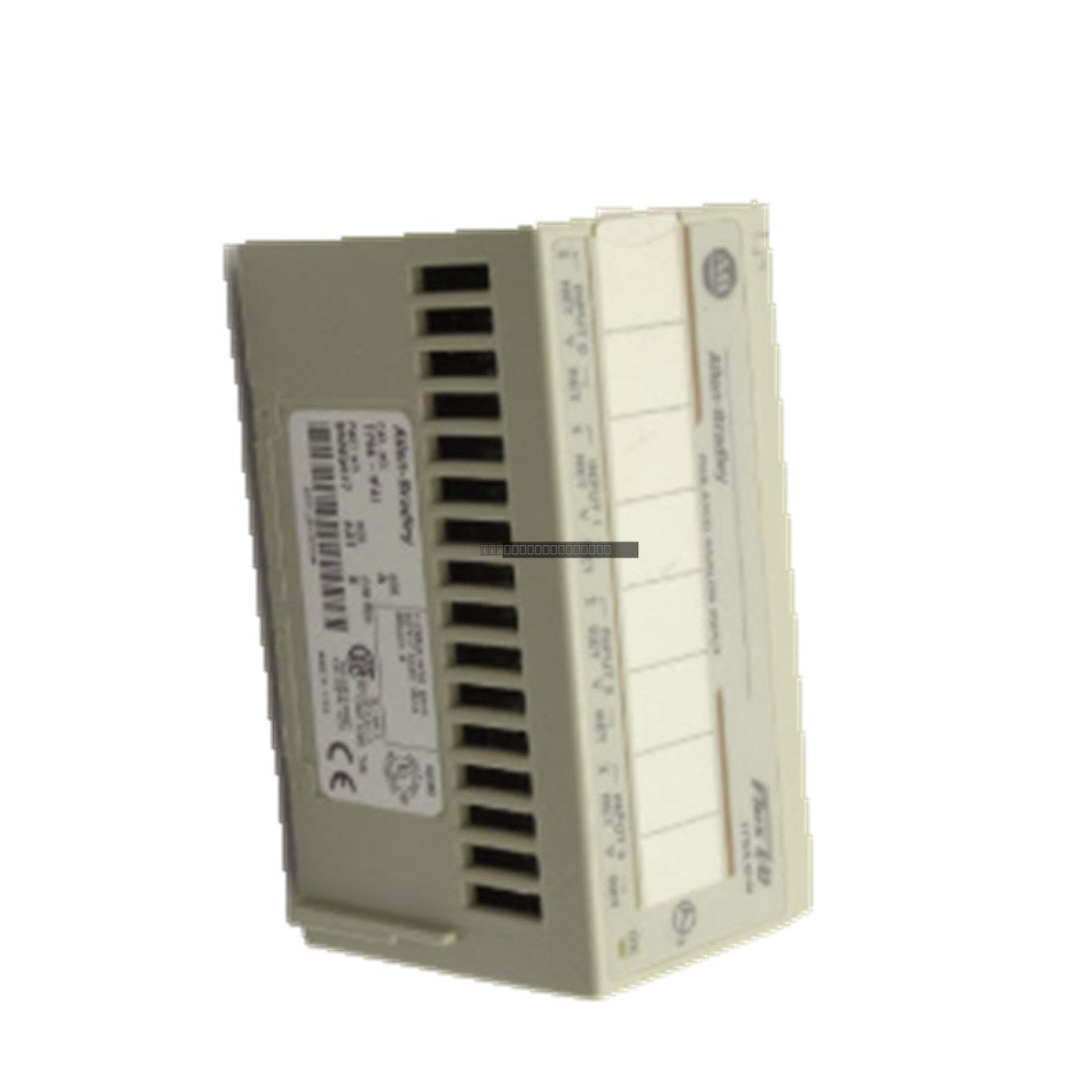

The Allen-Bradley 1794-IE4XOE2 is a high-performance analog combination module designed for the FLEX I/O system. This module provides a compact solution for industrial control applications requiring both analog input and output capabilities within a single, space-saving footprint. It is engineered to interface seamlessly with various sensors and actuators, supporting precise process control and monitoring.

Features

• Integrated analog I/O: Features 4 analog inputs and 2 analog outputs.
• Resolution: 12-bit resolution for accurate signal conversion.
• FLEX I/O Compatibility: Designed for modular integration within the Allen-Bradley FLEX I/O platform.
• Compact Design: Optimized for high-density mounting in control cabinets.
• Diagnostic Capabilities: Built-in status indicators for monitoring module health and I/O status.

Applications

This module is suitable for a wide range of industrial automation tasks, including:

• Process control systems for temperature, pressure, and flow monitoring.
• Integration with variable frequency drives (VFDs) and valve positioners.
• Data acquisition in distributed control architectures.
• General-purpose analog signal processing in manufacturing and utility environments.

Technical Specifications

Installation Guidelines

• Ensure the FLEX I/O base is securely mounted to a standard DIN rail before installing the module.
• Always disconnect power from the backplane before inserting or removing the module to prevent electrical damage.
• Use shielded twisted-pair cabling for all analog signals to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the cable shields at the source or the module end, following standard industrial grounding practices.
• Verify that the module is fully seated in the terminal base and the locking mechanism is engaged.
• Maintain adequate clearance around the module to allow for proper heat dissipation and airflow.

FAQ

What is the primary function of the 1794-IE4XOE2?

The 1794-IE4XOE2 is a combination analog I/O module that allows for the simultaneous processing of 4 analog input signals and 2 analog output signals within the Allen-Bradley FLEX I/O system.

Is this module compatible with other FLEX I/O components?

Yes, the 1794-IE4XOE2 is designed specifically for the FLEX I/O platform and is compatible with standard FLEX I/O terminal bases.

What type of resolution does this module provide?

This module features 12-bit resolution, providing sufficient precision for most standard industrial analog control and monitoring applications.
