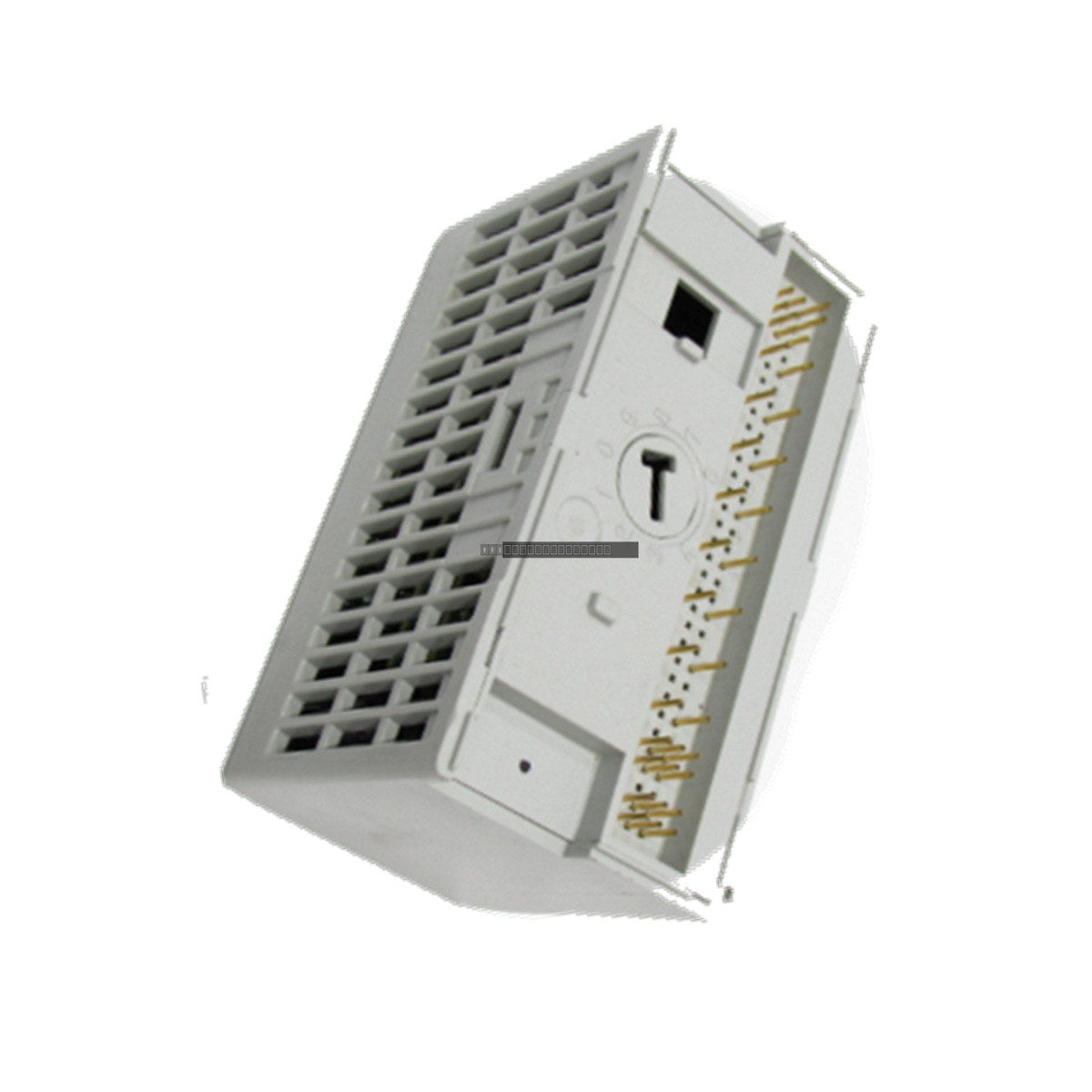

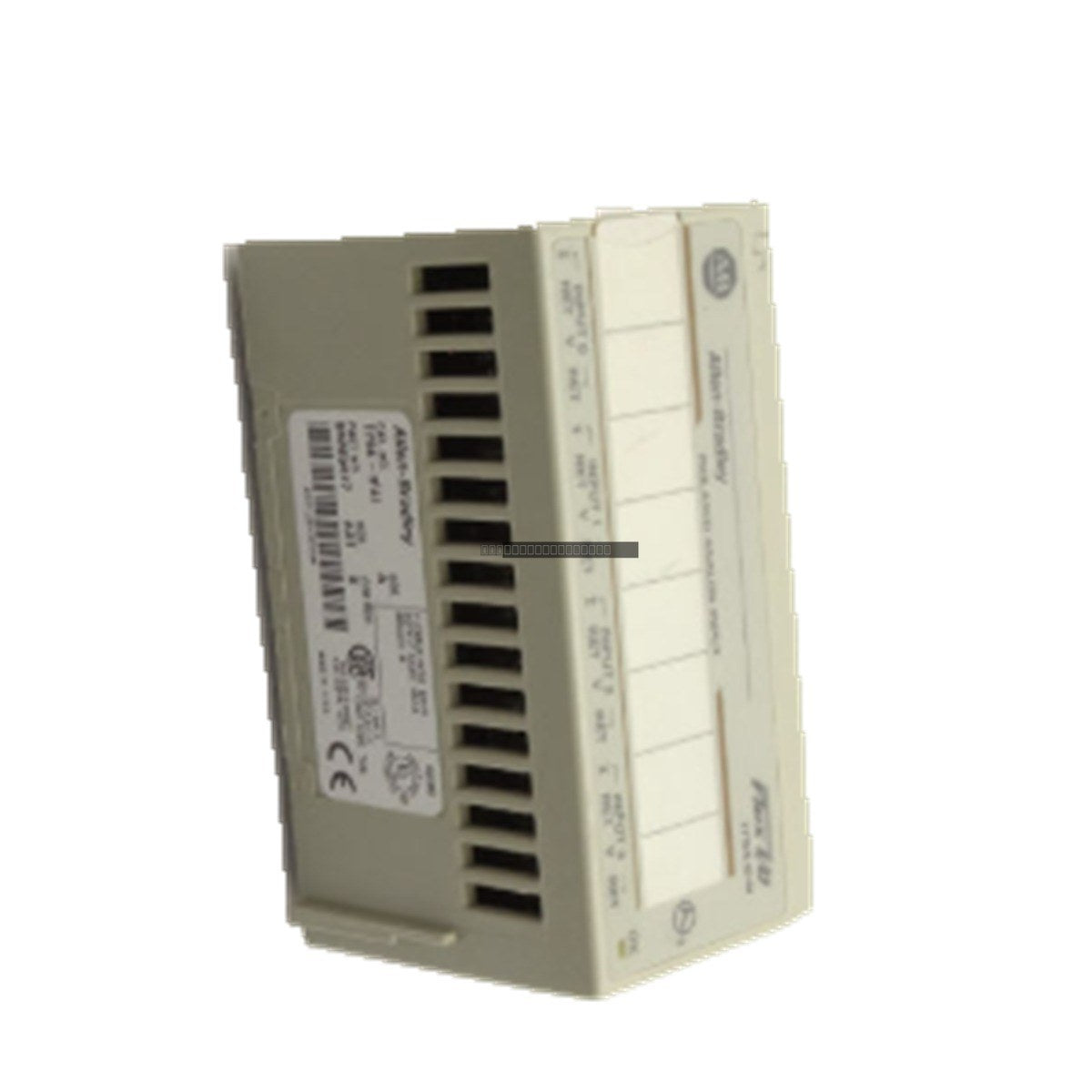

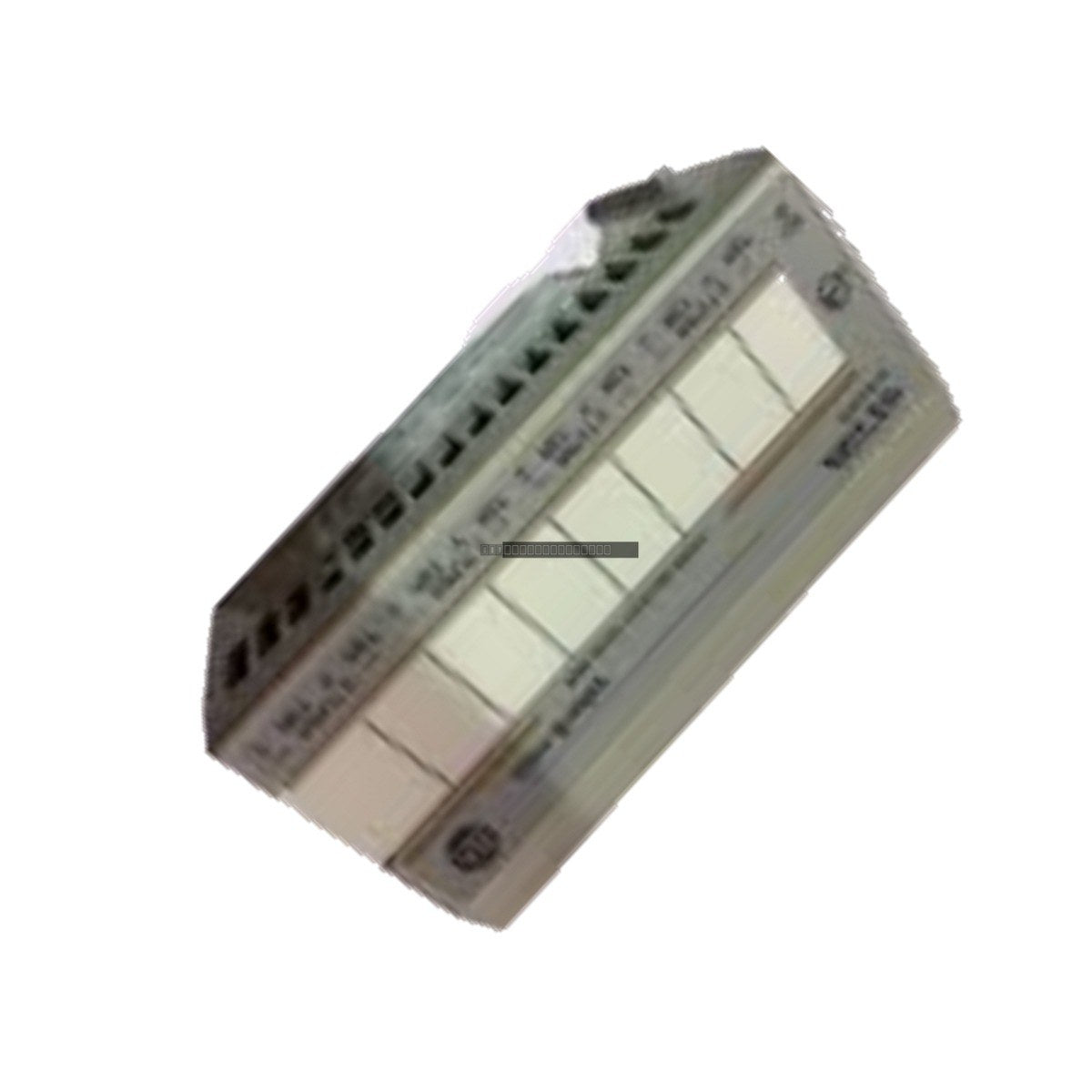

The Allen-Bradley 1794-IF4I is a high-performance analog input module designed for the FLEX I/O system. This module provides four isolated analog input channels, offering 16-bit resolution for precise signal monitoring in industrial automation environments. It is engineered to support various voltage and current input configurations, ensuring reliable data acquisition across diverse control applications.

Features

• Four isolated analog input channels for enhanced noise immunity and signal integrity.
• High-resolution 16-bit data conversion.
• Compatible with the Allen-Bradley FLEX I/O platform for flexible distributed I/O architecture.
• Supports a nominal 24V DC external power supply.
• Robust construction suitable for demanding industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the terminal base.
• Mount the module on a compatible FLEX I/O terminal base in a clean, dry, and vibration-controlled enclosure.
• Maintain proper grounding practices to minimize electrical interference and ensure signal accuracy.
• Use shielded cables for analog signal wiring to reduce EMI/RFI impact.
• Verify that the module is securely seated in the terminal base to ensure proper FlexBus connectivity.
• Maintain adequate clearance around the module to allow for proper heat dissipation and airflow.

FAQ

What is the primary function of the 1794-IF4I?

The 1794-IF4I is an isolated analog input module used within the Allen-Bradley FLEX I/O system to convert analog signals from field devices into digital data for processing by a PLC or controller.

Does this module require an external power supply?

Yes, the module requires a nominal 24V DC external power supply to operate the analog input circuitry.

Are the input channels isolated?

Yes, the 1794-IF4I features four isolated input channels, which help prevent ground loops and protect the module from voltage spikes in the field wiring.
