Description

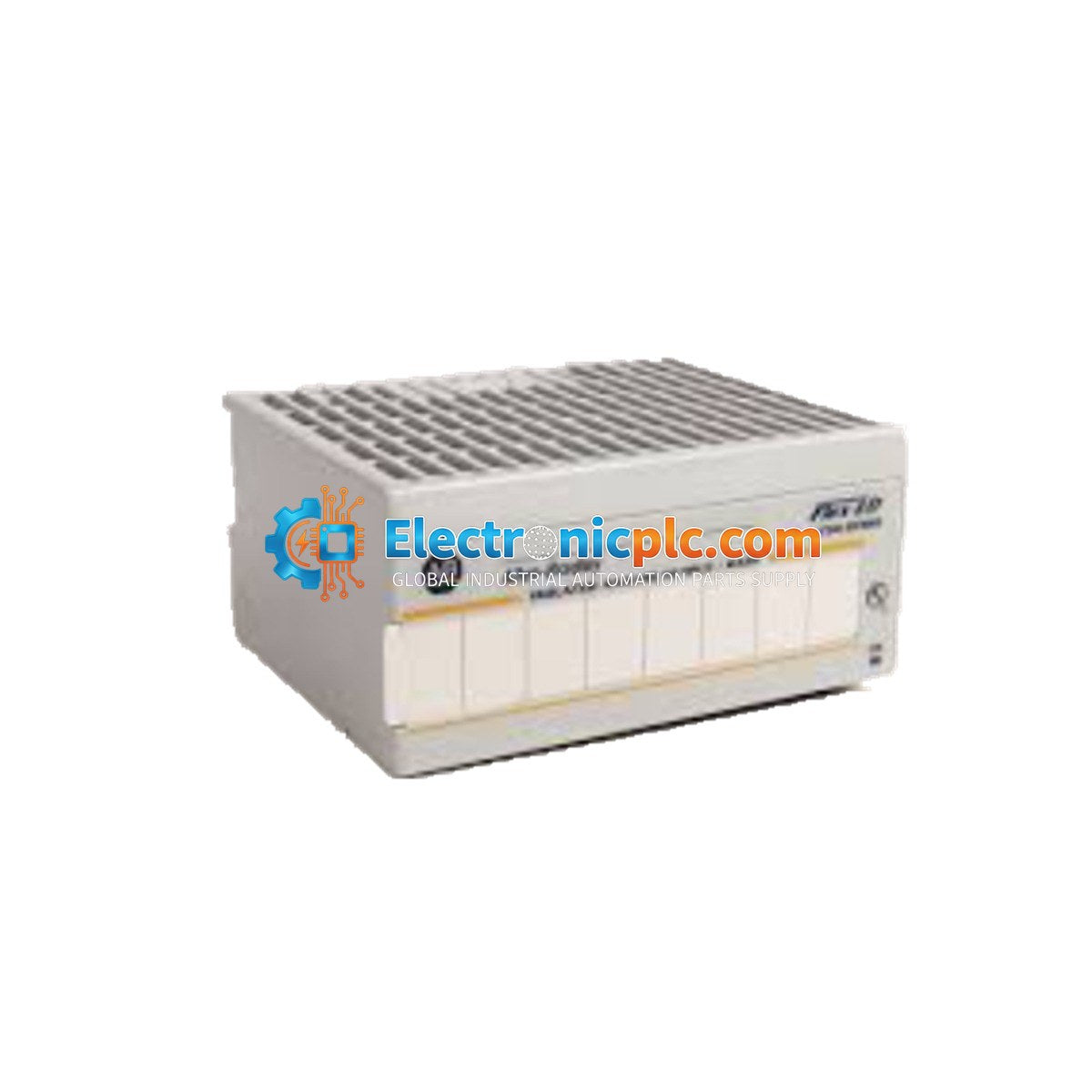

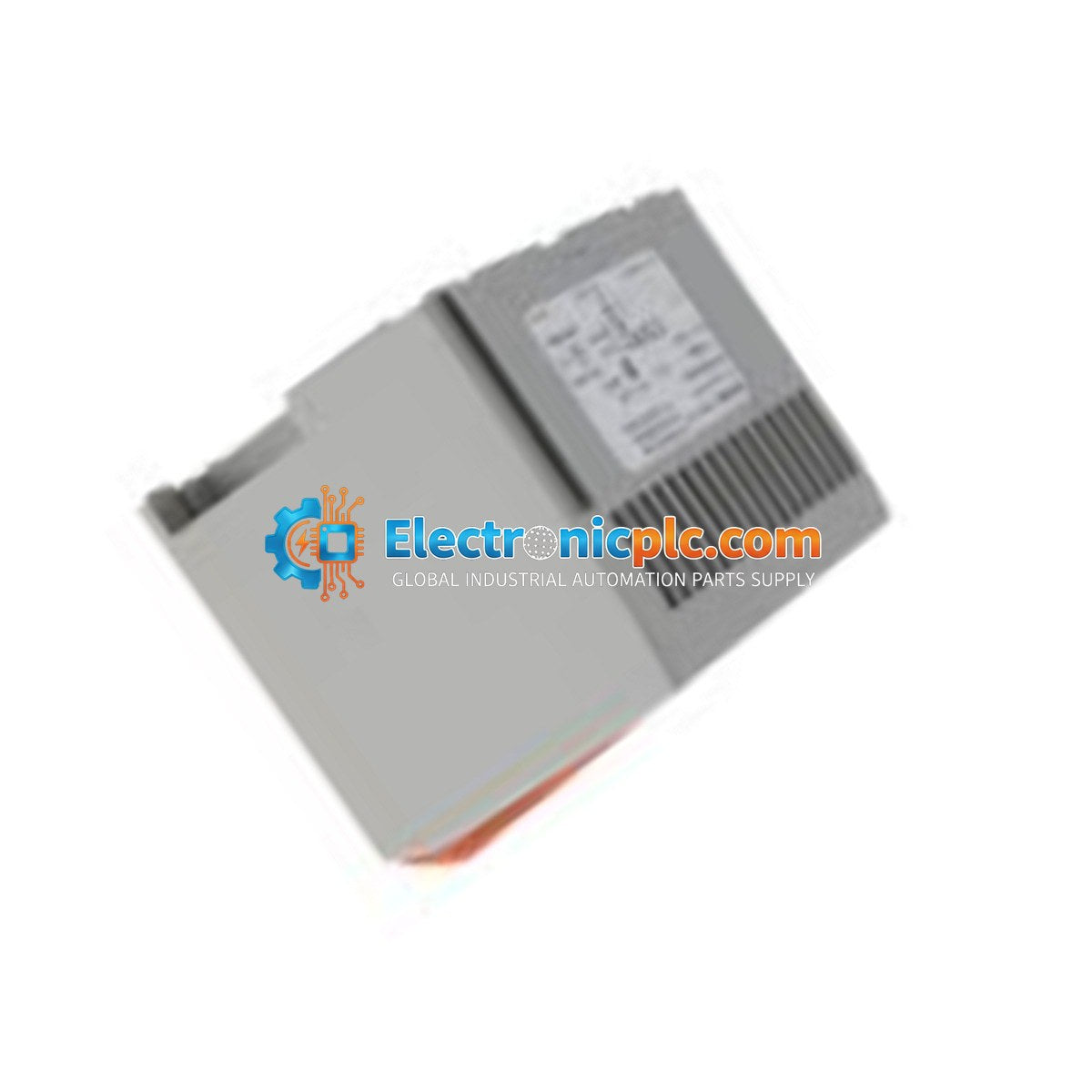

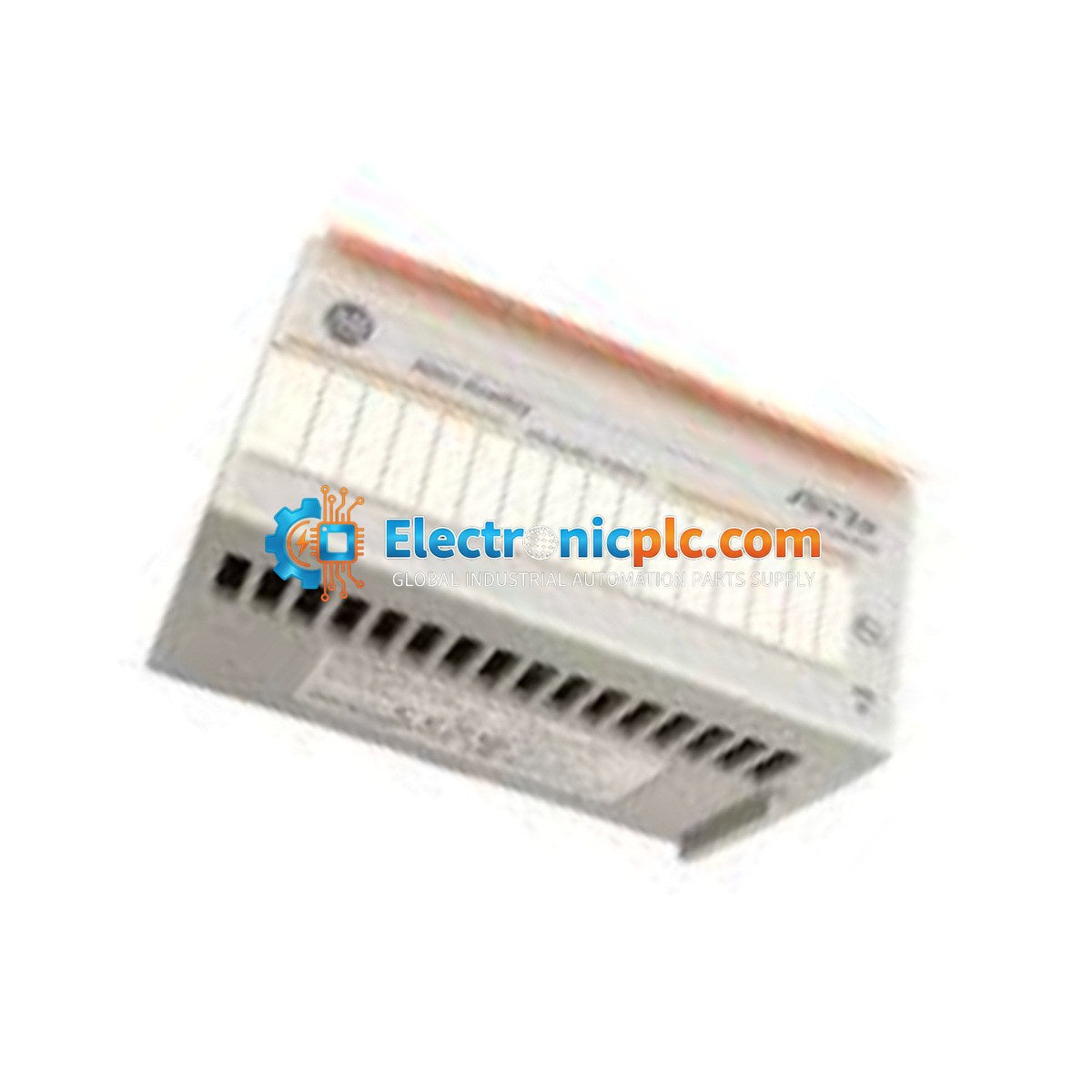

The Allen-Bradley 1794-OA8I is a member of the FLEX I/O product family, designed to provide reliable discrete output control in industrial automation environments. This module features 8 isolated AC output points, specifically engineered for 120VAC applications. As part of the FLEX I/O system, it offers a compact, modular design that allows for flexible configuration and easy integration into distributed I/O networks.

Features

• 8 isolated output points for 120VAC operation.
• Compact FLEX I/O form factor suitable for space-constrained control cabinets.
• Designed for high-density discrete output applications.
• IP20-rated enclosure for protection against solid objects.
• Supports standard DIN-rail mounting for efficient installation.

Applications

The 1794-OA8I is typically utilized in manufacturing, process control, and material handling systems where discrete AC control is required. It is commonly deployed in conjunction with FLEX I/O adapters to interface field devices such as contactors, solenoids, and indicators with the main PLC controller.

Technical Specifications

Installation Guidelines

• Ensure the power is disconnected from the FLEX I/O base and the module before installation or removal.
• Mount the module on a standard 35mm DIN rail. Ensure the module is securely seated in the terminal base.
• Maintain proper clearance around the module to allow for adequate ventilation and heat dissipation.
• Use shielded cables for I/O wiring to minimize electromagnetic interference (EMI).
• Ensure all wiring connections are tight and follow local electrical codes for AC circuit protection.
• Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the primary function of the 1794-OA8I?

The 1794-OA8I is a digital output module used to control 120VAC field devices from an Allen-Bradley FLEX I/O system.

Is this module isolated?

Yes, the 1794-OA8I features isolated output channels, which helps prevent electrical noise and ground loops from affecting other parts of the control system.

Can this module be mounted on a DIN rail?

Yes, the module is designed for standard DIN-rail mounting within a FLEX I/O terminal base.
