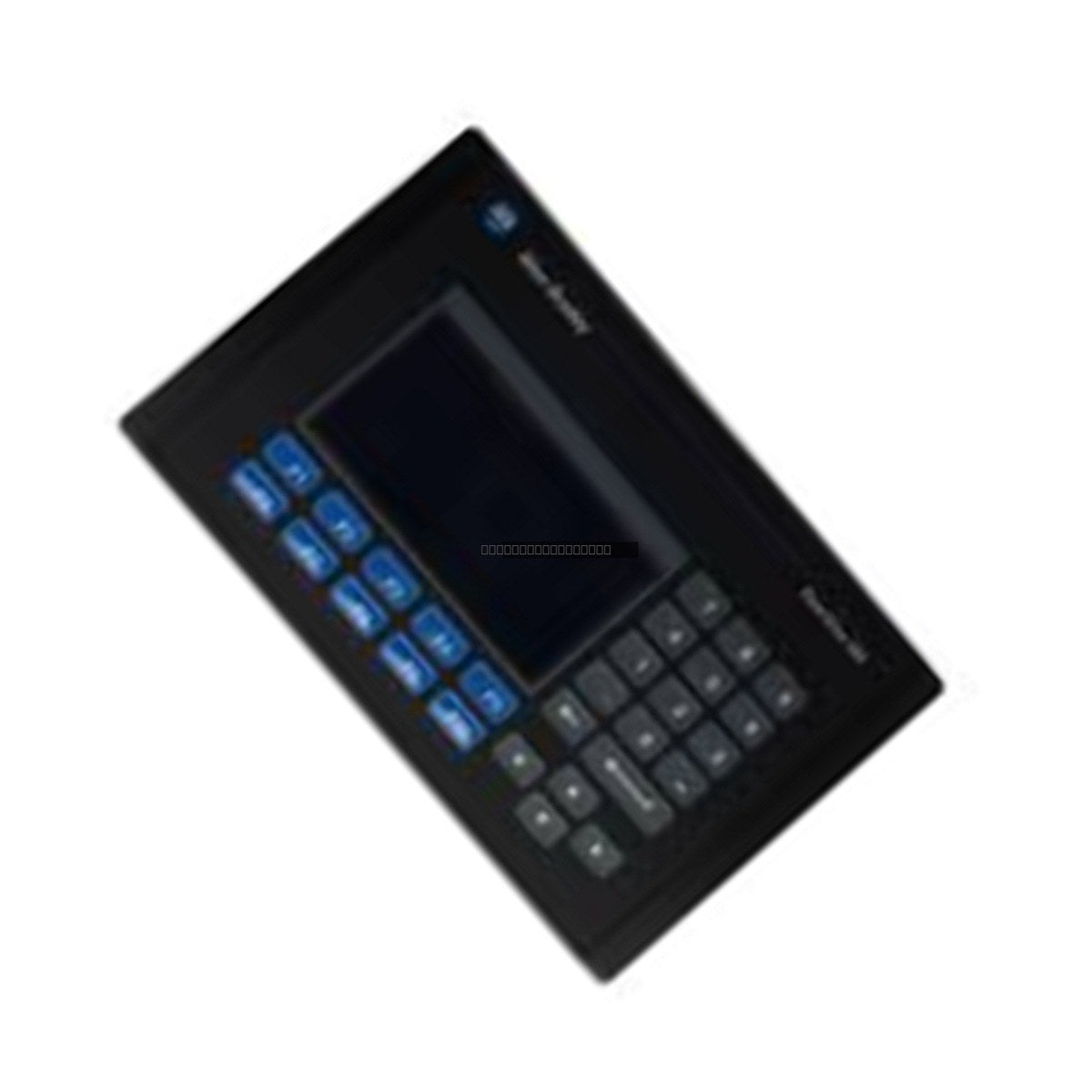

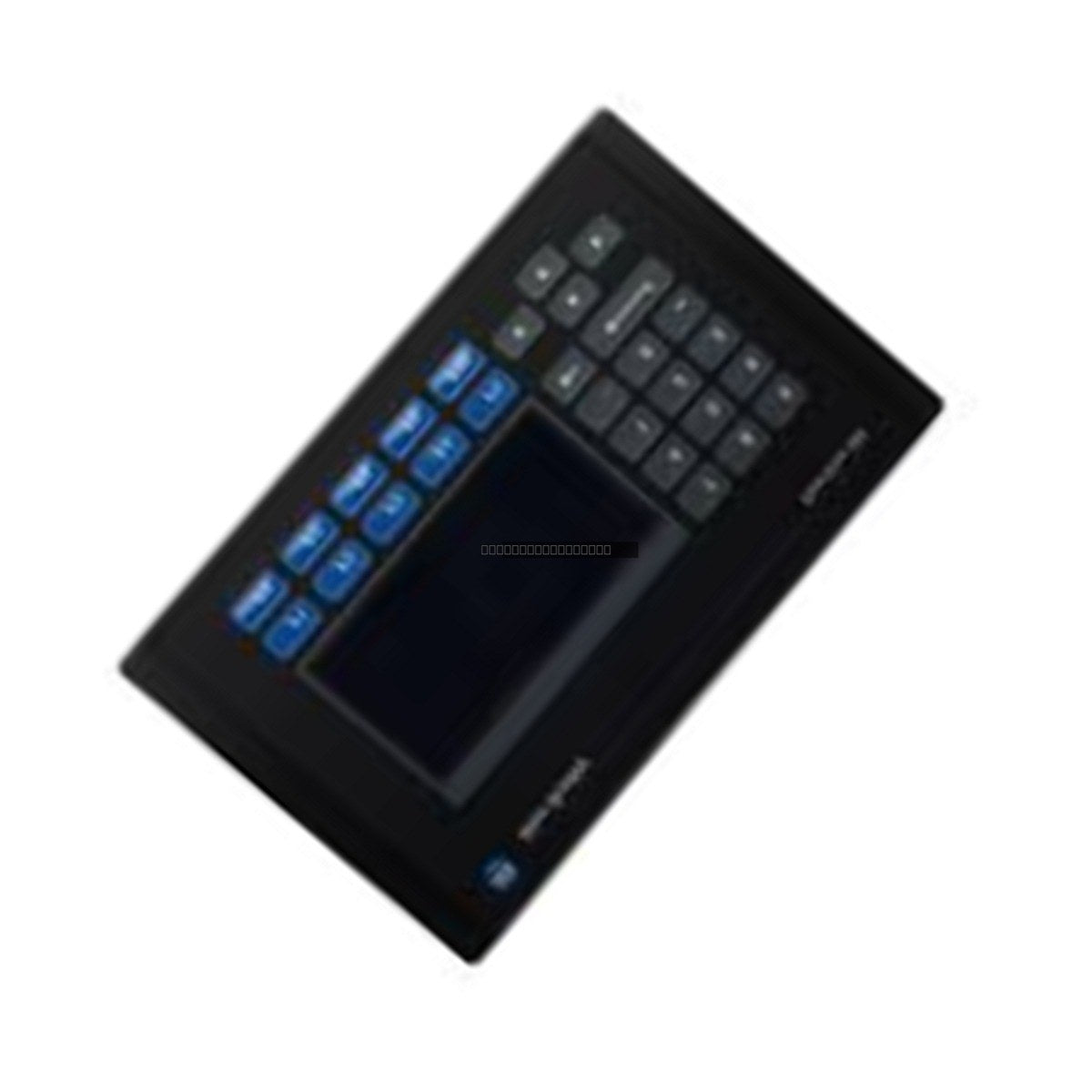

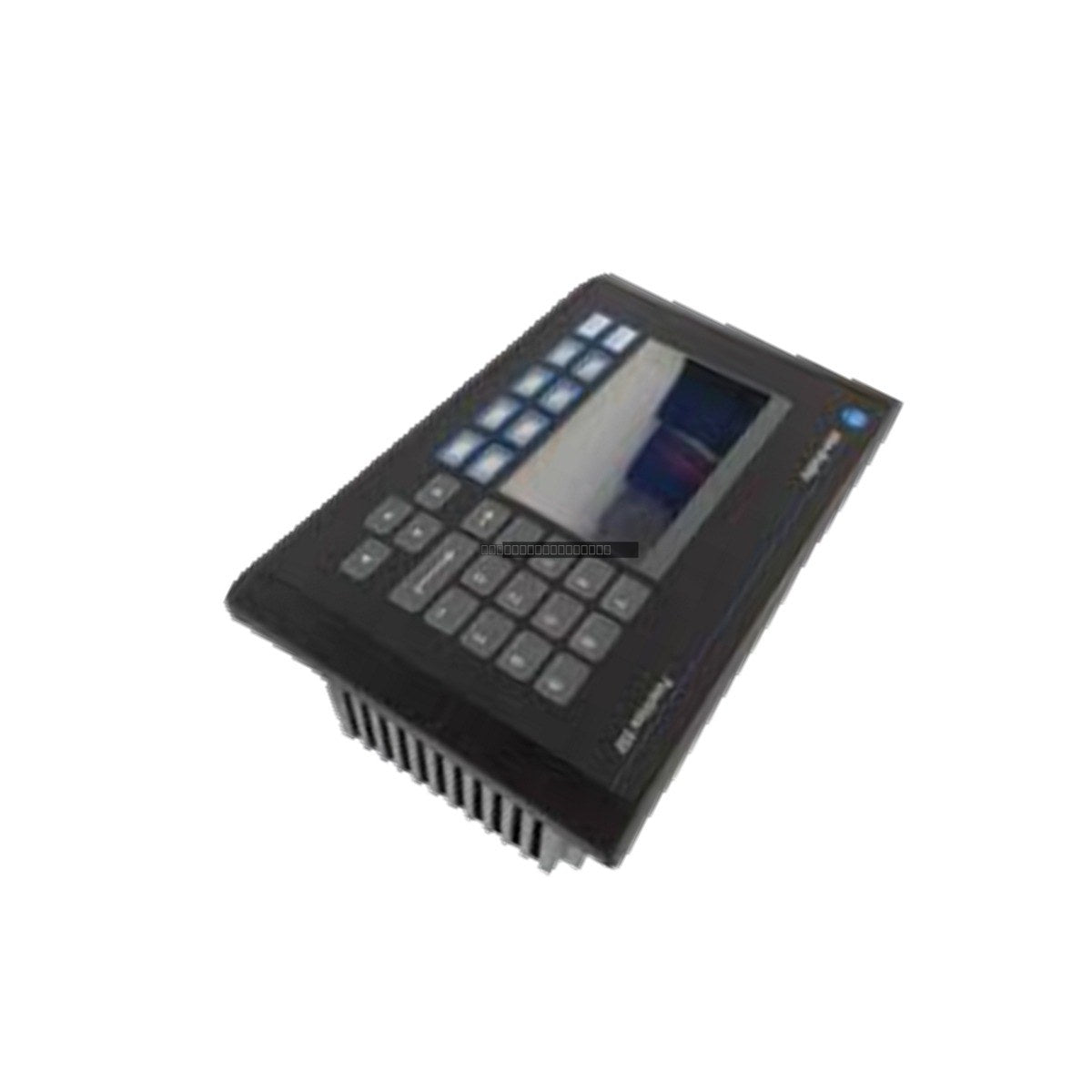

The Allen-Bradley 2711-K6C20 is a PanelView Standard operator interface terminal designed to provide reliable visualization and control for industrial automation processes. This unit features a color display and a tactile keypad, offering operators a robust interface for monitoring and interacting with PLC-based systems in manufacturing and material handling applications.

Features

• Integrated color active-matrix TFT display for clear process visualization.
• Tactile membrane keypad for reliable input in industrial environments.
• EtherNet/IP communication capability for high-speed connectivity and data exchange.
• RS-232 printer port for local documentation and reporting.
• Nonvolatile flash memory ensures application data retention during power cycles.

Technical Specifications

Installation Guidelines

• Ensure the terminal is mounted in a panel or enclosure that provides adequate protection against environmental contaminants.
• Maintain proper clearance around the unit for ventilation to prevent overheating during operation.
• Use shielded communication cables for Ethernet and RS-232 connections to minimize electromagnetic interference (EMI).
• Verify that the AC power supply is within the specified 85-264 VAC range before applying power.
• Always disconnect power before performing any wiring or maintenance on the terminal.

FAQ

What is the primary communication protocol for this terminal? The 2711-K6C20 supports EtherNet/IP for integration into standard industrial networks.

Does this unit require external memory for operation? No, it includes internal nonvolatile flash memory to store application layouts and runtime objects.
