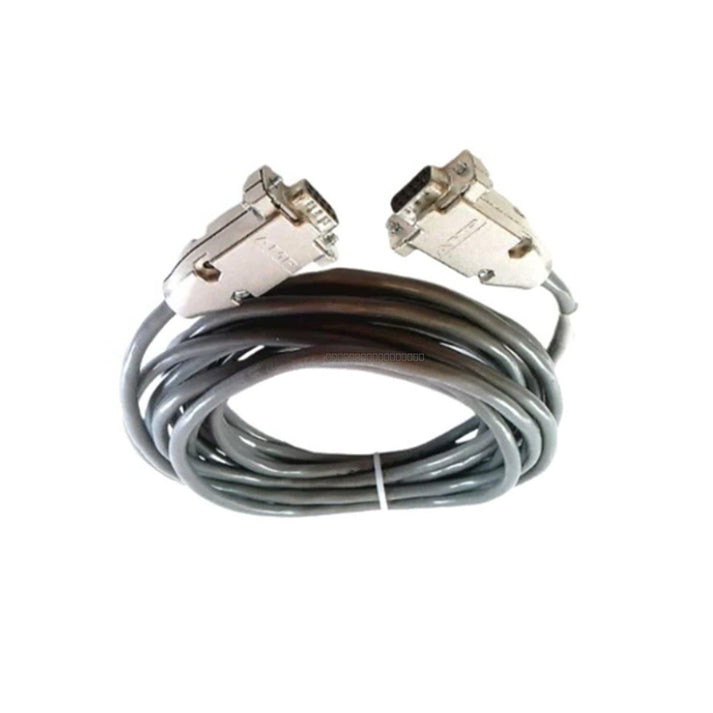

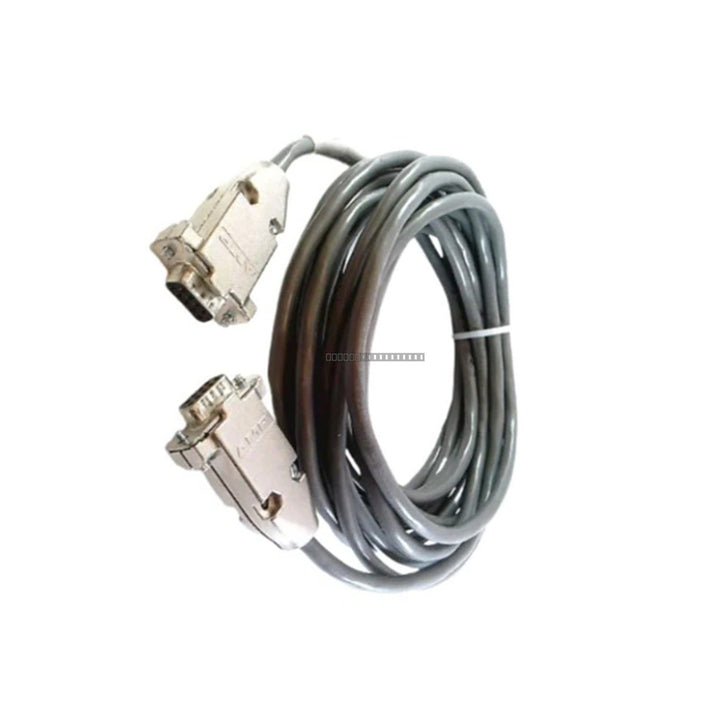

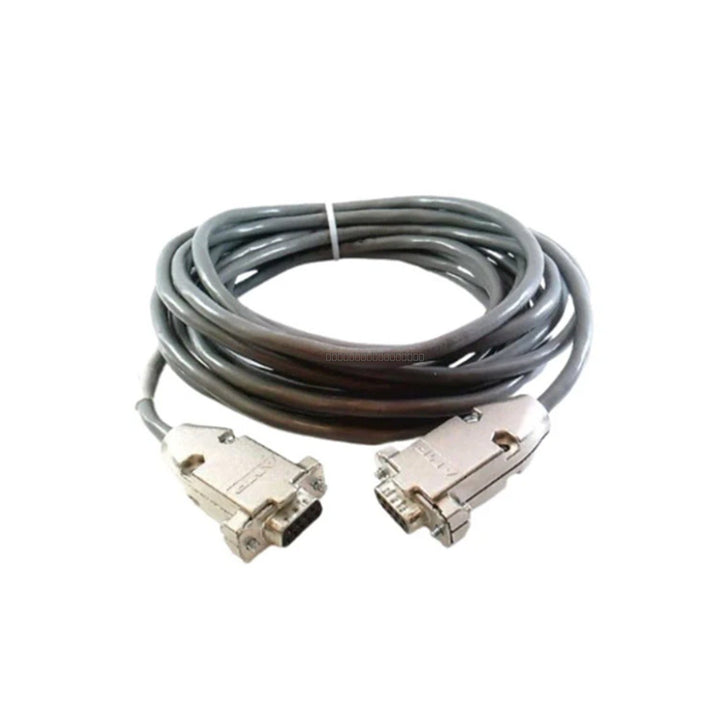

The 2711-NC13 is a high-quality communication cable manufactured by Allen-Bradley, specifically engineered for use with PanelView Plus 6 operator terminals. This RS-232 serial cable is designed to provide reliable data transfer for both programming and operational tasks within industrial automation systems.

Features

• Designed for seamless integration with PanelView Plus 6 terminals.
• Supports RS-232 serial communication protocols for robust data exchange.
• Equipped with standard 9-pin D-shell connectors on both ends for secure, reliable connections.
• 5-meter length provides flexibility for routing within control panels and between devices.

Applications

This cable is primarily used for connecting programming workstations to operator interfaces, facilitating the download of HMI applications, firmware updates, and real-time serial data communication in industrial environments.

Technical Specifications

Installation Guidelines

• Ensure both the programming device and the PanelView terminal are powered down before connecting or disconnecting the cable to prevent potential electrical damage.
• Route the cable away from high-voltage power lines and high-EMI sources to maintain signal integrity.
• Secure the D-shell connectors using the integrated thumbscrews to prevent accidental disconnection due to vibration.
• Avoid sharp bends or excessive tension on the cable during installation to maintain the integrity of the internal conductors.
