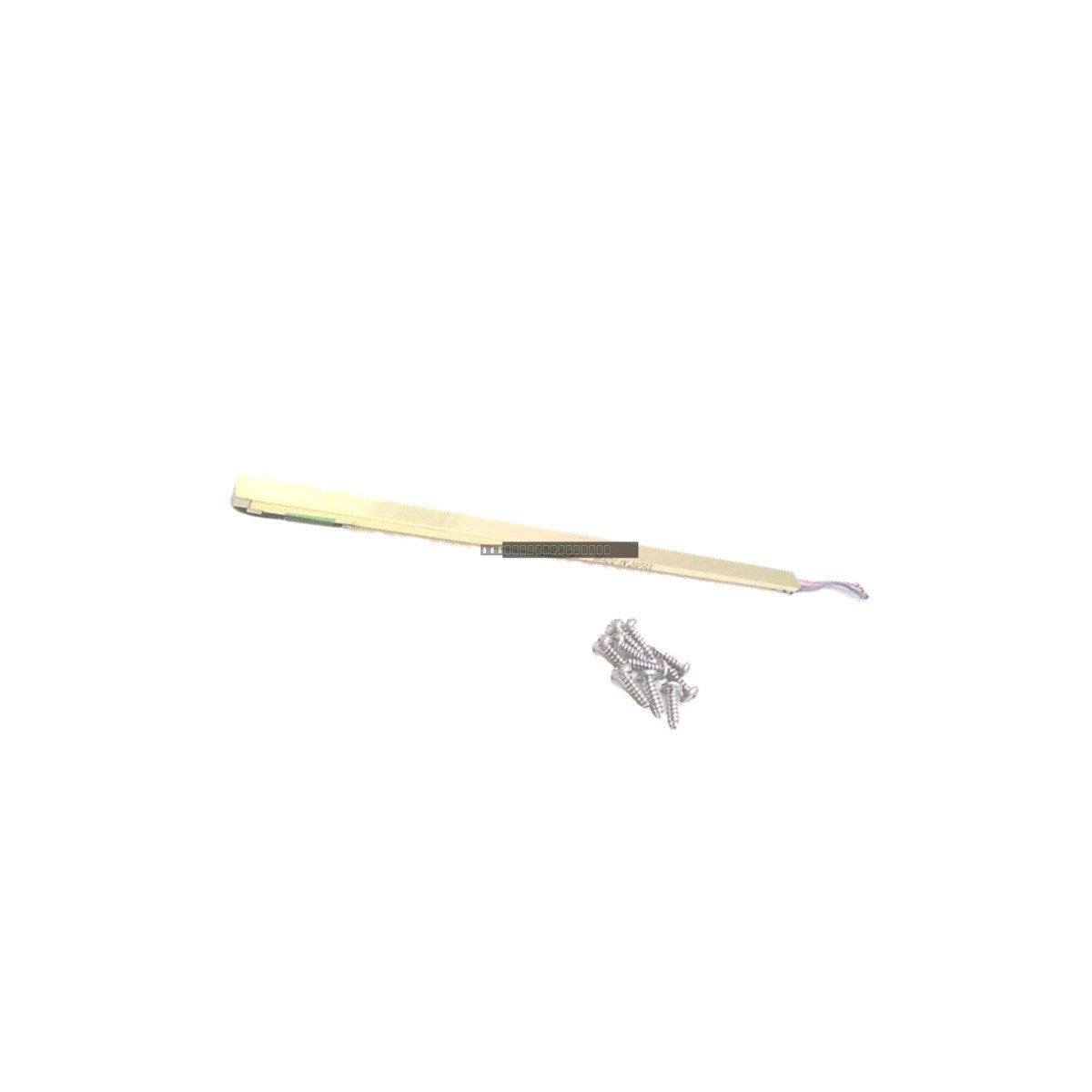

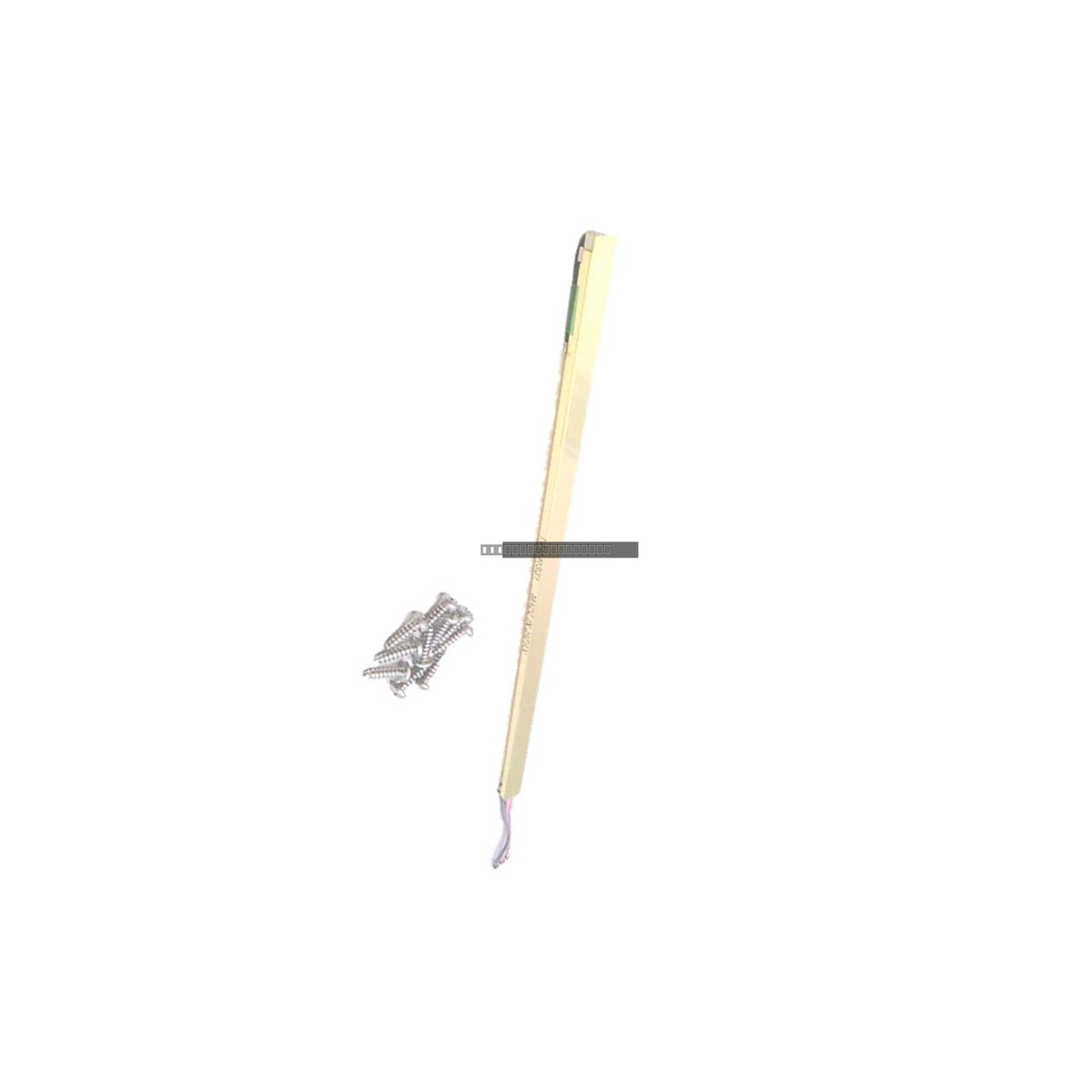

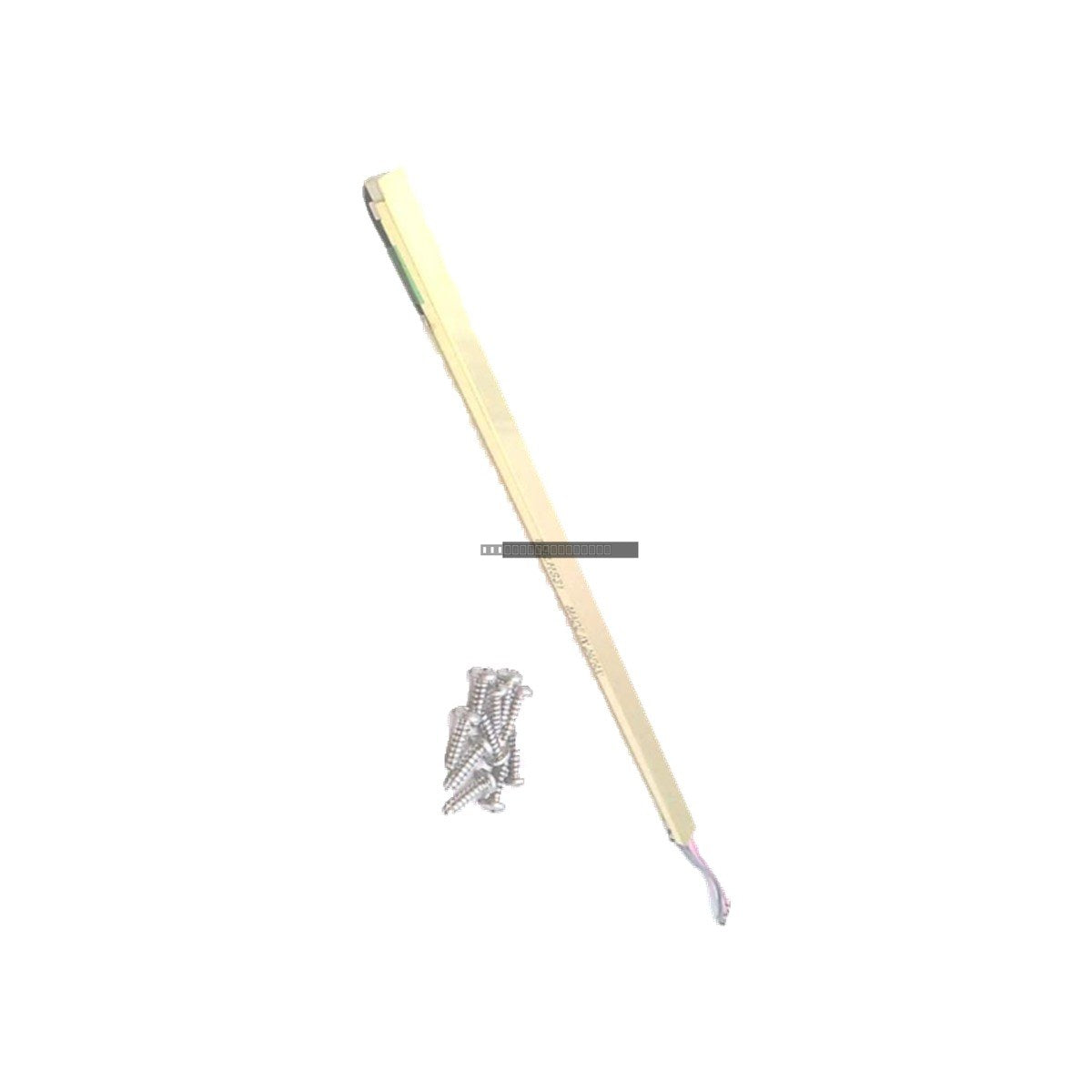

The Allen-Bradley 2711-NL6 is a replacement backlight module designed specifically for the PanelView 600 series operator terminals. This component is essential for maintaining the visibility and operational clarity of legacy human-machine interface (HMI) units that utilize Cold Cathode Fluorescent Lamp (CCFL) technology. By replacing a degraded or failed backlight, users can restore the display brightness and contrast required for accurate monitoring and control in industrial environments.

Features

• Designed for compatibility with PanelView 600 series terminals.
• Restores screen brightness and readability for legacy display systems.
• Engineered for direct integration into existing HMI hardware.
• Supports extended operational life for discontinued PanelView equipment.

Installation Guidelines

• Ensure the terminal is completely disconnected from all power sources before attempting to open the enclosure.
• Observe standard electrostatic discharge (ESD) precautions when handling internal electronic components.
• Carefully remove the existing CCFL assembly and replace it with the 2711-NL6 module, ensuring all connectors are fully seated.
• Verify that the backlight cable is routed correctly to avoid pinching or damage during reassembly.
• Perform a power-up test to confirm uniform illumination across the display area before returning the unit to service.

FAQ

Is the 2711-NL6 compatible with all PanelView 600 models?
This module is intended for specific PanelView 600 units utilizing CCFL backlighting. Please verify your specific terminal's part number and backlight requirements against the manufacturer's documentation before installation.

What should I do if the screen remains dim after installation?
If the display remains dim, verify that the power supply to the inverter board is stable and that the connection between the backlight and the inverter is secure. If the issue persists, the inverter board itself may require inspection.
