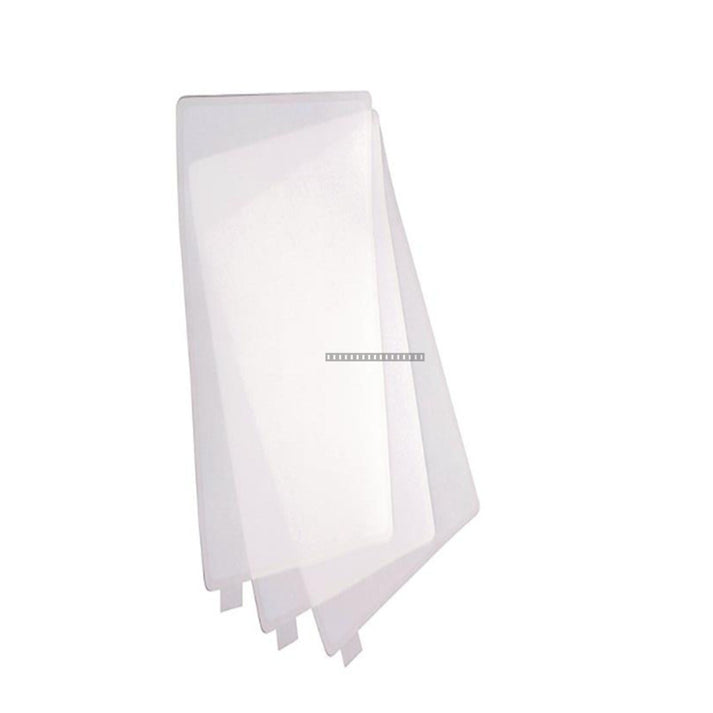

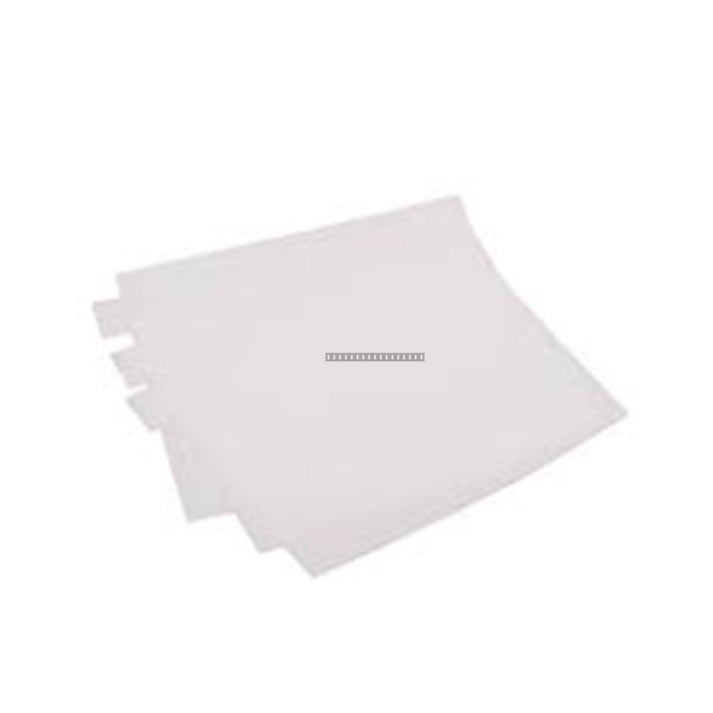

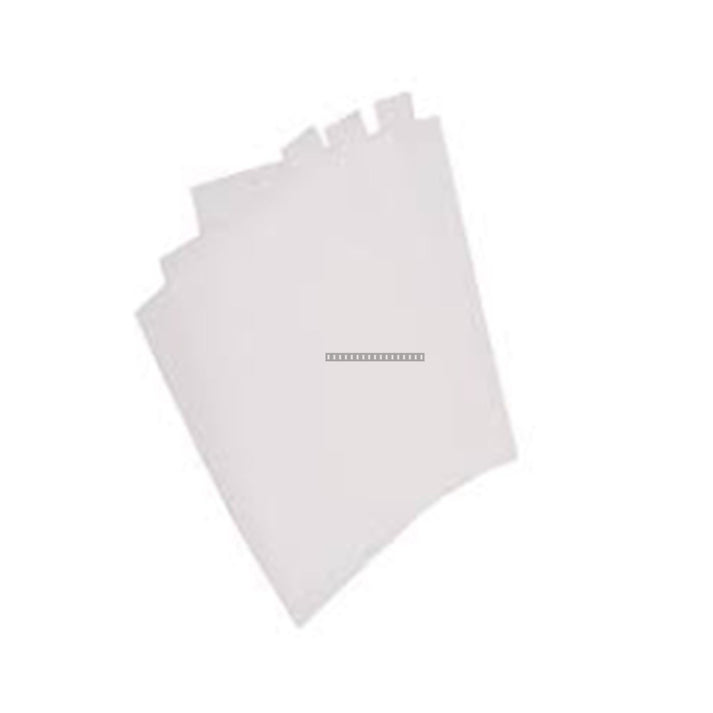

The Allen-Bradley 2711-NV6K is an antiglare overlay specifically engineered for PanelView 1000 operator terminals. This protective component is designed to improve display visibility by reducing ambient light reflection, ensuring clear monitoring and interaction for operators in demanding industrial environments. Beyond its optical benefits, the overlay serves as a protective layer for the 10.4-inch touchscreen interface, helping to maintain the longevity of the terminal's display surface.

Features

• Optimized for 10.4-inch PanelView 1000 touch screen displays.
• Reduces glare to enhance visual clarity and operator efficiency.
• Provides a protective barrier against surface scratches and environmental contaminants.
• Designed for seamless integration with standard PanelView 1000 hardware configurations.

Applications

This overlay is intended for use in industrial control rooms, manufacturing floors, and HMI stations where high-intensity lighting or glare may impede operator visibility. It is a critical maintenance component for extending the service life of PanelView 1000 terminals in high-traffic operator interface applications.

Technical Specifications

Installation Guidelines

• Ensure the PanelView display surface is clean, dry, and free of dust or oils before application.
• Power down the terminal before performing maintenance or component installation to prevent accidental screen activation.
• Carefully align the overlay with the screen edges to avoid air bubbles or misalignment.
• Avoid using abrasive cleaners or sharp tools during installation, as these may damage the overlay or the underlying touchscreen sensor.

FAQ

What is the primary function of the 2711-NV6K overlay?

The 2711-NV6K is designed to reduce glare on the PanelView 1000 display, improving readability in environments with significant ambient light while also protecting the screen from surface wear.

Is this overlay compatible with all PanelView terminals?

No, this specific model is designed for the 10.4-inch PanelView 1000 series. Please verify your terminal model number before installation.
