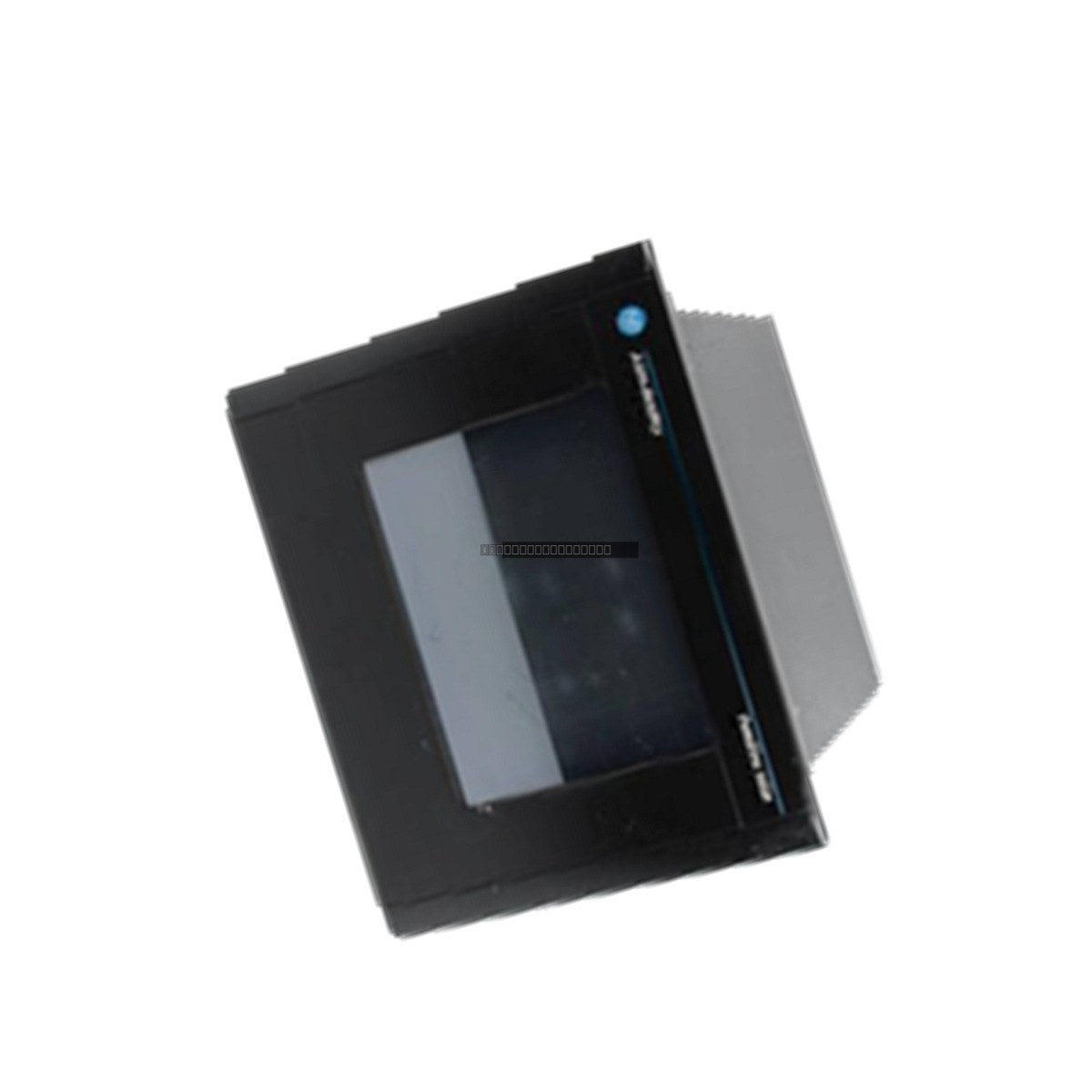

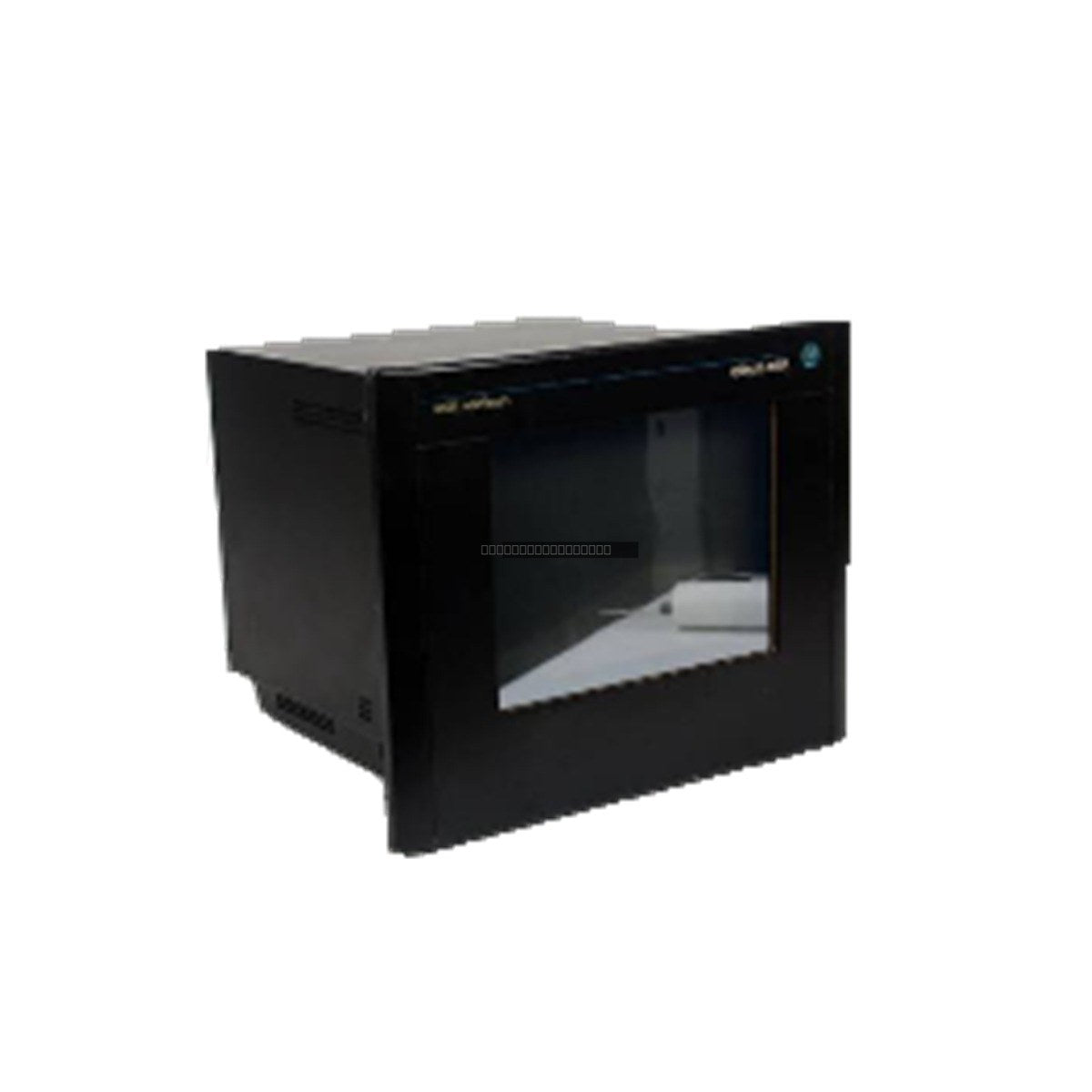

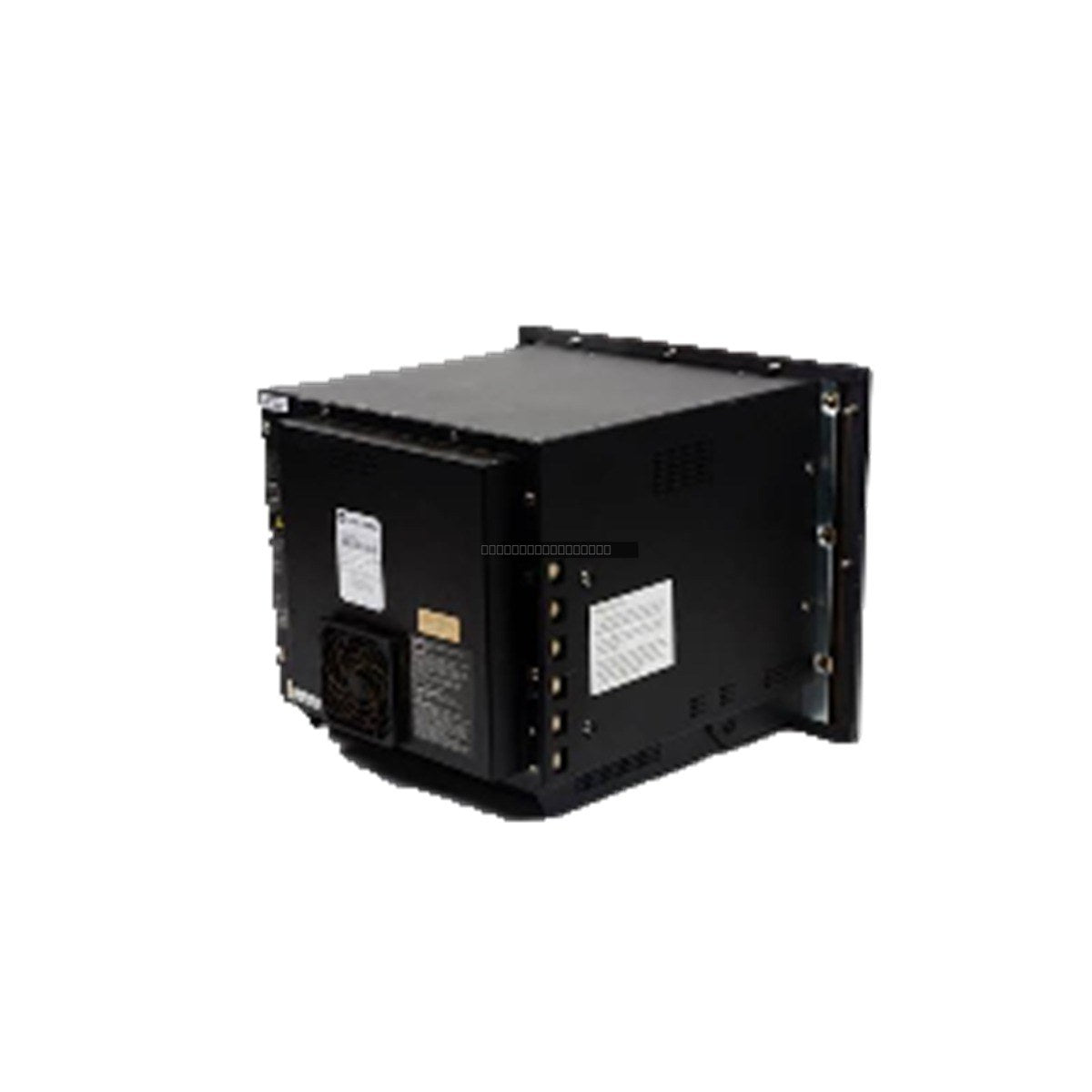

The Allen-Bradley 2711E-UKCK10 is a robust HMI terminal designed for the PanelView Standard 1000 series, providing reliable process visualization and operator control in demanding industrial environments. This unit features a 10-inch color display and a physical keypad, offering a durable solution for monitoring and interacting with PLC-based control systems. It is engineered to operate on a universal 100 to 240 VAC power supply, ensuring compatibility with diverse plant power infrastructures.

Features

• 10-inch color display with 640 x 480 pixel resolution for clear process monitoring.
• Integrated mechanical bezel keypad for reliable tactile input, suitable for use with industrial gloves.
• Built-in Data Highway Plus (DH+) and RS-232 serial communication ports for integration with PLC-5, SLC 500, and ControlLogix systems.
• Rugged design capable of withstanding continuous plant floor vibrations and electrical noise.
• Non-volatile memory for secure storage of configuration files and alarm blocks.

Applications

This terminal is suitable for legacy automation systems in sectors such as automotive manufacturing, water treatment, chemical processing, and paper production. It serves as a centralized interface for machine registers, replacing traditional hardwired push-button panels.

Technical Specifications

Installation Guidelines

• Ensure the unit is mounted in a NEMA-rated enclosure to maintain protection against environmental contaminants.
• Verify that the panel cutout dimensions are correct before mounting to ensure a proper seal.
• Connect the DH+ and RS-232 cables according to the specific wiring requirements of your PLC network architecture.
• Always disconnect power before performing any installation, wiring, or maintenance tasks.
• Ensure proper grounding of the terminal chassis to minimize the impact of EMI and electrical surges.

FAQ

Is this terminal still supported by the manufacturer?

The 2711E-UKCK10 is classified as a discontinued product. Support and availability may be limited to secondary market channels.

What type of controllers can this HMI connect to?

This terminal is designed to interface with Allen-Bradley PLC-5, SLC 500, and ControlLogix systems via the integrated DH+ and RS-232 ports.
