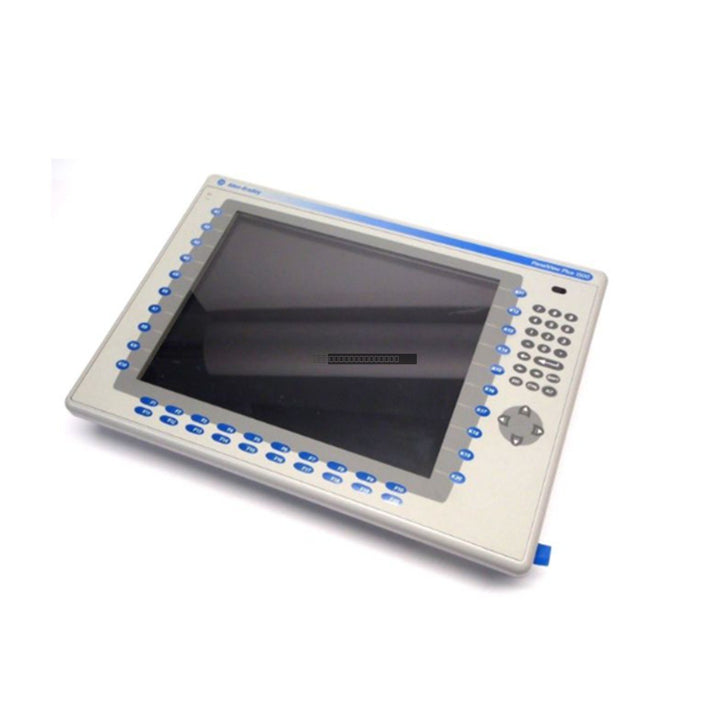

The Allen-Bradley 2711P-B10C4A1 is a high-performance operator terminal designed for industrial human-machine interface (HMI) applications. As part of the PanelView Plus 1000 series, this unit provides robust visualization and control capabilities, making it suitable for demanding manufacturing environments, including packaging, material handling, and discrete automation systems.

Features

• Integrated keypad and touchscreen input for versatile operator control.
• 10.4-inch color display for clear process monitoring and data visualization.
• Ethernet and RS-232 communication ports for seamless integration into existing control networks.
• EtherNet/IP protocol support for real-time messaging and application transfers.
• RJ45 10/100Base-T connector with auto-crossover (MDI/MDI-X) functionality.

Applications

This terminal is designed for use in industrial automation where reliable operator interaction with PLCs and other control hardware is required. It is commonly deployed in legacy systems requiring direct replacement or maintenance support for existing PanelView Plus infrastructure.

Technical Specifications

Installation Guidelines

• Ensure the unit is installed in a clean, dry environment within the specified temperature range.
• Verify that the panel cutout dimensions are correct before mounting to ensure a proper NEMA/IP seal.
• Always disconnect power before installing or removing the terminal to prevent electrical damage.
• Use shielded communication cables for Ethernet and RS-232 connections to minimize electromagnetic interference (EMI).
• Maintain proper clearance around the unit to ensure adequate ventilation and cooling.
• Ground the terminal chassis according to local electrical codes to prevent noise and potential ground loops.

FAQ

Is this unit compatible with newer PanelView Plus models?

The 2711P-B10C4A1 is a legacy component. While it may be functionally replaced in some systems, you should verify firmware compatibility and project file conversion requirements within FactoryTalk View Studio before attempting a direct swap with newer hardware.

What type of power supply does this terminal require?

This model is designed for an AC power input range of 85-264 VAC. Please ensure your supply voltage is stable and within this range to prevent operational failure.
