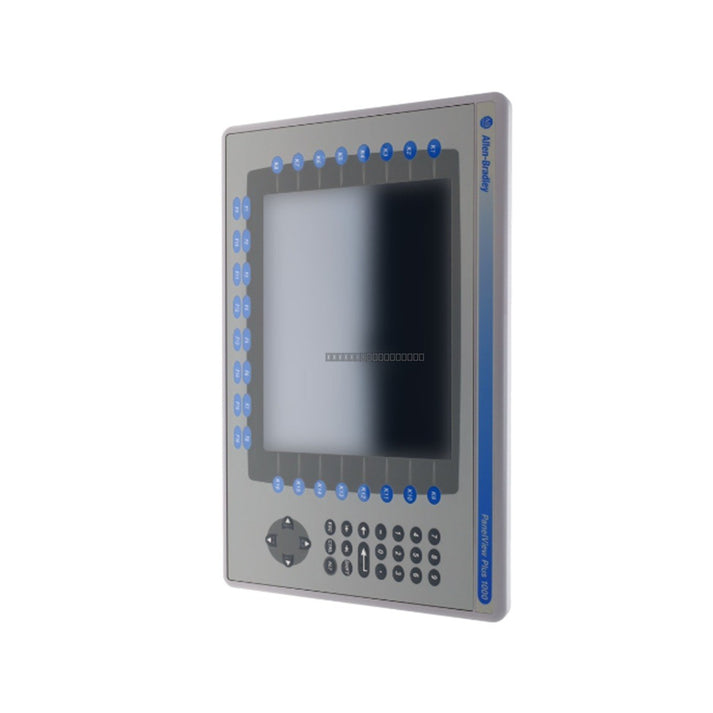

The Allen-Bradley 2711P-B10C4A2 is a high-performance operator interface terminal from the PanelView Plus 1000 series. Engineered for industrial automation, this unit provides robust visualization and control capabilities for manufacturing plants, assembly lines, and material handling applications. It features a dual-input design, combining a tactile keypad with an analog touchscreen to ensure reliable operator interaction in demanding environments.

Features

• Dual Input Interface: Equipped with both a tactile keypad and an analog touchscreen for versatile navigation and data entry.
• Integrated Processing: Features a 128 MB logic module designed for efficient application runtime and local data logging.
• Connectivity Options: Includes an integrated Ethernet port, RS-232 serial interface, and dual USB ports for peripheral device support.
• Industrial Display: High-resolution 10.4-inch color display providing clear process status and diagnostic information.

Applications

This HMI is suitable for a wide range of industrial applications, including process control, machine monitoring, and system diagnostics in automated factory floor environments.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the unit is installed in a NEMA-rated enclosure suitable for the application environment to maintain IP ratings.
• Power Requirements: Verify that the supply voltage is within the 100-240 VAC range before connection.
• Grounding: Follow standard industrial grounding practices to minimize electrical noise and protect against EMI.
• Ventilation: Maintain adequate clearance around the unit to ensure proper airflow and cooling during operation.
• Maintenance: Always disconnect power before performing any hardware maintenance or module replacement.

FAQ

Is the 2711P-B10C4A2 still in production? No, this model has been discontinued by the manufacturer. We provide high-quality refurbished or surplus units to support legacy systems.

What is the primary input method for this HMI? This model features a hybrid input system, allowing operators to use either the physical keypad or the analog touchscreen interface.
