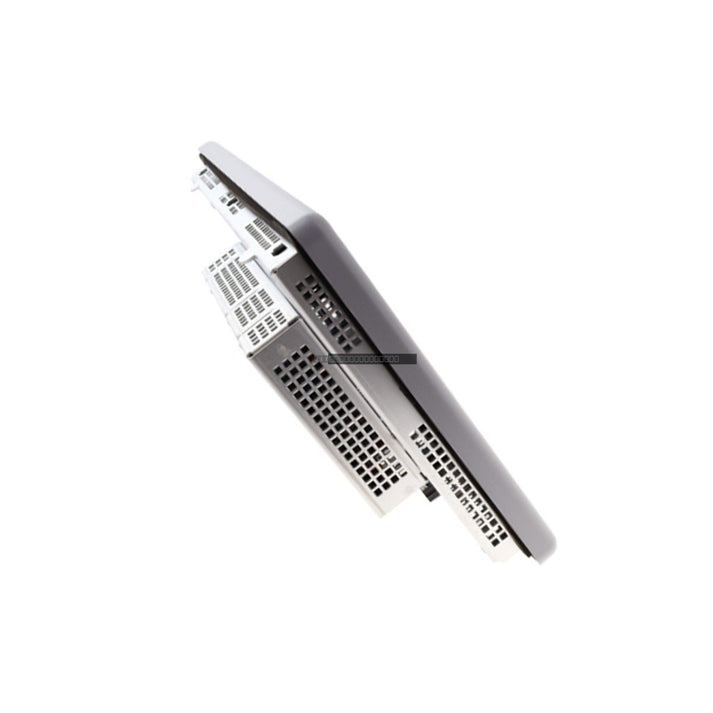

The Allen-Bradley 2711P-B12C15D6 is a robust PanelView Plus 1250 operator interface terminal engineered for demanding industrial visualization and control applications. This HMI provides a reliable bridge between human operators and programmable logic controllers (PLCs), facilitating real-time process monitoring, diagnostic reporting, and system parameter adjustments in complex automation environments such as power generation and large-scale manufacturing.

Features

• Hybrid Input Interface: Features both a high-durability 8-wire analog resistive touchscreen and a physical keypad, ensuring operational reliability even when operators are wearing protective gloves.
• High-Resolution Display: Equipped with a 12.1-inch active-matrix TFT color display providing 800 x 600 resolution and 18-bit color depth for clear data visualization.
• Flexible Connectivity: Includes integrated 10/100 Mbps Ethernet, RS-232 serial ports, and dual USB host ports for peripheral expansion.
• Modular Communication: Supports field-installable communication modules for specialized network requirements, including ControlNet and DH+/DH-485.
• Dual Power Compatibility: Designed for versatility with support for both 18-32 VDC and 100-240 VAC power sources.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the unit is installed in a panel cutout that meets the specified dimensions, utilizing the provided mounting clips to maintain the NEMA/IP seal.
• Environment: Maintain adequate clearance around the unit for airflow to prevent overheating; avoid installation in areas with excessive vibration or direct exposure to corrosive chemicals.
• Grounding: Always connect the chassis ground terminal to a low-impedance earth ground to minimize EMI and protect against electrical surges.
• Power Wiring: Verify the supply voltage matches the terminal's input range before connecting; use shielded cables for communication lines to ensure signal integrity.
• Maintenance: Power down the device before removing or installing communication modules to prevent electrical damage.

FAQ

Q: Can this terminal be used with gloves?
A: Yes, the 2711P-B12C15D6 features a hybrid input design with a physical keypad, allowing for reliable operation in industrial settings where protective gloves are required.

Q: Does this unit support network expansion?
A: Yes, the terminal supports modular communication logic modules, allowing for integration into ControlNet, DH+, or DH-485 networks.

Q: What is the enclosure rating for this HMI?
A: This unit is rated for NEMA Type 12, 13, 4X (indoor use) and IEC IP65, providing protection against dust, dirt, and water ingress.
