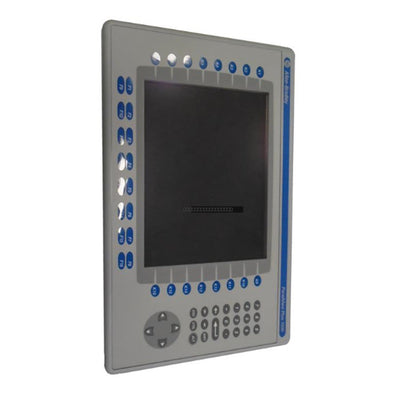

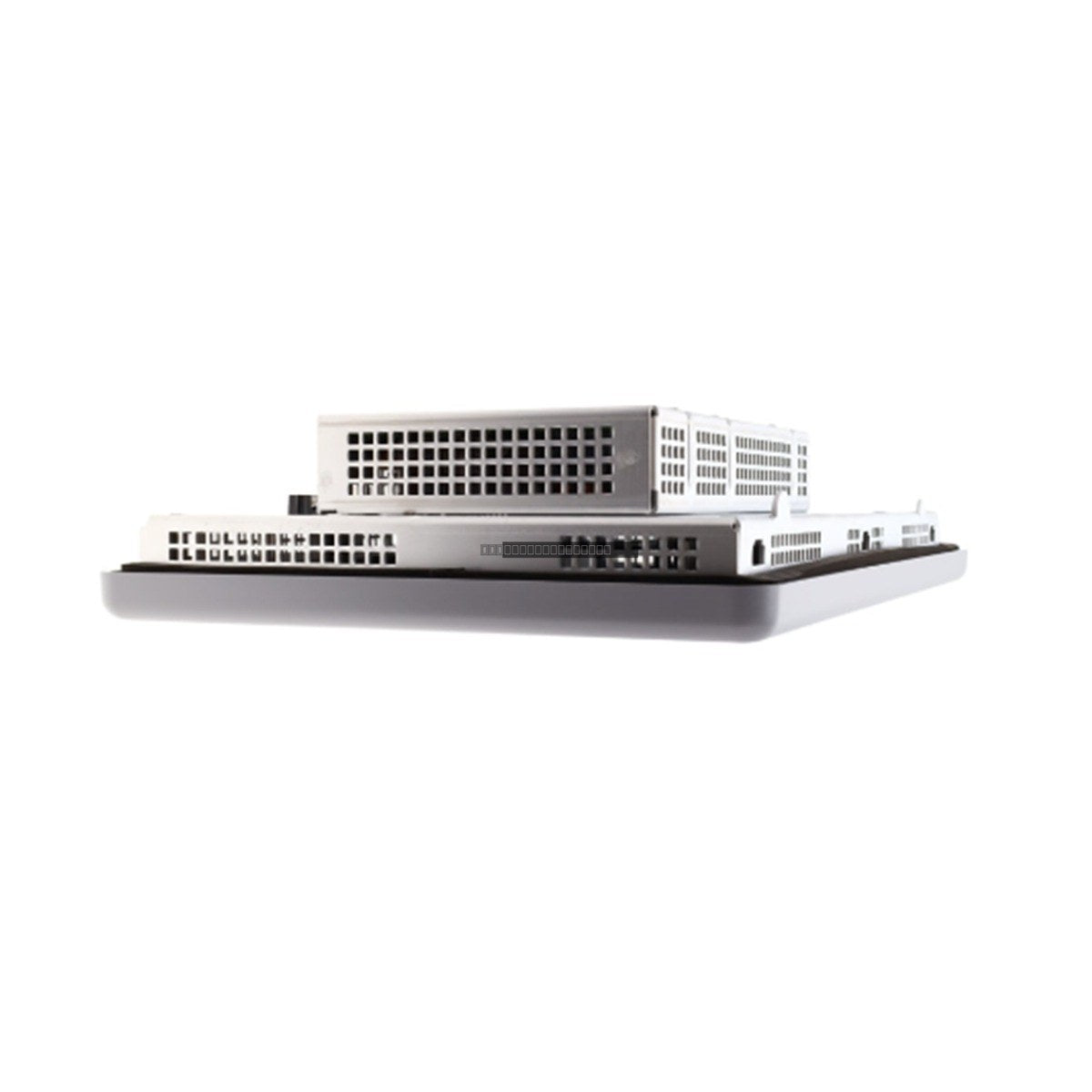

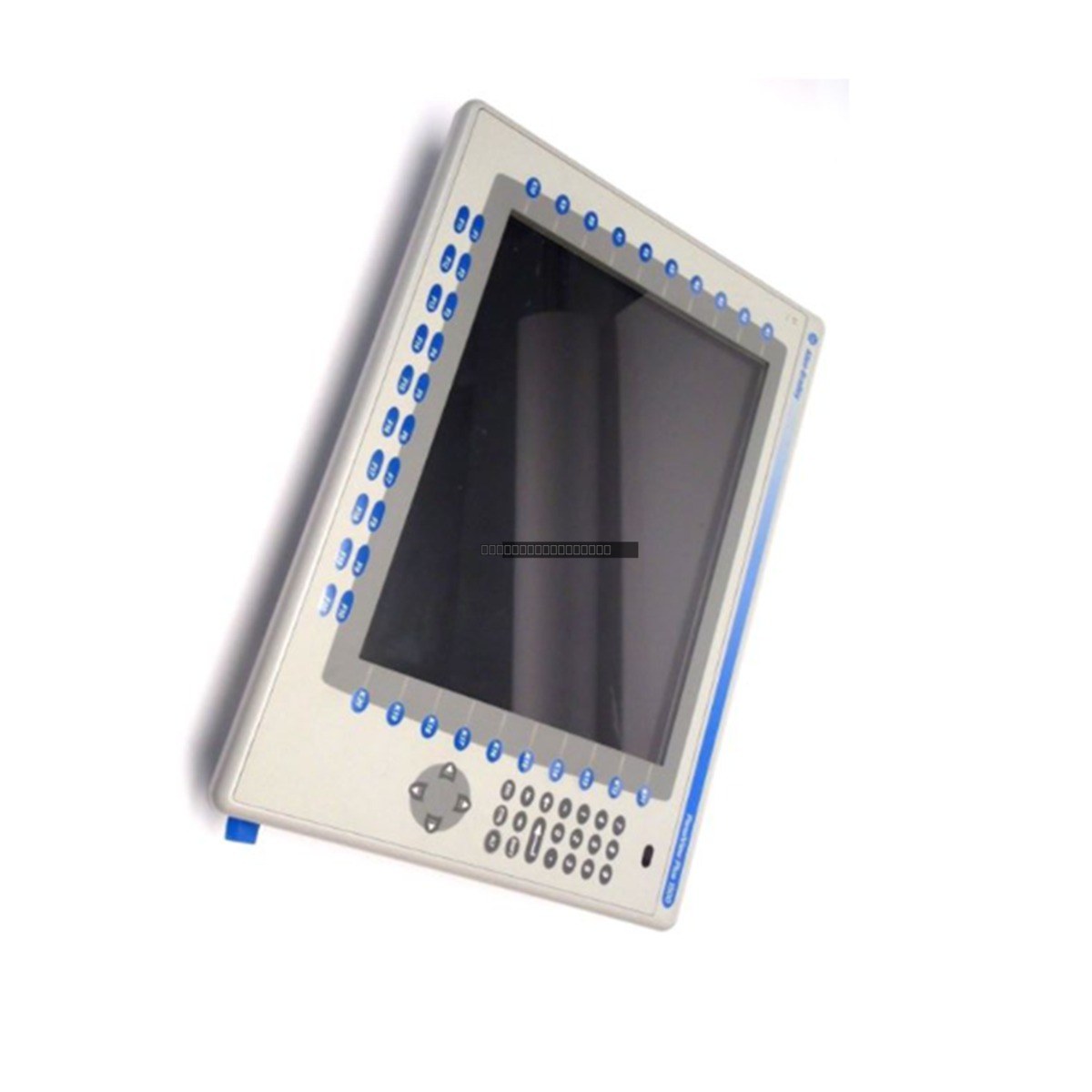

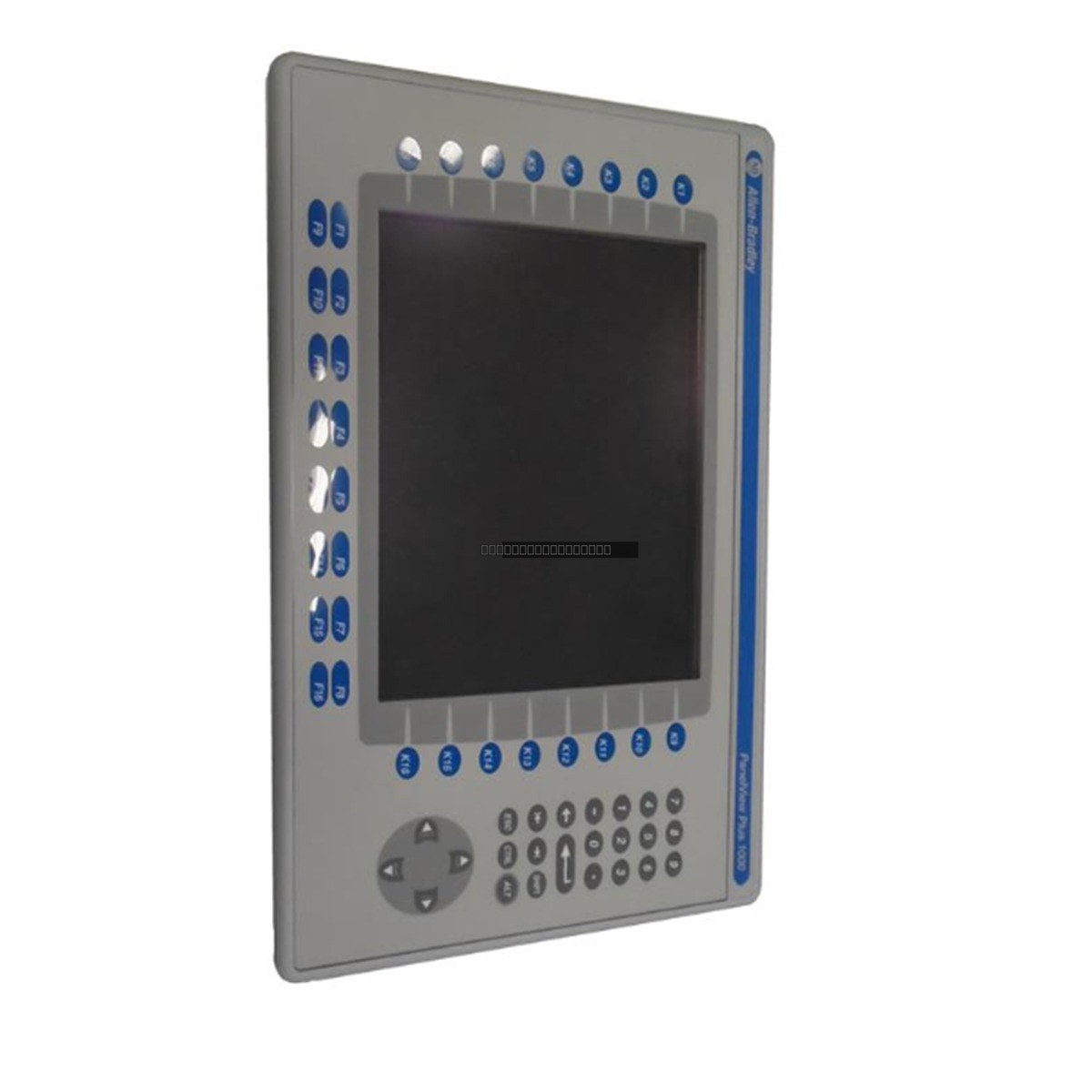

The Allen-Bradley 2711P-B15C15A7 is a high-performance operator interface terminal from the PanelView Plus 1500 series. Designed for demanding industrial environments, this unit features a 15-inch color TFT display with a 1024 x 768 resolution, providing clear visualization of system telemetry and control parameters. The terminal supports dual-input functionality, allowing operators to interact via both a physical keypad and a touch-screen interface, ensuring reliable control in diverse operational settings.

Features

• 15-inch color TFT display for high-visibility process monitoring.
• Dual-mode input: Integrated keypad and analog resistive touch screen.
• Windows CE-based logic module for robust FactoryTalk View Machine Edition application support.
• Integrated ControlNet communication port for deterministic network integration.
• 10/100 Base-T Ethernet port and RS-232 serial connectivity for versatile plant-floor networking.
• USB host port for peripheral support and firmware updates.
• Internal 100-240 VAC power supply for global compatibility.

Applications

This operator terminal is widely utilized in sectors such as automotive assembly, water treatment, chemical processing, and discrete manufacturing. It serves as a central HMI node for managing complex automation systems, alarm monitoring, and real-time operational control.

Technical Specifications

Installation Guidelines

• Ensure adequate clearance around the unit for proper ventilation and cooling.
• Mount the terminal in a suitable NEMA/IP-rated enclosure to protect against dust and moisture.
• Verify that the AC power source is stable and within the specified 100-240 VAC range.
• Use shielded communication cables for Ethernet and ControlNet connections to minimize EMI interference.
• Power down the unit before performing any maintenance, wiring changes, or memory card insertions.
• Observe standard ESD precautions when handling the module to prevent damage to internal components.

FAQ

What communication protocols are supported by this model?
The 2711P-B15C15A7 supports Ethernet (10/100 Base-T), RS-232 serial communication, and ControlNet networking.

Can this unit be used in high-temperature environments?
The operating temperature range is 0 to 55 deg C. Ensure the installation environment does not exceed these limits to maintain system reliability.
