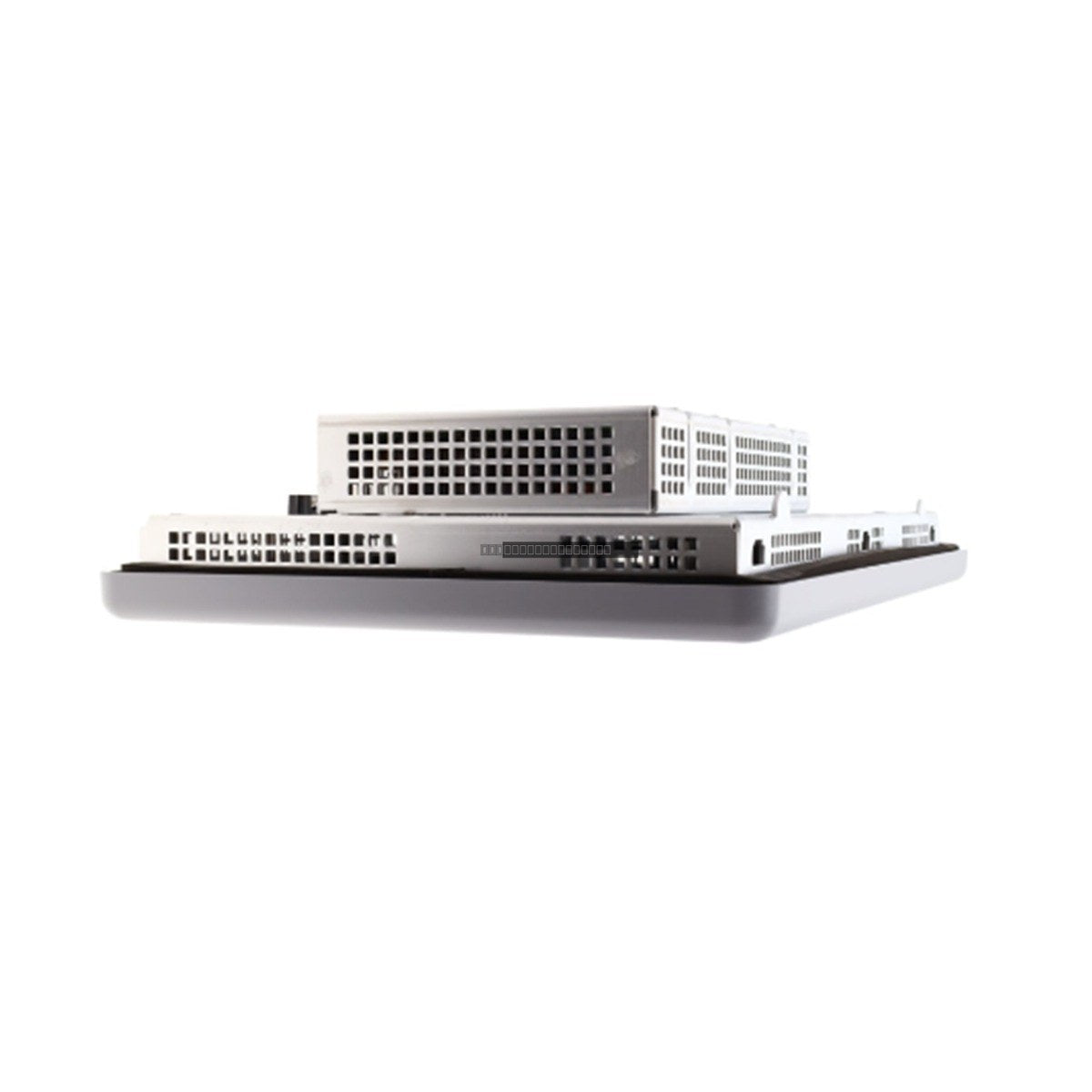

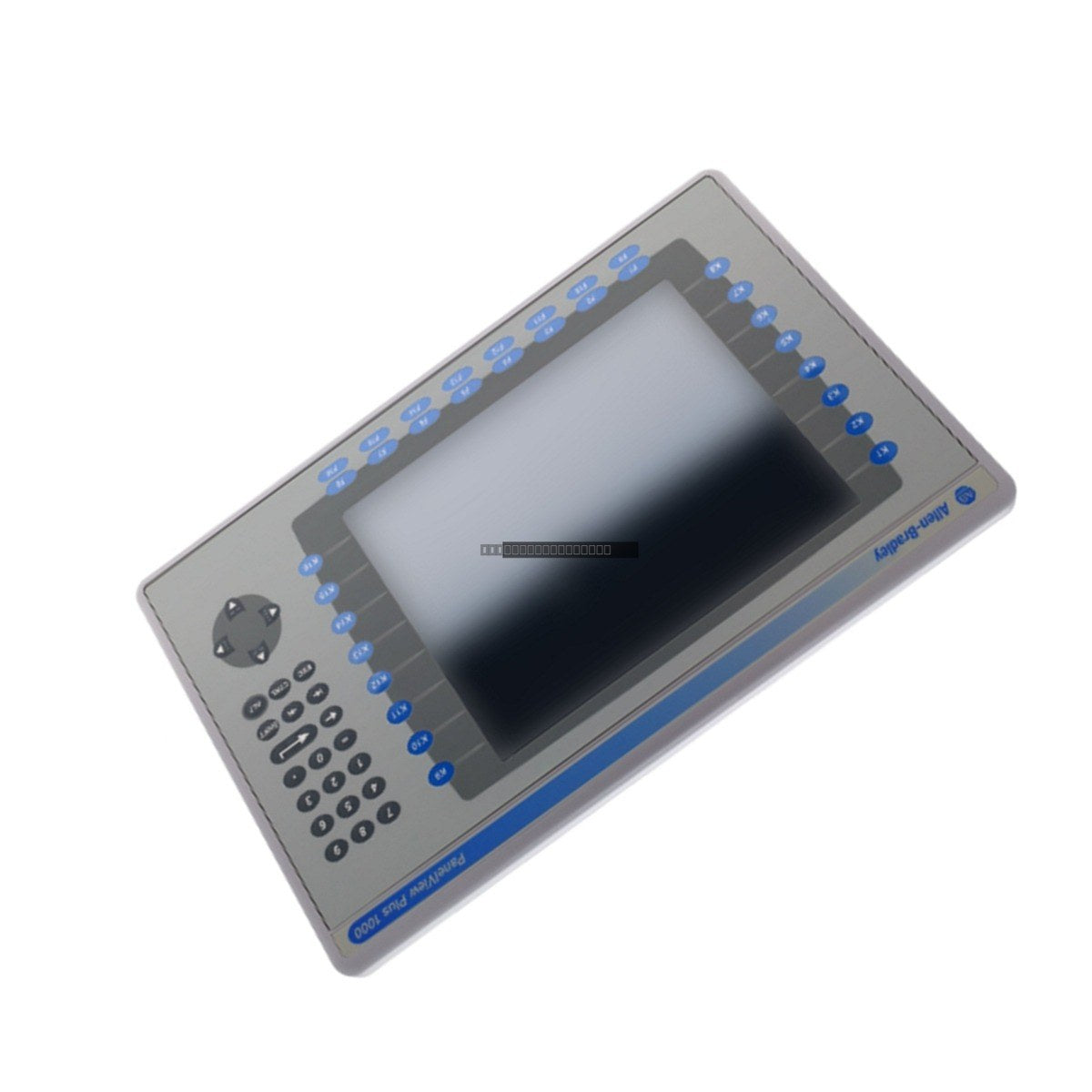

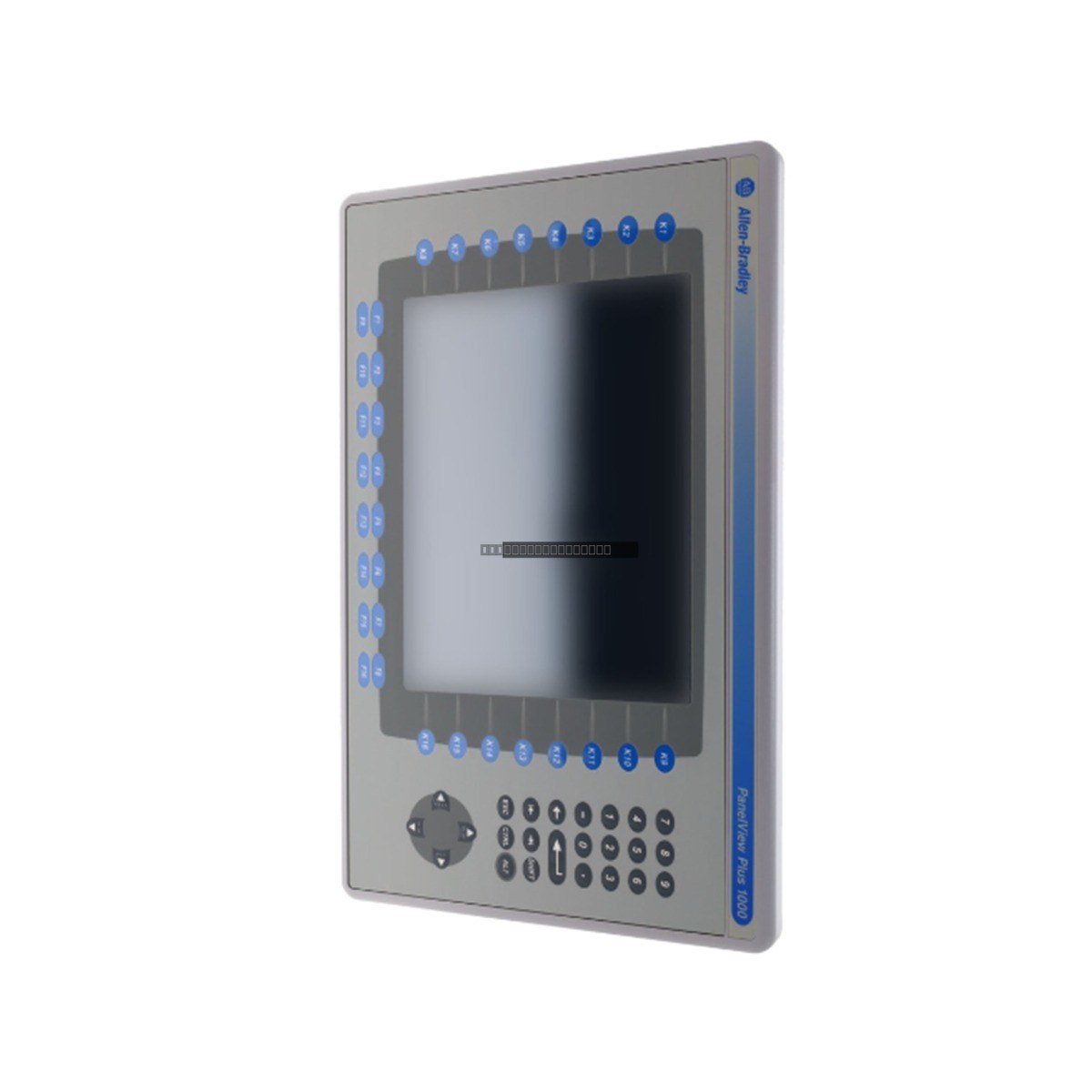

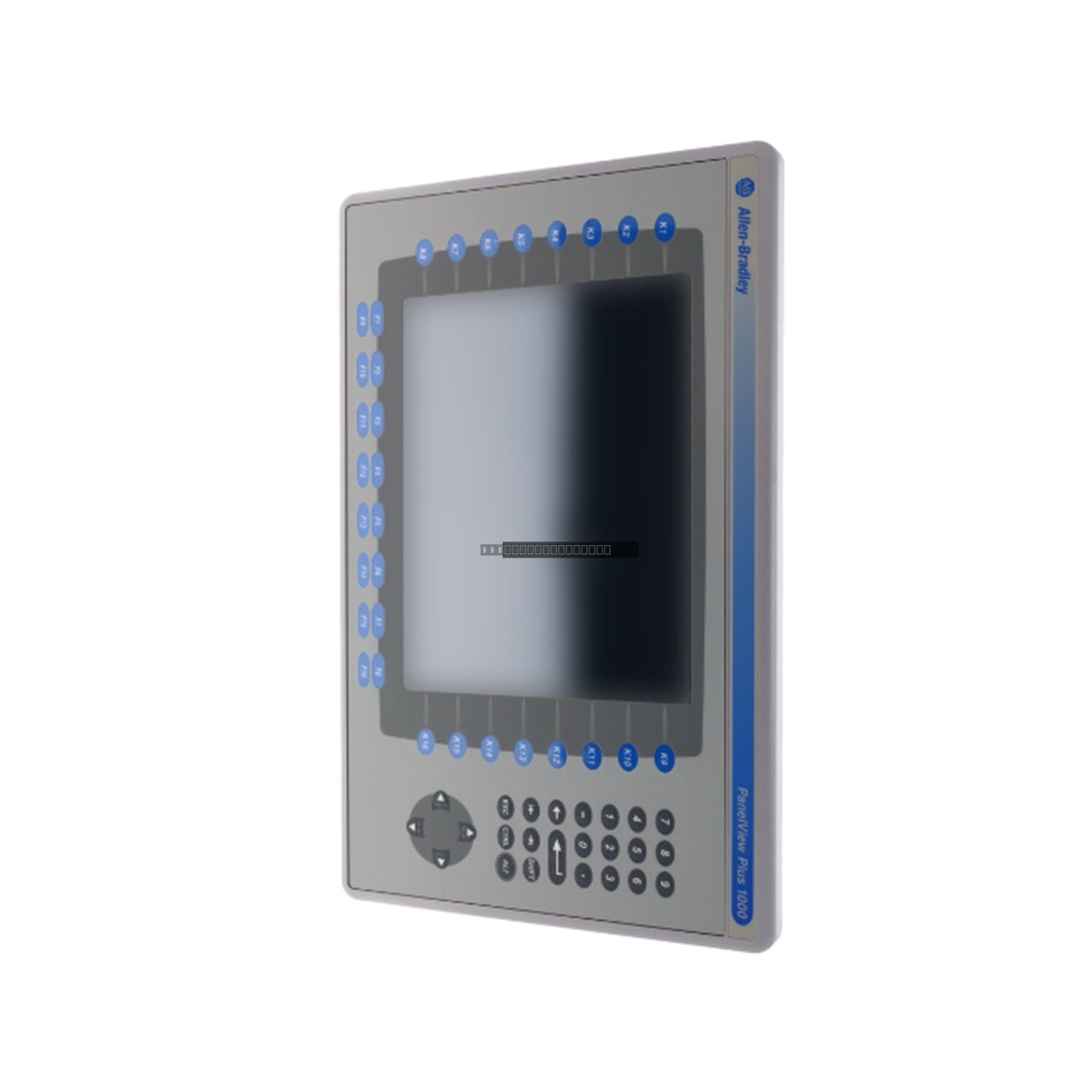

The Allen-Bradley 2711P-B15C6A1 is a high-performance operator interface terminal belonging to the PanelView Plus 1500 series. Engineered for robust industrial visualization, this unit combines a large 15-inch color display with a versatile hybrid input system, allowing operators to interact with machine processes via both an analog resistive touchscreen and a tactile keypad. This terminal is designed to facilitate real-time telemetry monitoring, supervisory control, and data logging in demanding environments such as automotive production, power generation, and heavy material handling.

Features

• Hybrid Input Interface: Features both a responsive analog resistive touchscreen and a dedicated tactile keypad, providing redundant control options for critical operations.
• Communication Versatility: Equipped with extensive connectivity options including Ethernet, DH+, DH-485, Remote I/O (RIO), and RS-232 serial ports to ensure seamless integration with legacy and modern PLC networks.
• Integrated Logic: Includes a 64 MB logic module to manage complex graphical interfaces, system diagnostics, and local data storage.
• Peripheral Support: Integrated USB ports allow for efficient firmware updates, data logging backups, and the connection of external peripherals.
• AC Power Input: Designed for universal AC input (100-240 VAC), ensuring compatibility with standard industrial power distribution systems.

Applications

This operator terminal is suitable for a wide range of industrial applications requiring high-visibility HMI solutions, including:

• Automotive manufacturing and assembly lines.
• Oil and gas refinery process monitoring.
• Power generation and utility management.
• Automated material handling and logistics systems.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the unit is mounted in a panel cutout that provides adequate clearance for ventilation and access to the rear communication ports.
• Environment: Install in an area free from excessive vibration, corrosive gases, and direct exposure to high-EMI sources.
• Grounding: Always connect the chassis ground terminal to a low-impedance earth ground to mitigate electrical noise and protect sensitive internal components.
• Powering: Verify that the supply voltage matches the 100-240 VAC rating before energizing the device.
• Maintenance: Power down the unit before performing any hardware maintenance or inserting/removing communication modules.

FAQ

What communication protocols are supported by the 2711P-B15C6A1?

This model supports a wide array of industrial protocols including Ethernet, DH+, DH-485, Remote I/O (RIO), and RS-232 serial communication.

Can this terminal be used with both touch and keypad inputs?

Yes, the unit features a hybrid design that allows operators to use the analog resistive touchscreen for graphical navigation and the tactile keypad for precise, reliable control inputs.

What is the required power supply for this unit?

The 2711P-B15C6A1 operates on a universal AC power input ranging from 100 to 240 VAC at 50/60 Hz.
