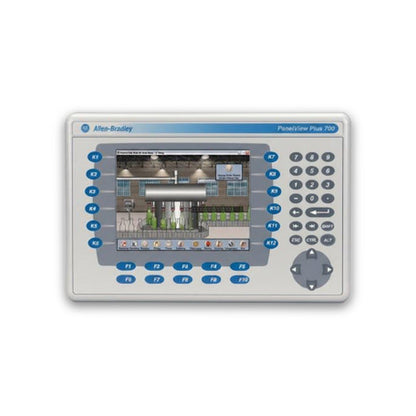

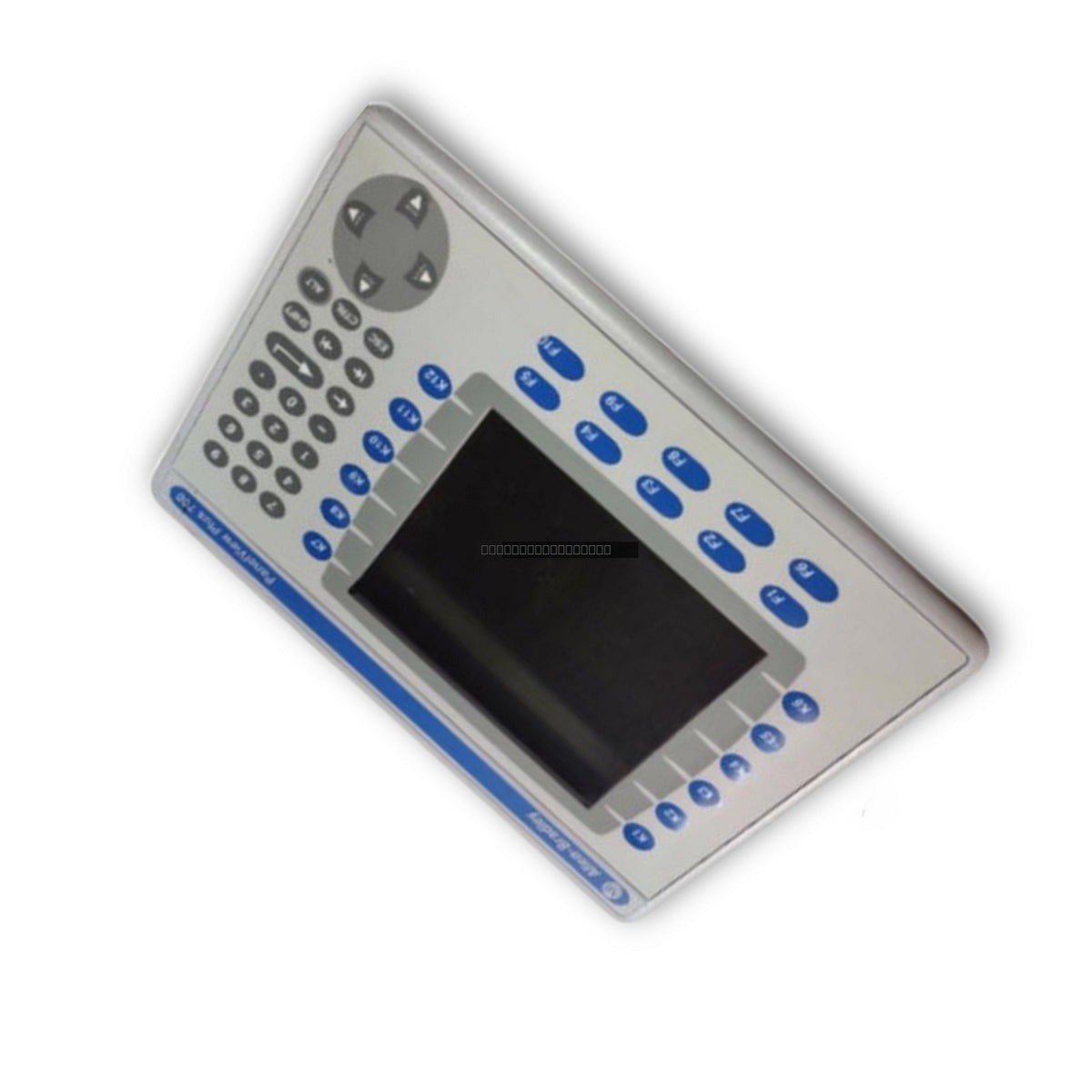

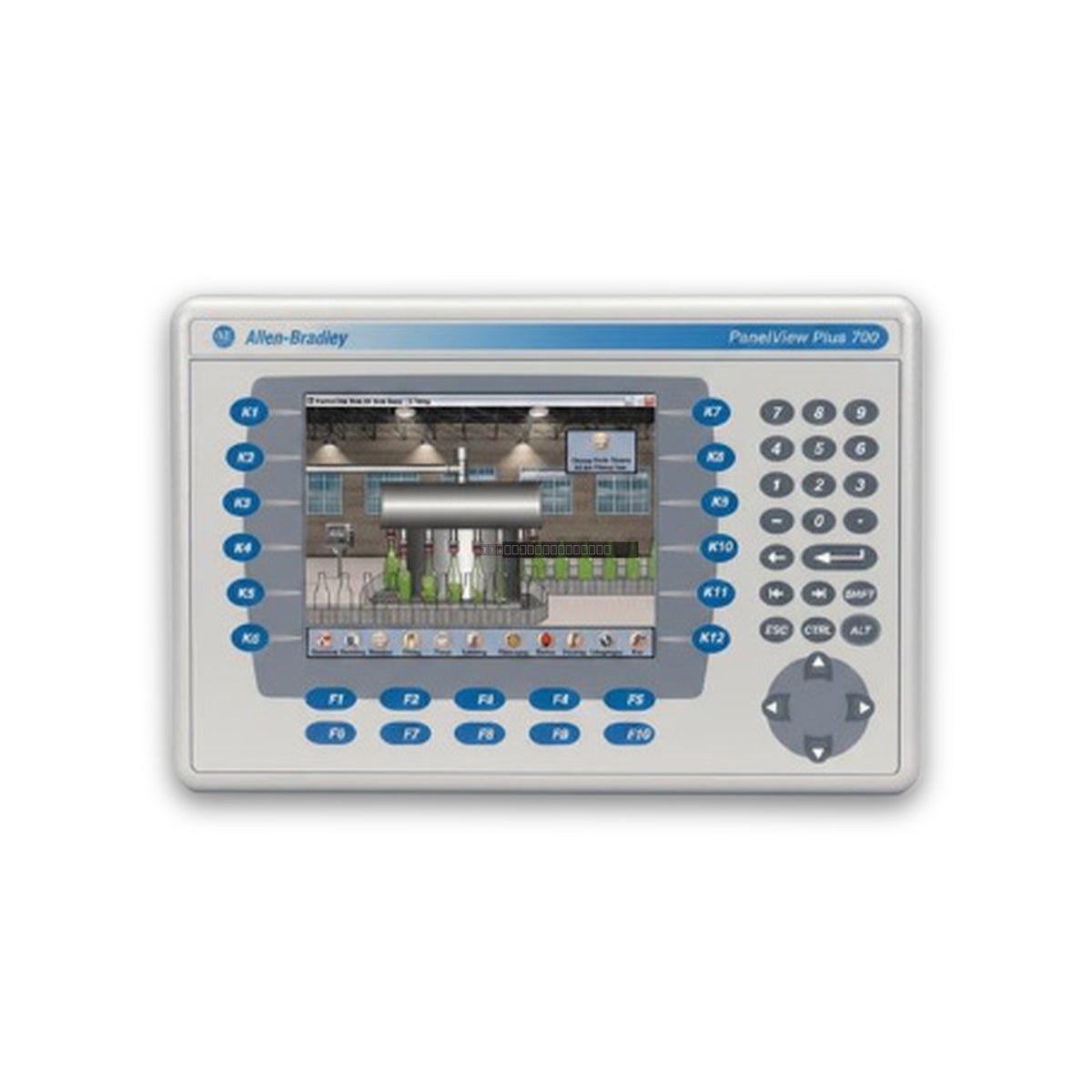

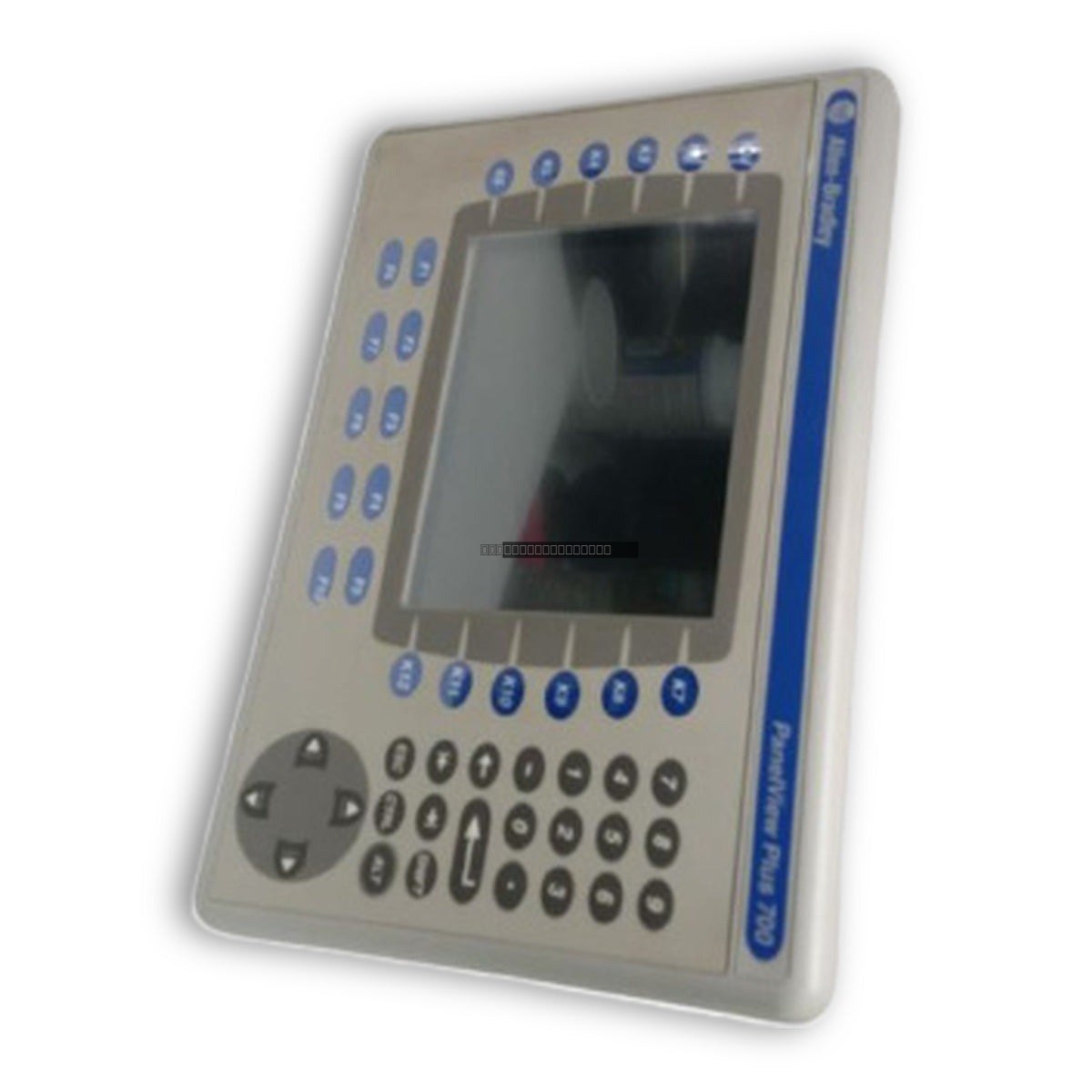

The Allen-Bradley 2711P-K10C4D6 is a robust PanelView Plus operator terminal engineered for demanding industrial HMI applications. Featuring a 10.4-inch active-matrix color TFT display and a tactile keypad interface, this unit provides operators with reliable control, diagnostic visualization, and real-time process monitoring capabilities. Designed for integration into complex automated systems, it supports stable communication and high-performance data handling in environments ranging from manufacturing lines to heavy processing facilities.

Features

• 10.4-inch color TFT LCD display with 640 x 480 resolution for clear process visualization.
• Tactile keypad input for precise operator control, including numeric, function, and navigation keys.
• Integrated communication suite including 10/100Base-T Ethernet, RS-232 serial, and dual USB host ports.
• Windows CE open platform architecture for flexible application deployment.
• Field-replaceable CCFL backlight module to extend service life and simplify maintenance.
• DC power input designed for 18-32 VDC supply ranges.

Technical Specifications

Installation Guidelines

• Ensure the terminal is mounted in a clean, dry, and vibration-resistant enclosure suitable for the IP rating of the front panel.
• Maintain adequate clearance around the unit to allow for proper ventilation and heat dissipation.
• Verify that the power source is within the 18-32 VDC range before connection to prevent damage to internal circuitry.
• Use shielded communication cables for Ethernet and serial connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Always disconnect power before installing or removing memory cards or peripheral modules.
• Ensure proper grounding of the chassis to the system ground bus to protect against electrical surges and noise.

FAQ

What is the primary power requirement for this terminal?

The 2711P-K10C4D6 is designed for a DC power input, specifically accepting a range of 18-32 VDC, with 24 VDC being the nominal operating voltage.

Can the backlight be replaced in the field?

Yes, the unit features a field-replaceable CCFL backlight. The compatible replacement part number is 2711P-RL10C.

What type of input does this model use?

This specific model utilizes a tactile keypad interface, which includes dedicated numeric, function, and navigation keys for operator input.
