Description

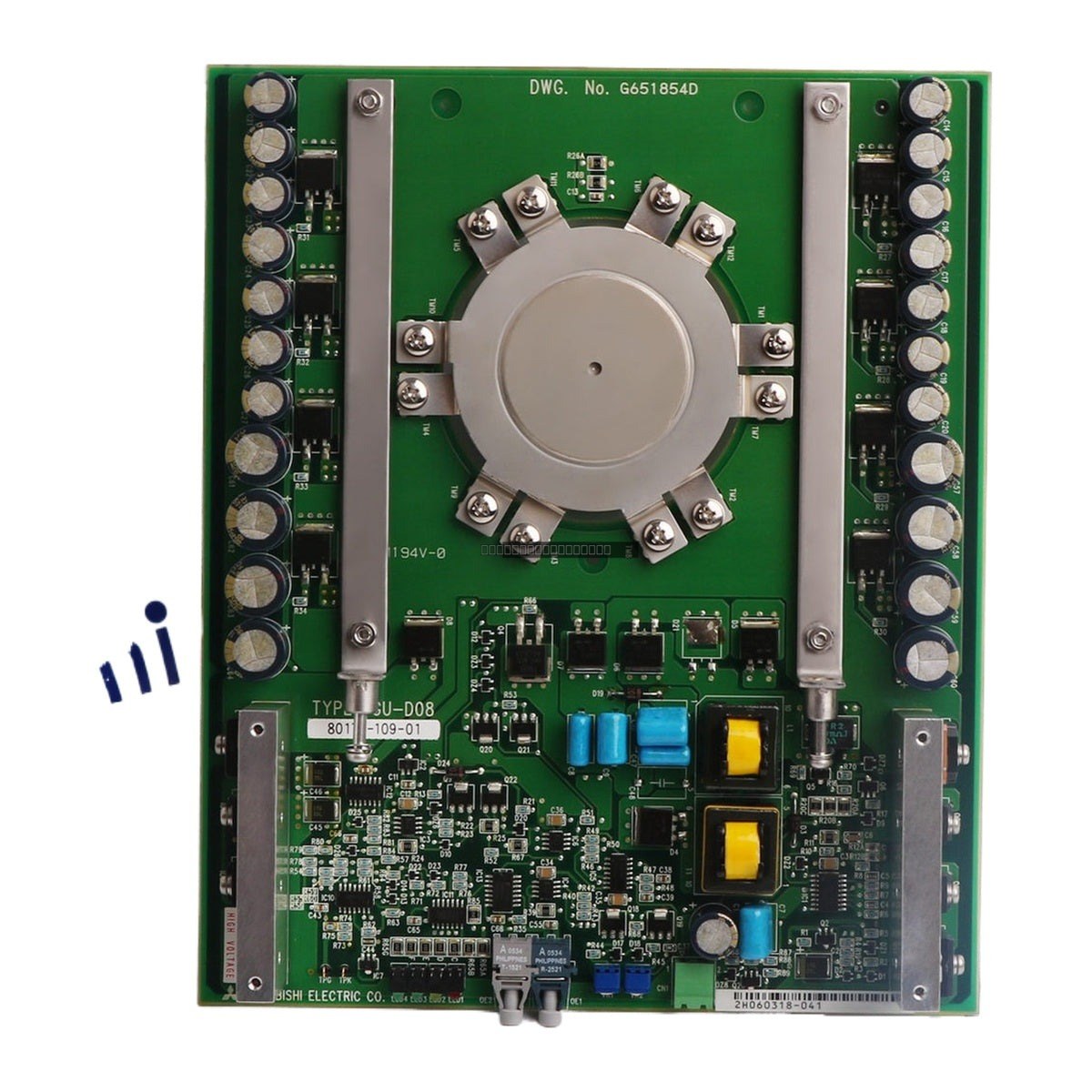

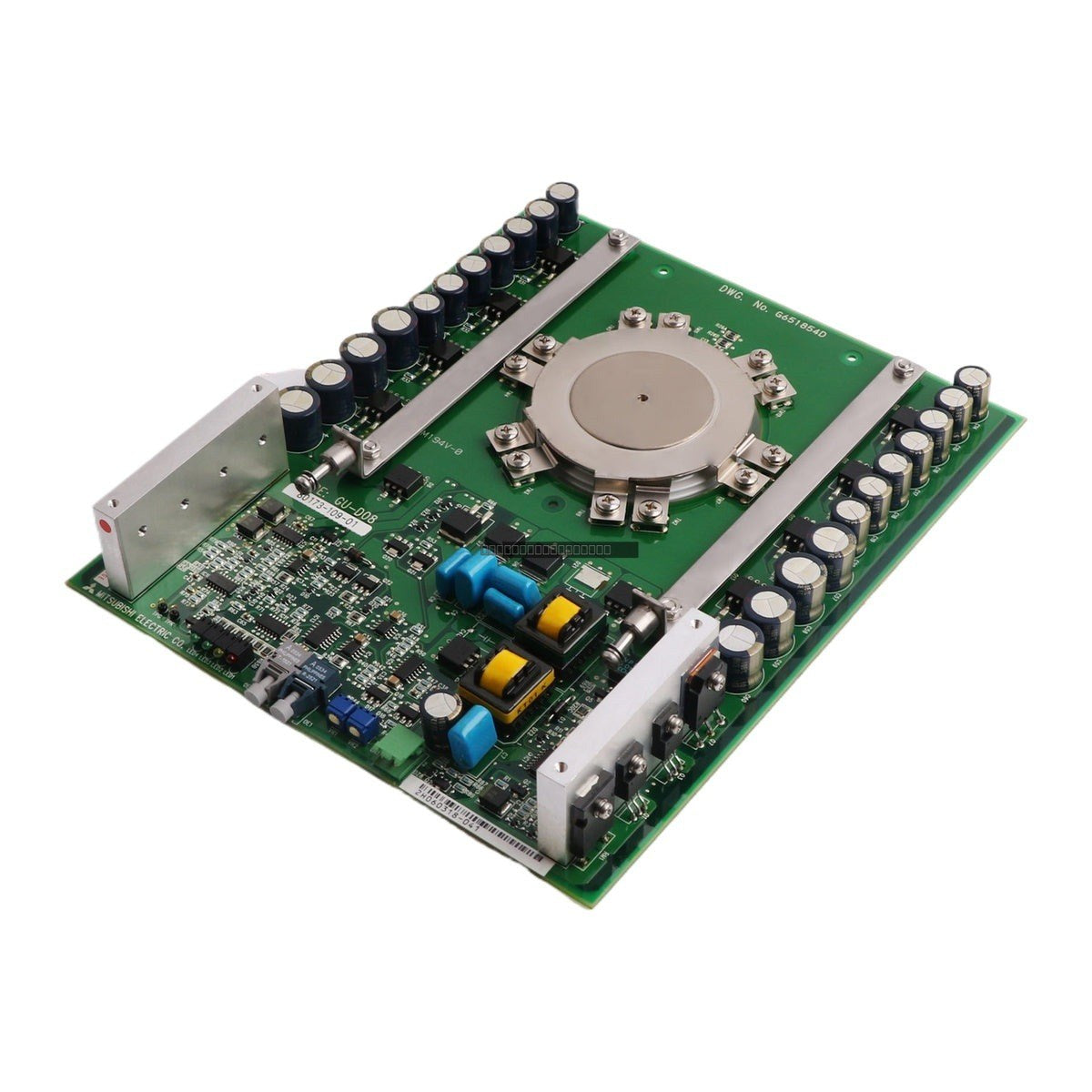

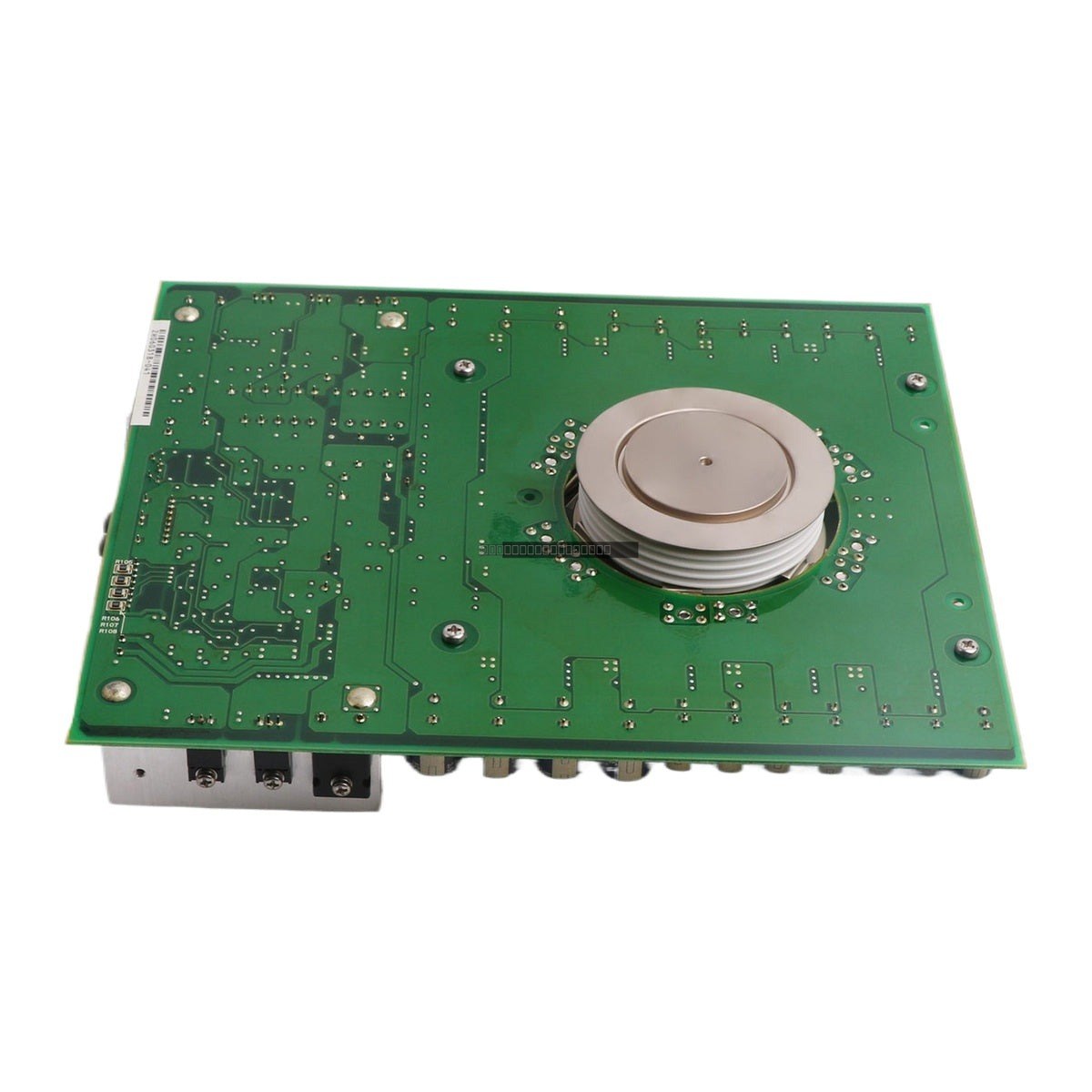

The Allen-Bradley GU-D08 (80173-109-01) is a specialized communication integrated thyristor board designed for industrial control applications. This module facilitates the interface between control logic and power switching components, ensuring reliable operation within demanding automation environments.

Features

• Integrated communication and thyristor control circuitry.
• Engineered for compatibility with specific Allen-Bradley drive and control systems.
• Robust construction suitable for industrial cabinet mounting.
• Designed for high-reliability power regulation and signal processing.

Technical Specifications

Installation Guidelines

• Ensure the control system power is fully disconnected before attempting to install or remove the module.
• Handle the board by its edges to prevent electrostatic discharge (ESD) damage to sensitive electronic components.
• Verify that the mounting surface is clean and free of conductive debris.
• Ensure all cable connections are seated firmly and secured to prevent intermittent signal loss due to vibration.
• Maintain proper ventilation around the module to prevent localized overheating during operation.

FAQ

Is this module compatible with all Allen-Bradley drives?
This module is specific to the GU-D08 series. Please verify your existing part number (80173-109-01) matches your current hardware configuration before installation.

What should I do if the module shows communication errors?
First, verify that the physical connections to the board are secure. If errors persist, check the system diagnostic logs for specific fault codes associated with the thyristor control interface.
