Description

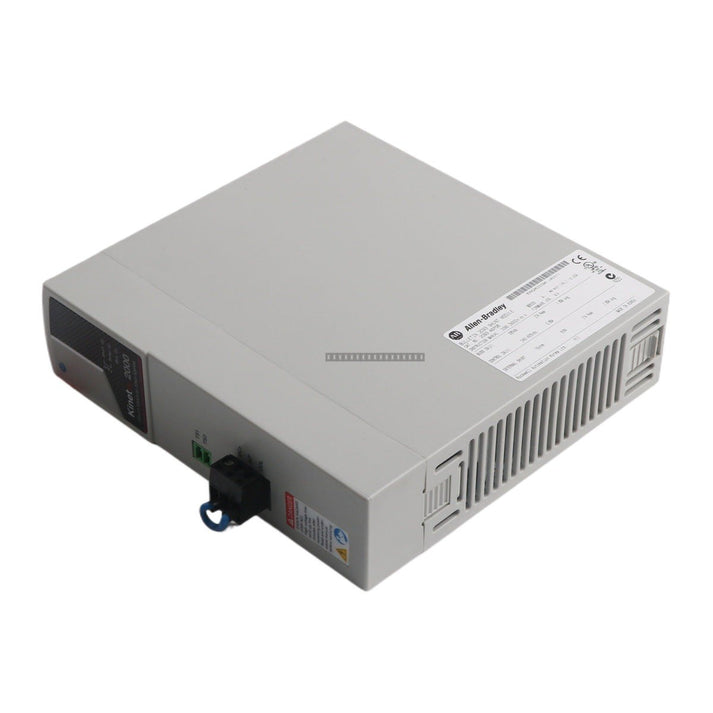

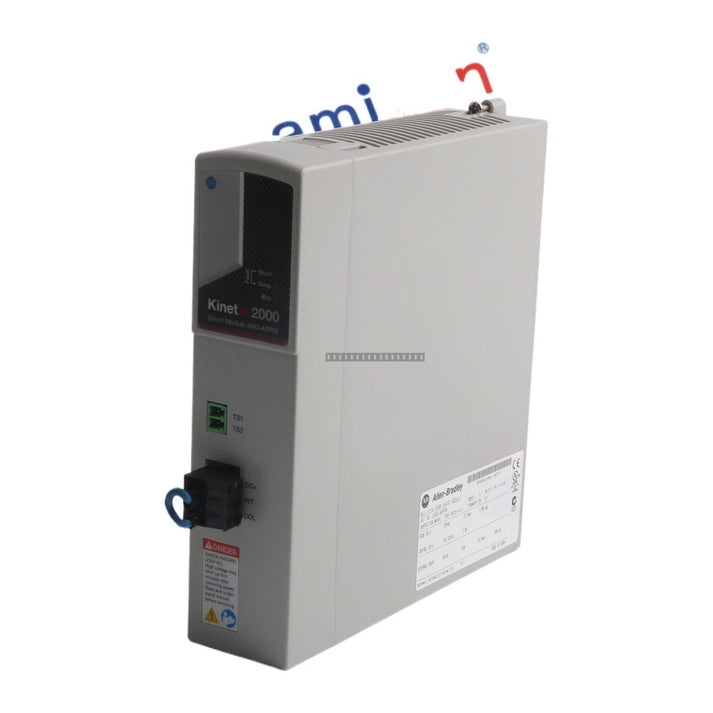

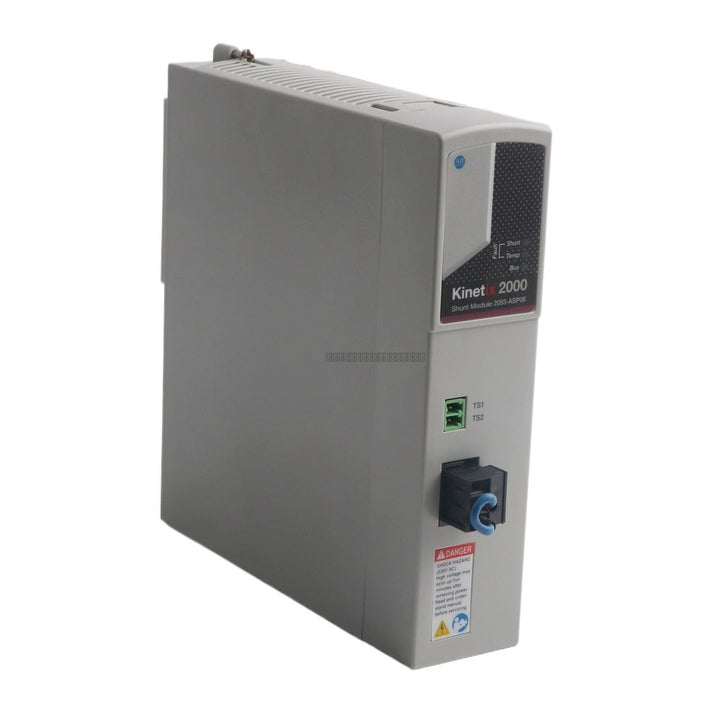

The Allen-Bradley 2093-ASP06 is a shunt module designed for use within the Kinetix 2000 multi-axis servo drive system. This module is engineered to manage excess regenerative energy generated during motor deceleration, protecting the drive system by dissipating power through an internal resistor.

Features

• Designed specifically for the Kinetix 2000 servo drive architecture
• Integrated internal shunt resistor rated at 15 Ohm, 50W
• Supports a bus input voltage of 325V DC
• Control input rating of 0.05A at 240-425V DC
• Compact, power-rail mountable design for efficient cabinet space utilization

Technical Specifications

Installation Guidelines

• Ensure the drive system is fully powered down and the DC bus is discharged before installing or removing the shunt module.
• Mount the module onto the designated power rail within the Kinetix 2000 system, ensuring secure mechanical seating.
• Verify that the shunt module is compatible with the specific drive configuration and power requirements of the application.
• Maintain adequate clearance around the module to allow for proper thermal dissipation during operation.
• Follow standard ESD precautions when handling the module to prevent damage to internal components.

FAQ

What is the primary function of the 2093-ASP06?

The 2093-ASP06 acts as a shunt module to dissipate regenerative energy produced by the servo motors during braking, preventing overvoltage conditions on the DC bus.

Is this module compatible with other Kinetix series?

The 2093-ASP06 is specifically engineered for the Kinetix 2000 servo drive system. Please consult your system documentation for compatibility with other Kinetix drive families.
