Description

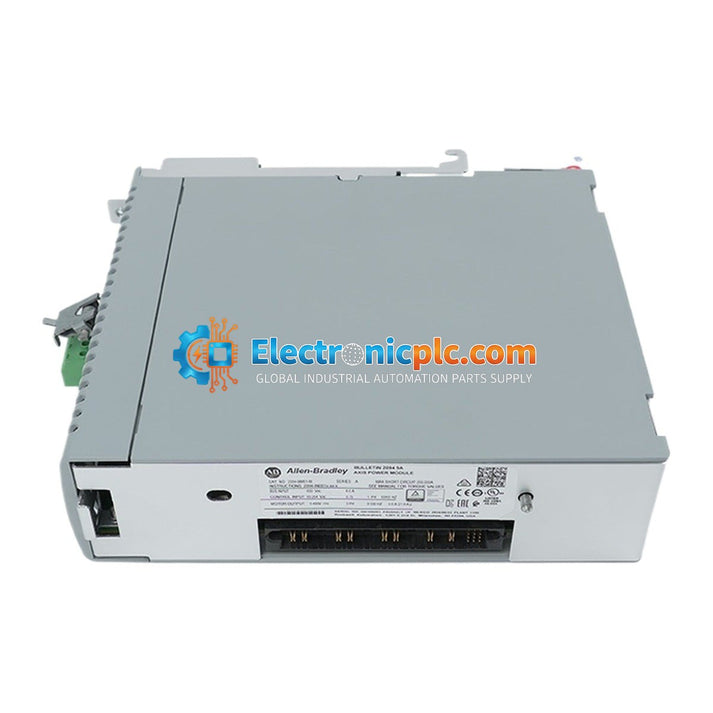

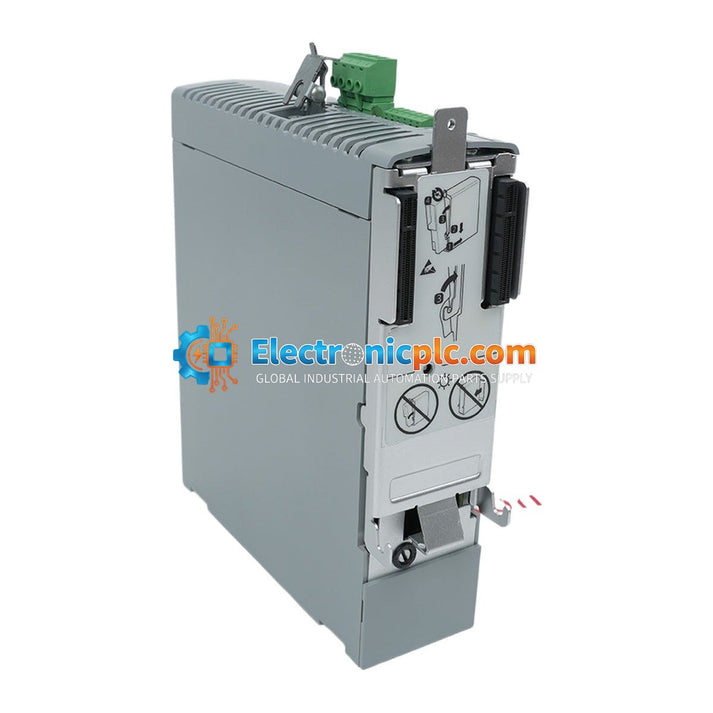

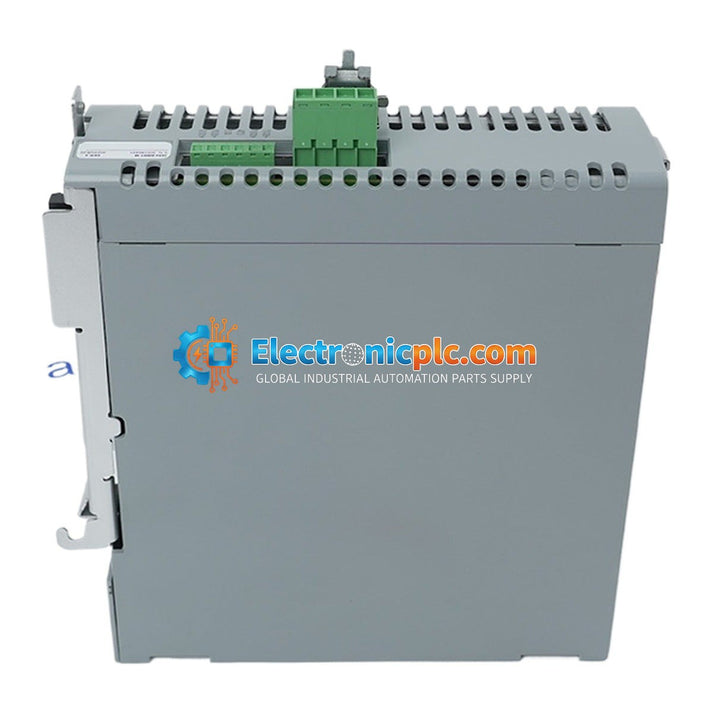

The Allen-Bradley 2094-BM01-M is an Axis (power) Module designed for use within the Kinetix 6200 and Kinetix 6500 modular multi-axis servo drive systems. As a shared DC-bus inverter, it is engineered to provide flexible and scalable motion control in multi-axis applications. Each 2094-BM01-M module requires a corresponding control module and must be used in conjunction with an Integrated Axis Module (IAM) power module to form a complete, functional drive system on a 2094-PRSx power rail.

Features

• Modular multi-axis servo drive architecture for scalable motion control.
• Supports Kinetix 6200 (Sercos) and Kinetix 6500 (EtherNet/IP) communication platforms.
• Integrated shunt circuit for efficient regenerative energy dissipation during deceleration.
• Advanced safety features including Safe Speed Monitor and Safe Torque Off.
• High efficiency power conversion (up to 98%).
• Compatible with a wide range of Kinetix motors, actuators, and linear stages.

Applications

• Packaging machinery including form-fill-seal, cartoning, and high-speed sorting.
• Material handling systems such as conveyor coordination and multi-axis robotics.
• Converting and printing lines requiring precise web-handling and tensioning.
• Automated assembly lines for synchronization, component placement, and robotic welding.

Technical Specifications

Installation Guidelines

• Power Rail Mounting: Ensure the 2094-PRSx power rail is securely mounted before installing modules.
• Inspection: Verify that all power rail pins and module slot receptacles are clean and free of debris.
• Seating: Align the top mounting bracket with the rail slot, pivot the module downward, and ensure the pins snap-fit securely into the rail.
• Fastening: Tighten the captive mounting screw on the front of the module to lock it firmly to the rail structure.
• Safety: Always disconnect all power sources before inserting or removing modules from the power rail to prevent electrical arcing or damage to the pins.

FAQs

What is the primary function of the 2094-BM01-M?

The 2094-BM01-M is an Axis Module that provides power and control for a single axis of motion within a Kinetix 6200 or 6500 multi-axis servo drive system.

Does this module require an external shunt?

The module includes an internal 115 Ohm shunt resistor for regenerative energy dissipation. An external shunt module is only required if the application's regenerative energy exceeds the internal shunt's capacity.

Can this module be used with different Kinetix series?

Yes, the 2094-BM01-M is compatible with both Kinetix 6200 (Sercos) and Kinetix 6500 (EtherNet/IP) systems, provided the correct control modules and power rails are utilized.
