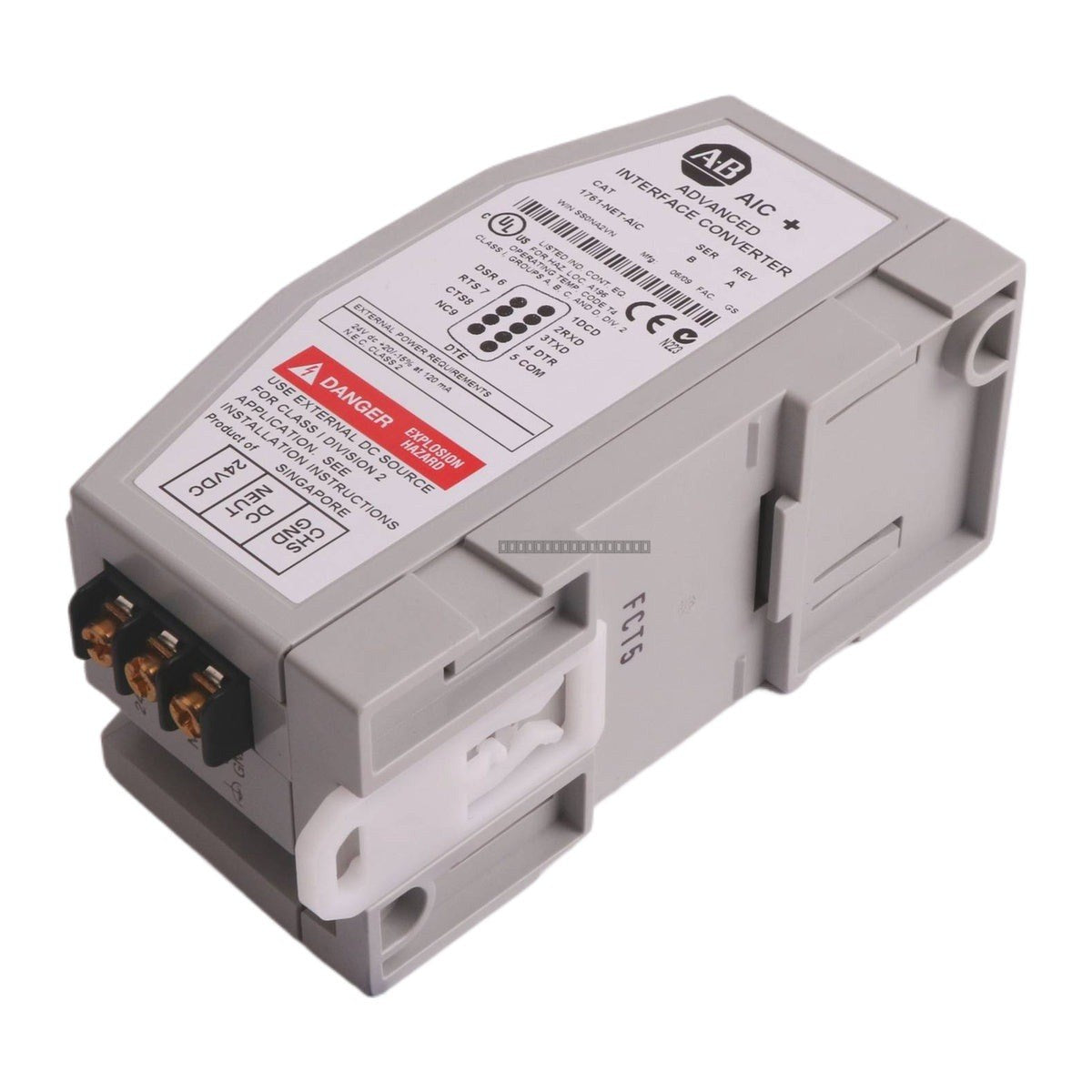

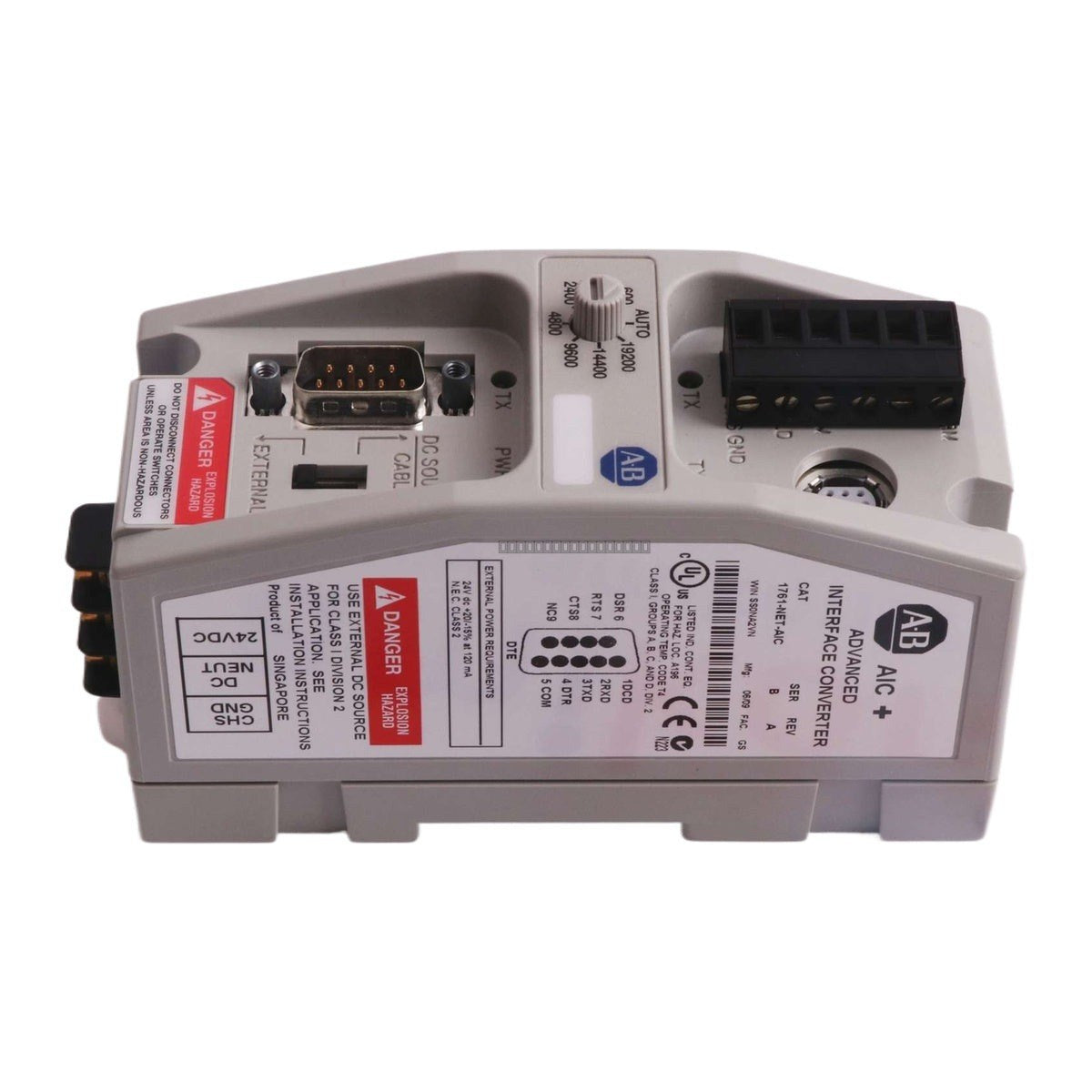

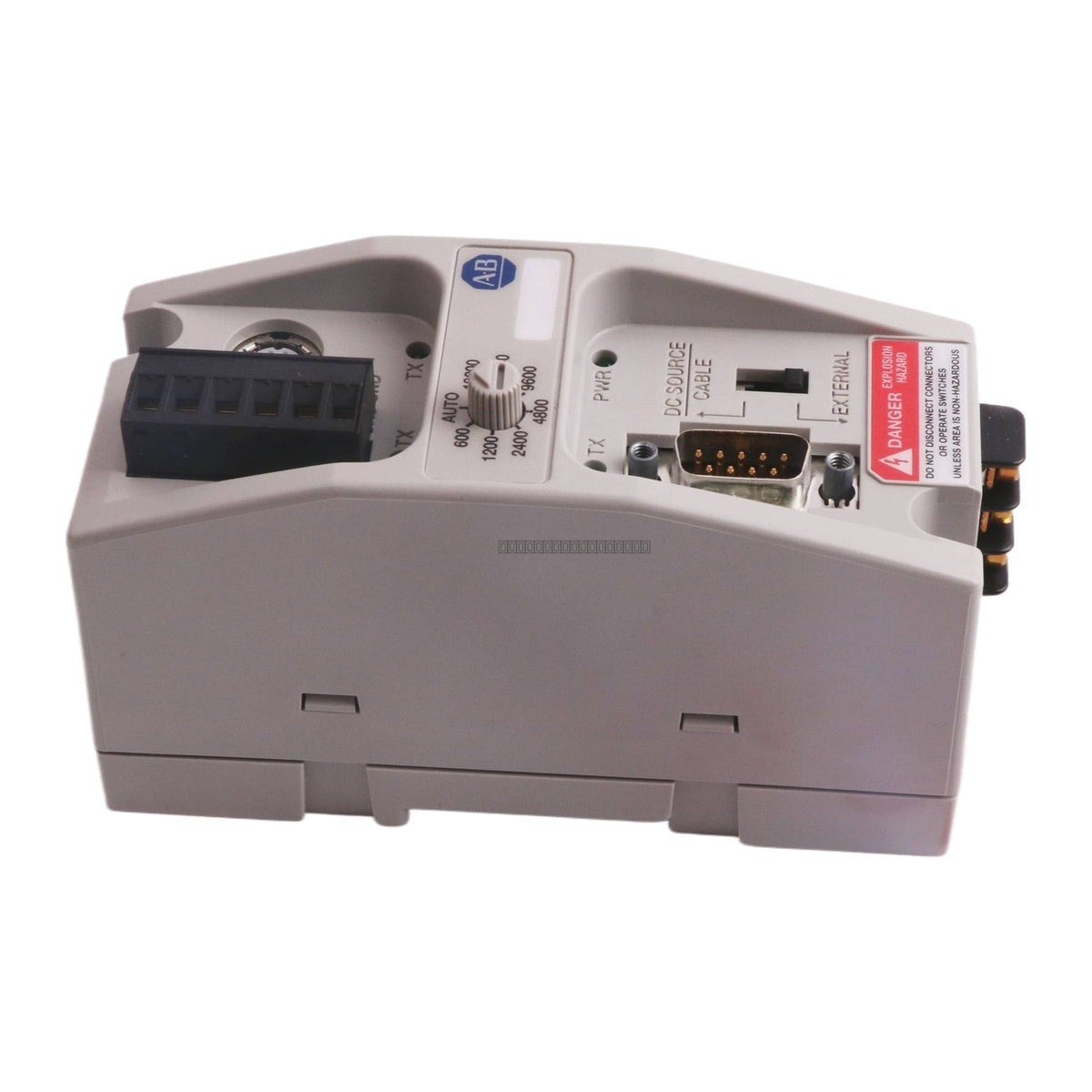

The Allen-Bradley 1761-NET-AIC is an Advanced Interface Converter designed to facilitate communication between MicroLogix and SLC controllers. This module serves as a critical link for network integration, supporting multiple communication protocols and providing electrical isolation between connected devices.

Features

• Supports DH-485 and DF1 communication protocols.
• Provides RS-232 to RS-485 signal conversion and isolation.
• Supports up to 32 nodes per multidrop network.
• Compact design for efficient panel space utilization.
• Compatible with MicroLogix 1000 and other compatible SLC series controllers.

Applications

This communication adaptor is primarily used in industrial automation environments to bridge serial communication interfaces. It is commonly utilized in factory floor networking, allowing for the expansion of serial communication networks and ensuring robust data exchange between PLCs and peripheral devices.

Technical Specifications

Installation Guidelines

• Ensure the power is disconnected from the system before installing or removing the communication module.
• Mount the device in a clean, dry environment within the specified temperature ranges to prevent overheating.
• Maintain proper grounding practices to minimize electrical noise and protect against EMI.
• Use shielded communication cables for RS-485 connections to ensure signal integrity over long distances.
• Verify that the 24V DC power supply is stable and within the required operating parameters for the module.

FAQ

What is the primary function of the 1761-NET-AIC?

The module acts as an Advanced Interface Converter (AIC) to convert RS-232 signals to RS-485, enabling communication between MicroLogix/SLC controllers and DH-485 or DF1 networks.

Can this module be used in high-temperature environments?

The device is rated for an operating ambient temperature range of 0 to 60 degC. It should not be operated outside of these limits to ensure reliable performance and hardware longevity.

How many nodes can be connected to the network?

The 1761-NET-AIC supports a maximum of 32 nodes per multidrop network.
