Description

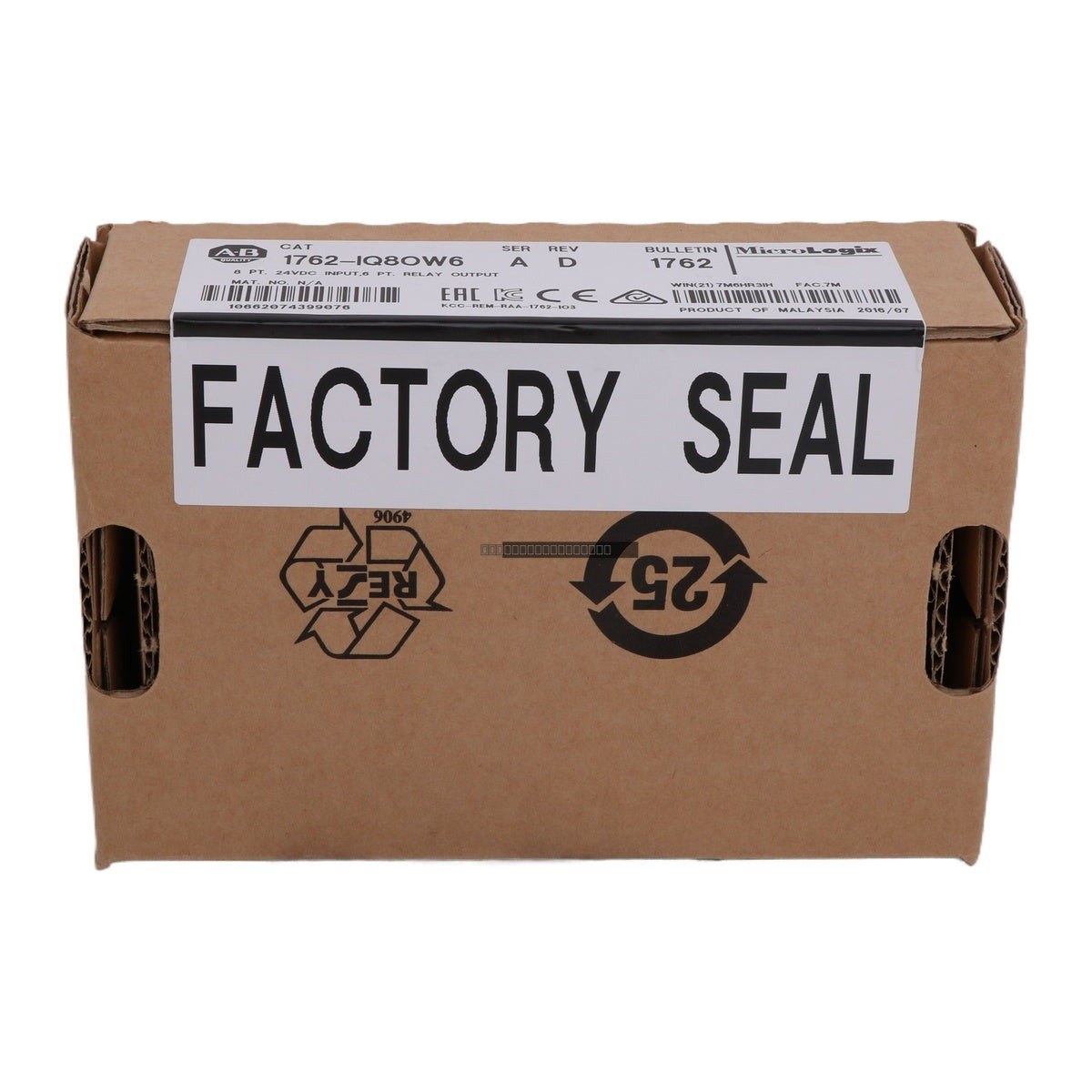

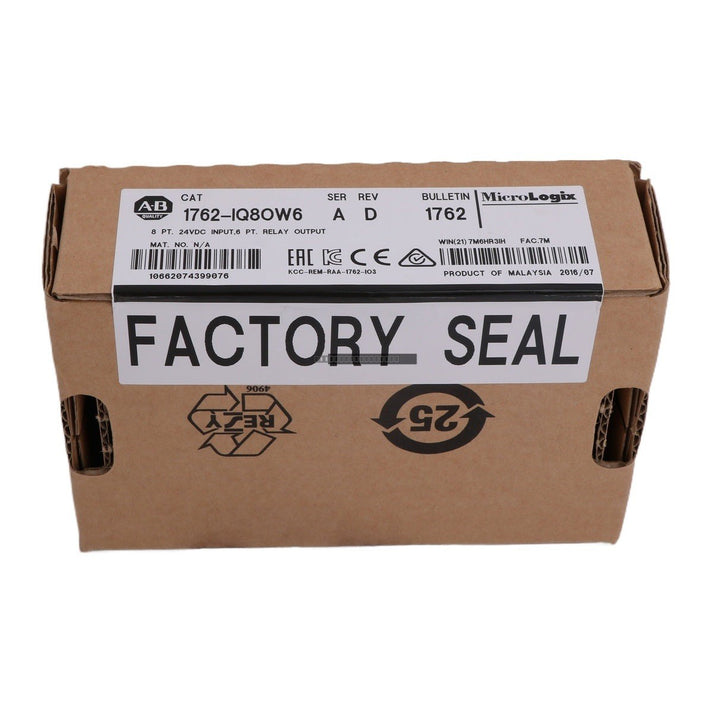

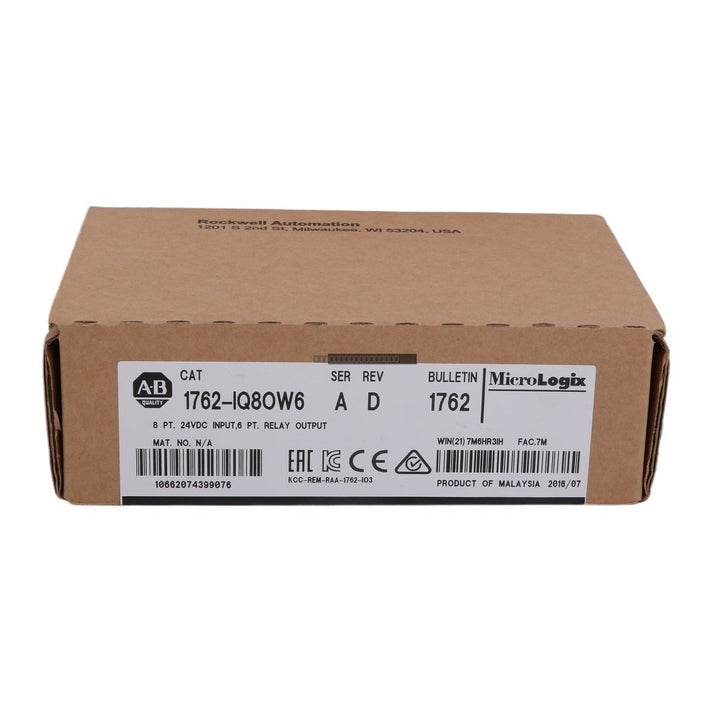

The Allen-Bradley 1762-IQ8OW6 is a combination I/O module designed for use with the MicroLogix 1100 and 1200 controller families. This module provides a compact solution for applications requiring a mix of digital input and relay output signals within a single expansion slot. It is engineered for industrial environments where reliable signal processing and control are essential for machine automation.

Features

• Integrated I/O: Features 8 digital DC inputs and 6 relay outputs.
• Voltage Rating: Designed for 24 VDC input operation.
• Expansion Capability: Compatible with MicroLogix 1200 and 1100 programmable logic controllers.
• Compact Design: Space-saving form factor suitable for DIN-rail or panel mounting.
• Reliable Switching: Relay outputs provide isolation and flexibility for driving various field devices.

Technical Specifications

Installation Guidelines

• Power Down: Always disconnect all power sources from the controller and expansion modules before installing or removing any I/O hardware.
• Mounting: Ensure the module is securely seated on the DIN rail or panel. Use the provided locking tabs to prevent vibration-induced loosening.
• Wiring: Use shielded cables for signal inputs to minimize electromagnetic interference (EMI). Keep signal wiring separate from high-voltage power lines.
• Grounding: Follow standard industrial grounding practices to ensure the module chassis is properly bonded to the system ground.
• Environment: Operate within the specified temperature and humidity ranges to ensure long-term reliability of the relay contacts and internal circuitry.

FAQ

What is the primary function of the 1762-IQ8OW6?

This module acts as an expansion unit for MicroLogix controllers, providing 8 digital inputs for sensor feedback and 6 relay outputs for controlling actuators or other field devices.

Is this module compatible with all MicroLogix controllers?

The 1762-IQ8OW6 is specifically designed for the MicroLogix 1100 and 1200 series. Please verify your specific controller model's expansion capacity before installation.

What type of output does this module provide?

It provides 6 relay outputs, which are ideal for switching loads that require electrical isolation or different voltage levels from the controller's internal power supply.
