Description

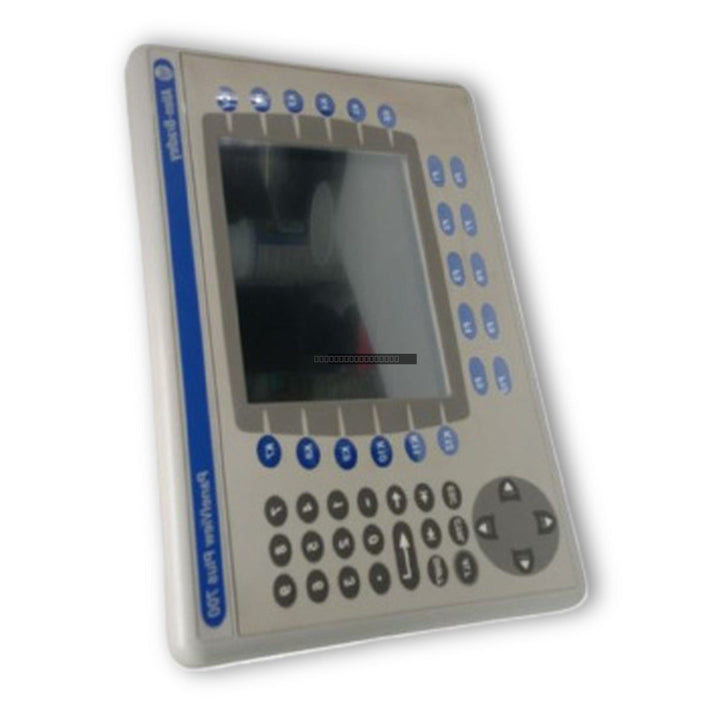

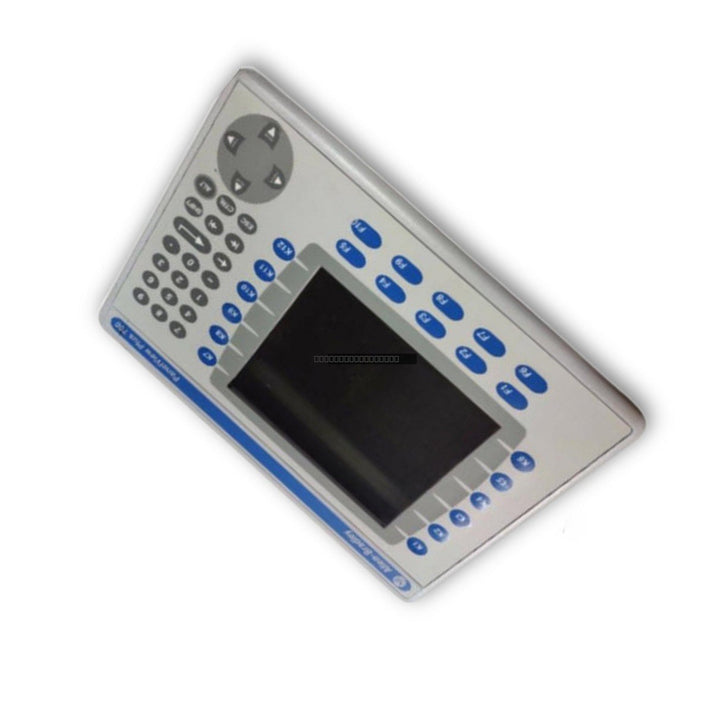

The Allen-Bradley 2711P-B7C4D1 is a PanelView Plus 700 operator interface terminal designed for industrial visualization and control applications. This unit features a 6.5-inch color active-matrix TFT display with a resolution of 640 x 480 pixels, providing clear graphical feedback for machine and process monitoring. The terminal is equipped with both a touch screen and a keypad, offering flexible input methods for operators in demanding environments.

Features

• Integrated keypad with 22 function keys (F1-F10 and K1-K12) and touch-screen interface.
• 6.5-inch color display supporting 18-bit color graphics.
• Connectivity options include Ethernet, RS-232, and two USB ports for peripheral integration.
• Robust memory configuration with 512 MB RAM and 512 MB non-volatile storage.
• Designed for 24V DC nominal input voltage operation.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout is prepared according to the manufacturer's mounting template to maintain the required NEMA/IP seal rating.
• Use shielded communication cables for Ethernet and RS-232 connections to minimize electromagnetic interference (EMI).
• Verify that the power supply provides a stable 24V DC source within the 18-32V range.
• Maintain proper ventilation around the unit to prevent overheating, as the terminal is convection-cooled.
• Always disconnect power before installing or removing the logic module or communication cables.
• Ensure the unit is properly grounded to the enclosure chassis to protect against electrical surges.

FAQ

What is the primary input method for this terminal?
The 2711P-B7C4D1 supports both touch-screen input and a physical keypad with 22 dedicated function keys.

Does this unit support Ethernet communication?
Yes, it includes an integrated Ethernet port for network connectivity, alongside RS-232 and USB ports.

What is the required power supply for this model?
This model operates on a 24V DC nominal input, with an acceptable operating range of 18-32V DC.
