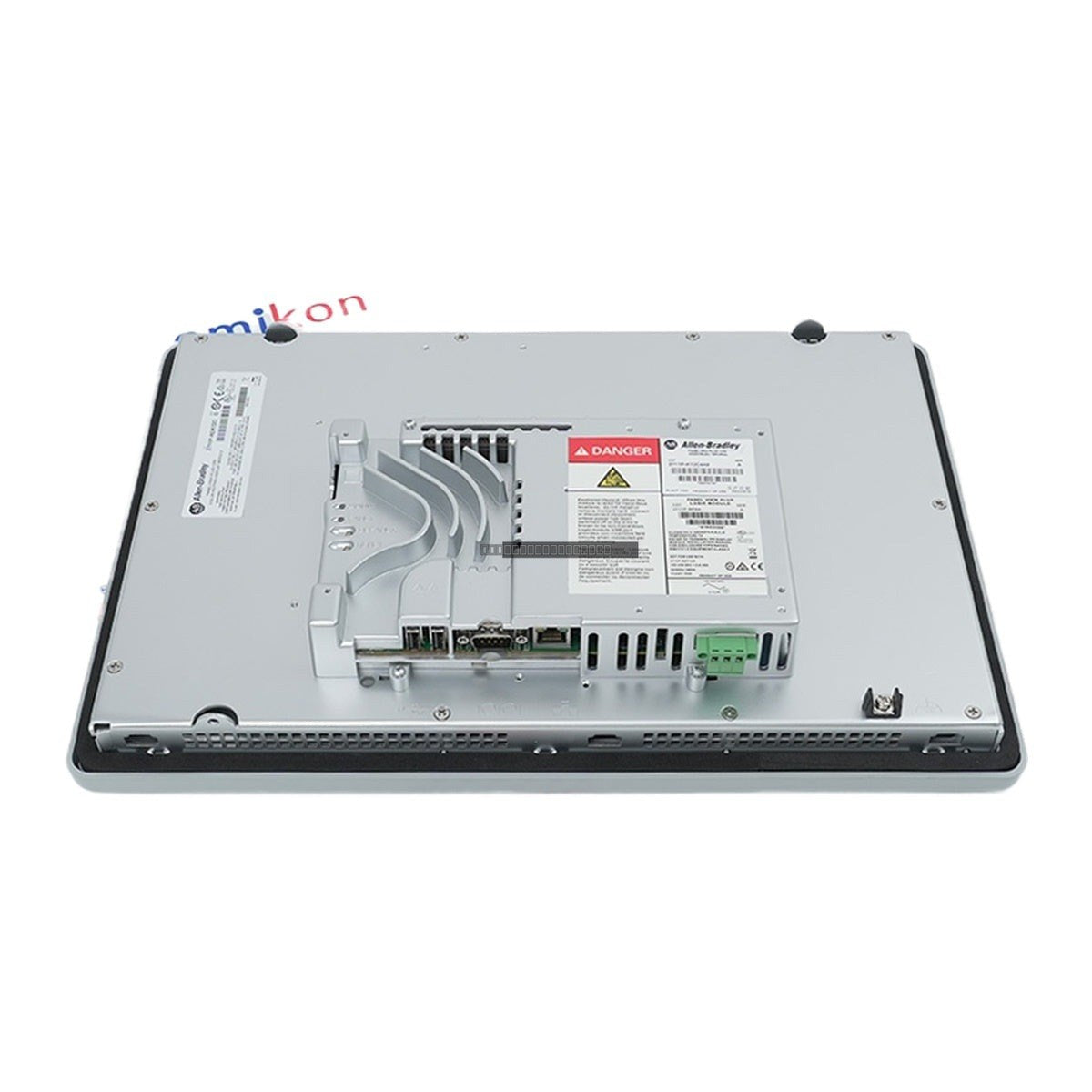

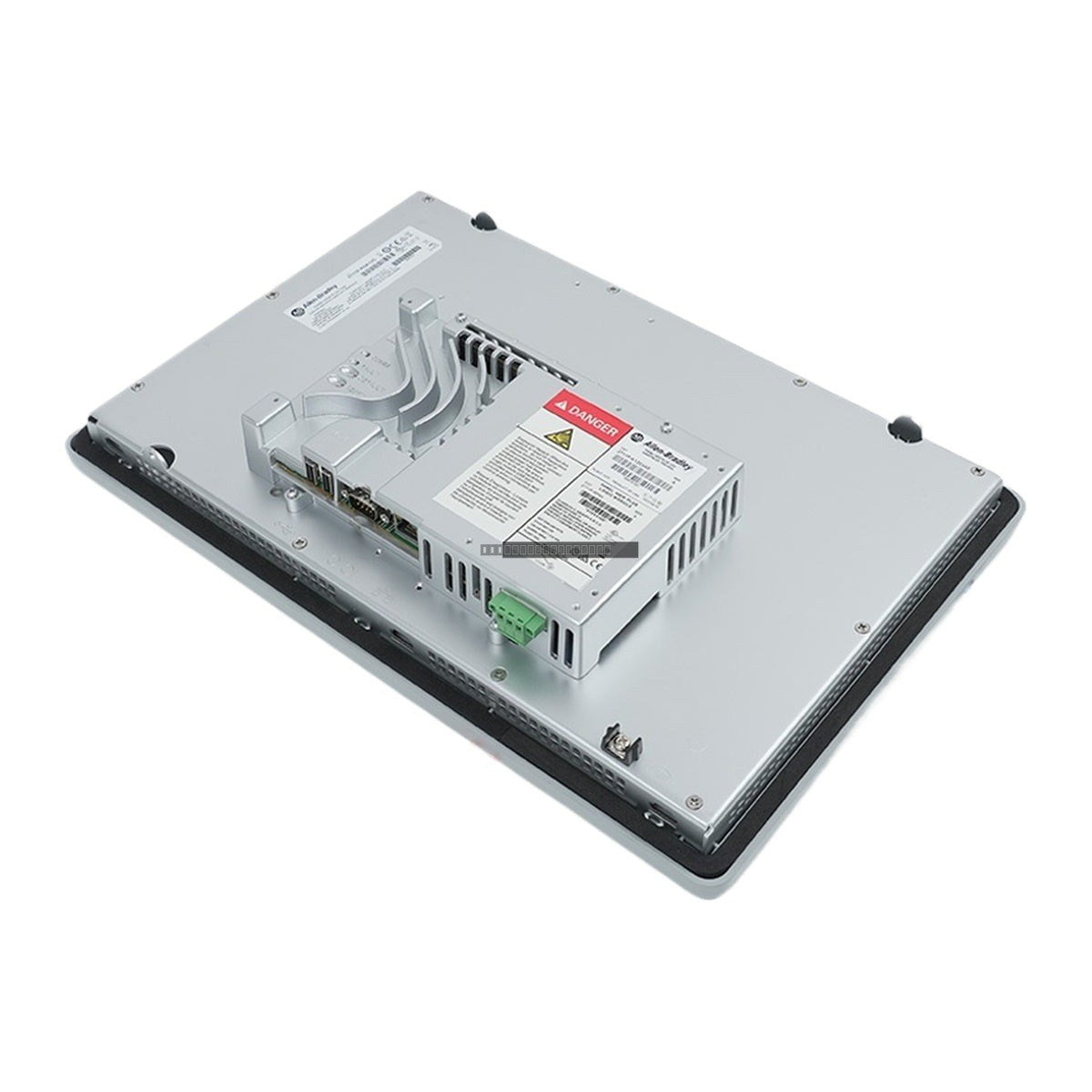

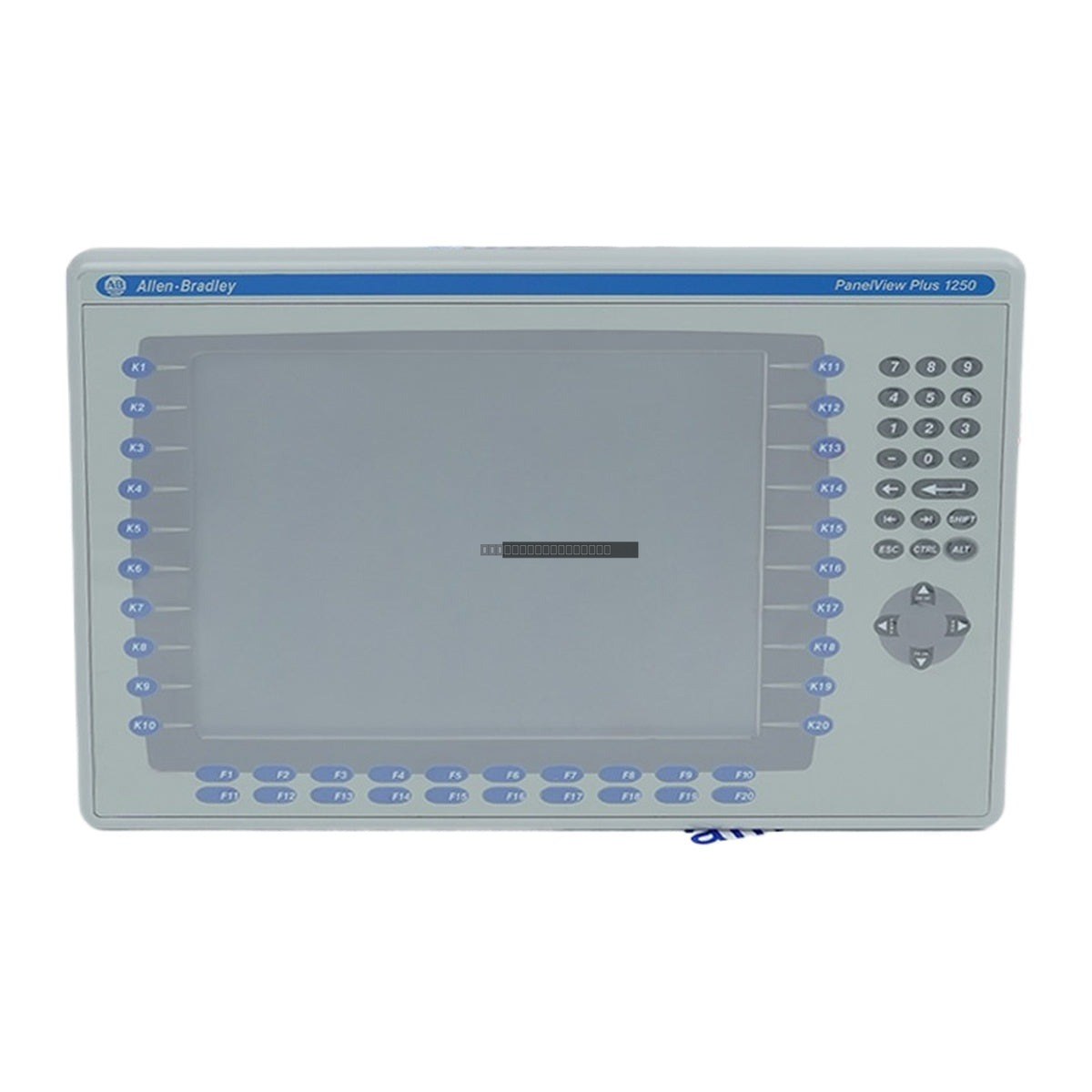

The Allen-Bradley 2711P-K12C4A8 is a PanelView Plus 6 1250 operator interface terminal designed for demanding industrial HMI environments. This unit features a 12.1-inch color active-matrix TFT display with a resolution of 800 x 600 pixels. It utilizes a robust keypad input system, including navigation keys and 40 configurable function keys (F1-F20 and K1-K20), allowing for precise control in environments where tactile feedback is required.

Features

• 12.1-inch color TFT display with 800 x 600 resolution.
• Keypad input with 40 programmable function keys.
• Windows CE 6.0 operating system with pre-installed FactoryTalk View Machine Edition runtime.
• Integrated 10/100 Base-T Ethernet and RS-232 serial ports.
• Dual USB 2.0 host ports and a secure digital (SD) card slot for data logging and firmware updates.
• 512 MB RAM and 512 MB non-volatile memory.
• Modular design allowing field replacement of key components.

Applications

• Manufacturing and assembly lines, including robotics and packaging.
• Heavy industry applications such as mining, power generation, and pulp/paper processing.
• Energy and utility management, including oil, gas, and water treatment systems.
• Logistics and automated warehouse sorting systems.

Technical Specifications

Installation Guidelines

• Ensure the sealing gasket is clean, flat, and properly seated in the terminal channel before mounting.
• Insert the terminal into the panel cutout from the front side.
• Secure the unit by sliding the mounting clips into the designated slots around the bezel.
• Tighten the mounting screws evenly in an alternating pattern to a torque of 1.1 N·m (10 lb·in) to ensure a proper seal; do not overtighten.
• Verify that the power source is disconnected before performing any wiring or maintenance.

FAQ

What is the 2711P-K12C4A8?

The 2711P-K12C4A8 is a PanelView Plus 6 1250 graphic terminal featuring a 12.1-inch color display and keypad input. It is designed for industrial HMI applications and operates on a 100-240V AC power supply.

How much memory is available for user applications?

The terminal is equipped with 512 MB of RAM and 512 MB of non-volatile memory, with approximately 79 MB of free user memory available for application storage.

Can I connect external peripherals to this terminal?

Yes, the terminal includes two USB 2.0 host ports for connecting peripherals such as keyboards, mice, printers, or USB flash drives.
