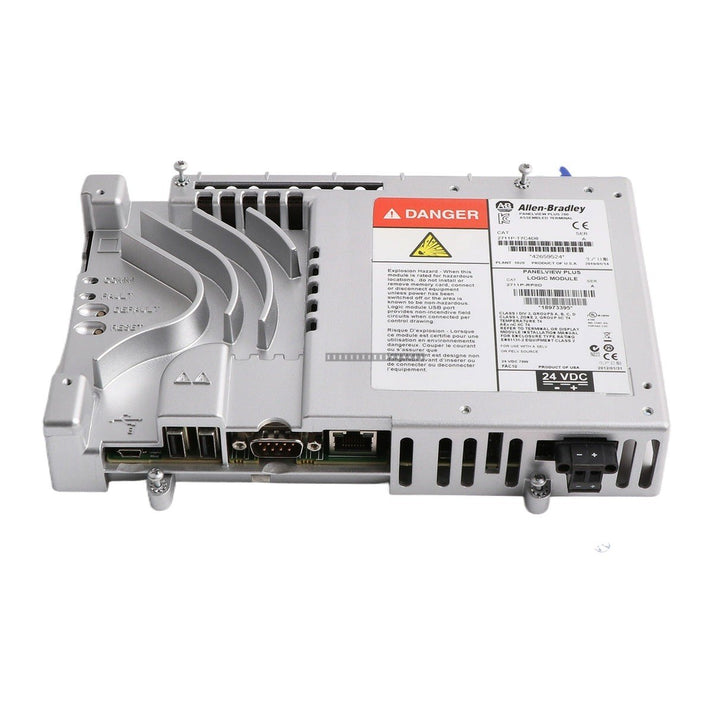

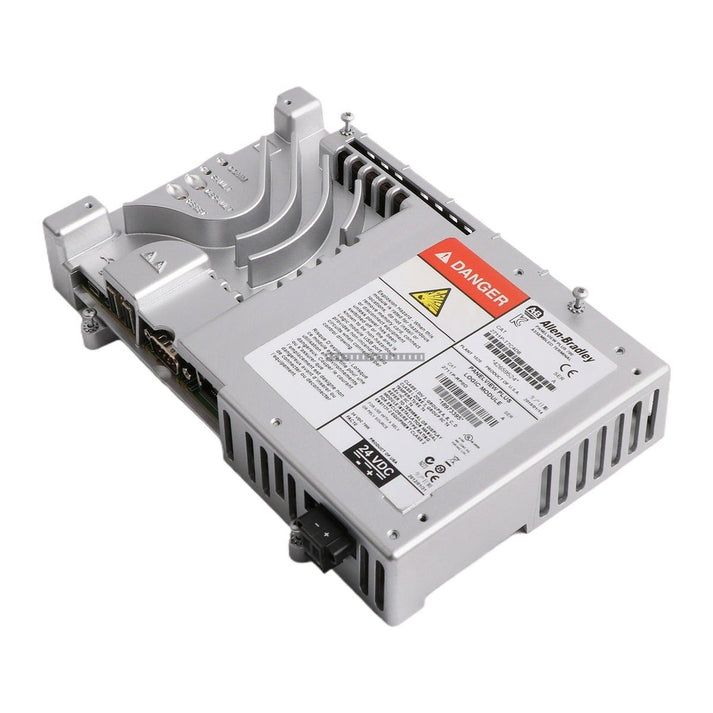

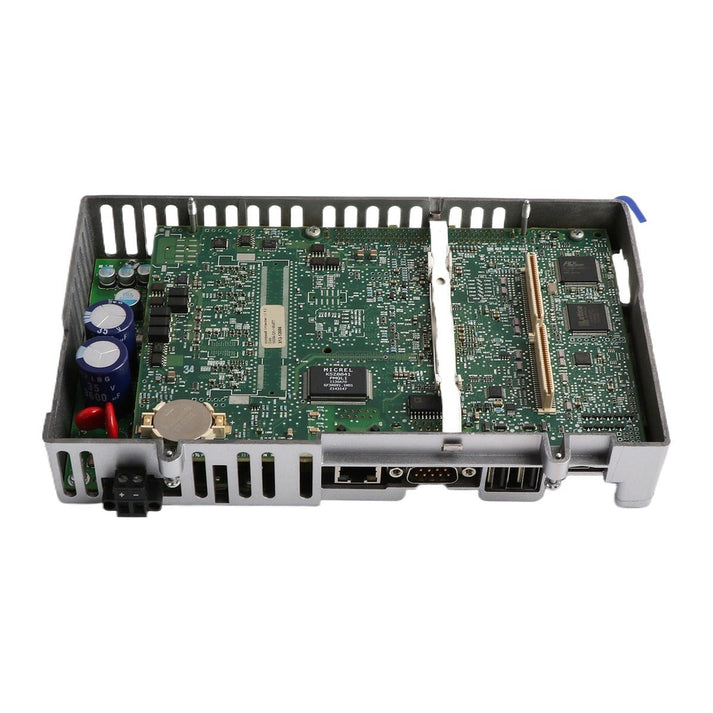

The Allen-Bradley 2711P-RP8D is a high-performance logic module designed for use with the PanelView Plus 6 operator terminal series (700-1500). This module serves as the core processing unit for HMI applications, providing the necessary computational power, memory, and connectivity to manage machine-level visualization and control tasks in industrial environments.

Features

• Equipped with 512 MB Flash and 512 MB RAM for robust application handling.
• Supports standard Windows CE 6.0 operating system.
• Integrated communication interfaces including Ethernet (RJ45), RS-232 serial, and two USB 2.0 host ports.
• Supports remote connectivity protocols such as VNC and FTP for enhanced system management.
• Enables backup and restore functionality for critical HMI project files.
• Supports .CSV file management for remote recipe and data logging applications.

Applications

• Manufacturing: Real-time process monitoring, production data tracking, and machine control.
• Food & Beverage: Recipe management and production line control.
• Oil & Gas: Pipeline monitoring, well control, and automated data logging.
• Water & Wastewater: SCADA architecture integration and equipment monitoring.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the logic module from the display unit.
• Verify that the operating environment meets the specified temperature range of 0-55 degC.
• Use shielded communication cables for Ethernet and Serial connections to minimize EMI interference.
• Ensure proper grounding of the HMI enclosure to prevent electrical noise issues.
• When using a touch display, perform the screen calibration via the Terminal Settings menu upon initial startup.
• Configure IP address, subnet mask, and gateway settings through the Terminal Settings menu for network integration.

FAQ

What is the AB 2711P-RP8D?

The Allen-Bradley 2711P-RP8D is a Logic Module designed for PanelView Plus 6 (700-1500 series) operator terminals.

What communication ports are included?

It includes one Ethernet port (RJ45), one RS-232 serial port (9-pin D-shell), and two USB 2.0 host ports for peripherals like keyboards, mice, or USB flash drives.

What is the difference between 2711P-RP8D and 2711P-RP9D?

The 2711P-RP8D features the Standard feature set, whereas the 2711P-RP9D includes the Extended feature set (which includes additional file and PDF viewers).

What is the 2711P-RP8D a replacement for?

It is a direct replacement for older 2711P-RP1 modules.
