Description

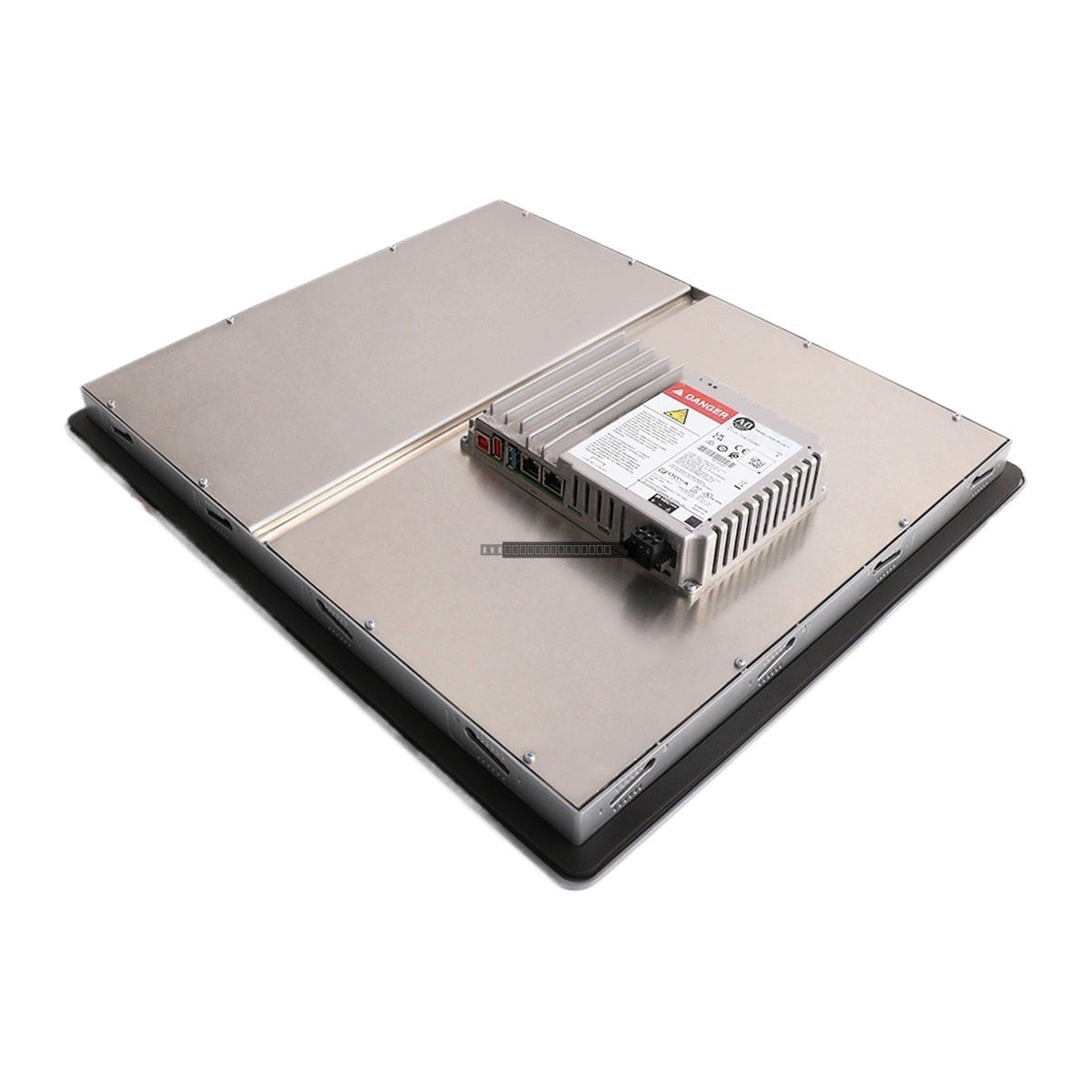

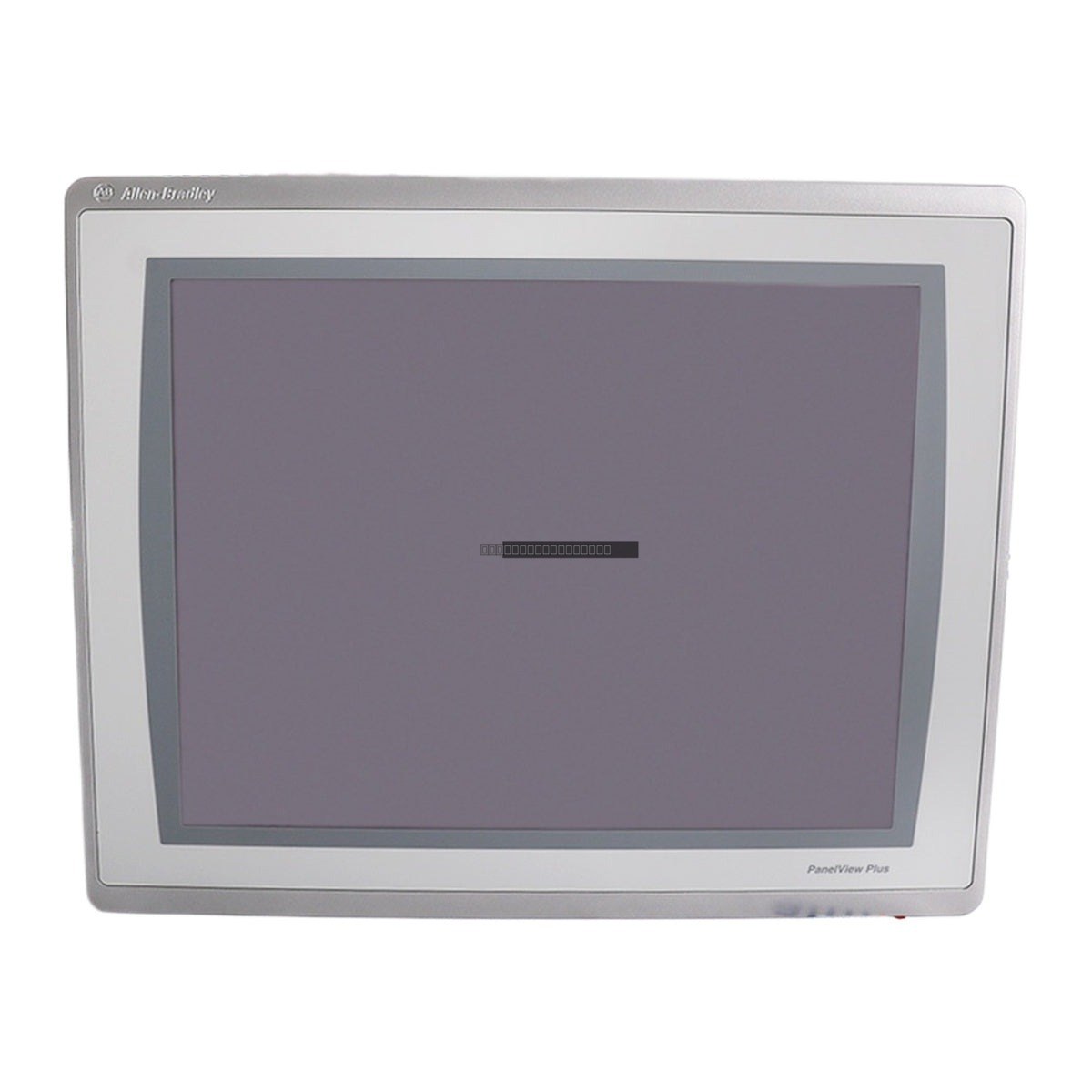

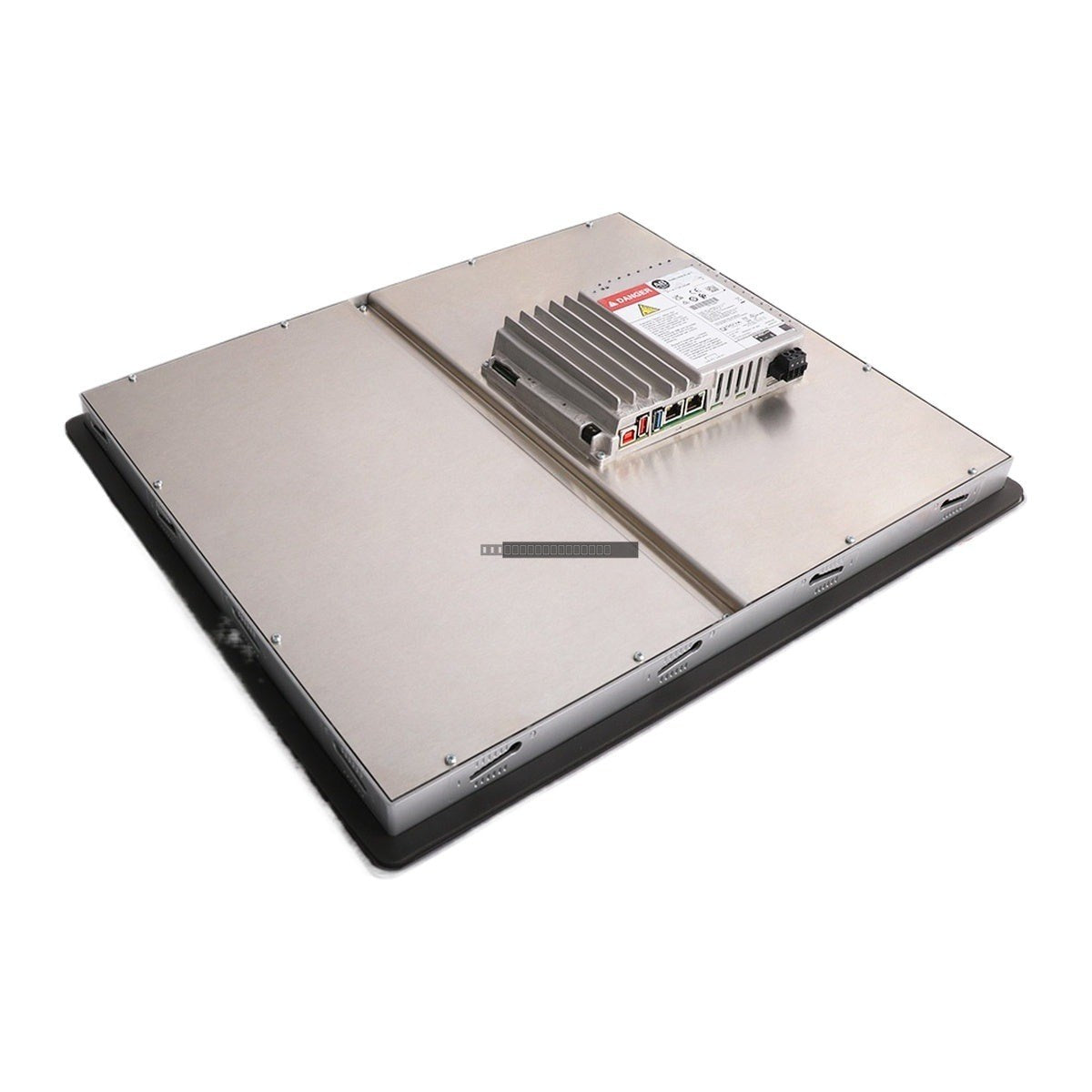

The Allen-Bradley 2711P-T19C22D9P is a high-performance PanelView Plus 7 graphic terminal designed for advanced operator interface applications in industrial environments. Featuring a large 19-inch color touchscreen display with a resolution of 1280 x 1024 pixels, this terminal provides clear visualization and intuitive control for complex automation systems. It operates on the Windows 10 IoT Core platform, offering robust performance and integration capabilities for modern industrial automation tasks.

Features

• 19-inch high-resolution color touchscreen interface.
• Integrated embedded switch with Device Level Ring (DLR) support for enhanced network reliability.
• Performance-grade hardware suitable for demanding visualization tasks.
• Windows 10 IoT Core operating system for improved security and connectivity.
• Designed for 24 VDC power input environments.

Technical Specifications

Installation Guidelines

• Ensure the terminal is mounted in a panel with adequate ventilation to maintain operating temperature limits.
• Use a properly rated 24 VDC power supply; ensure correct polarity during wiring to prevent damage to internal circuitry.
• Maintain proper grounding practices for the enclosure to minimize electromagnetic interference (EMI).
• The device features an integrated switch; ensure shielded Ethernet cabling is used for DLR network configurations to maintain signal integrity.
• Always disconnect power before performing any installation, wiring, or maintenance tasks.

FAQ

What is the primary input method for this terminal?
The 2711P-T19C22D9P utilizes a high-precision touchscreen interface for operator interaction.

Does this unit support network redundancy?
Yes, this model includes an embedded switch with Device Level Ring (DLR) capability, allowing for resilient network topologies.

What is the power requirement for this device?
The terminal operates on a 24 VDC input, with an acceptable voltage range of 18-30 VDC and a maximum power consumption of 50 W.
