Description

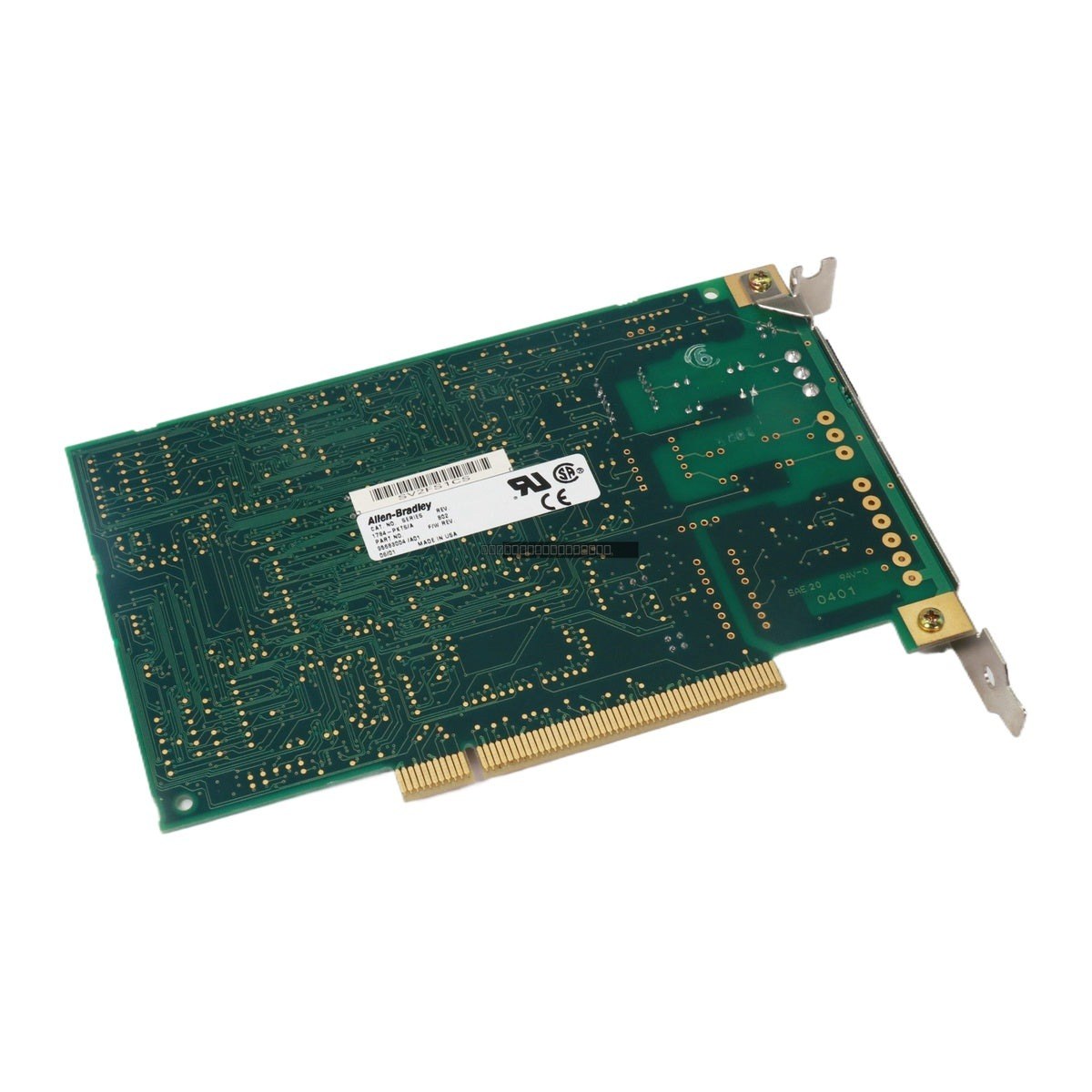

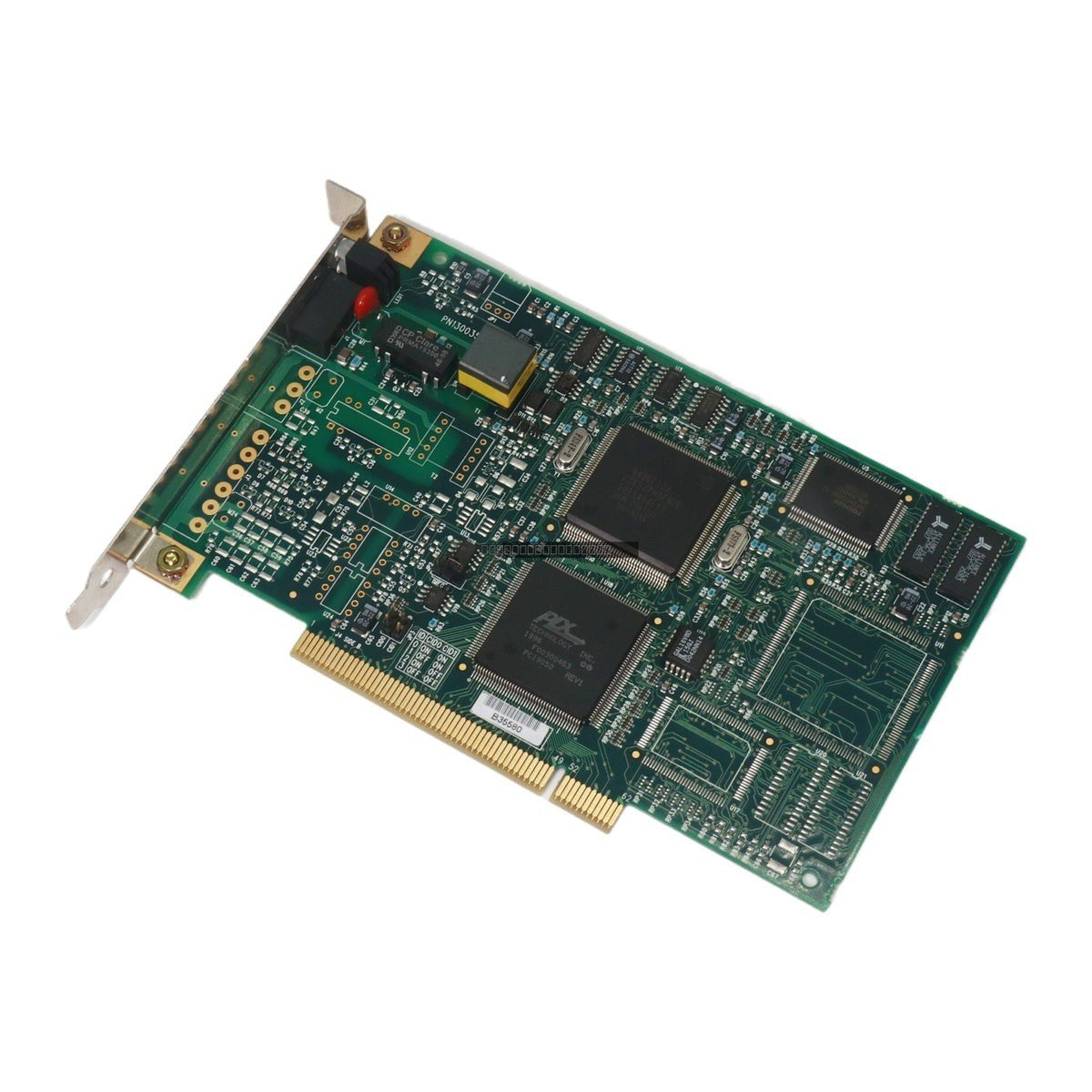

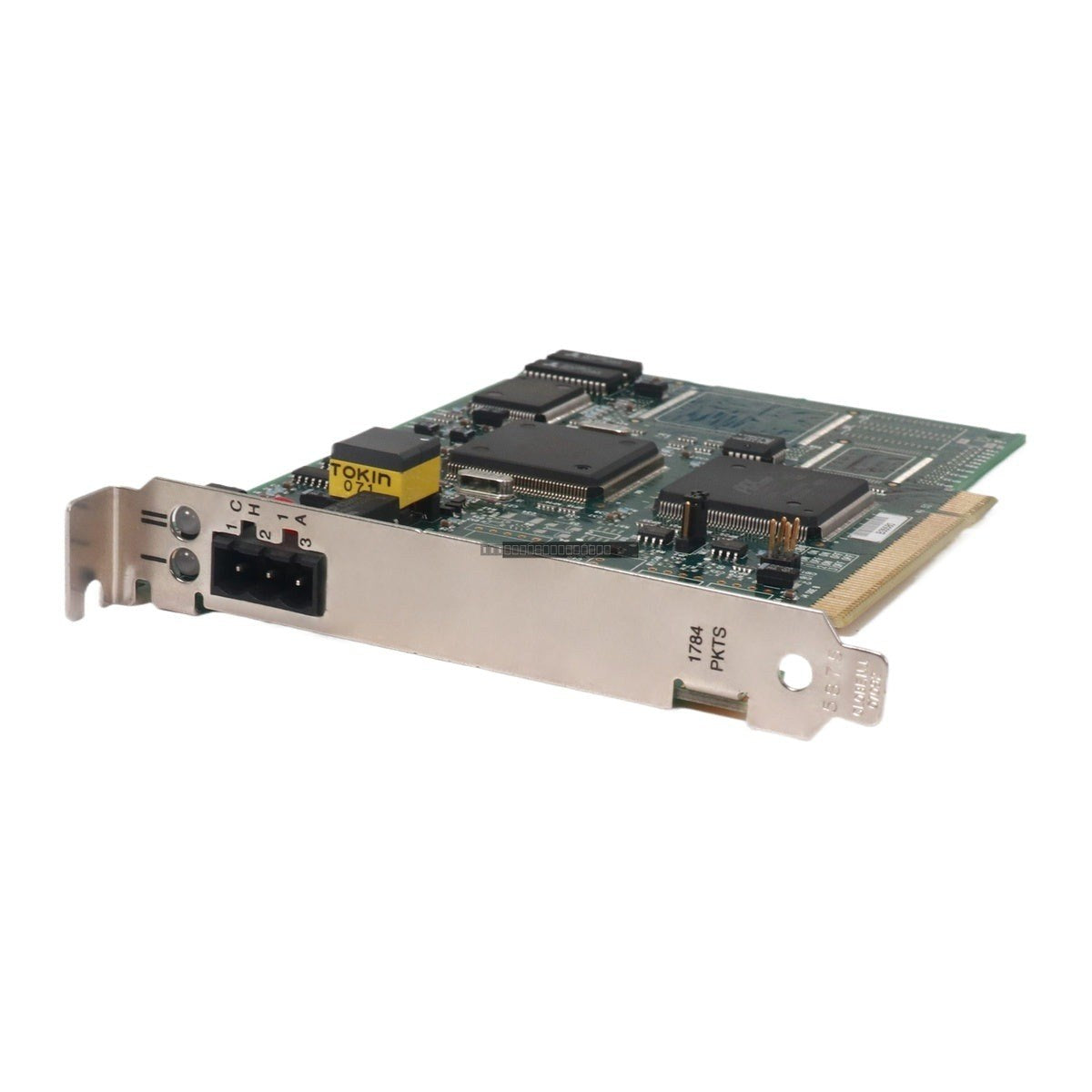

The Allen-Bradley 1784-PKTS is a high-performance network interface card designed for integration with PLC-5 systems. This PCI-bus compliant module serves as a bridge, enabling robust communication between industrial computing platforms and Remote I/O (RIO) networks. As a specialized interface card, it provides the necessary hardware layer for reliable data exchange in demanding automation environments.

Features

• PCI Bus interface compatible with both 5V and 3.3V universal slots.
• Integrated RIO (Remote I/O) scanner functionality for streamlined network management.
• Single-channel communication architecture.
• Standard PCI form factor for easy installation into industrial workstations.
• BNC (Twinax) connector type for secure network cabling.
• Galvanic isolation rated at 1500V AC to protect sensitive system components.

Technical Specifications

Installation Guidelines

• Ensure the host system is powered down before inserting or removing the 1784-PKTS card from the PCI slot.
• Handle the card by the edges to prevent electrostatic discharge (ESD) damage to sensitive electronic components.
• Verify that the PCI slot is a 32-bit configuration to ensure proper bus communication.
• Proper termination is required for network integrity; ensure 75-ohm resistors are utilized as specified for the RIO network.
• Maintain adequate airflow within the chassis to keep the operating temperature within the 0 degC to +60 degC range.

FAQ

Is the 1784-PKTS still in production?
No, this model has been discontinued by the manufacturer. We provide high-quality surplus units for maintenance and legacy system support.

What type of cable connection does this card use?
The 1784-PKTS utilizes a BNC connector for Twinax cabling, which is standard for RIO network configurations.

Does this card require specific termination?
Yes, the network requires 75-ohm resistors for proper termination to ensure signal integrity and prevent data reflection on the RIO line.
