Description

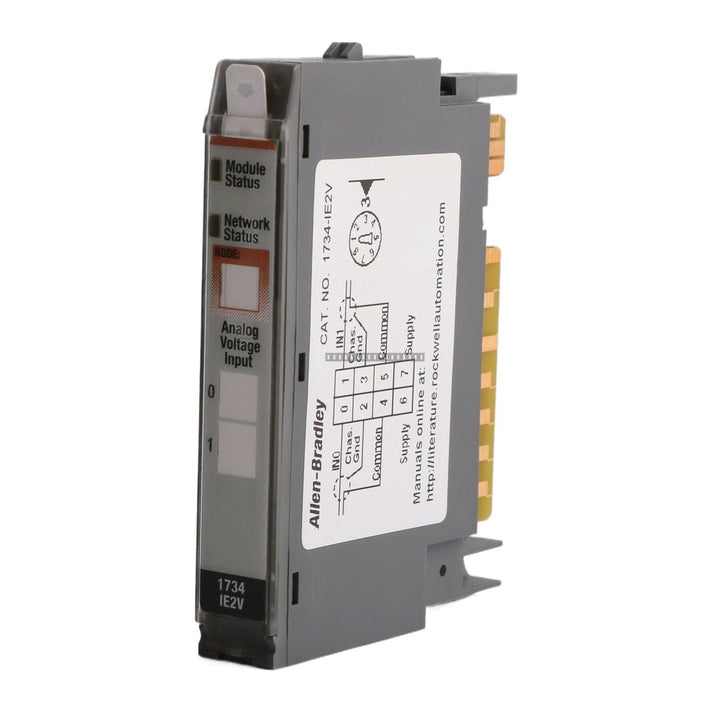

The Allen-Bradley 1734-IE2V is a POINT I/O analog input module designed for high-density, space-saving applications in industrial automation systems. This module provides two single-ended, non-isolated voltage inputs, utilizing Delta Sigma conversion technology to ensure accurate data acquisition for process control and monitoring tasks.

Features

• Two single-ended, non-isolated voltage input channels.
• Delta Sigma conversion type for reliable signal processing.
• Signed Integer data format for seamless integration with ControlLogix or CompactLogix controllers.
• Compact POINT I/O form factor for flexible, modular mounting on DIN rails.
• Key switch position 3 for mechanical module identification and protection.
• Open-type enclosure rating suitable for controlled industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the POINT I/O base.
• Mount the module onto a standard DIN rail, ensuring the locking mechanism is fully engaged.
• Verify that the key switch is set to position 3 to match the module type and prevent incorrect module insertion.
• Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
• Maintain proper grounding practices for the I/O base to ensure signal integrity and safety.
• Operate within the specified environmental conditions to avoid thermal degradation or measurement inaccuracies.

FAQ

What is the primary function of the 1734-IE2V?

The 1734-IE2V is an analog input module used within the POINT I/O system to convert field voltage signals into digital data for processing by the PLC.

Is this module isolated?

No, the 1734-IE2V features non-isolated, single-ended inputs.

What is the key switch position for this module?

The key switch position for the 1734-IE2V is set to 3.
