Description

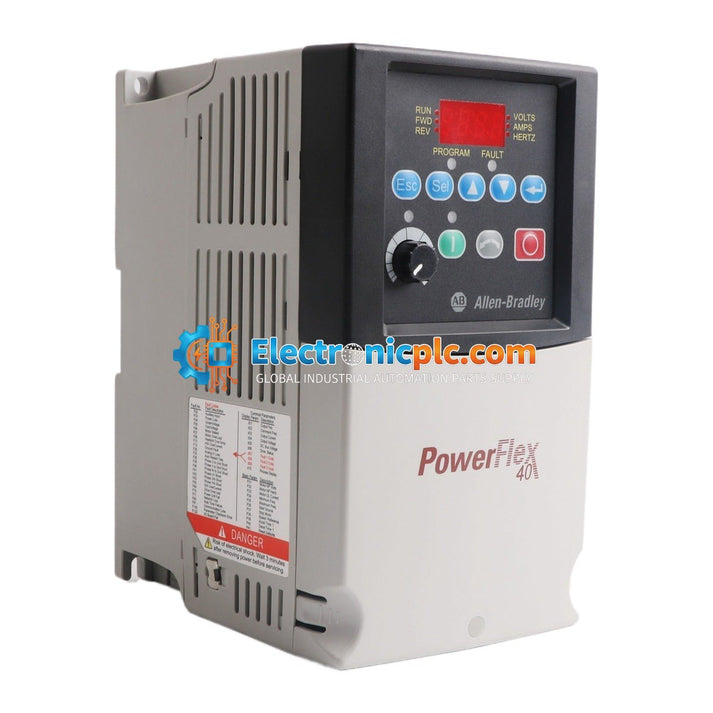

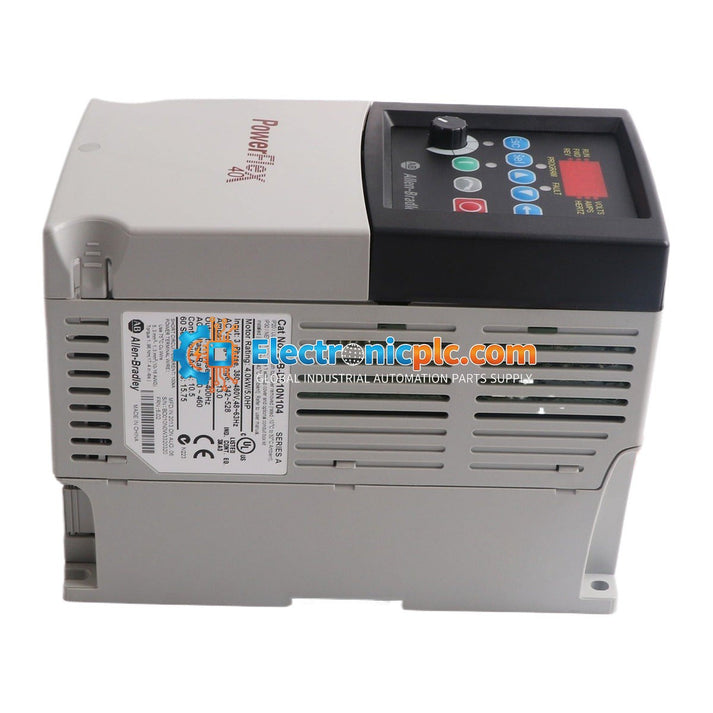

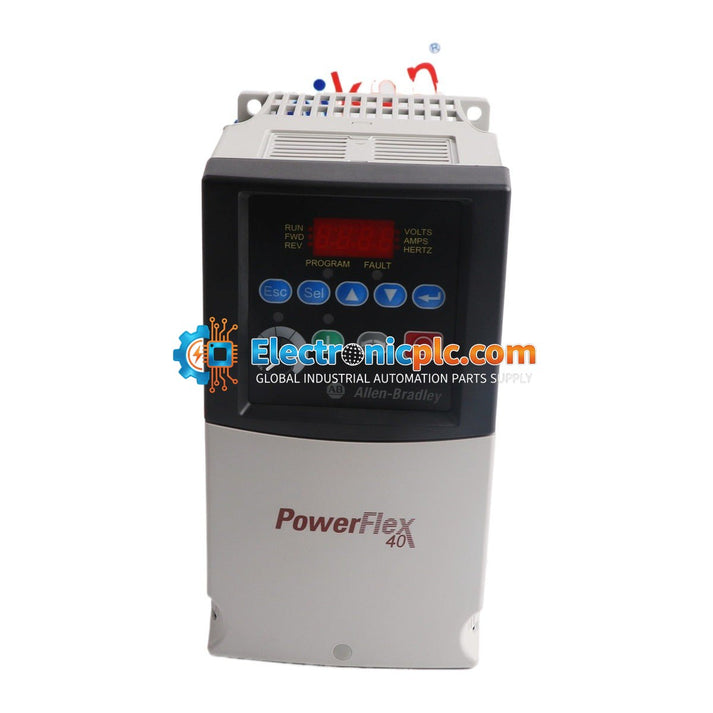

The Allen-Bradley 22B-D010N104 is a PowerFlex 40 AC drive designed for precise motor control in industrial environments. This compact, high-performance drive provides reliable speed control for 3-phase induction motors, offering a power rating of 4 kW (5 HP). It is engineered to handle demanding applications while maintaining energy efficiency and operational stability.

Features

• Compact design suitable for space-constrained control panels.
• Integrated keypad and LCD display for local programming and diagnostics.
• Supports V/Hz and sensorless vector control modes.
• Built-in RS-485 communications for seamless integration into automation networks.
• Flexible mounting options including side-by-side installation.

Applications

This drive is commonly utilized in various industrial sectors, including material handling, pumping systems, HVAC fans, and conveyor control. Its robust design makes it suitable for both simple speed control tasks and more complex machine automation requirements.

Technical Specifications

Installation Guidelines

• Ensure the drive is installed in a clean, dry, and vibration-free environment.
• Maintain adequate clearance around the unit to allow for proper airflow and heat dissipation.
• Always verify that the input power supply matches the drive voltage rating before connection.
• Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the drive chassis to a common earth point to prevent electrical noise issues.
• Power down the unit and wait for the bus capacitors to discharge before performing any wiring or maintenance.

FAQ

What is the primary function of the 22B-D010N104?

This unit is an AC variable frequency drive used to control the speed and torque of 3-phase AC induction motors in industrial machinery.

Can this drive be used for 1-phase input?

No, the 22B-D010N104 is specifically designed for 3-phase input power applications.
