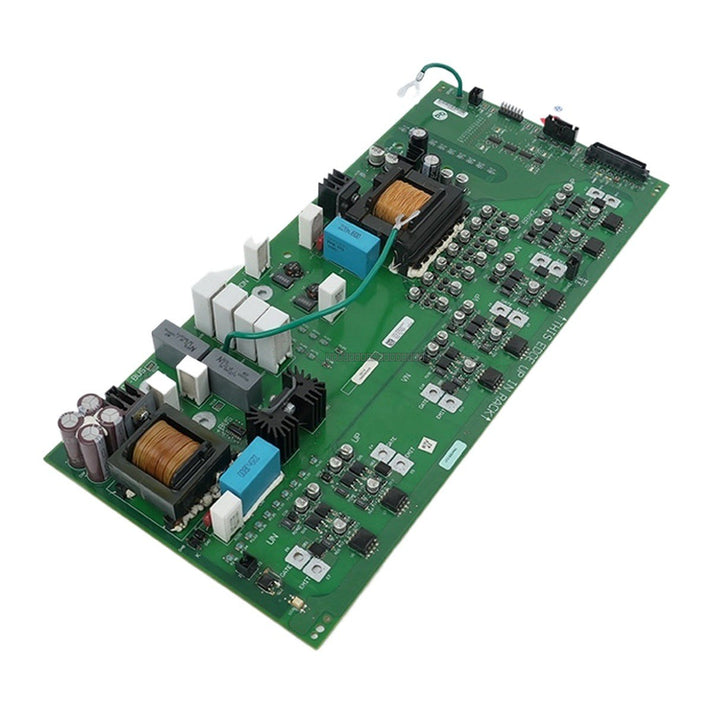

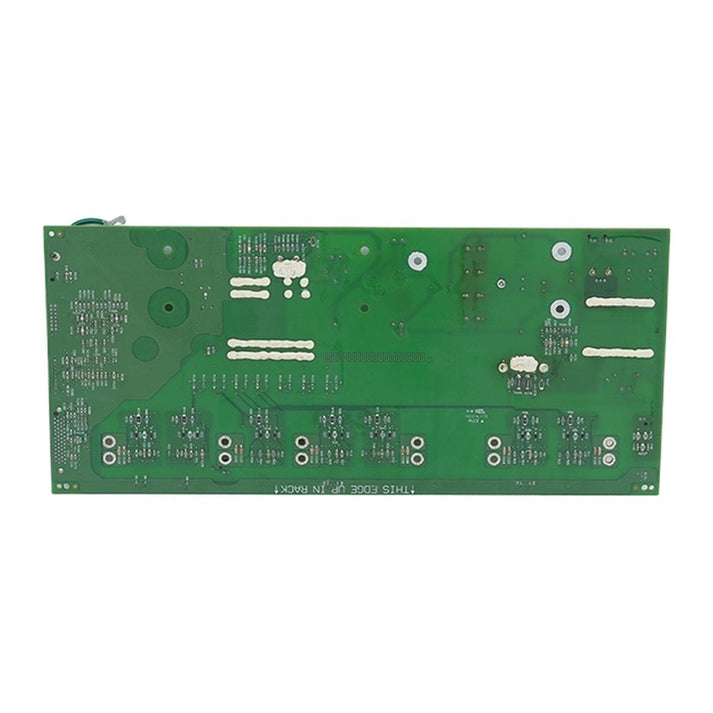

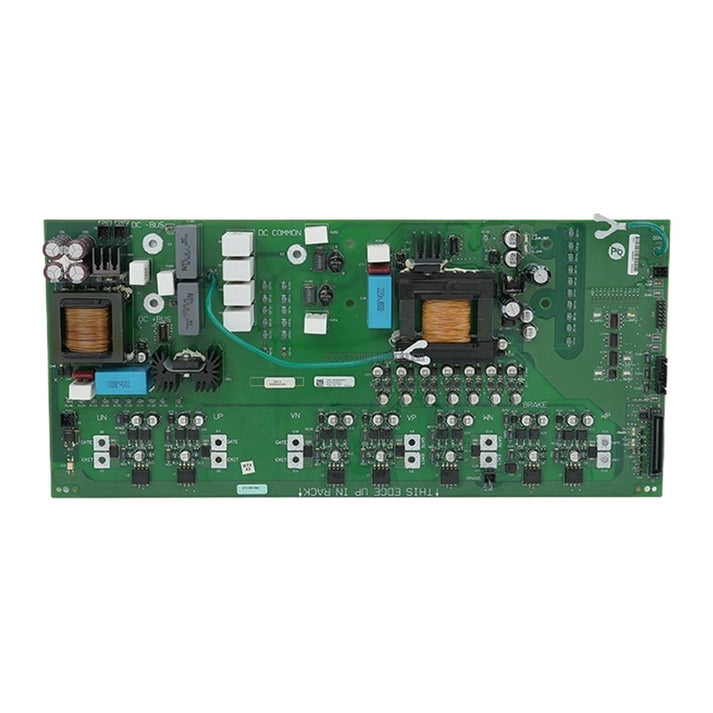

The Allen-Bradley 333299-A01 is a Power Interface Board (PIB) designed for the PowerFlex 750-Series AC variable frequency drives. This component serves as the critical physical and electrical interface between the low-voltage control unit and the high-voltage power stage, specifically engineered for Frame 7 drive configurations rated at 300 HP.

Features

• Compatible with PowerFlex 753 and PowerFlex 755 drive models
• Facilitates high-power gate drive signals for IGBT power modules
• Provides real-time feedback of operational status and critical fault conditions (overcurrent/overvoltage)
• Designed for 480 V AC drive systems

Applications

• Automotive & Tire: Synchronized conveyance for high-speed assembly and framing systems
• Food & Beverage: Ingredient management and process compliance tracking
• Water & Wastewater: VFD-based flow and pressure regulation for energy efficiency
• Oil & Gas: Onshore and offshore extraction and pipeline automation

Technical Specifications

Installation Guidelines

• Safety First: After removing input power, wait at least 5 minutes for the DC bus capacitors to fully discharge before handling.
• Verification: Always use a calibrated digital multimeter to verify that the DC bus voltage at the +DC and -DC test points is zero before performing maintenance.
• ESD Protection: This board contains sensitive electronic components. Use a properly grounded static control wrist strap and follow standard ESD mitigation procedures during installation.
• Altitude: Rated for installation up to 1000 m without derating; apply 1.2% derating per 100 m for installations between 1000 m and 4000 m.

FAQ

What is the function of the 333299-A01?

It functions as the primary power interface board, responsible for converting low-voltage control commands into high-power gate drive signals for the IGBT modules to manage motor speed and torque.

Is this board compatible with all PowerFlex drives?

It is specifically designed for the PowerFlex 750-Series (753 and 755 models) in Frame 7, 480V configurations.

What is the warranty period?

We provide a 12-month warranty from the date of delivery for this component.
