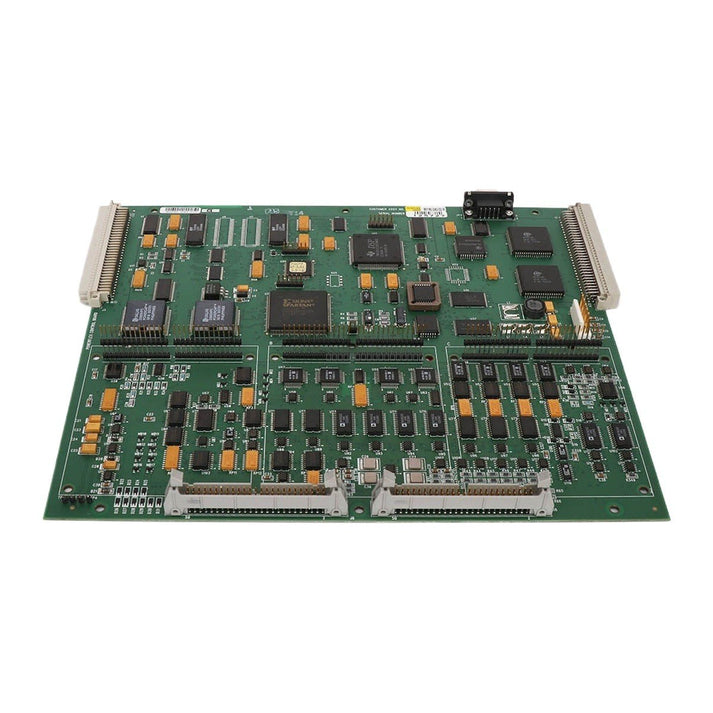

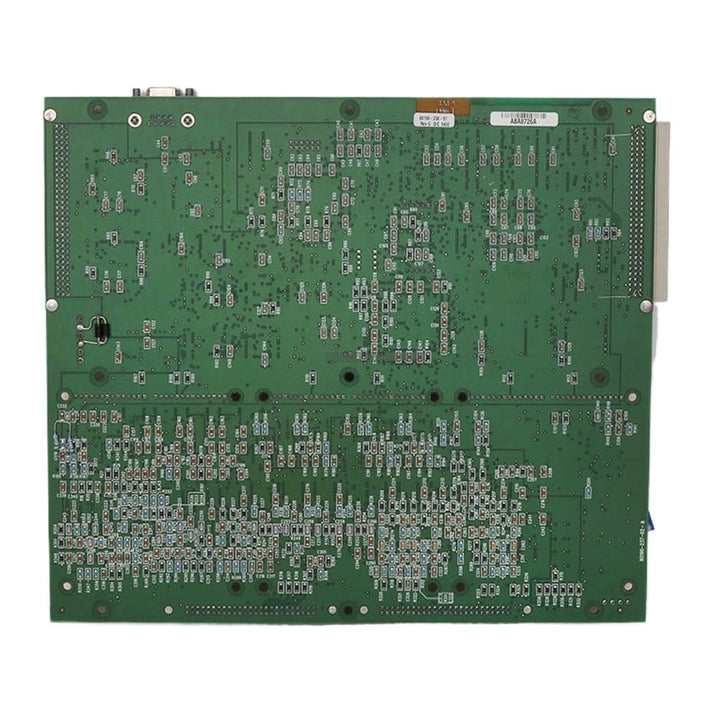

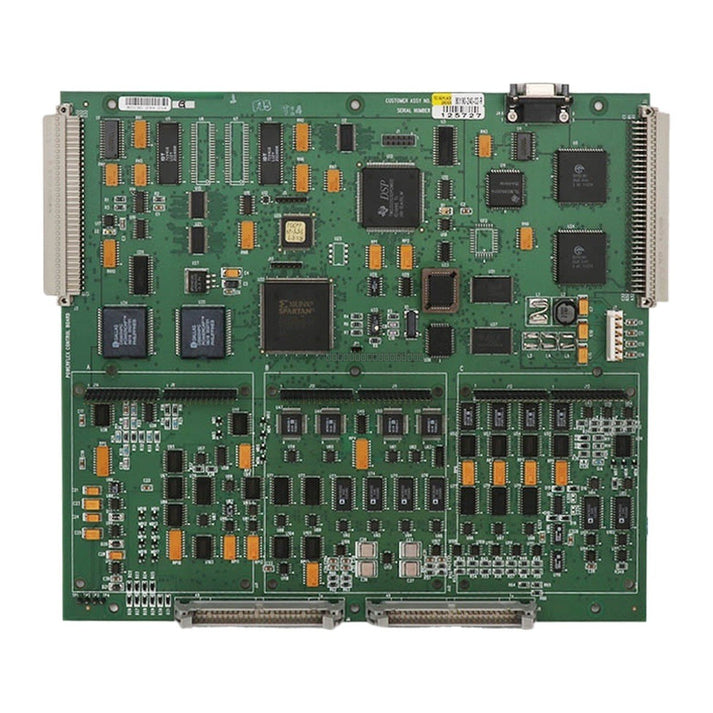

The Allen-Bradley 80190-240-02-R is a main control board designed for the PowerFlex 700S series of high-performance adjustable frequency AC drives. It serves as the central processing and signal routing hub for drive control, motor management, and system communication within industrial drive installations.

Features

• Central control and processing module for PowerFlex VFD systems
• Integrated digital signal processor (DSP) and FPGA architecture
• Supports field-oriented control (FOC) for high-speed torque response
• Integrated fault monitoring and system diagnostics
• Compatible with permanent magnet motor control via encoder/resolver feedback
• Supports sensorless direct vector control and full vector control modes

Applications

• Oil & Gas: High-capacity pumps, compressors, and pipeline systems
• Mining & Minerals: Heavy-duty conveyors, grinding mills, and industrial fans
• Water & Wastewater: Large-scale municipal pump stations
• Power Generation: ID/FD boiler fans in utility plants
• Marine: Electric propulsion and heavy thruster control

Technical Specifications

Interfaces

• Isolated RS-232 and RS-485/422 serial ports
• 10/100 Mbps Ethernet with auto-MDIX and Modbus-TCP support
• Drive Peripheral Interface (DPI) for HIMs and communication adapters

Installation Guidelines

• Ensure all power is disconnected from the drive before attempting to remove or install the control board.
• Use ESD-safe handling procedures when touching the board to prevent damage to sensitive internal components.
• Align the board carefully within the designated chassis slot and ensure all pins are properly seated before fastening retaining screws.
• Verify that all fiber optic cables and plug-in connectors are securely reattached after installation.
• Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the specified 0 to 40 degC range.

FAQ

Is the 80190-240-02-R compatible with the 80190-480-21-R control board?

Yes, these boards are compatible and share the same 2.005 boot PROM assembly architecture, allowing them to function within the same PowerFlex 7000 Classic control structures.

Does the replacement control board include the drive firmware?

The control board typically includes the DSP chip, but it does not include the drive firmware. You may need to load the appropriate firmware version for your specific application.
