Description

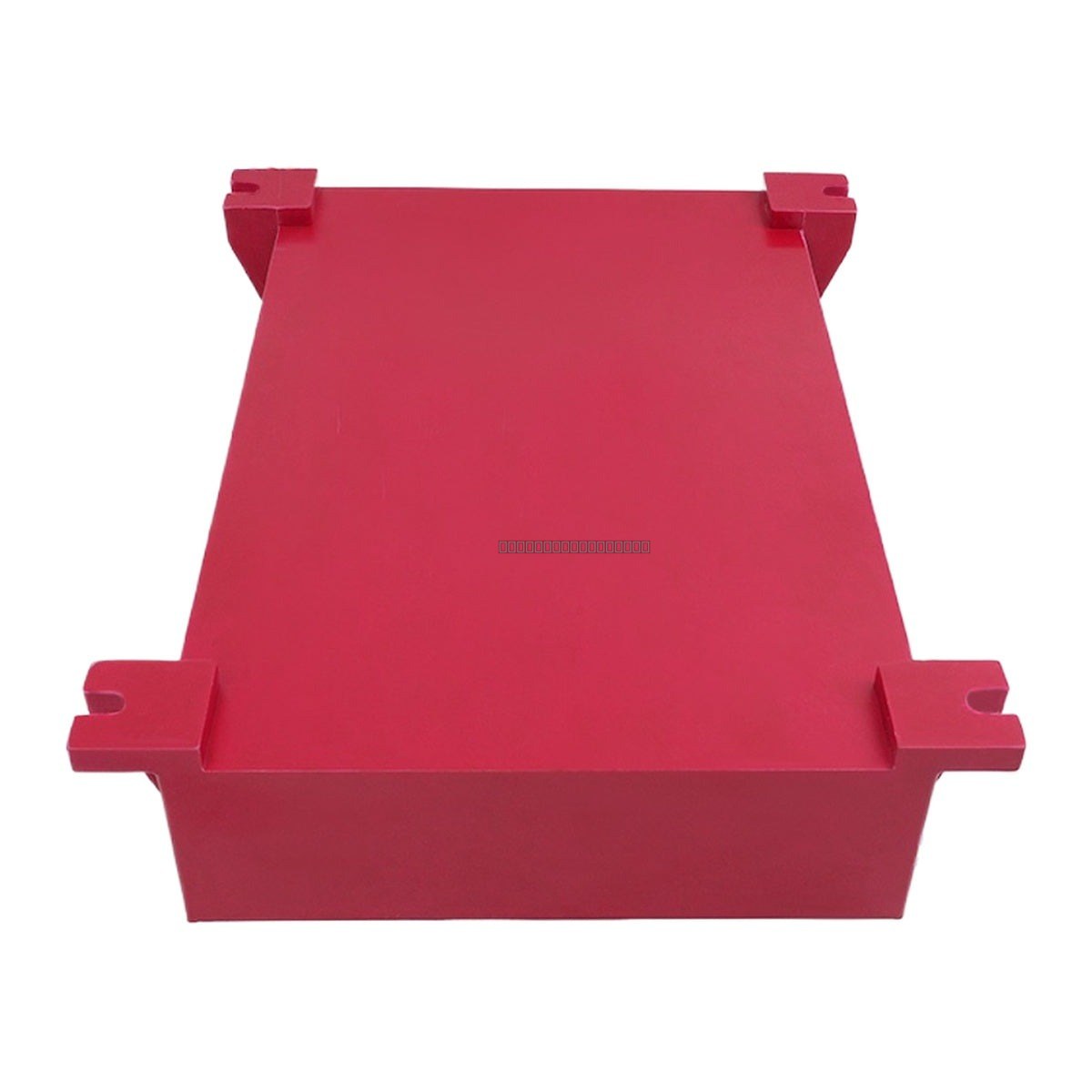

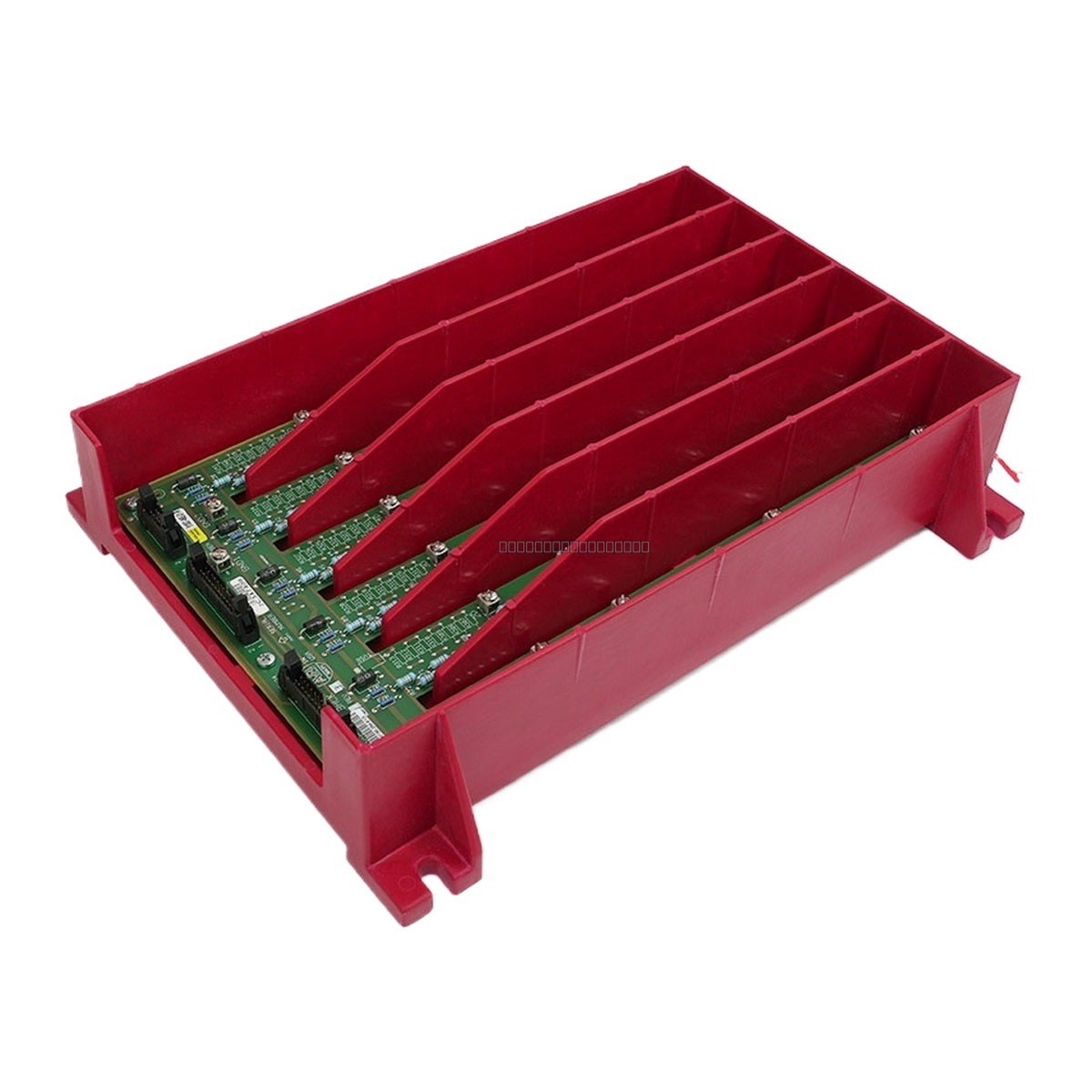

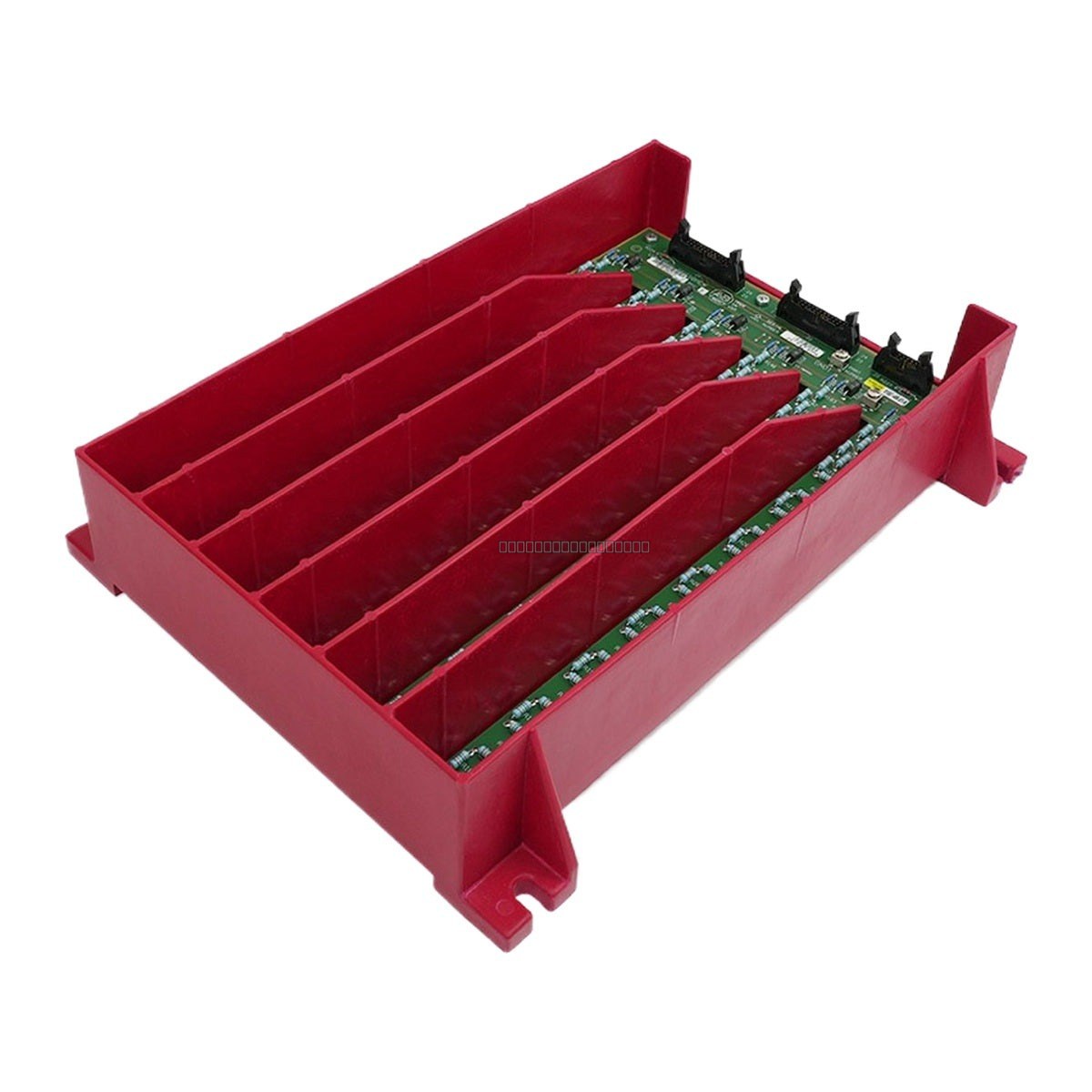

The Allen-Bradley 81007-465-51-R is a precision voltage sensing board designed for integration within PowerFlex drive systems. This module provides reliable monitoring and signal conditioning for both AC and DC voltage inputs, converting high-voltage levels into standard industrial control signals for drive diagnostics and feedback loops.

Features

• Wide input range supporting 0 to 600 V AC and 0 to 1000 V DC.
• High isolation voltage of 2500 V AC to ensure system safety and signal integrity.
• Selectable output signal options of 0 to 10 V DC or 4 to 20 mA.
• Accuracy rating of +/- 1% of full scale for precise monitoring.
• Designed for standard industrial power frequency response at 50/60 Hz.

Technical Specifications

Installation Guidelines

• Ensure all power is disconnected from the drive and the sensing circuit before installation or removal of the board.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive electronic components.
• Verify that the input voltage levels do not exceed the specified maximum ratings to prevent permanent damage to the sensing circuitry.
• Ensure the board is securely seated in its designated slot or mounting position to maintain proper electrical contact.
• Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal accuracy.

FAQ

What is the primary function of the 81007-465-51-R board?

This board acts as a voltage sensing interface, converting high-voltage input levels into standard 0-10V or 4-20mA signals suitable for monitoring by a drive controller or PLC.

Can this board be used for both AC and DC applications?

Yes, the module is designed to handle both AC voltage (0-600V) and DC voltage (0-1000V) inputs.
