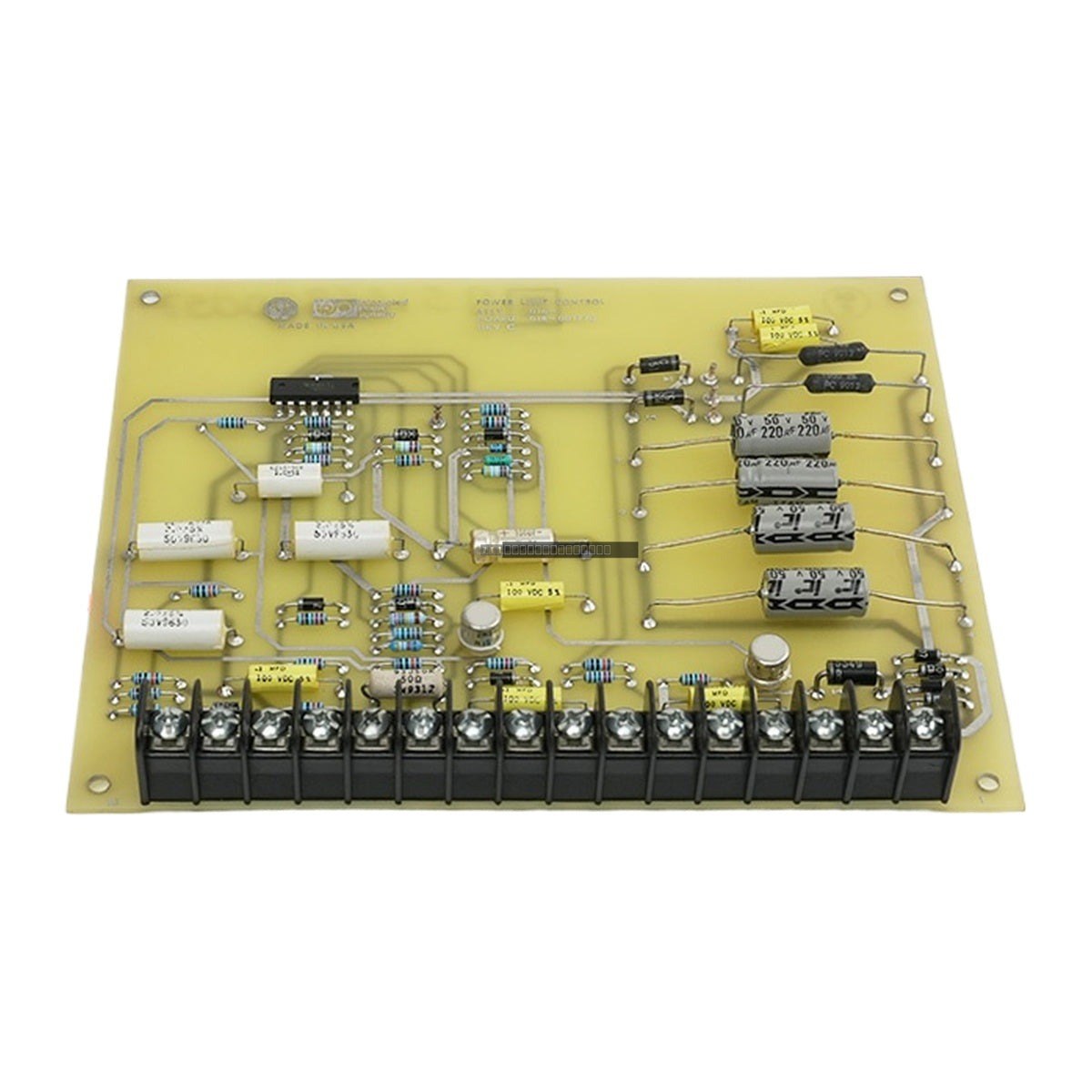

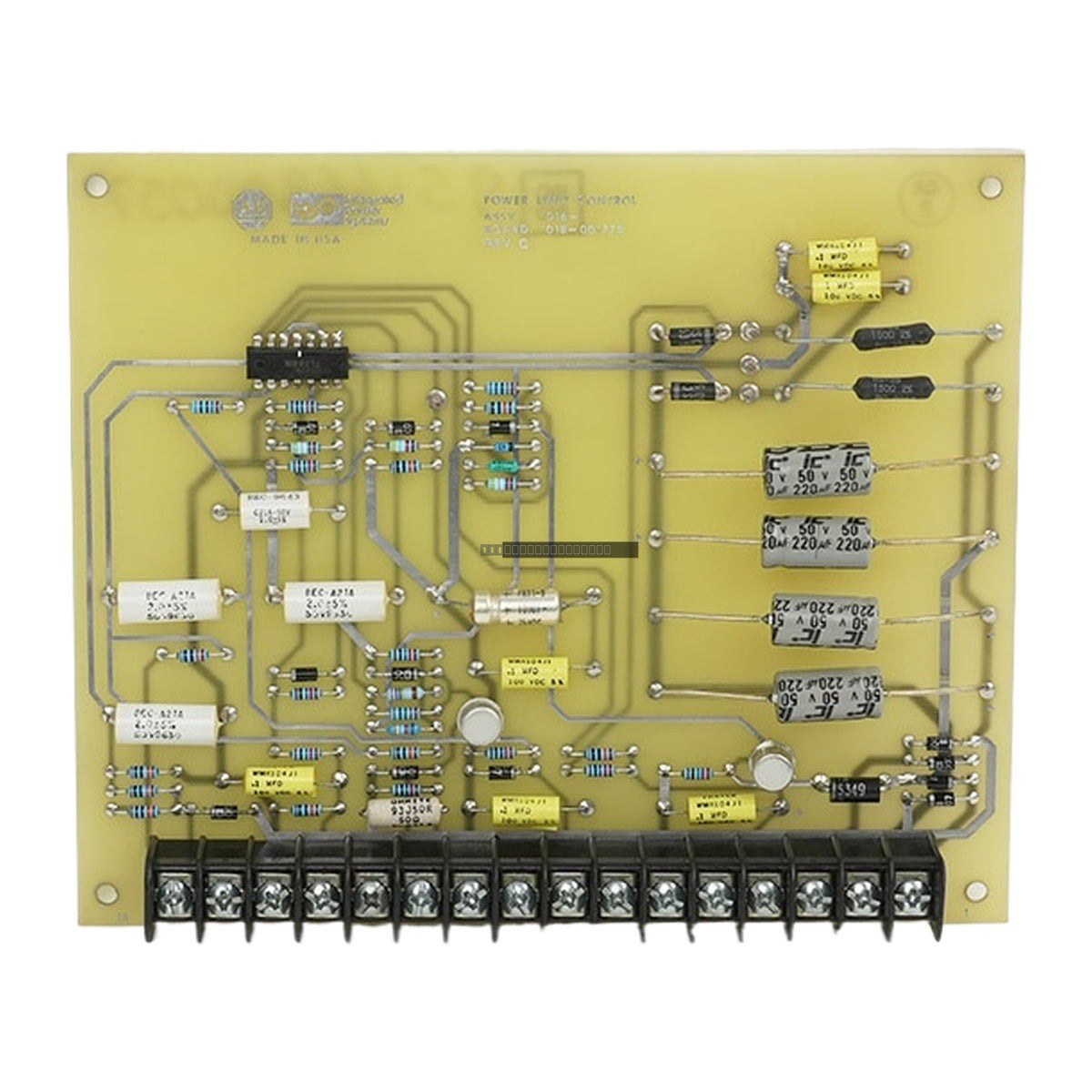

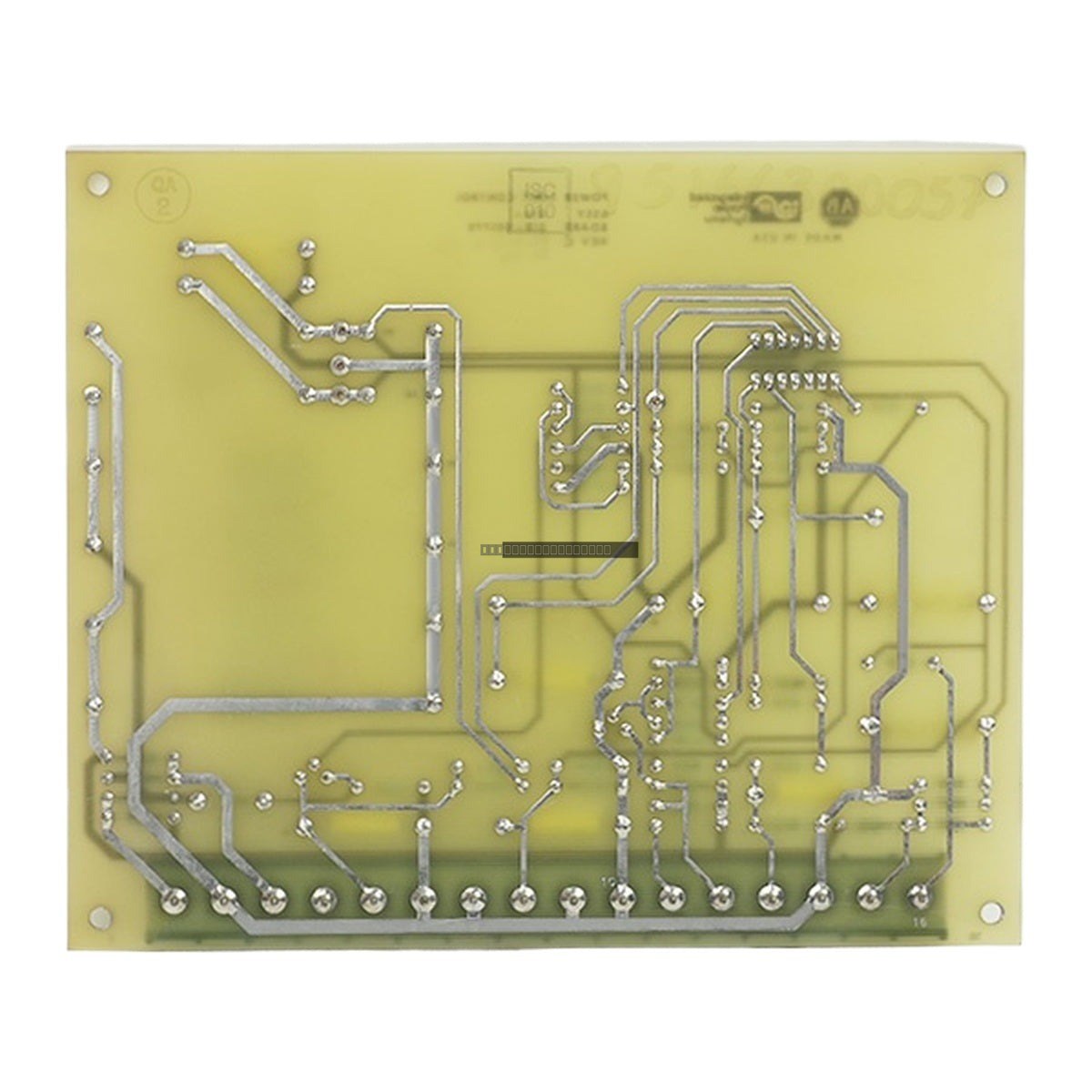

The Allen-Bradley 018-001770 is a Power Limit Control Board designed for use within integrated power systems, specifically compatible with the SLC 500 series architecture. This Rev C printed circuit board assembly serves as a critical component for managing power regulation and limiting functions within industrial control environments.

Features

• Designed for integration with SLC 500 power management systems.
• Rev C hardware revision for consistent performance and reliability.
• Compact PCB design optimized for internal system mounting.
• Supports standard 24V DC power supply requirements.

Technical Specifications

Installation Guidelines

• Ensure the main power supply is disconnected before attempting to install or remove the control board.
• Handle the PCB by its edges to prevent electrostatic discharge (ESD) damage to sensitive components.
• Verify that the board is correctly seated in the designated slot or mounting assembly to ensure proper electrical contact.
• Maintain adequate ventilation within the enclosure to keep the operating temperature within the specified 0 degC to +70 degC range.
• Route signal and power cables away from high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the 018-001770 board?
This board acts as a power limit control module, ensuring that power distribution within the integrated system remains within safe operating parameters.

Is this board compatible with all SLC 500 systems?
The 018-001770 is designed for specific power system configurations. Please verify your existing hardware revision and system requirements before installation.
